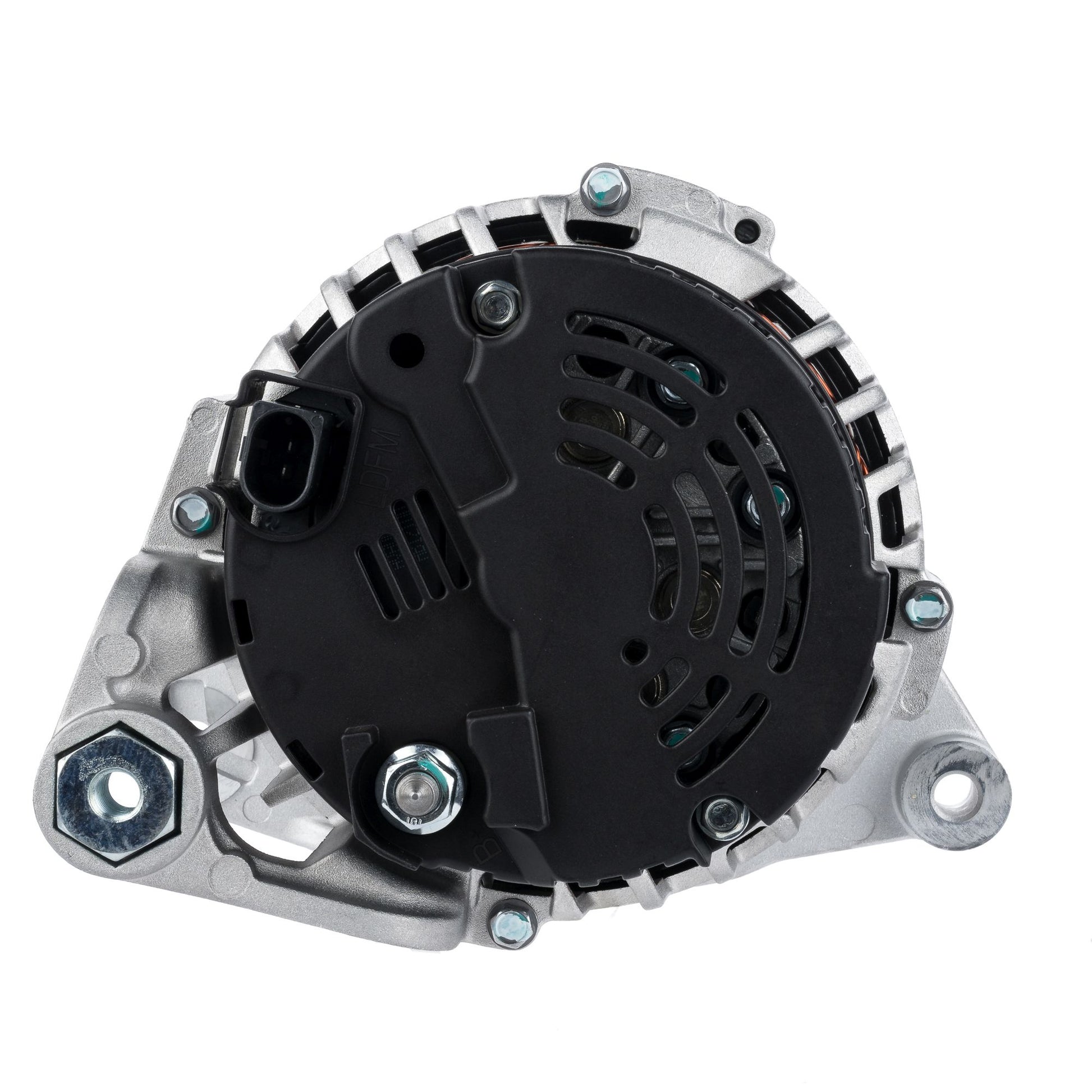

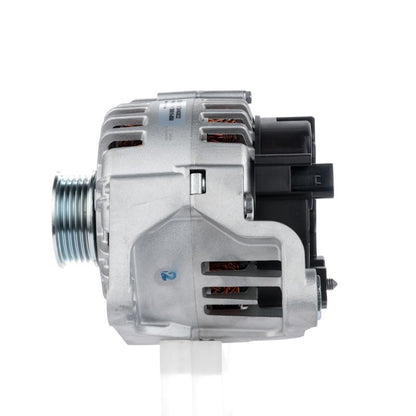

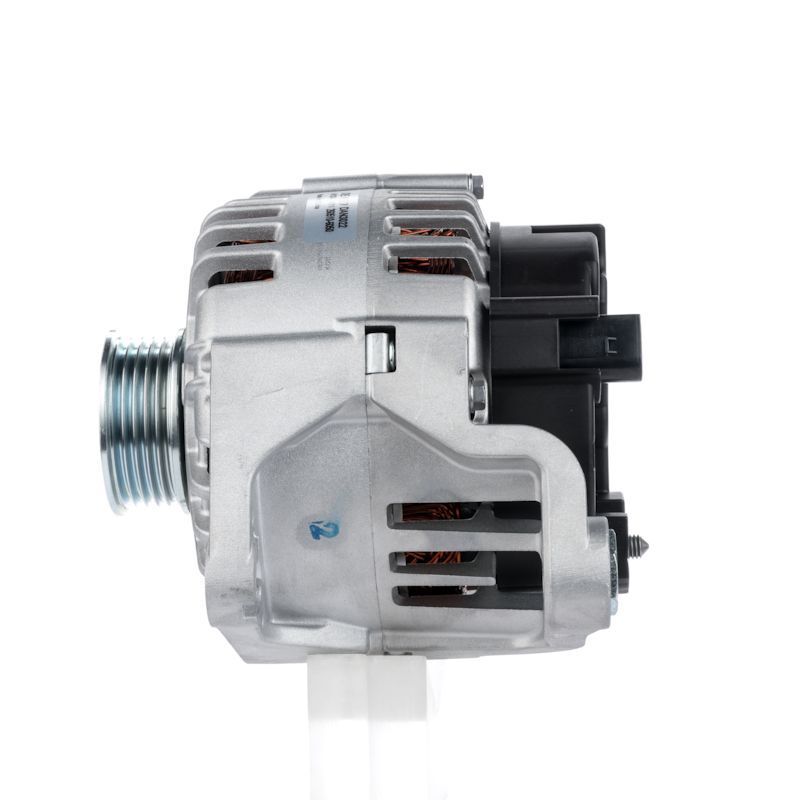

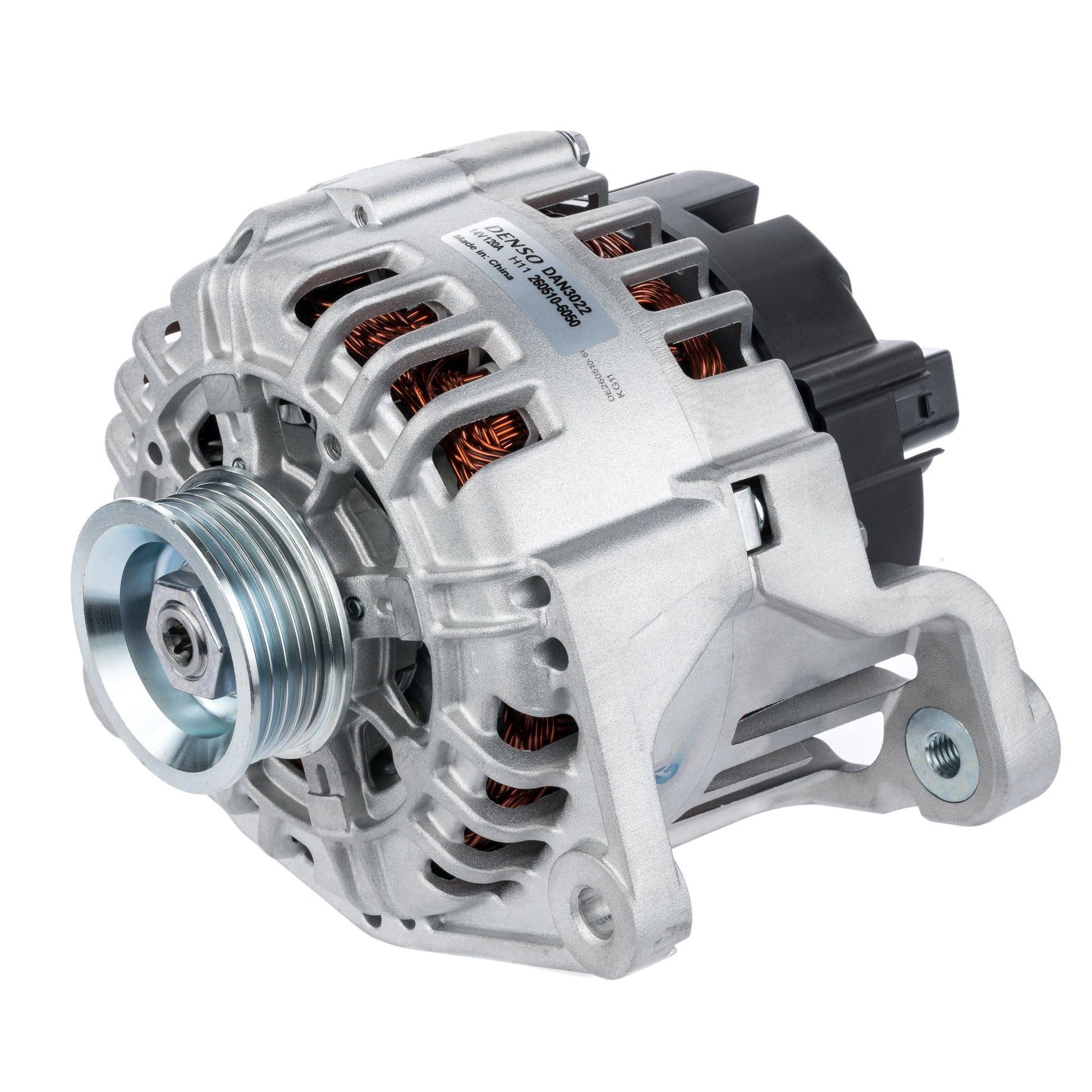

Denso Alternator DAN3022
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Alternator
- Alternator Charge Current (A): 120
- Belt Pulley Diameter (mm): 56
- Gross Weight (g): 6727
- Height Incl Packaging (mm): 180
- Indication Reman Part: New
- Length Incl Packaging (mm): 245
- MAM Section: Electrical
- Net Weight (g)_XC: 6307
- New part without deposit: Yes
- Number of ribs: 5
- Pulleys: with multi-belt pulley
- Quality: DENSO
- Vehicle Main Current: for vehicles with 12V main current
- Voltage: 14
- Voltage (V): 14
- Width Incl Packaging (mm): 210
Replaces OEM reference(s):
AUDI: 038 903 018 F, AUDI: 038903018F, AUDI: 06B 903 016 F, AUDI: 06B 903 016 G, AUDI: 06B903016F, AUDI: 06B903016G, SEAT: 038 903 018 F, SEAT: 038903018F, SKODA: 038 903 018 F, SKODA: 038903018F, SKODA: 06B 903 016 G, SKODA: 06B903016G, VW: 038 903 018 F, VW: 038903018F, VW: 06B 903 016 F, VW: 06B 903 016 G, VW: 06B 903 016 GX, VW: 06B903016F, VW: 06B903016G, VW: 06B903016GX
Replaces aftermarket reference(s):
BOSCH: 0986044310, BOSCH: 0 986 044 310, BOSCH: 1 986 A00 840, BOSCH: 1986A00840, DENSO: 2605106050, DENSO: 260510-6050, ELSTOCK: 283868, ELSTOCK: 28-3868, LUCAS ELECTRICAL: LRA01969, VALEO: 437176, VALEO: 439263, VALEO: SG12B018, WAI: 13951N
