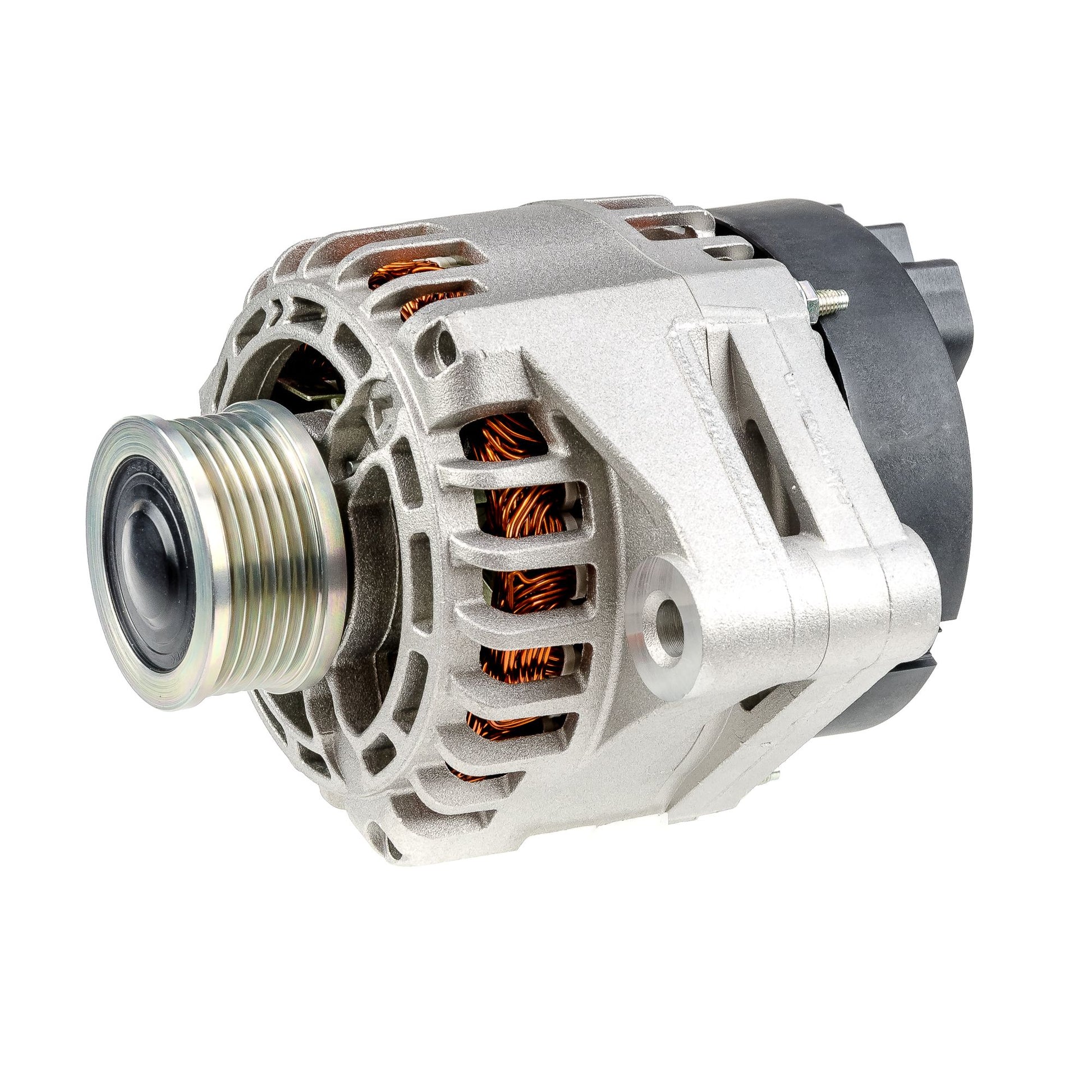

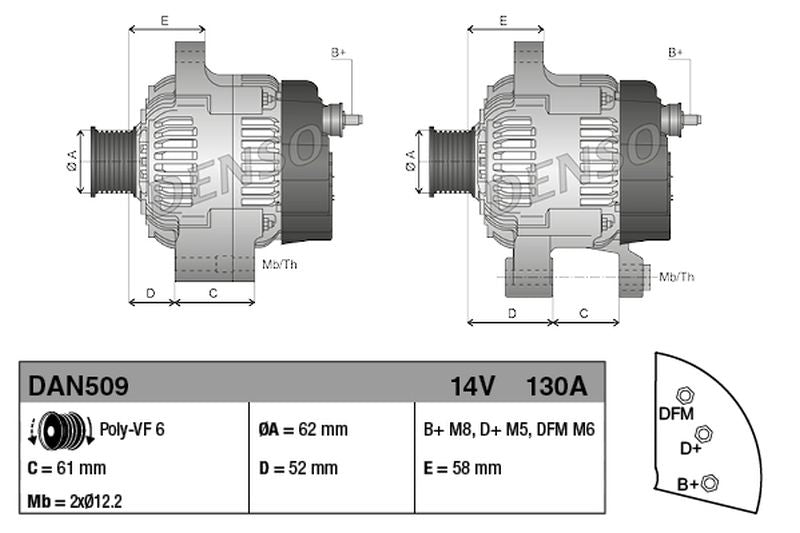

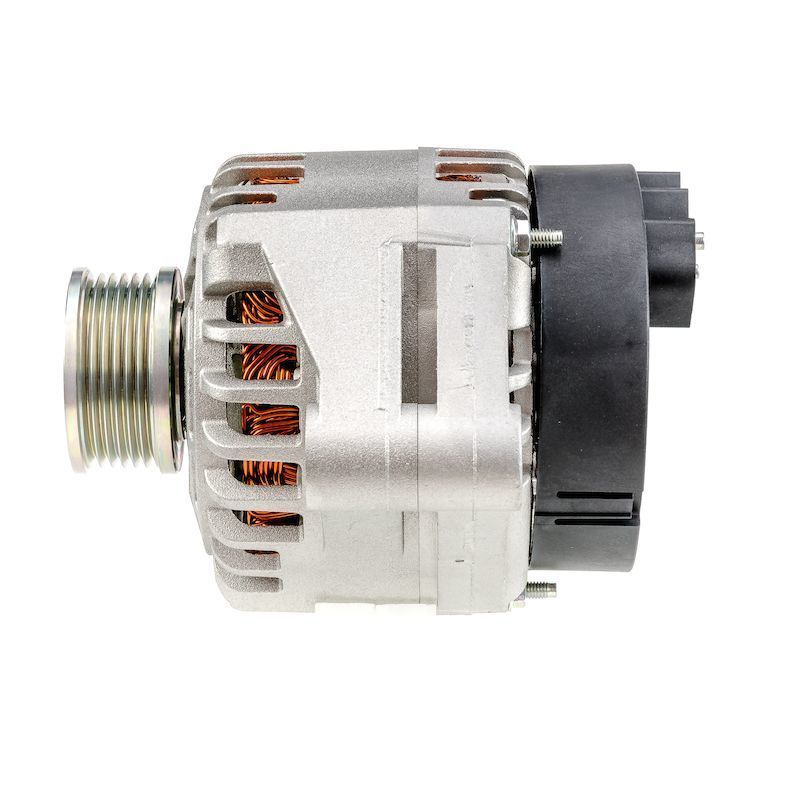

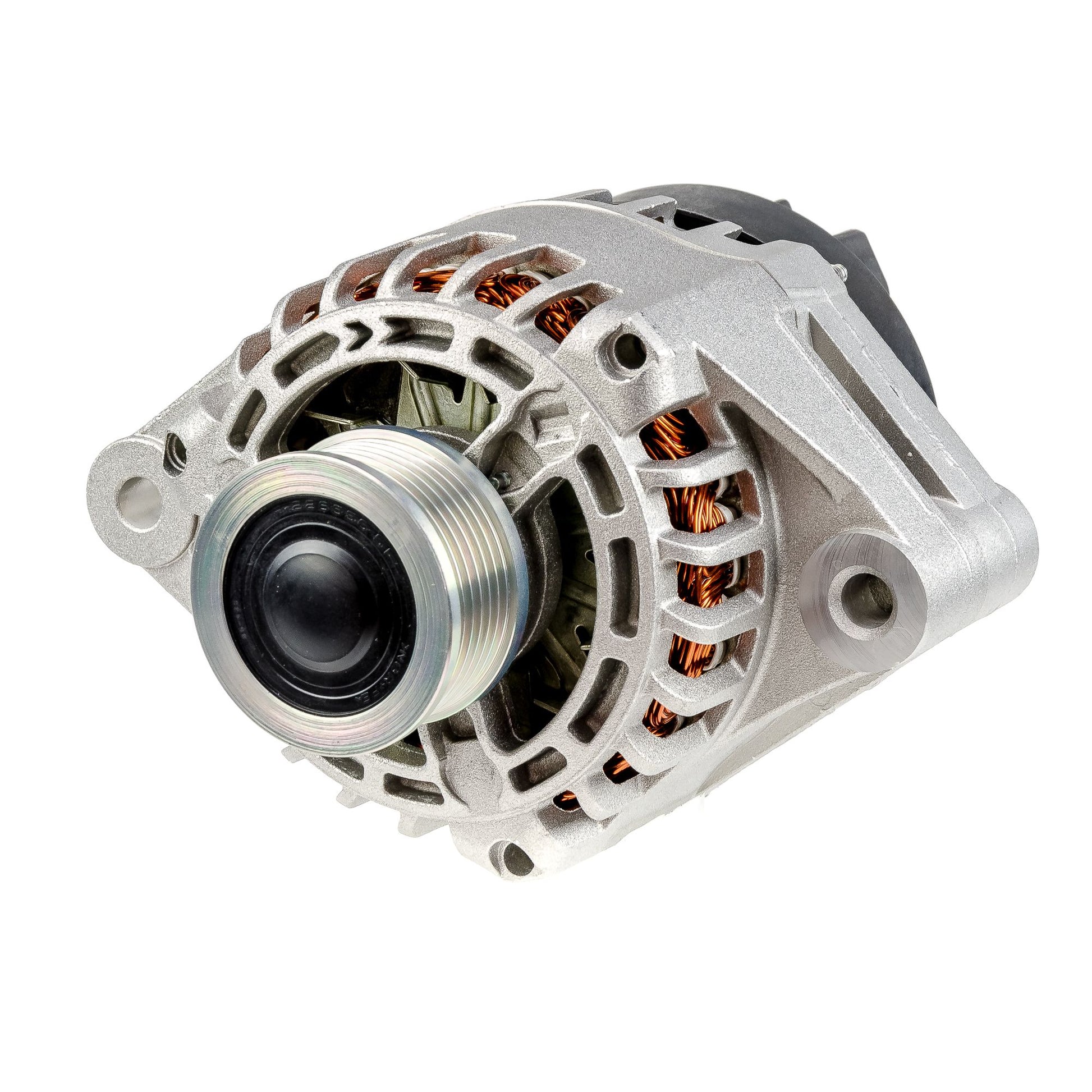

Denso Alternator DAN509
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Alternator
- Alternator Charge Current (A): 130
- Belt Pulley Diameter (mm): 62
- Gross Weight (g): 7120
- Height Incl Packaging (mm): 180
- Indication Reman Part: New
- Length Incl Packaging (mm): 245
- MAM Section: Electrical
- Net Weight (g)_XC: 6700
- New part without deposit: Yes
- Number of ribs: 6
- Pulleys: with free-wheel belt pulley
- Quality: DENSO
- Vehicle Main Current: for vehicles with 12V main current
- Voltage: 14
- Voltage (V): 14
- Width Incl Packaging (mm): 210
Replaces OEM reference(s):
OPEL: 1204434, OPEL: 6204189, OPEL: 9562208, OPEL: 13153236, OPEL: 93169030, OPEL: 93169259, OPEL: 93180104, SAAB: 13153236, SAAB: 93180104, VAUXHALL: R1530099
Replaces aftermarket reference(s):
BOSCH: 0986048801, BOSCH: 0986048803, BOSCH: 0 986 048 801, BOSCH: 0 986 048 803, DENSO: 1022118660, DENSO: 1022118661, DENSO: 1022118662, DENSO: 102211-8660, DENSO: 102211-8661, DENSO: 102211-8662, ELSTOCK: 285560, ELSTOCK: 28-5560, HELLA: 8EL011711631, LUCAS ELECTRICAL: LRA02946, MAGNETI MARELLI: 063377491010, MAGNETI MARELLI: MAN7491, REMY: DRA4264, REMY: RAA15375
