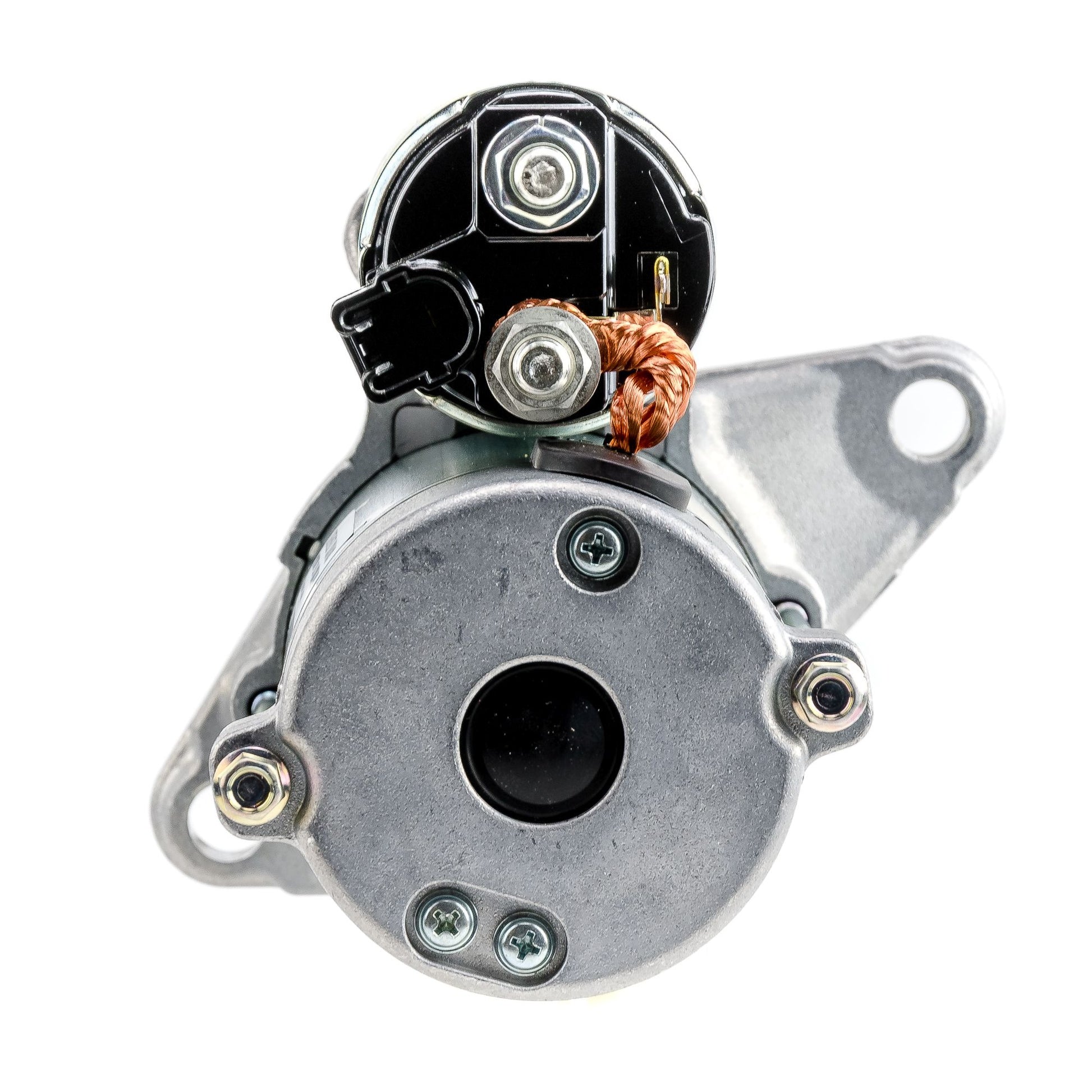

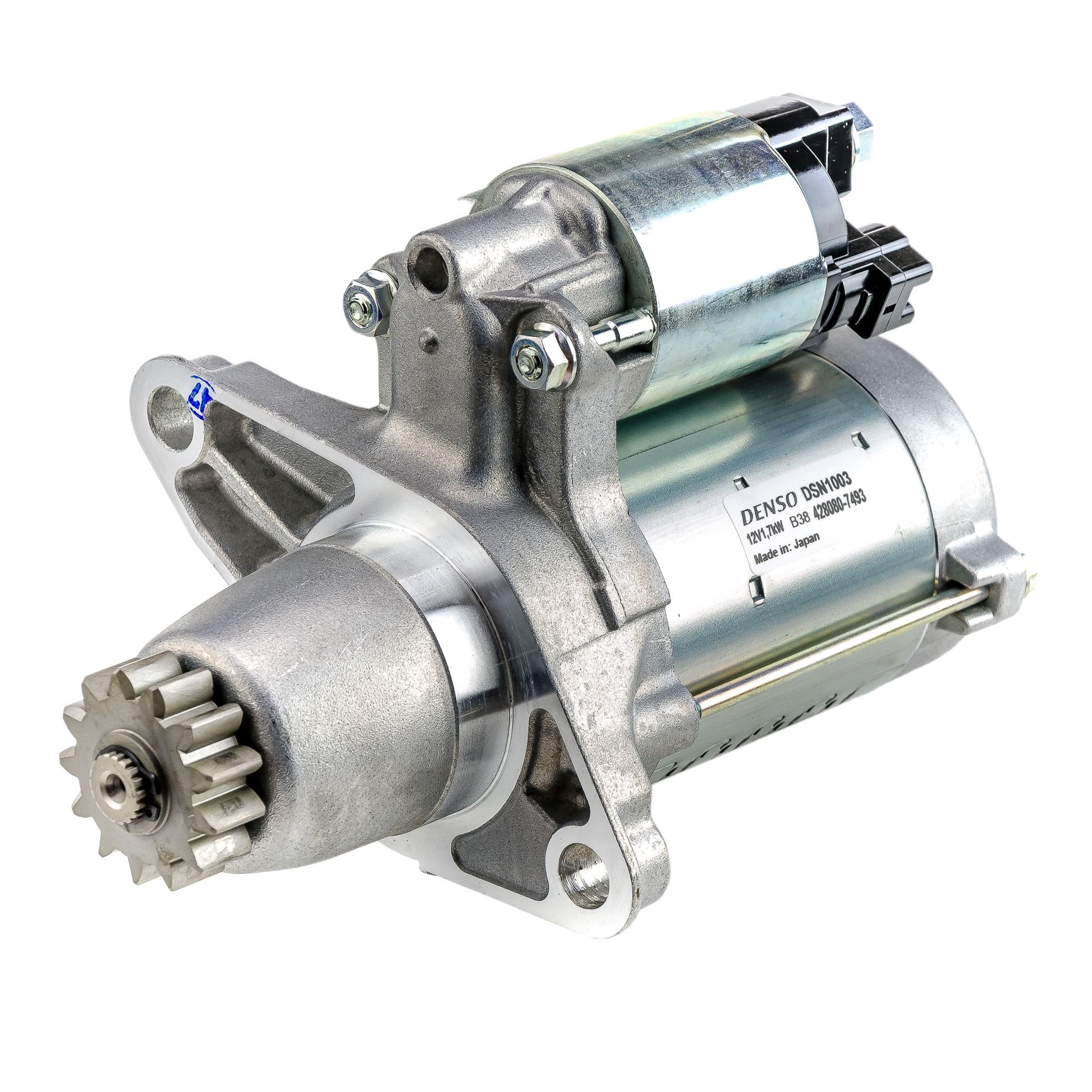

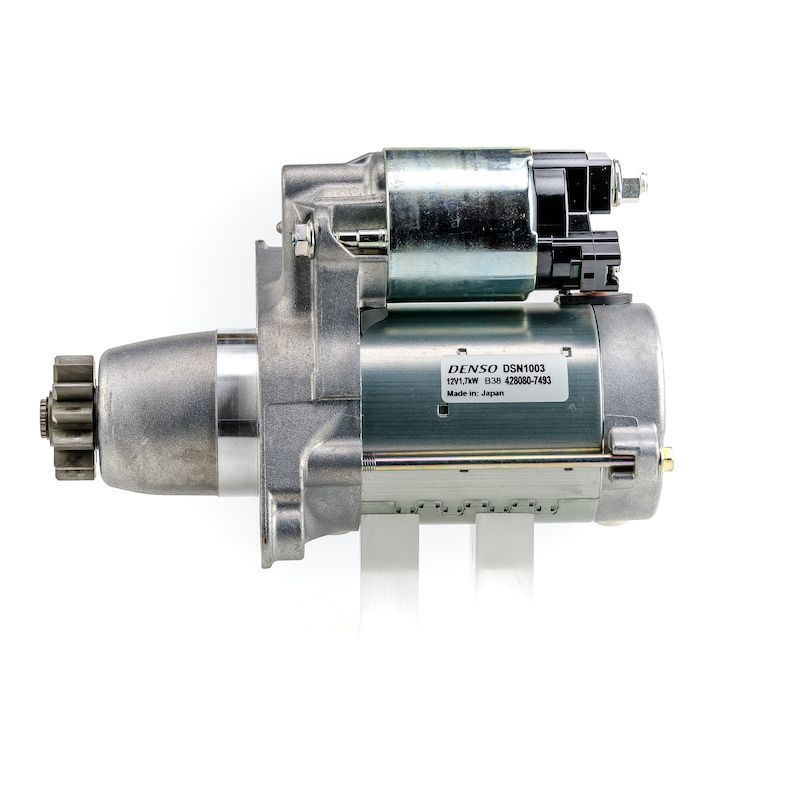

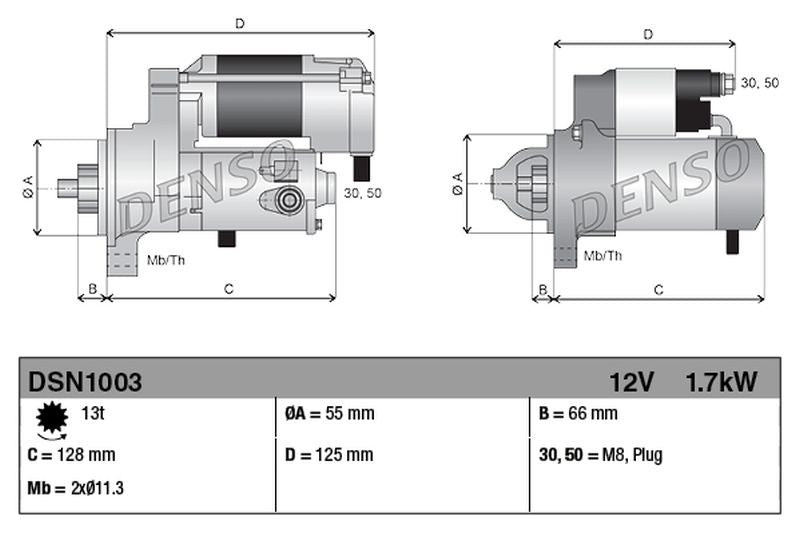

Denso Starter Motor DSN1003
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Base OE Number: 28100-28072
- Gross Weight (g): 3290
- Height Incl Packaging (mm): 145
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 2930
- New part without deposit: Yes
- Number of teeth: 13
- Quality: DENSO
- Rated Power (kW): 1.7
- Rotation Direction: Anti-clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
TOYOTA: 2810020020, TOYOTA: 2810020021, TOYOTA: 2810020022, TOYOTA: 2810028041, TOYOTA: 2810028042, TOYOTA: 2810028050, TOYOTA: 2810028051, TOYOTA: 2810028052, TOYOTA: 2810028053, TOYOTA: 2810028060, TOYOTA: 2810028061, TOYOTA: 2810028062, TOYOTA: 2810028070, TOYOTA: 2810028071, TOYOTA: 2810028072, TOYOTA: 2810028080, TOYOTA: 2810028081, TOYOTA: 2810028082, TOYOTA: 2810031100, TOYOTA: 2810031101, TOYOTA: 2810031102, TOYOTA: 28100-20020, TOYOTA: 28100-20021, TOYOTA: 28100-20022, TOYOTA: 28100-28041, TOYOTA: 28100-28042, TOYOTA: 28100-28050, TOYOTA: 28100-28051, TOYOTA: 28100-28052, TOYOTA: 28100-28053, TOYOTA: 28100-28060, TOYOTA: 28100-28061, TOYOTA: 28100-28062, TOYOTA: 28100-28070, TOYOTA: 28100-28071, TOYOTA: 28100-28072, TOYOTA: 28100-28080, TOYOTA: 28100-28081, TOYOTA: 28100-28082, TOYOTA: 28100-31100, TOYOTA: 28100-31101, TOYOTA: 28100-31102
Replaces aftermarket reference(s):
DENSO: 2280009900, DENSO: 2280009901, DENSO: 2280009902, DENSO: 2280009903, DENSO: 2280009904, DENSO: 4280000150, DENSO: 4280000151, DENSO: 4280000152, DENSO: 4280000153, DENSO: 4280001840, DENSO: 4280001841, DENSO: 4280001842, DENSO: 4280001843, DENSO: 4280003090, DENSO: 4280003091, DENSO: 4280003092, DENSO: 4280005870, DENSO: 4280005871, DENSO: 4280005880, DENSO: 4280005881, DENSO: 4280005890, DENSO: 4280005900, DENSO: 4280005901, DENSO: 4280005902, DENSO: 4280005903, DENSO: 4280005904, DENSO: 4280007480, DENSO: 4280007481, DENSO: 4280007482, DENSO: 4280007483, DENSO: 4280007490, DENSO: 4280007491, DENSO: 4280007492, DENSO: 4280007493, DENSO: 4280007500, DENSO: 4280007501, DENSO: 4280007502, DENSO: 4280007503, DENSO: 4280807493, DENSO: 4280807504, DENSO: 228000-9900, DENSO: 228000-9901, DENSO: 228000-9902, DENSO: 228000-9903, DENSO: 228000-9904, DENSO: 428000-0150, DENSO: 428000-0151, DENSO: 428000-0152, DENSO: 428000-0153, DENSO: 428000-1840, DENSO: 428000-1841, DENSO: 428000-1842, DENSO: 428000-1843, DENSO: 428000-3090, DENSO: 428000-3091, DENSO: 428000-3092, DENSO: 428000-5870, DENSO: 428000-5871, DENSO: 428000-5880, DENSO: 428000-5881, DENSO: 428000-5890, DENSO: 428000-5900, DENSO: 428000-5901, DENSO: 428000-5902, DENSO: 428000-5903, DENSO: 428000-5904, DENSO: 428000-7480, DENSO: 428000-7481, DENSO: 428000-7482, DENSO: 428000-7483, DENSO: 428000-7490, DENSO: 428000-7491, DENSO: 428000-7492, DENSO: 428000-7493, DENSO: 428000-7500, DENSO: 428000-7501, DENSO: 428000-7502, DENSO: 428000-7503, DENSO: 428080-7493, DENSO: 428080-7504, ELSTOCK: 253432, ELSTOCK: 253465, ELSTOCK: 254099, ELSTOCK: 25-3432, ELSTOCK: 25-3465, ELSTOCK: 25-4099, LUCAS ELECTRICAL: LRS02261, LUCAS ELECTRICAL: LRS02294, LUCAS ELECTRICAL: LRS02427
