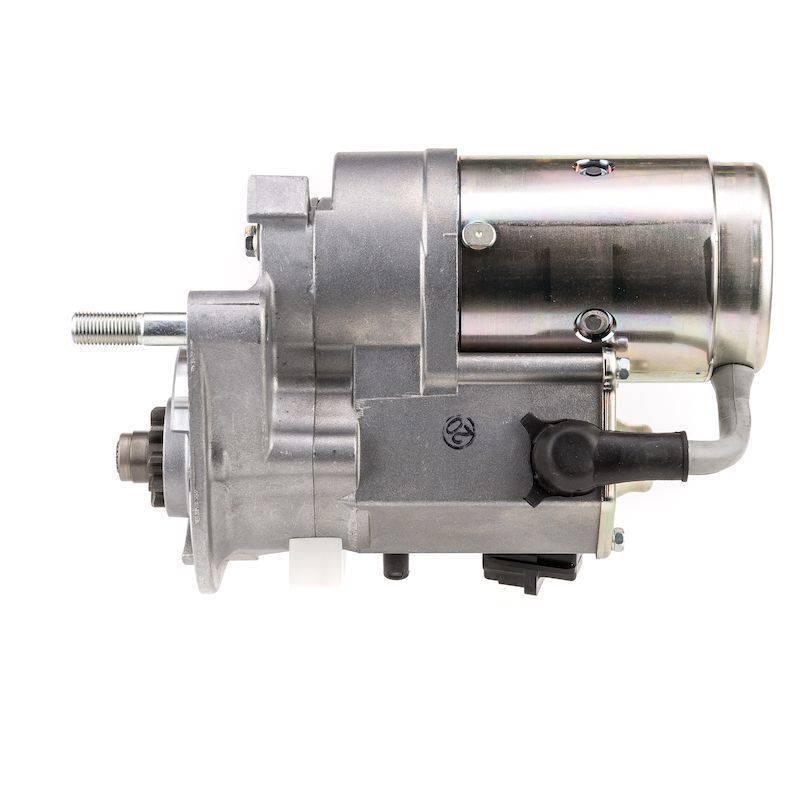

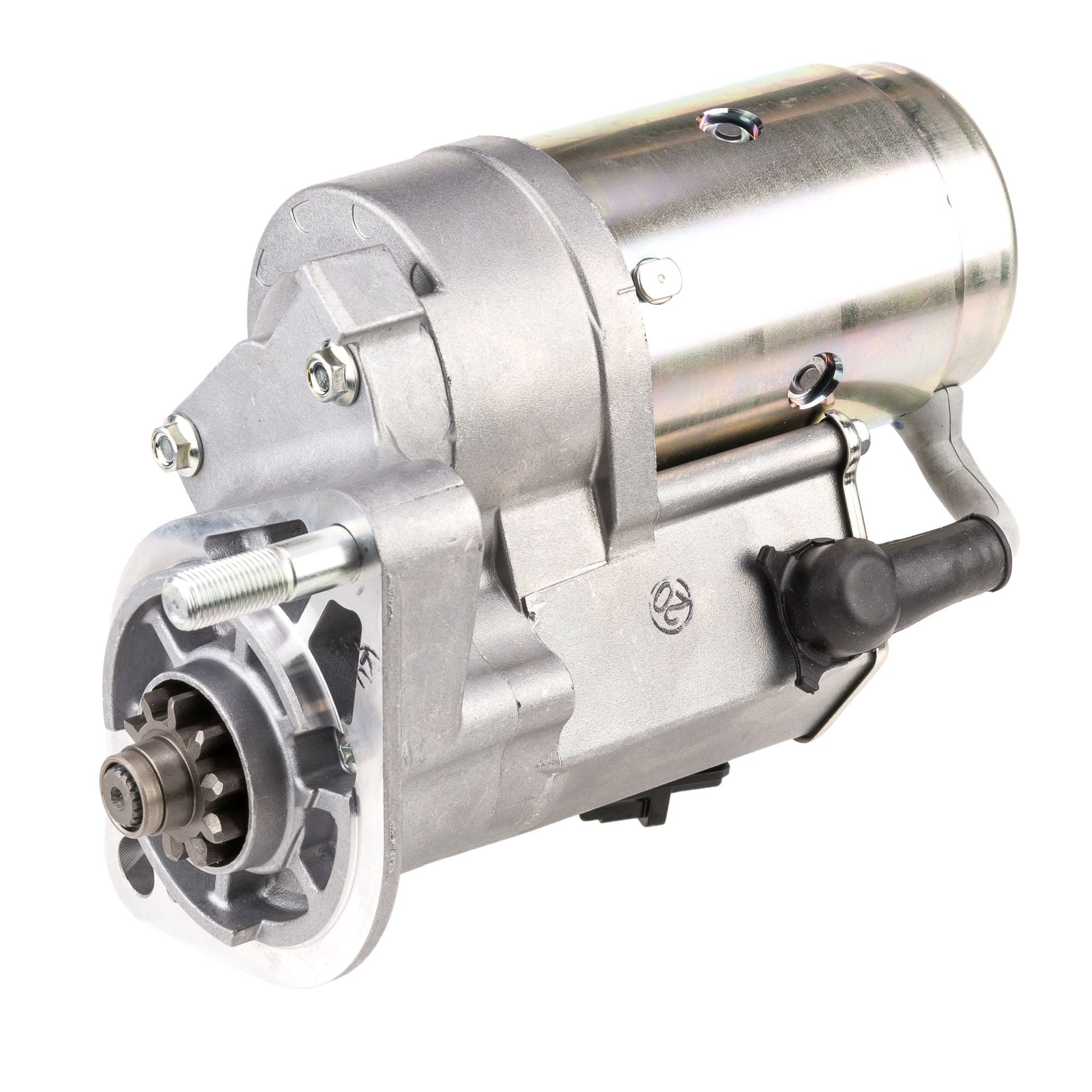

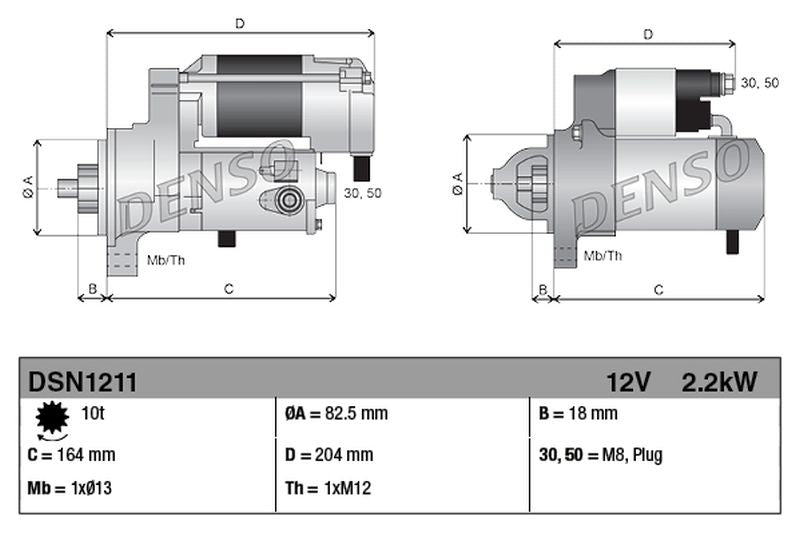

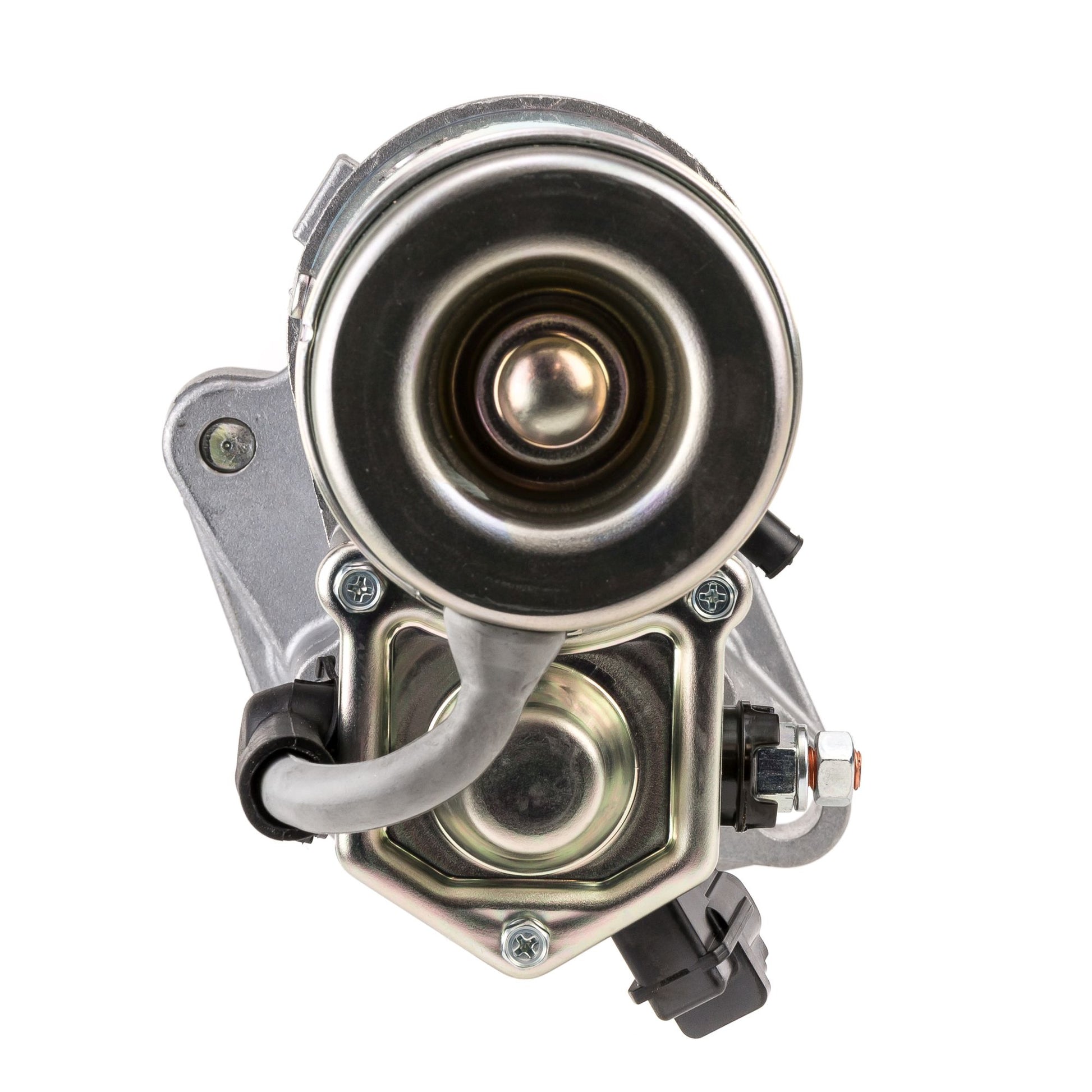

Denso Starter Motor DSN1211
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Base OE Number: 28100-67052
- Gross Weight (g): 6460
- Height Incl Packaging (mm): 145
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 6100
- New part without deposit: Yes
- Number of teeth: 10
- Quality: DENSO
- Rated Power (kW): 2.2
- Rotation Direction: Clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
TOYOTA: 2810067050, TOYOTA: 2810067051, TOYOTA: 2810067052, TOYOTA: 28100-67050, TOYOTA: 28100-67051, TOYOTA: 28100-67052
Replaces aftermarket reference(s):
BOSCH: 0986020601, BOSCH: 0 986 020 601, DENSO: 2280005020, DENSO: 2280005021, DENSO: 2280005022, DENSO: 2280005023, DENSO: 2280005024, DENSO: 2280005025, DENSO: 2280805024, DENSO: 228000-5020, DENSO: 228000-5021, DENSO: 228000-5022, DENSO: 228000-5023, DENSO: 228000-5024, DENSO: 228000-5025, DENSO: 228080-5024, ELSTOCK: 252447, ELSTOCK: 25-2447, HELLA: 8EA011610651, LUCAS ELECTRICAL: LRS01497
