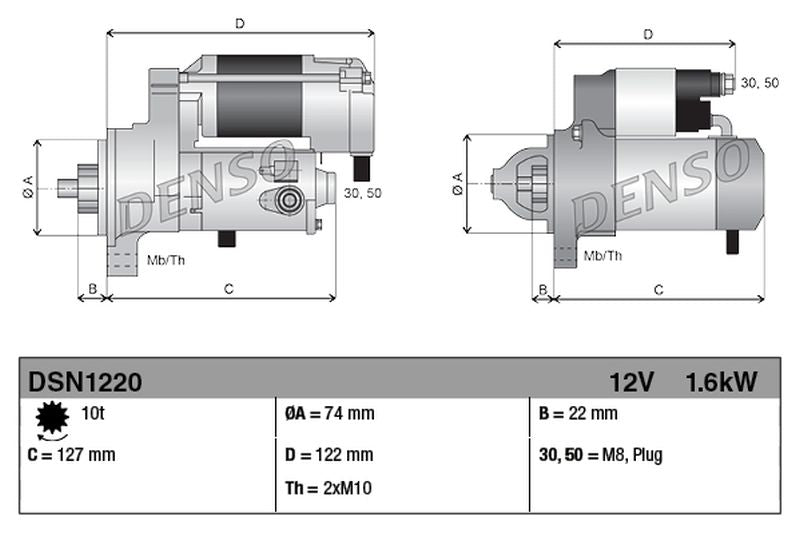

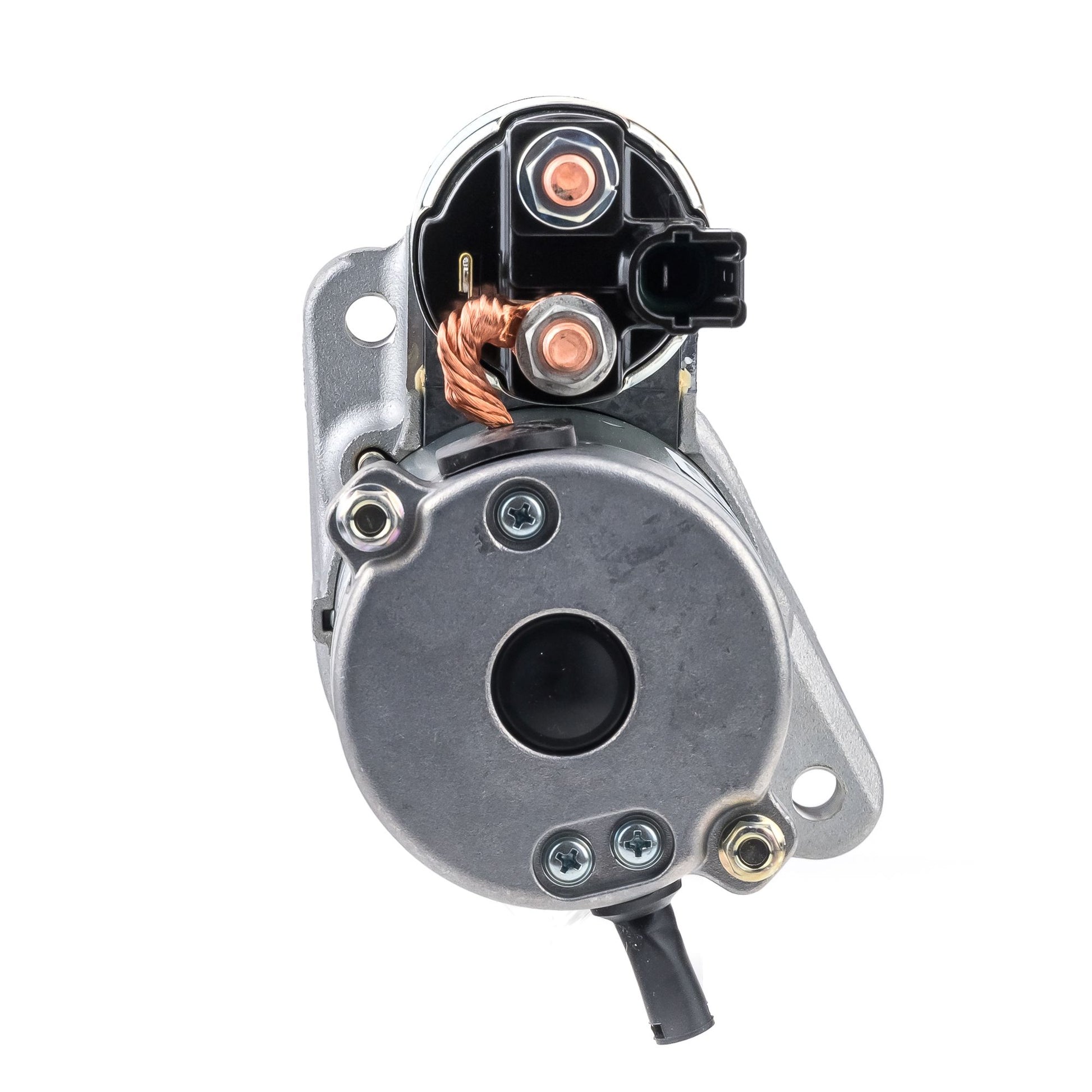

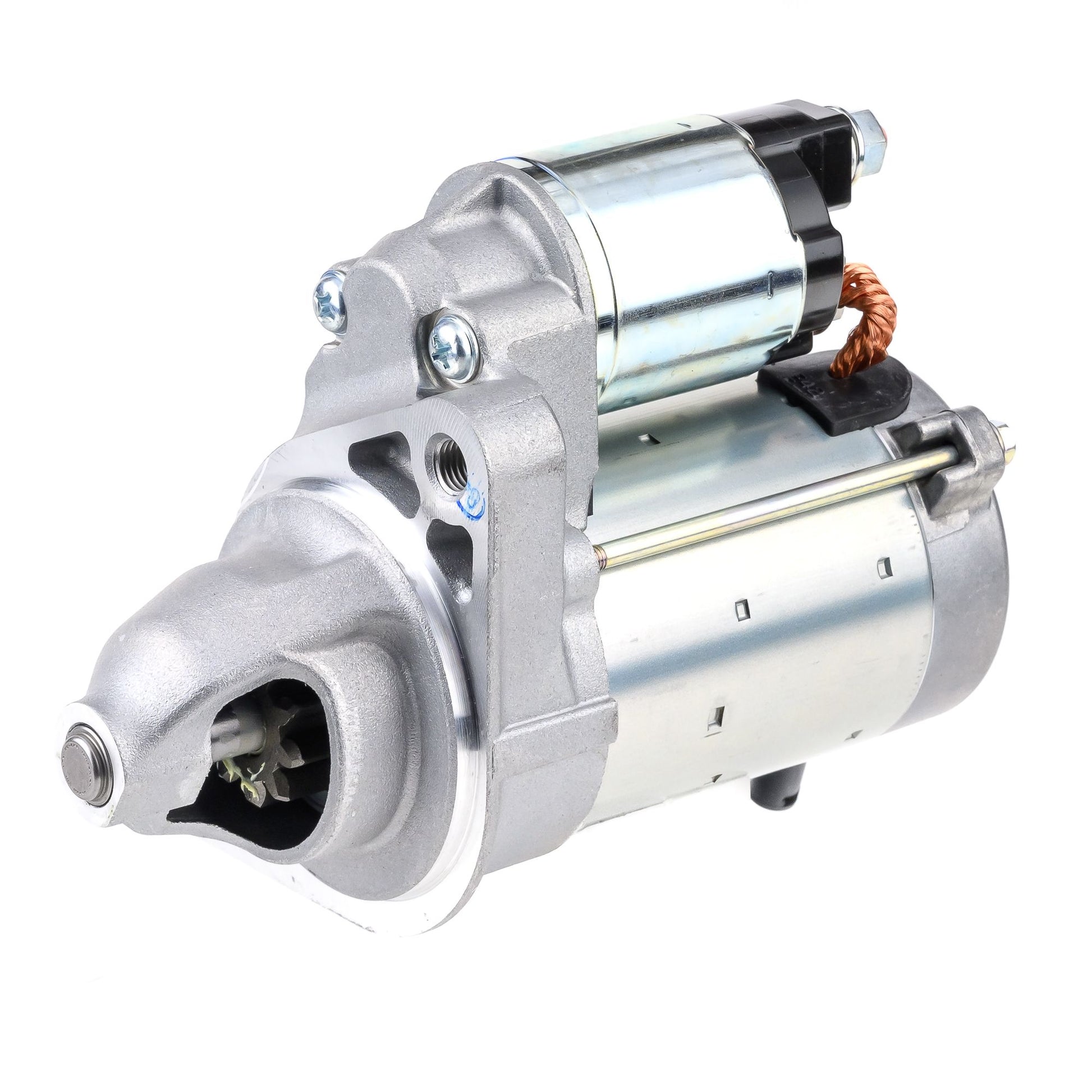

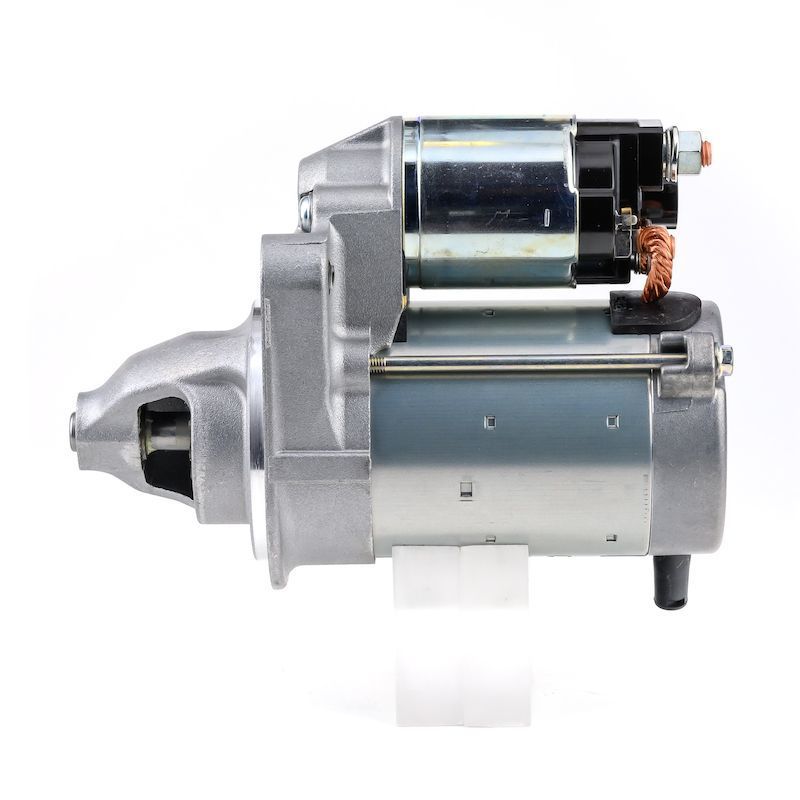

Denso Starter Motor DSN1220
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Base OE Number: 28100-31041
- Gross Weight (g): 3160
- Height Incl Packaging (mm): 145
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 2800
- New part without deposit: Yes
- Number of teeth: 10
- Quality: DENSO
- Rated Power (kW): 1.6
- Rotation Direction: Clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
TOYOTA: 2810031040, TOYOTA: 2810031041, TOYOTA: 28100-31040, TOYOTA: 28100-31041
Replaces aftermarket reference(s):
DENSO: 4280001240, DENSO: 4280001241, DENSO: 4280001242, DENSO: 4280001243, DENSO: 4280801243, DENSO: 428000-1240, DENSO: 428000-1241, DENSO: 428000-1242, DENSO: 428000-1243, DENSO: 428080-1243
