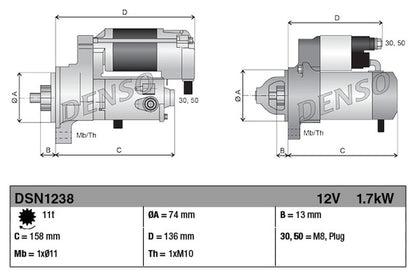

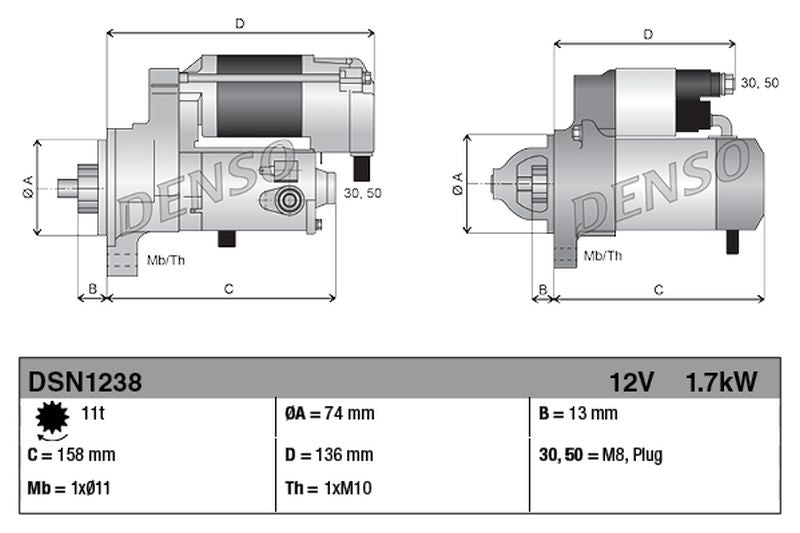

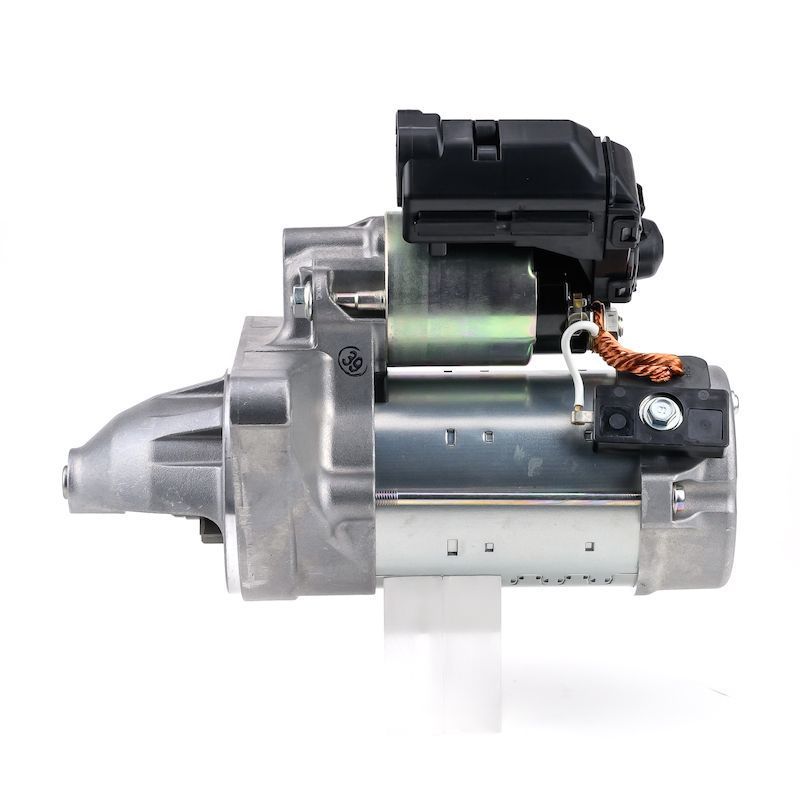

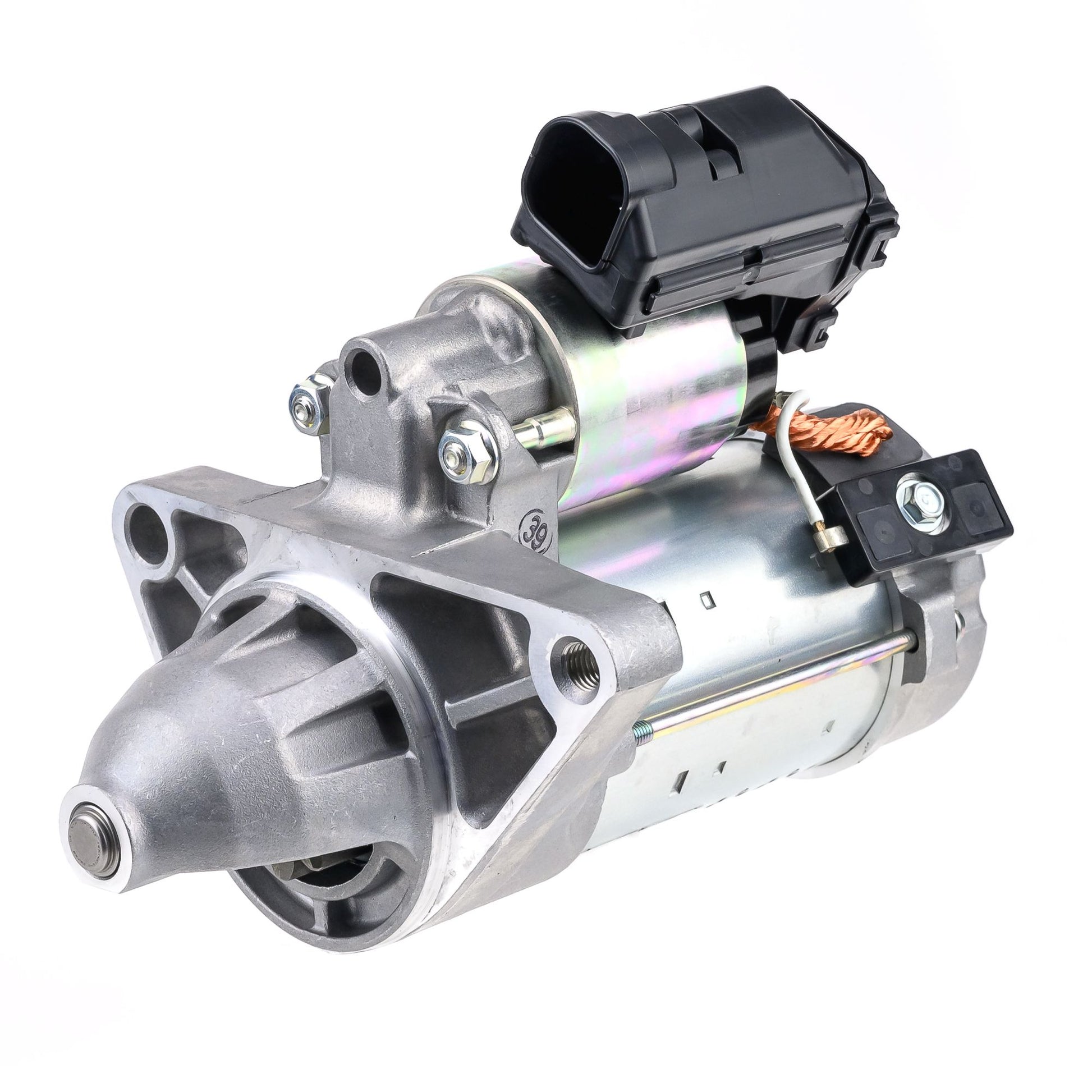

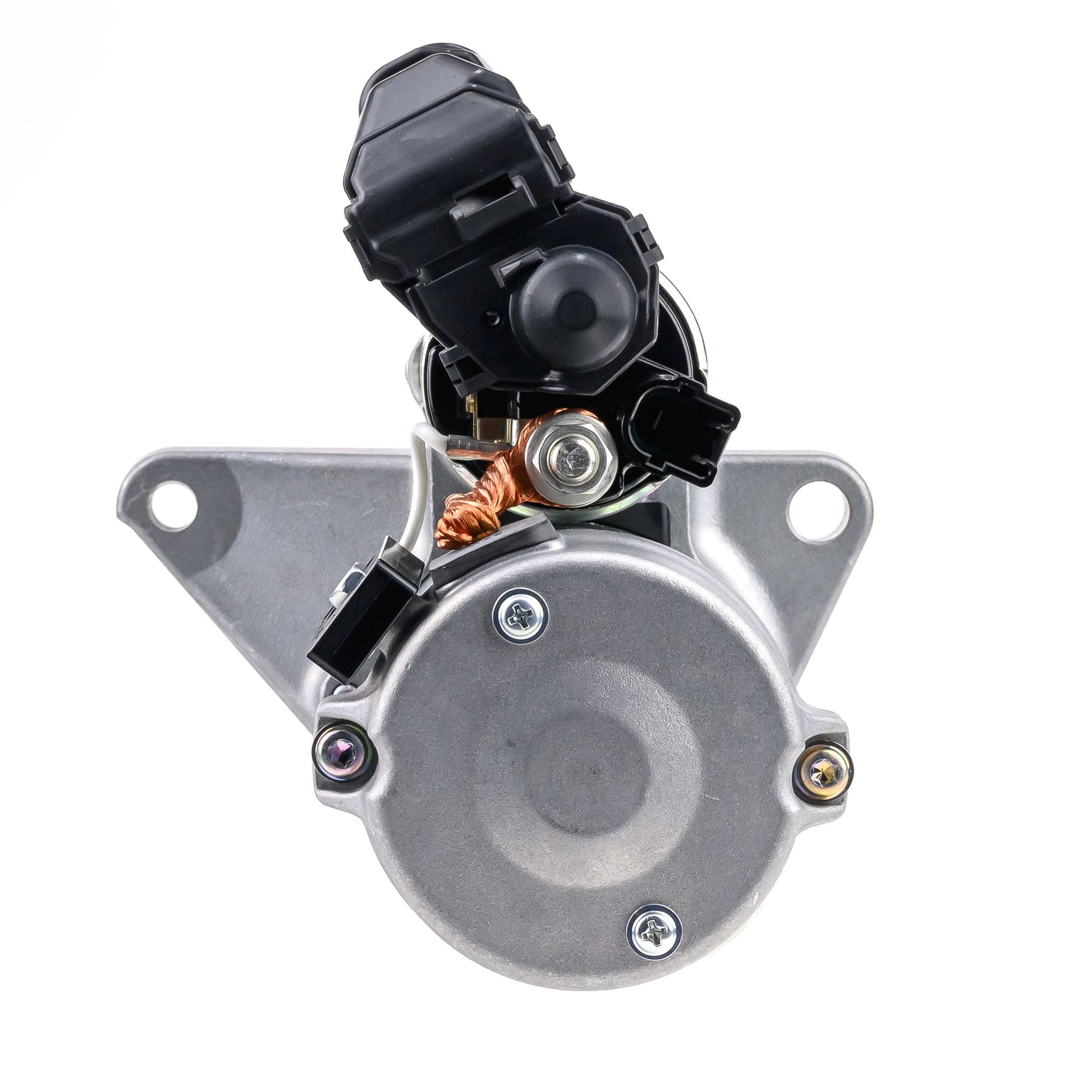

Denso Starter Motor DSN1238
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Base OE Number: 28100-0N121
- Country Restriction: EU Only (BER);Exclude Except Europe;Exclude Armenia;Exclude Georgia;Exclude Kazakhstan;Exclude Middle East;Exclude Palestine;Exclude Russia;Exclude Serbia;Exclude Ukraine;Exclude Tajikistan;Exclude Turkmenistan
- Gross Weight (g): 3760
- Height Incl Packaging (mm): 145
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 3400
- New part without deposit: Yes
- Number of teeth: 11
- Quality: DENSO
- Rated Power (kW): 1.7
- Rotation Direction: Clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
TOYOTA: 281000N120, TOYOTA: 28100-0N120, TOYOTA: 281000N121, TOYOTA: 28100-0N121
Replaces aftermarket reference(s):
DENSO: 4280009070, DENSO: 4280009071, DENSO: 4280009072, DENSO: 4280009073, DENSO: 4280809073, DENSO: 428000-9070, DENSO: 428000-9071, DENSO: 428000-9072, DENSO: 428000-9073, DENSO: 428080-9073, ELSTOCK: 255101, ELSTOCK: 25-5101, LUCAS ELECTRICAL: LRS03941
