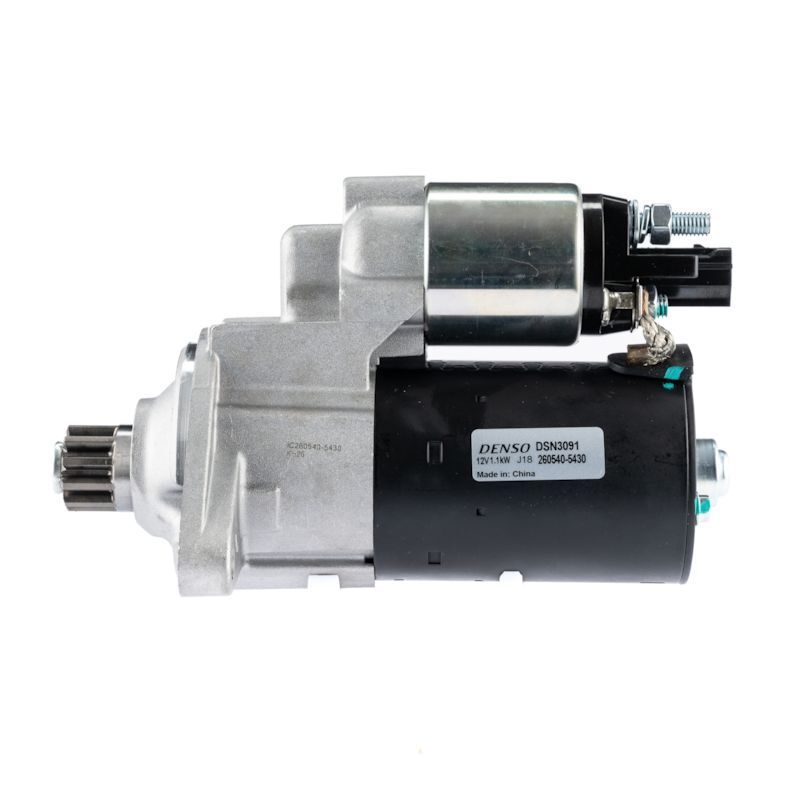

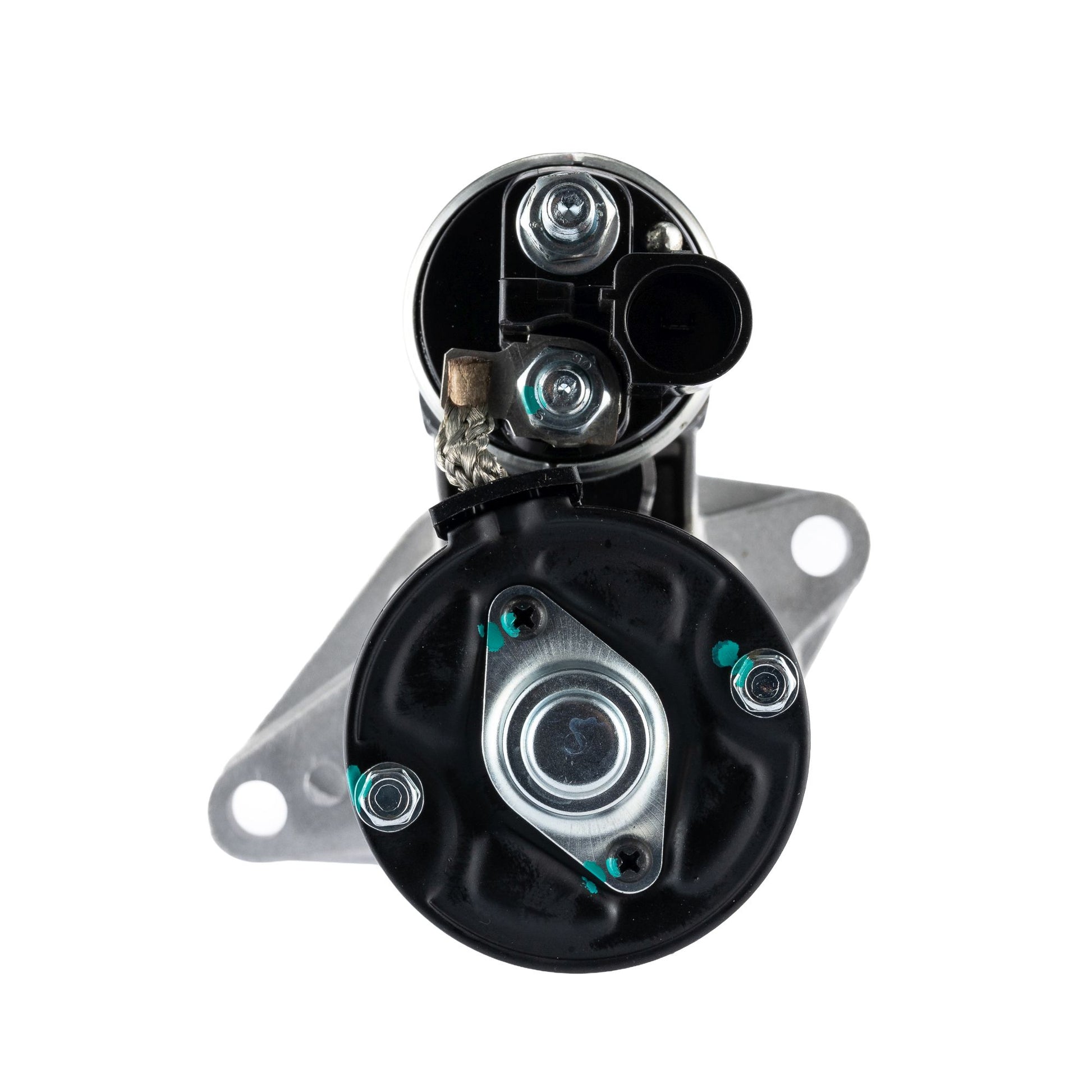

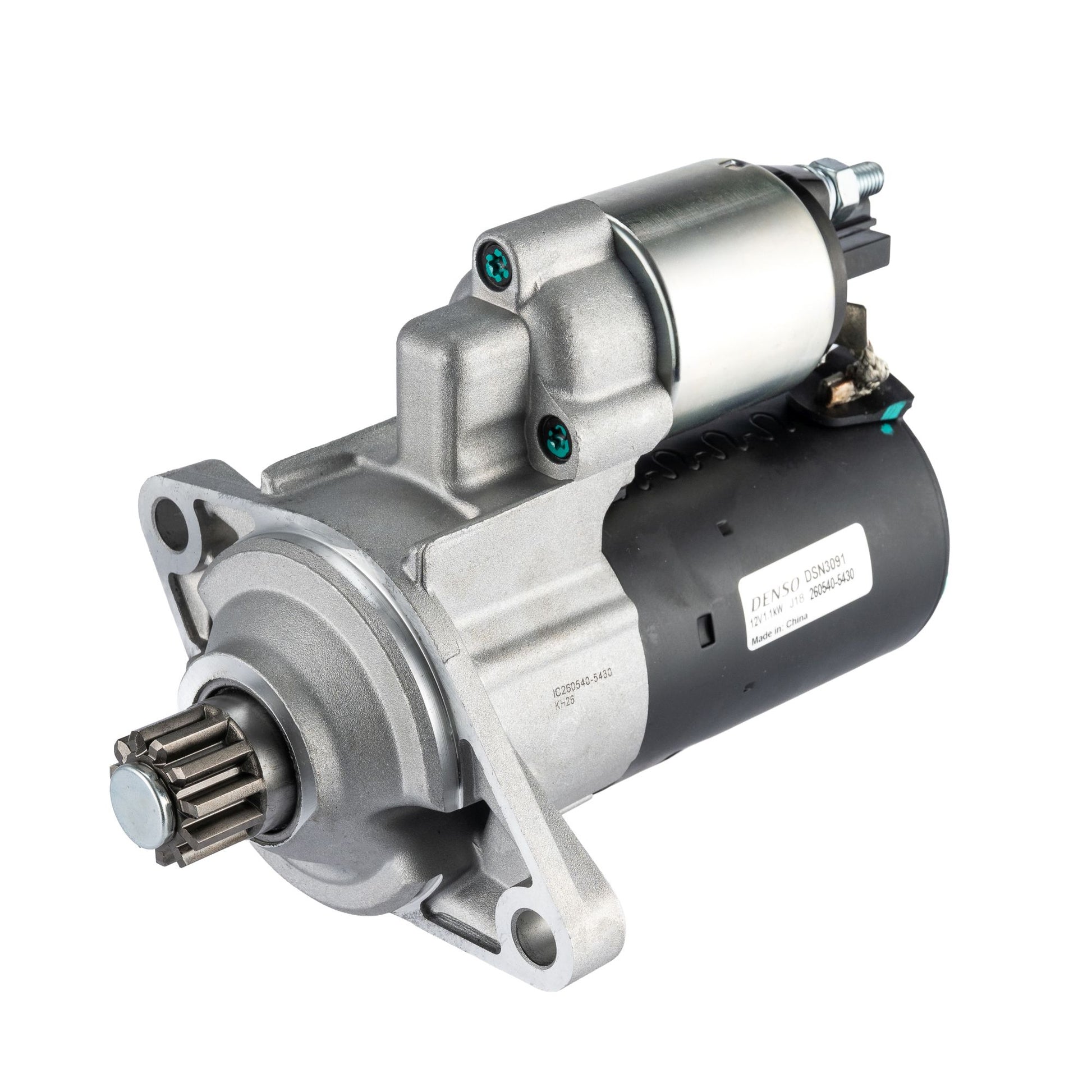

Denso Starter Motor DSN3091
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Gross Weight (g): 3360
- Height Incl Packaging (mm): 145
- Indication Reman Part: New
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 3000
- New Part: Yes
- Number of teeth: 11
- Quality: DENSO
- Rated Power (kW): 1.1
- Rotation Direction: Anti-clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
AUDI: 02E 911 023 S, AUDI: 02E 911 023 SX, AUDI: 02E911023S, AUDI: 02E911023SX, SEAT: 02E 911 023 S, SEAT: 02E 911 023 SX, SEAT: 02E911023S, SEAT: 02E911023SX, SKODA: 02E 911 023 S, SKODA: 02E 911 023 SX, SKODA: 02E911023S, SKODA: 02E911023SX, VW: 02E 911 023 S, VW: 02E 911 023 SX, VW: 02E911023S, VW: 02E911023SX
Replaces aftermarket reference(s):
BOSCH: 0001121435, BOSCH: 0001121436, BOSCH: 0986025360, BOSCH: 0 001 121 435, BOSCH: 0 001 121 436, BOSCH: 0 986 025 360, BOSCH: 1 986 S00 791, BOSCH: 1986S00791, DENSO: 2605405430, DENSO: 260540-5430, ELSTOCK: 254219, ELSTOCK: 25-4219, LUCAS ELECTRICAL: LRS02547, VALEO: 438432, VALEO: 438603, VALEO: 458932, WAI: 19214N
