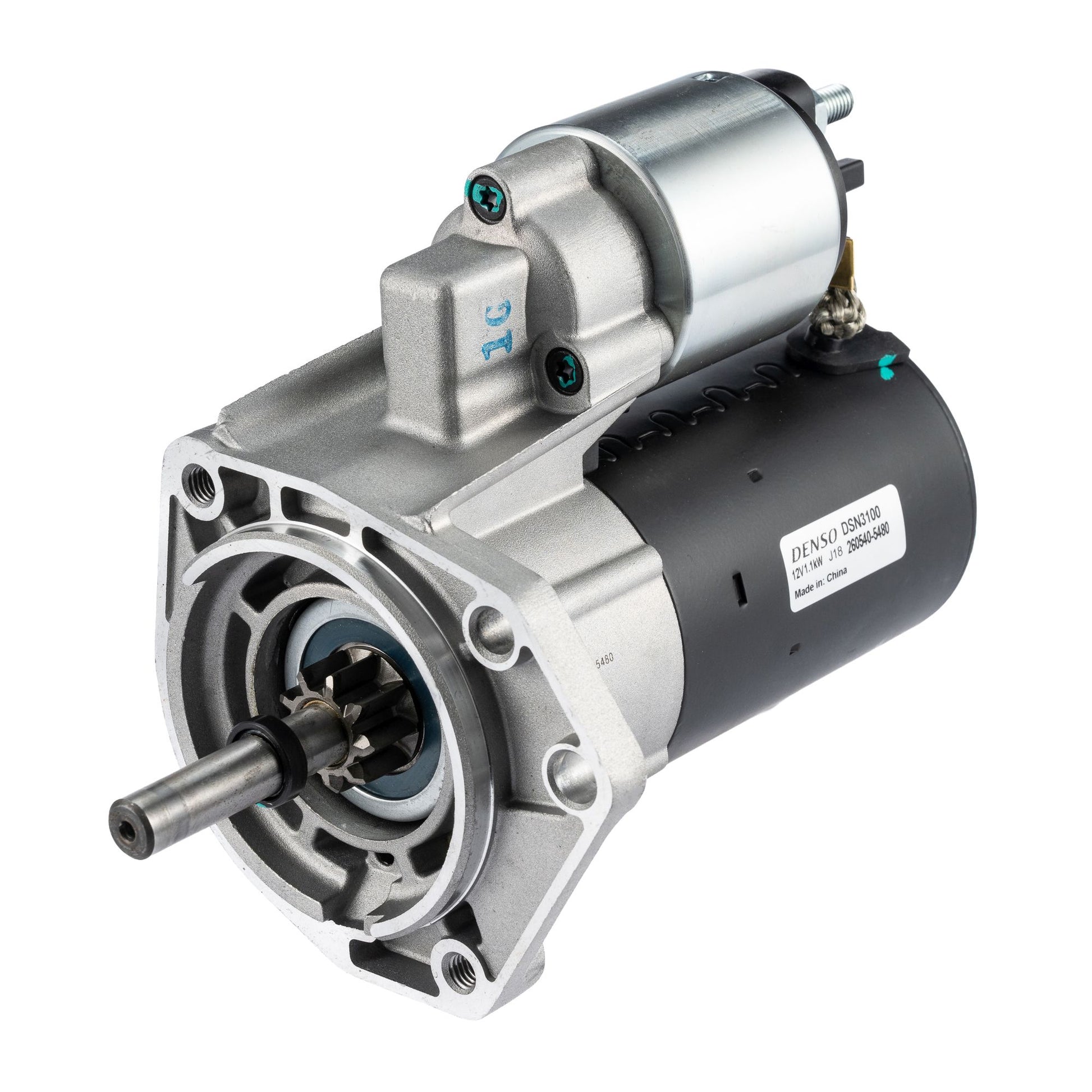

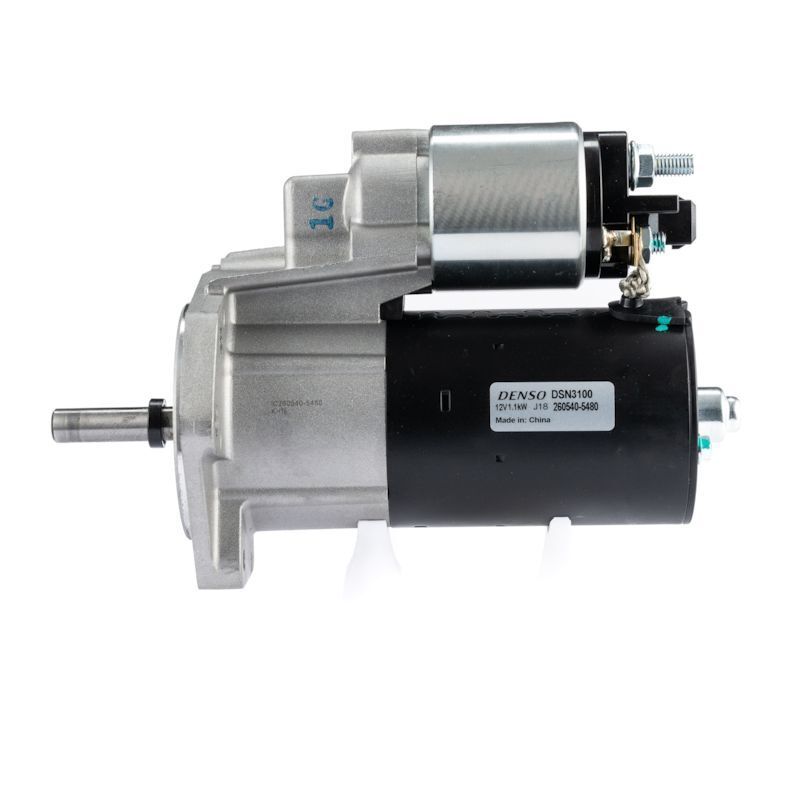

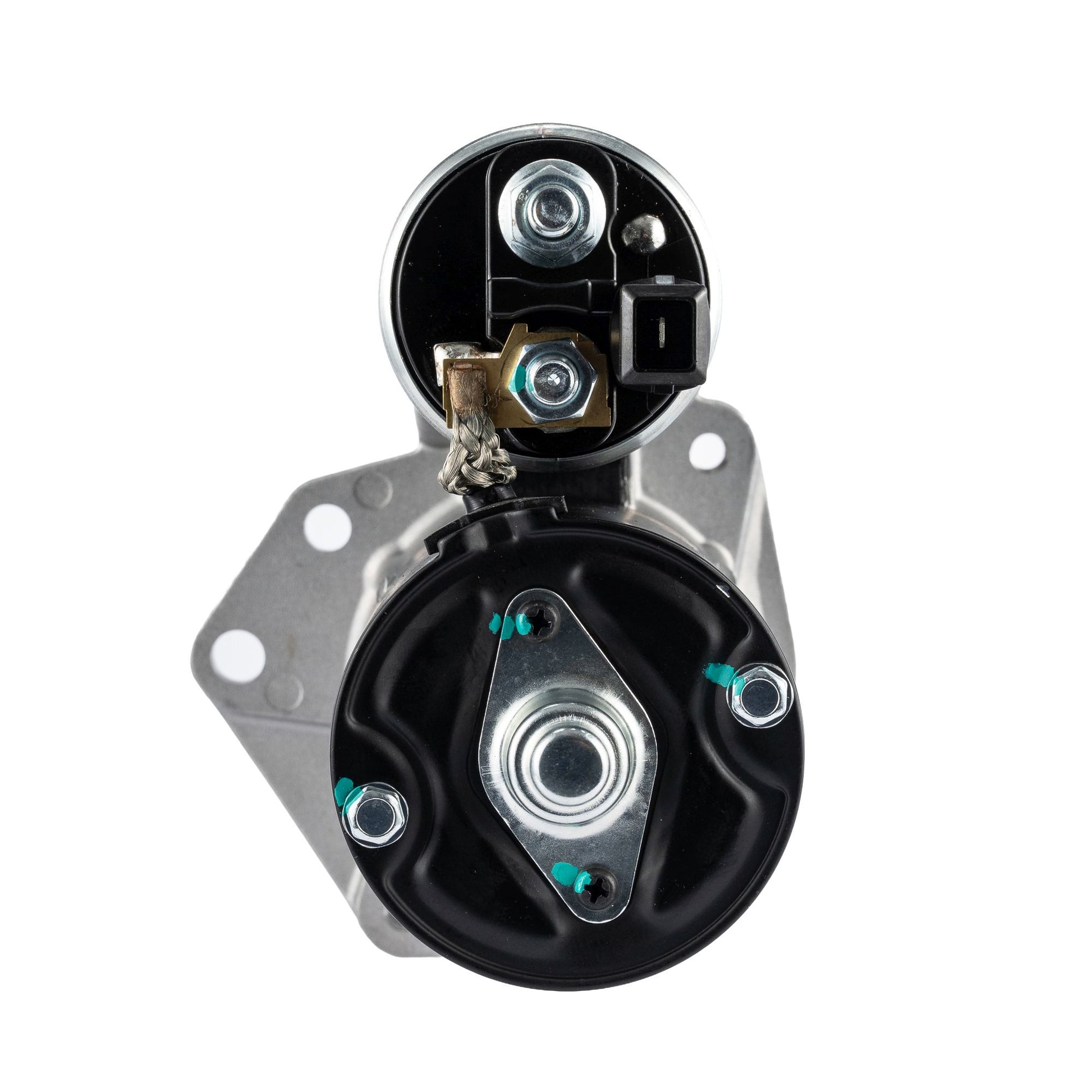

Denso Starter Motor DSN3100
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Gross Weight (g): 3560
- Height Incl Packaging (mm): 145
- Indication Reman Part: New
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 3200
- New Part: Yes
- Number of teeth: 9
- Quality: DENSO
- Rated Power (kW): 1.1
- Rotation Direction: Clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
SEAT: 036 911 023 S, SEAT: 036 911 023 SX, SEAT: 036911023S, SEAT: 036911023SX, VW: 036 911 023 S, VW: 036 911 023 SX, VW: 036911023S, VW: 036911023SX
Replaces aftermarket reference(s):
BOSCH: 0001107025, BOSCH: 0001107026, BOSCH: 0001107103, BOSCH: 0001107104, BOSCH: 0986016800, BOSCH: 0 001 107 025, BOSCH: 0 001 107 026, BOSCH: 0 001 107 103, BOSCH: 0 001 107 104, BOSCH: 0 986 016 800, BOSCH: 1 986 S00 966, BOSCH: 1986S00966, DENSO: 2605405480, DENSO: 260540-5480, ELSTOCK: 252049, ELSTOCK: 25-2049, HELLA: 8EA 011 611-041, HELLA: 8EA011611041, LUCAS ELECTRICAL: LRS00892, VALEO: 201003, VALEO: 455728, WAI: 30892N
