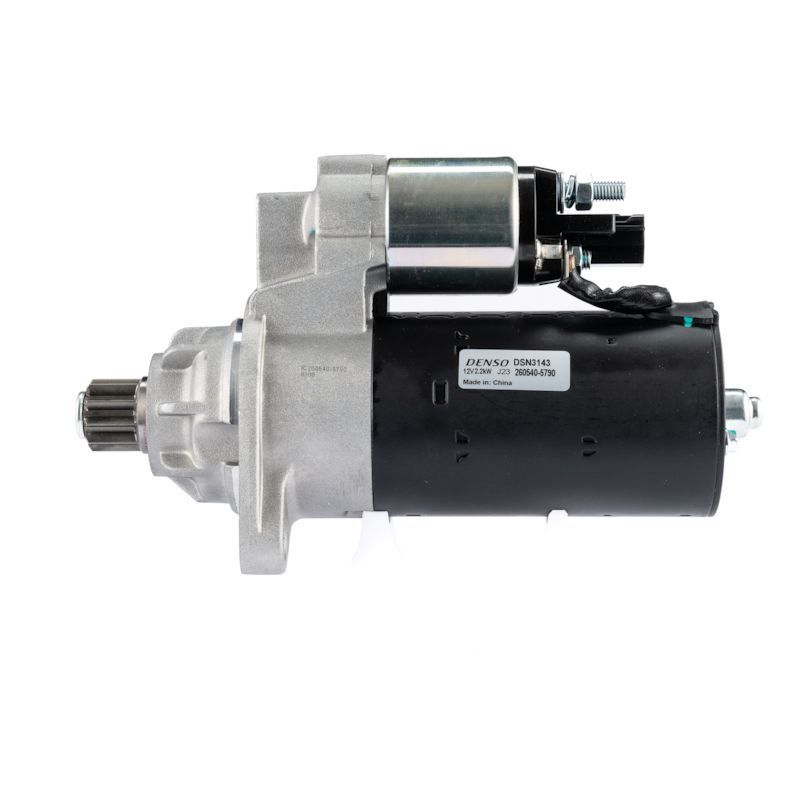

Denso Starter Motor DSN3143
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter
- Gross Weight (g): 4460
- Height Incl Packaging (mm): 145
- Indication Reman Part: New
- Length Incl Packaging (mm): 285
- MAM Section: Electrical
- Net Weight (g)_XC: 4100
- New Part: Yes
- Number of teeth: 10
- Quality: DENSO
- Rated Power (kW): 2.2
- Rotation Direction: Anti-clockwise rotation
- Voltage (V): 12
- Width Incl Packaging (mm): 165
Replaces OEM reference(s):
VW: 02M 911 023 Q, VW: 02M 911 023 QX, VW: 02M911023Q, VW: 02M911023QX
Replaces aftermarket reference(s):
BOSCH: 0001125605, BOSCH: 0001125606, BOSCH: 0986020270, BOSCH: 0 001 125 605, BOSCH: 0 001 125 606, BOSCH: 0 986 020 270, BOSCH: 1 986 S00 823, BOSCH: 1986S00823, DENSO: 2605405790, DENSO: 260540-5790, ELSTOCK: 253256, ELSTOCK: 25-3256, HELLA: 8EA 012 526-111, HELLA: 8EA012526111, LUCAS ELECTRICAL: LRS01706, VALEO: 438429, VALEO: 458730, WAI: 32706N
