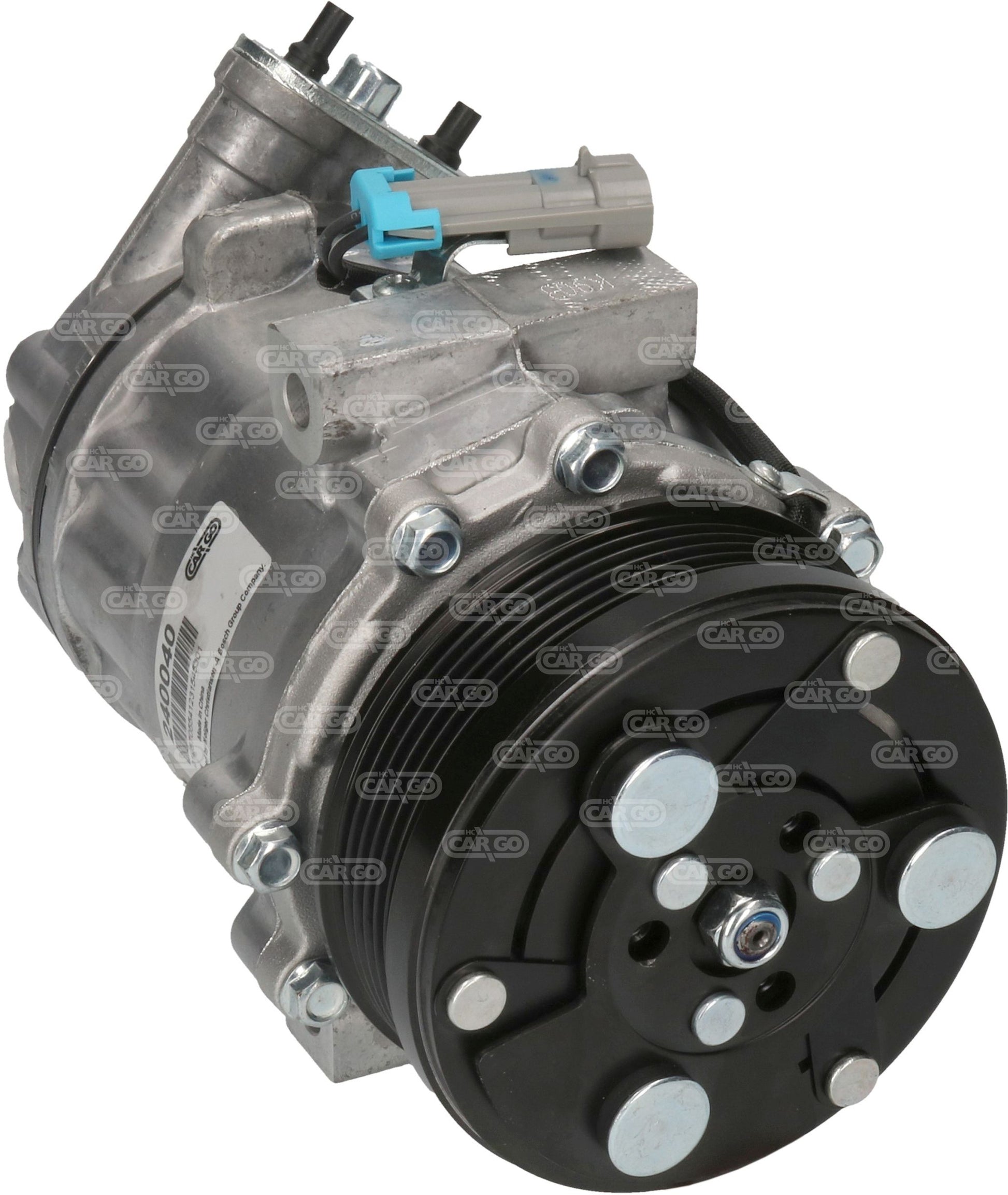

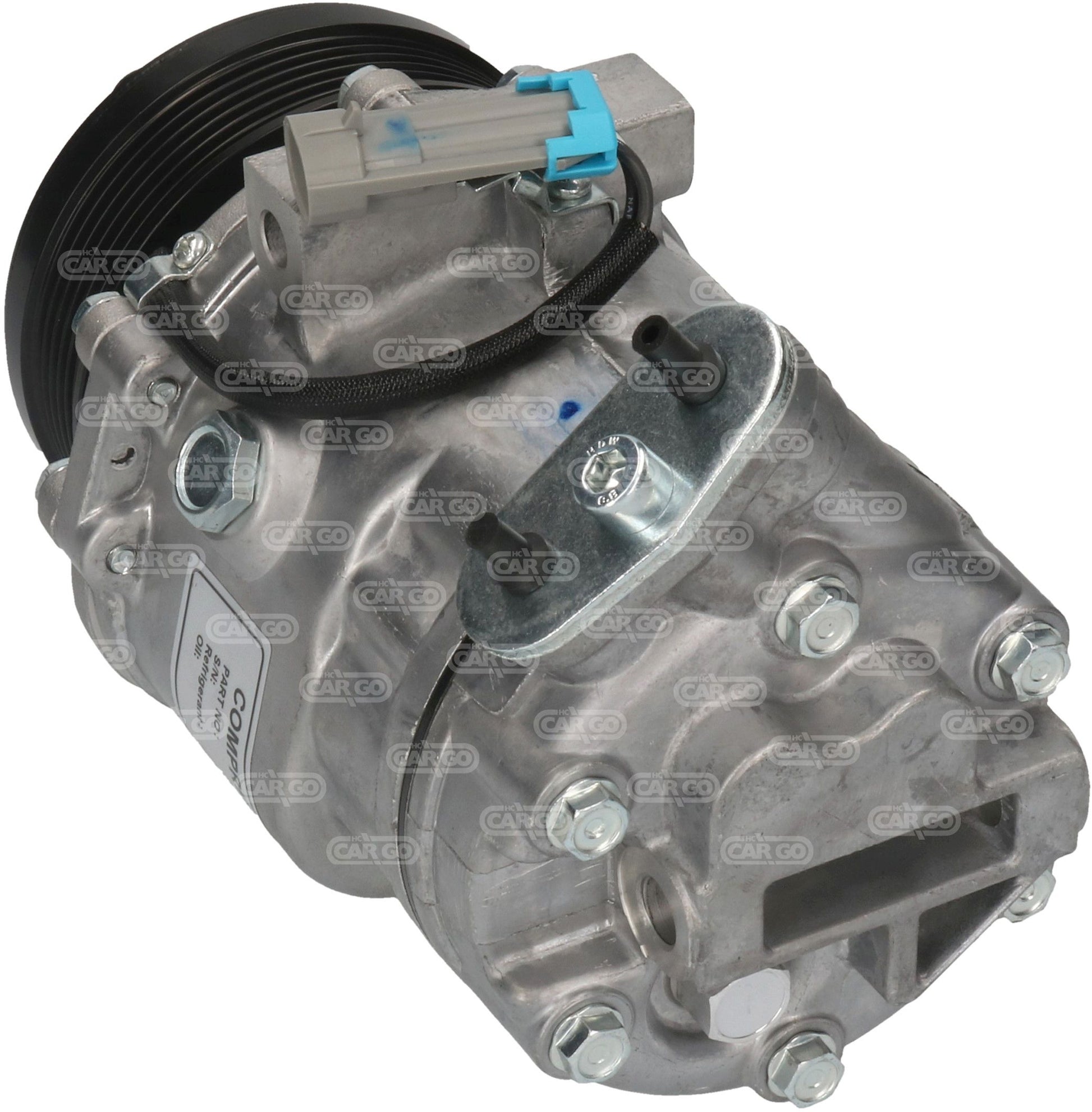

HC Cargo Aircon Compressor 240040
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Voltage: 12
Family type: SD6V12
Mount. holes/front 2: 9.00
Dist. between holes 1: 70.00
Dist. between holes 2: 60.00
Dist. between mount. bracket/hole: 108.00
Dist. between mount. bracket/hole 2: 108.00
Position: 59
Position 2: 54
Rear Cover Type: VGB
Length mm: 213.00
Inlet: 15.50
Outlet: 13.00
Pulley Dist. B1: 68.00
Pulley Dist. B2: 50.00
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 105.00
Oil type: PAG 46
Oil capacity: 145 ml.
Refrigerant: R134a
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor
and measure the amount of oil. 2. Fill with the additional oil quantity
and oil type as required from the vehicle manufacturer. Please be
careful not to combine the different kinds of oil types.
Replaces OEM reference(s):
General motor 8971863970, Opel 1854086, Opel 1854138, Opel 1854147, Opel
6854048, Opel 9196950, Opel 90559843, Opel 93176916, Opel 8971863970,
Opel R1580046, Remy (delco) DAC8600114, Sanden sd6v12-1413, Sanden
sd6v12-1414, Sanden sd6v12-1429, Sanden SD6V12-1429F, Scania
8FK351127261, Vauxhall se Opel 1854138, Vauxhall se Opel 6854028,
Vauxhall se Opel 90559843, Vauxhall se Opel R1580014
Replaces aftermarket reference(s):
Auto Air: 14-1414, Auto Air: 14-1414R, Ava (Quality Cooling) OLAK319,
Ava (Quality Cooling) OLK319, Delphi TSP0155249, Delphi TSP0155270,
Elstock 51-0106, Elstock 51-0248, FrigAir 92020076, Hella 8FK351134-361,
Hella 8FK351134-731, Hella 8FK366203-221, Nissens 89095, NRF 32232,
Teamec 8600114, Teamec 8600115, Teamec 8636012, Valeo 699306, Valeo
699806, Valeo 699899, Waeco 8880100138, Waeco 8880100141
