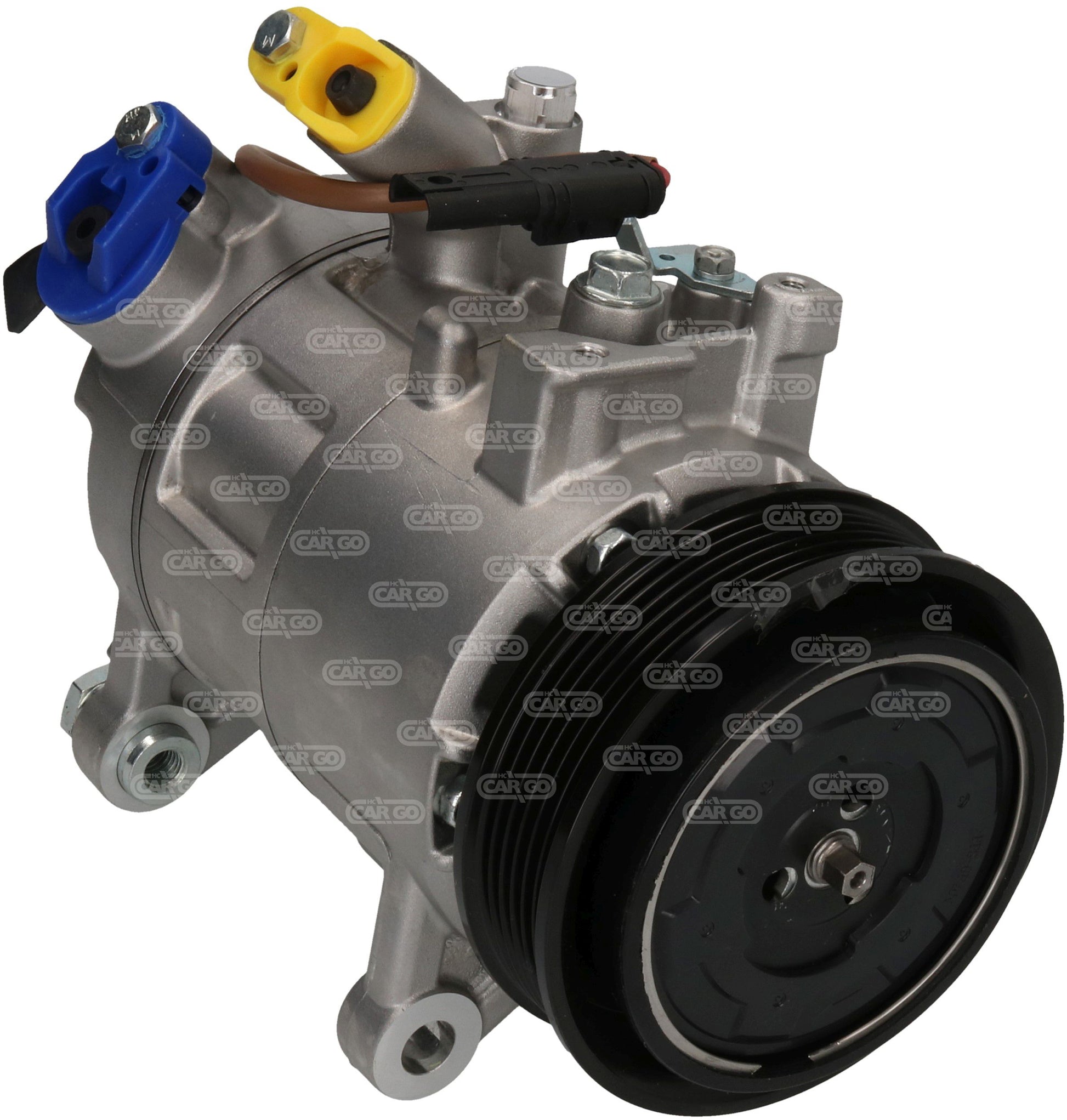

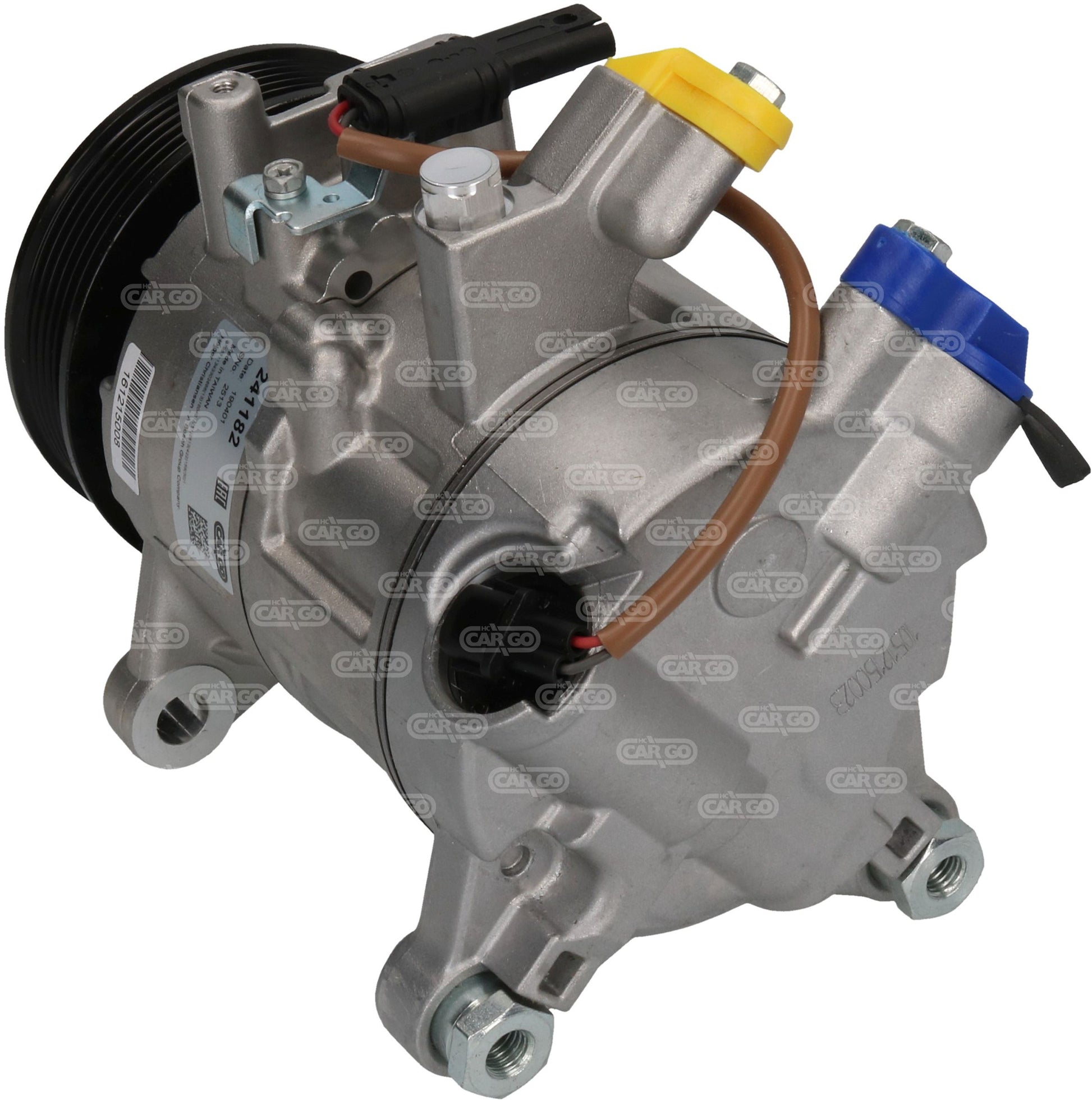

HC Cargo Aircon Compressor 241182
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Voltage: 12
Family type: 6SEU14A
Mount. holes/front 2: 12.00
Dist. between holes 1: 102.00
Dist. between holes 2: 102.00
Dist. between mount. bracket/hole: 99.00
Dist. between mount. bracket/hole 2: 99.00
Position: 45
Position 2: 60
Length mm: 218.00
Bracket thickness B3: 14.40
Inlet: 28.40
Outlet: 15.30
Pulley Dist. B1: 43.50
Pulley Dist. B2: 41.00
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 110.00
Oil type: PAG 46
Oil capacity: 140 ml.
Refrigerant: R134a
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.
Replaces OEM reference(s):
BMW 64529223695, Denso 4371008200, Denso 4471502670, Denso 4472604720, Denso 447150-2674, Denso 447150-2676, Denso 447150-2677
Replaces aftermarket reference(s):
Denso DCP05099, Hella 8FK351002361
