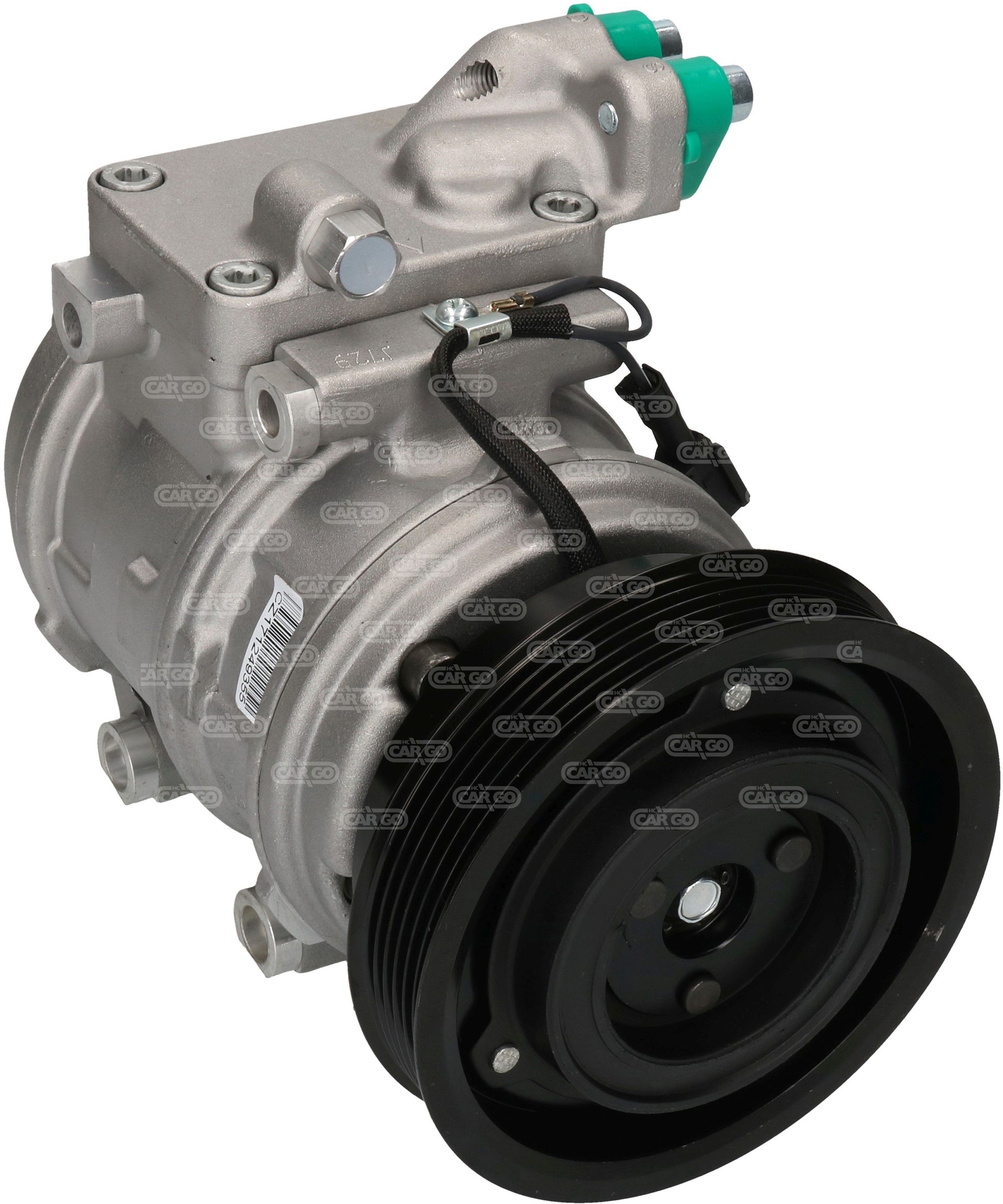

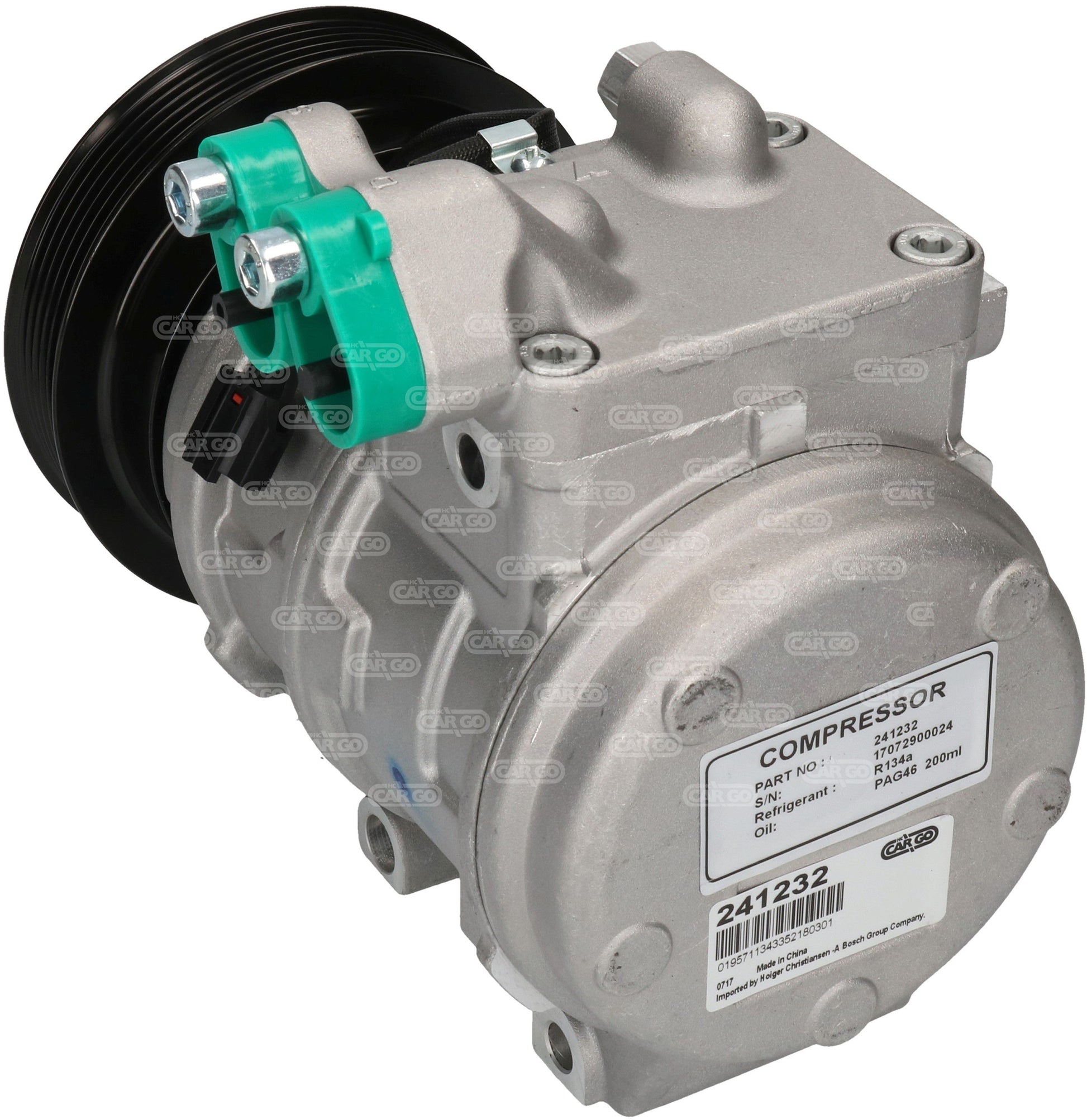

HC Cargo Aircon Compressor 241232

Voltage: 12
Family type: 10PA17C
Mount. holes/front 2: 9.00
Dist. between holes 1: 102.00
Dist. between holes 2: 77.00
Dist. between mount. bracket/hole: 69.00
Dist. between mount. bracket/hole 2: 57.00
Position: 60
Position 2: 50
Rear Cover Type: DW
Length mm: 218.00
Inlet: 16.00
Outlet: 13.00
Pulley Dist. B1: 101.50
Pulley Dist. B2: 83.50
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 125.00
Oil type: PAG 46
Oil capacity: 200 ml.
Refrigerant: R134a
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Kia 97701-2e300, Kia 977012E550, Kia 977012E551

Replaces aftermarket reference(s):
Nissens 89153, NRF 32714G, Teamec 8634205
