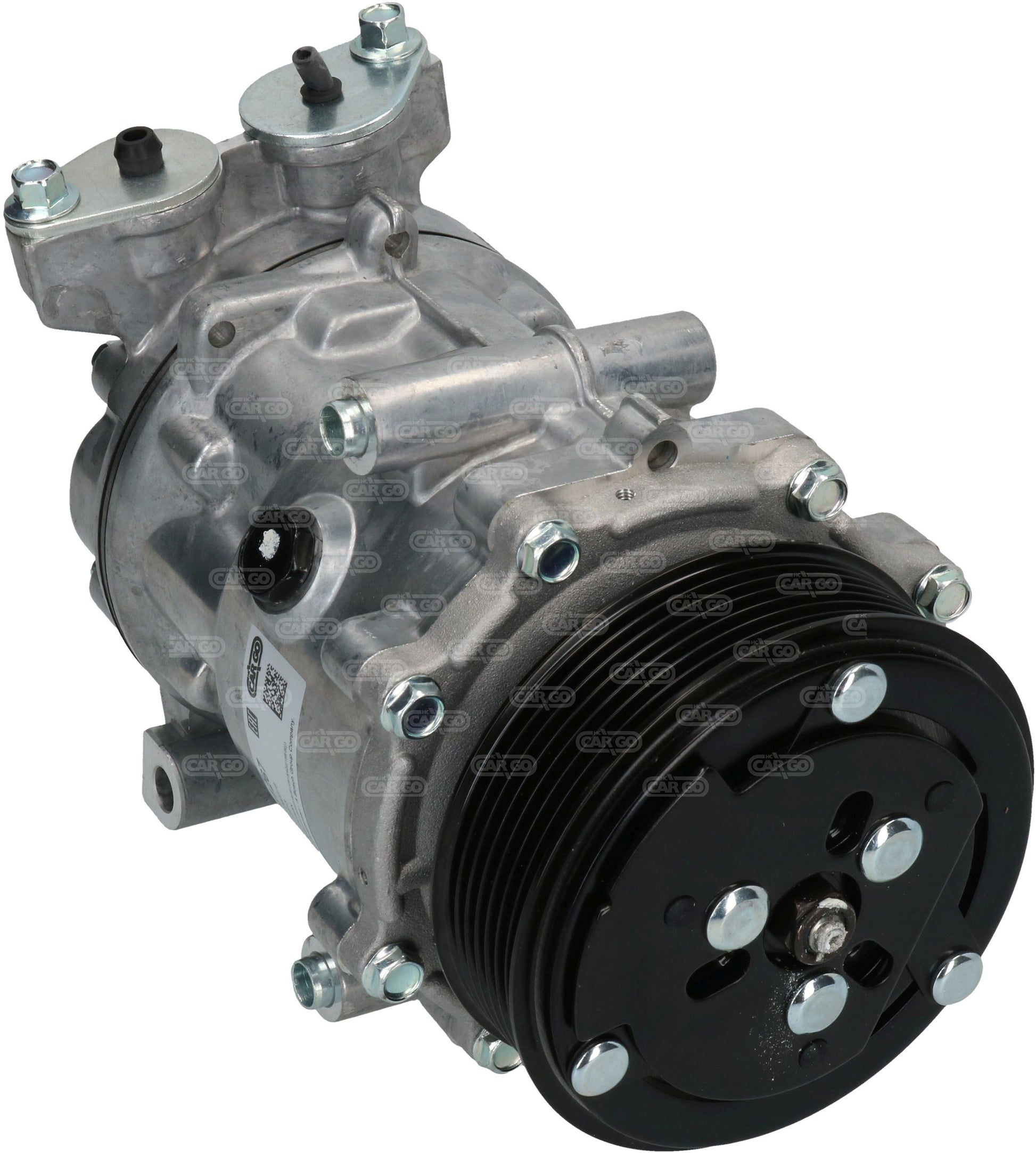

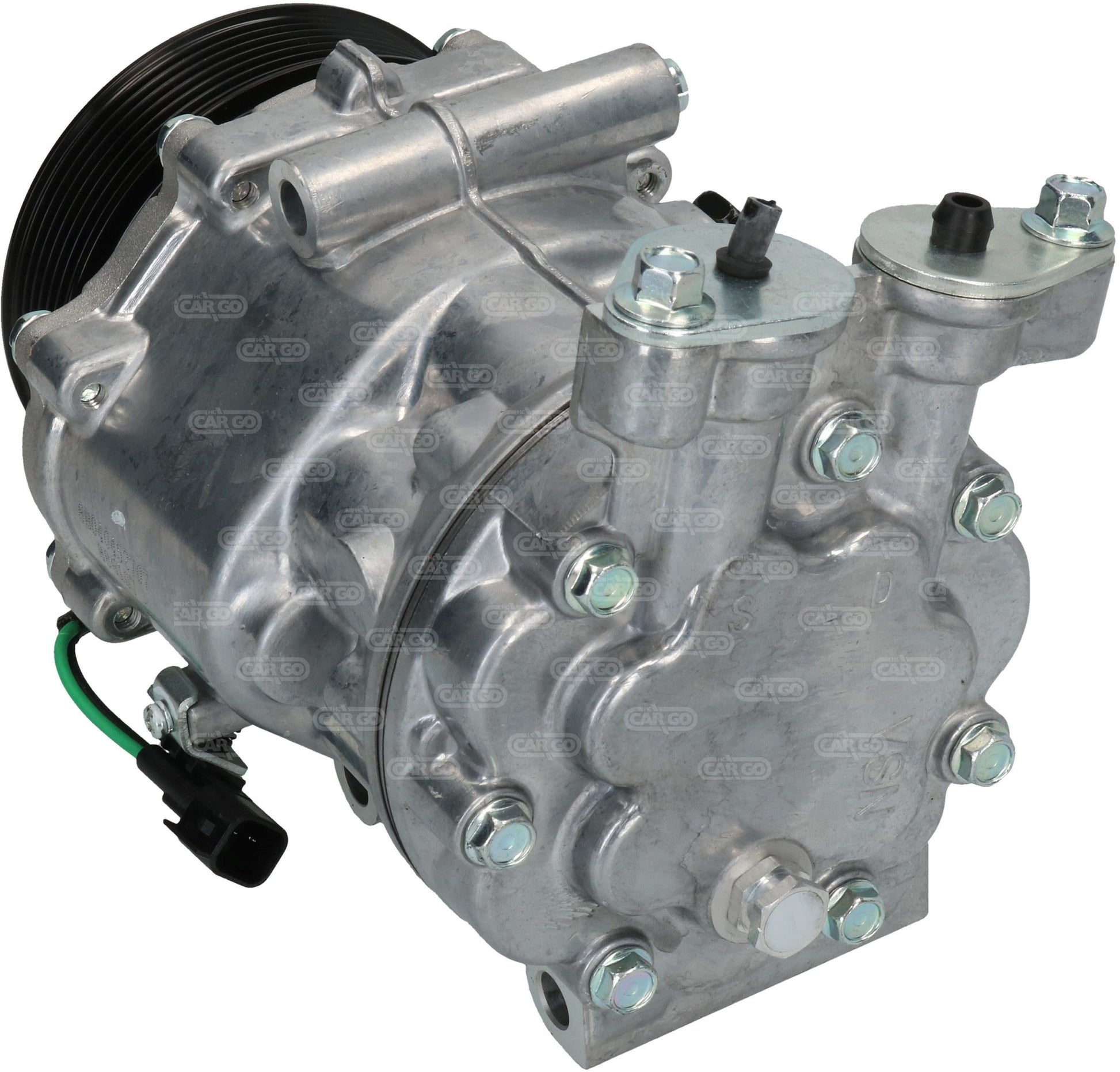

HC Cargo Aircon Compressor 241267
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Voltage: 12
Family type: SD7V16
Mount. holes/front 2: 10.00
Dist. between holes 1: 75.00
Dist. between holes 2: 75.00
Dist. between mount. bracket/hole: 76.00
Dist. between mount. bracket/hole 3: 128.00
Position: 60
Position 2: 5
Length mm: 221.00
Inlet: 20.50
Outlet: 18.00
Pulley Dist. B1: 84.00
Pulley Dist. B2: 62.50
Pulley Grooves: 7
Pulley type: SP
Pulley OD mm: 110.00
Pulley: w/
Oil type: PAG 46
Oil capacity: 200 ml.
Refrigerant: R134a
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.
Replaces OEM reference(s):
Ford 1730528, Ford 7C11-19D629-BA
