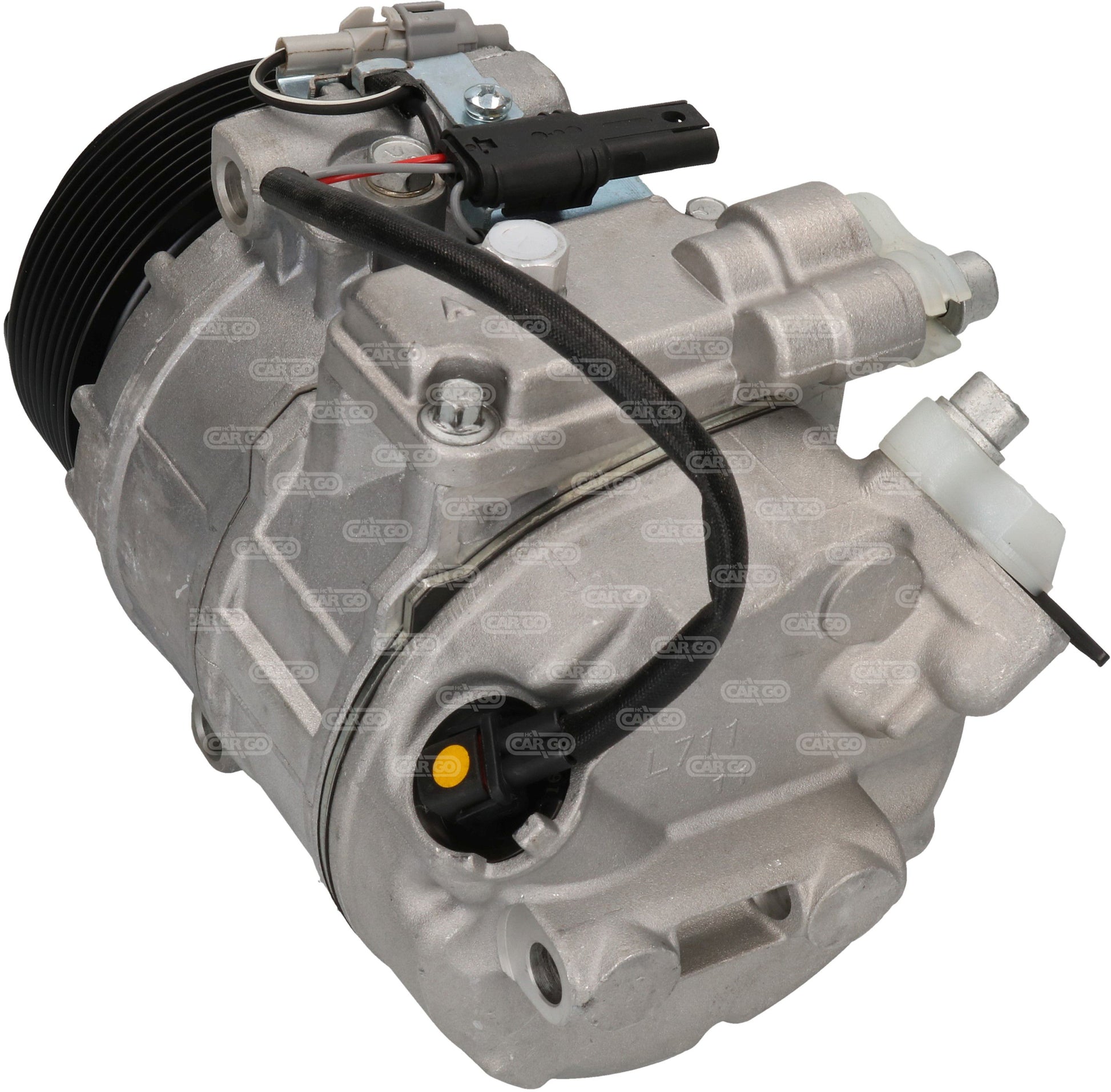

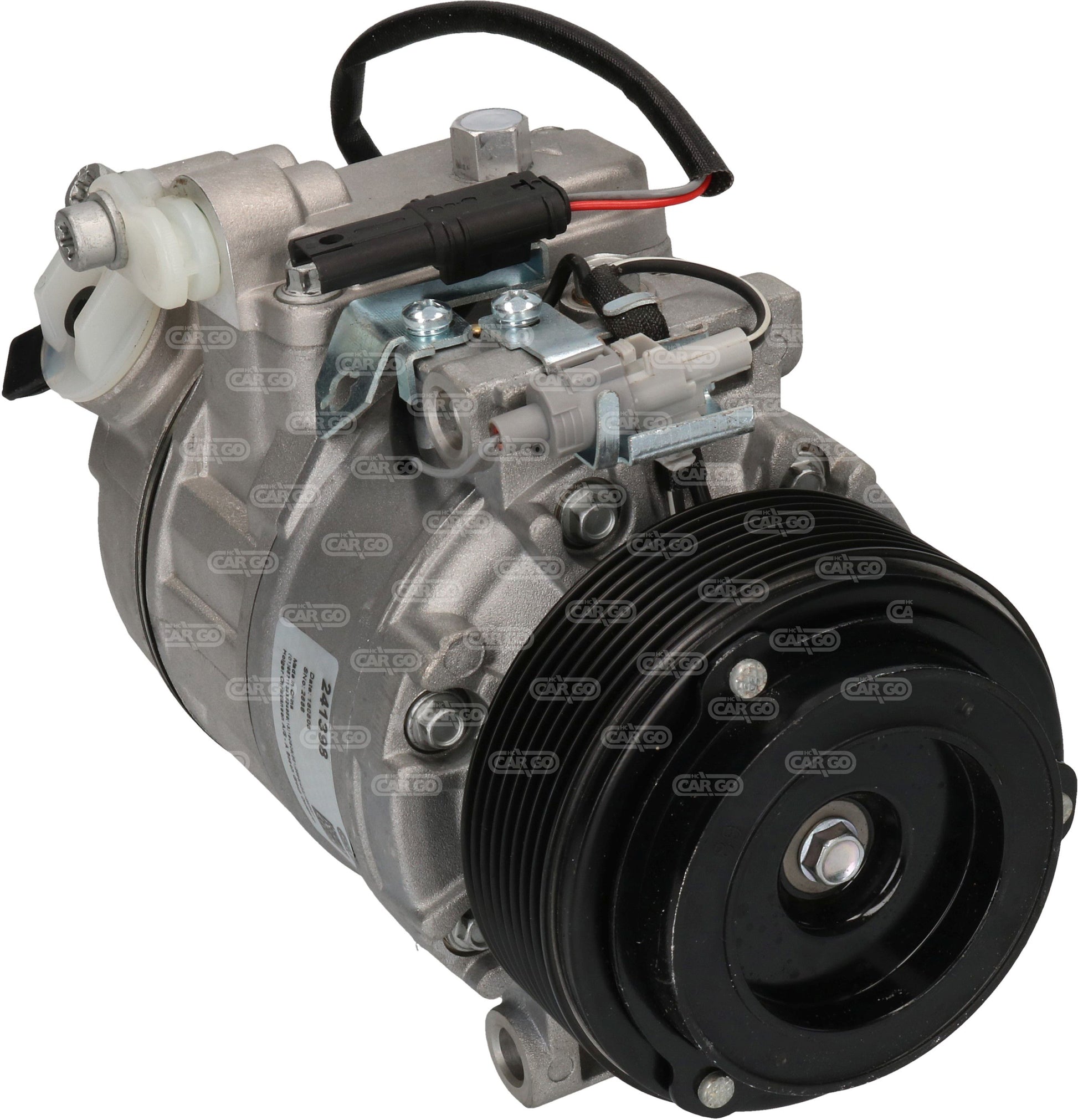

HC Cargo Aircon Compressor 241398
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Voltage: 12
Family type: 7SBU17C
Mount. holes/front 2: 8.50
Dist. between holes 1: 70.00
Dist. between holes 2: 70.00
Dist. between holes 3: 70.00
Dist. between mount. bracket/hole: 145.00
Dist. between mount. bracket/hole 2: 145.00
Dist. between mount. bracket/hole 3: 138.00
Position: 60
Position 2: 15
Length mm: 234.00
Inlet: 28.40
Outlet: 15.40
Pulley Dist. B1: 59.00
Pulley Dist. B2: 34.00
Pulley Grooves: 8
Pulley type: SP
Pulley OD mm: 110.00
Oil type: PAG 46-H
Oil capacity: 180 ml.
Refrigerant: R134a/R1234yf
O-ring: w/o
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.
Replaces OEM reference(s):
BMW 9165808, BMW 9196890, BMW 4471601230, BMW 4472602990, BMW 64509196890, BMW 64529165808, Denso 2473006290, Denso 4371006980, Denso 4471400450
Replaces aftermarket reference(s):
Ava (Quality Cooling) BWK418, Denso DCP05081, Hella 8FK351111-081, Hella 8FK351111581, lucas ACP932
