Hella Aircon Compressor 8FK366200-161
Hella Part details ↓

Hella Aircon Compressor 8FK366200-161

Part No. 8FK366200-161
SKU HEL-8FK366200-161
£153.11 £223.00
Available
Dispatched in 2-3 working days
PRODUCT DETAILS

Key part information

The most useful product information is shown here at a glance, including identification, application and reference numbers.

Brand Hella
Part number 8FK366200-161
01 Check the part / OEM number 03 Add vehicle details in the cart if needed
Free UK Mainland Delivery Standard delivery on eligible UK mainland orders 30-Day Returns Return or exchange subject to our returns policy Manufacturer Warranty Brand-new parts with standard manufacturer cover Secure Checkout Secure online payment processing
Tracked courier services are used wherever available. Vehicle details can be added in the cart before checkout.
TECHNICAL DATA

Item specifics

BrandHella
Part number8FK366200-161
SKUHEL-8FK366200-161
Barcode4069842006195
Country of manufactureChina
PRODUCT DETAILS

Description

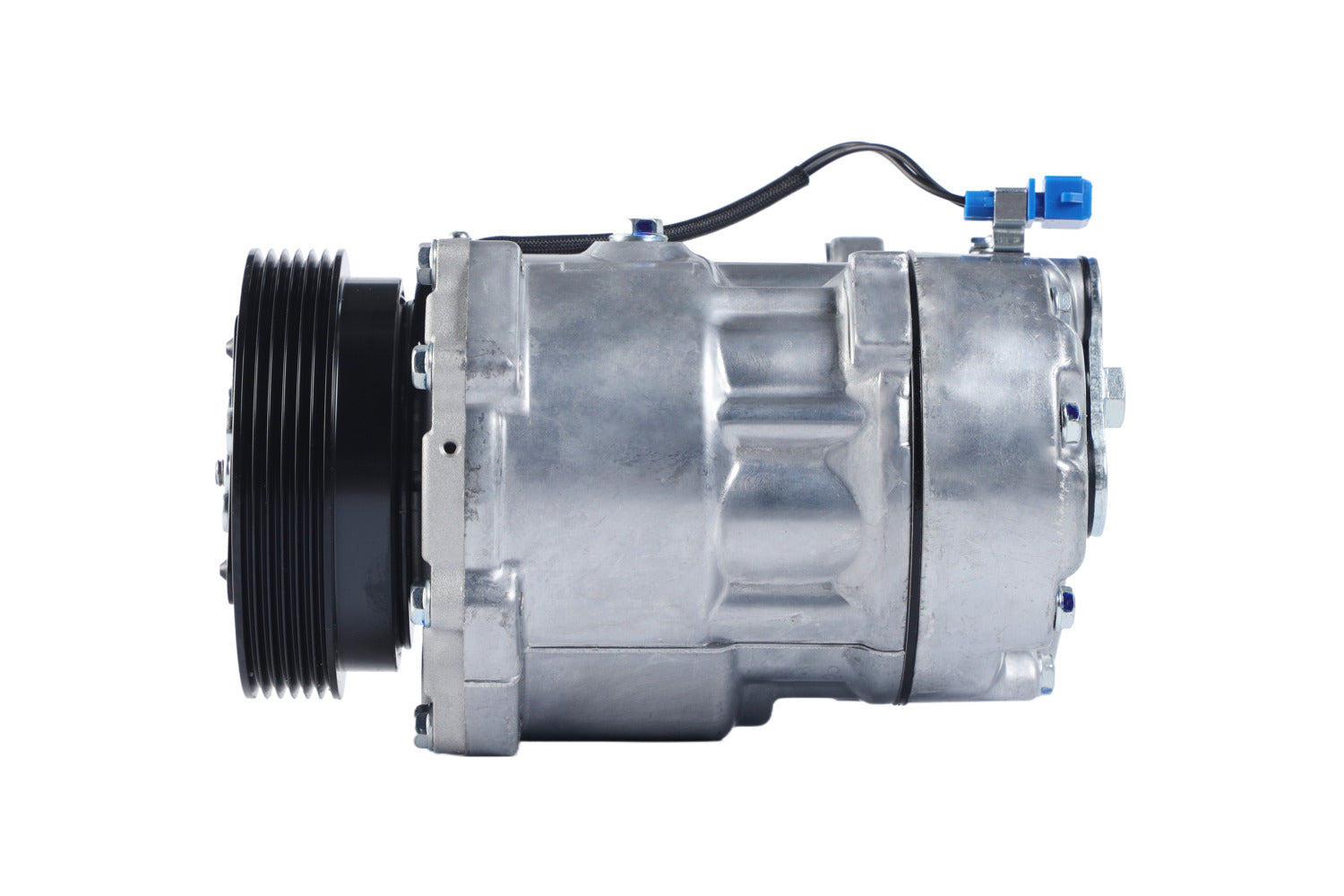

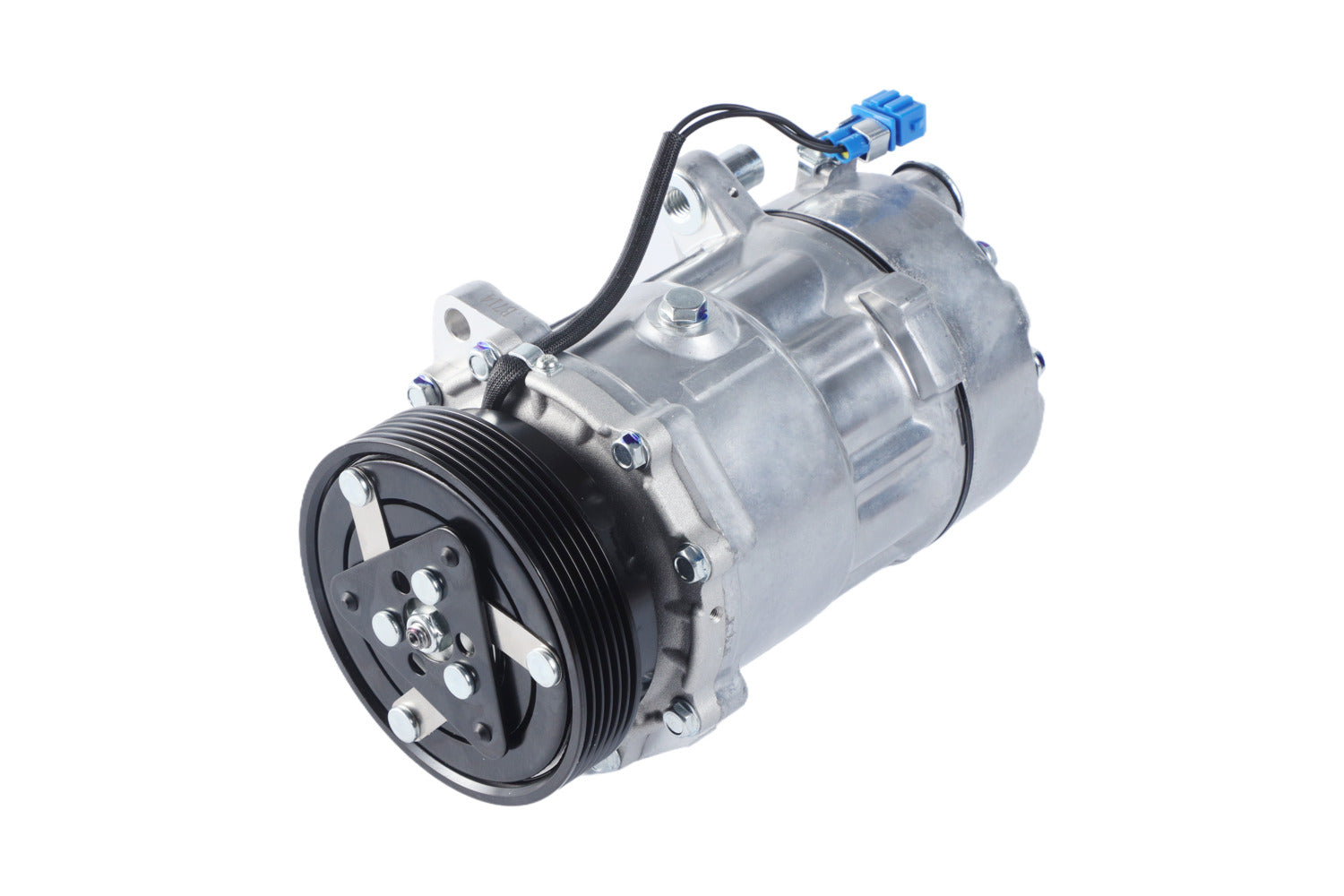

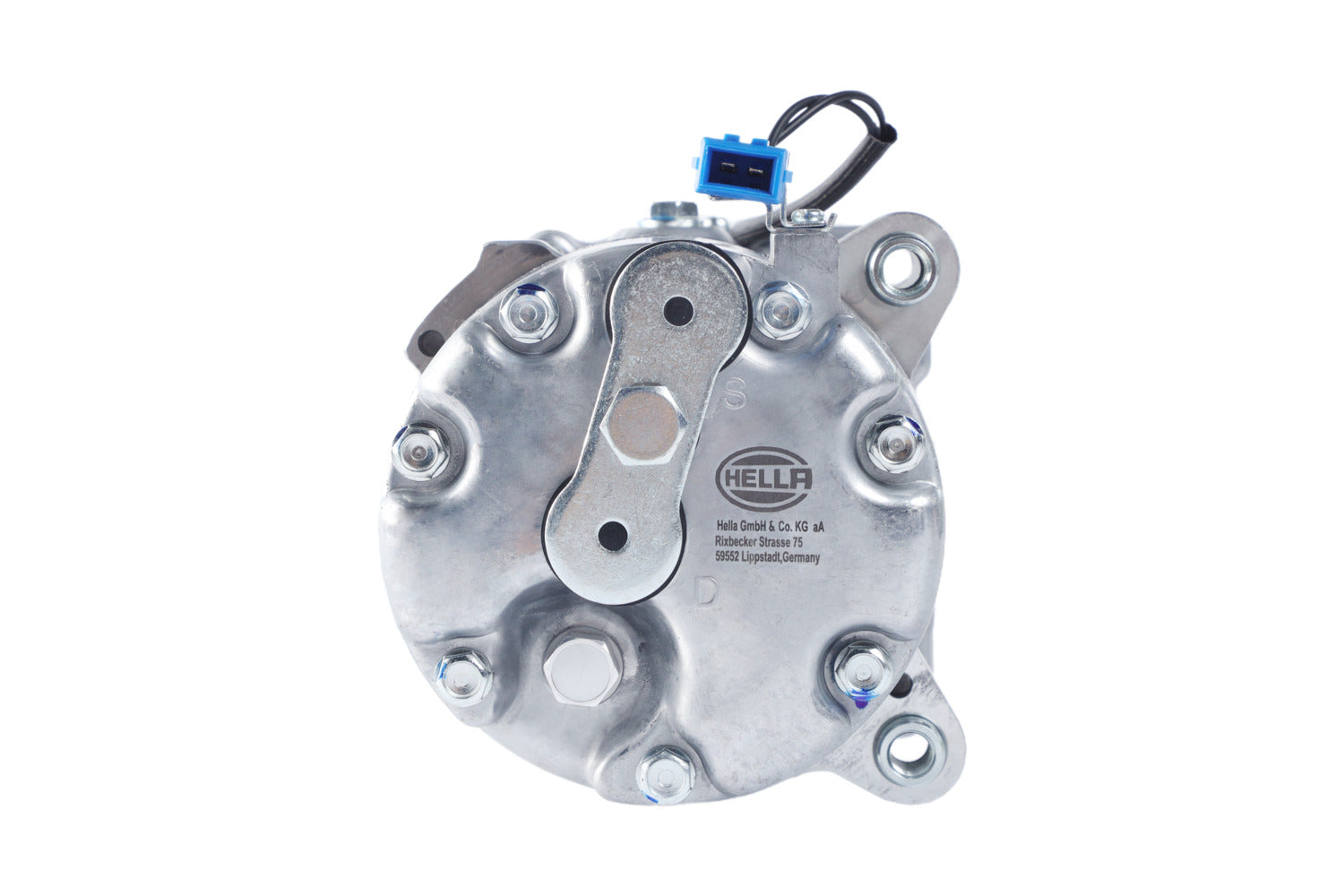

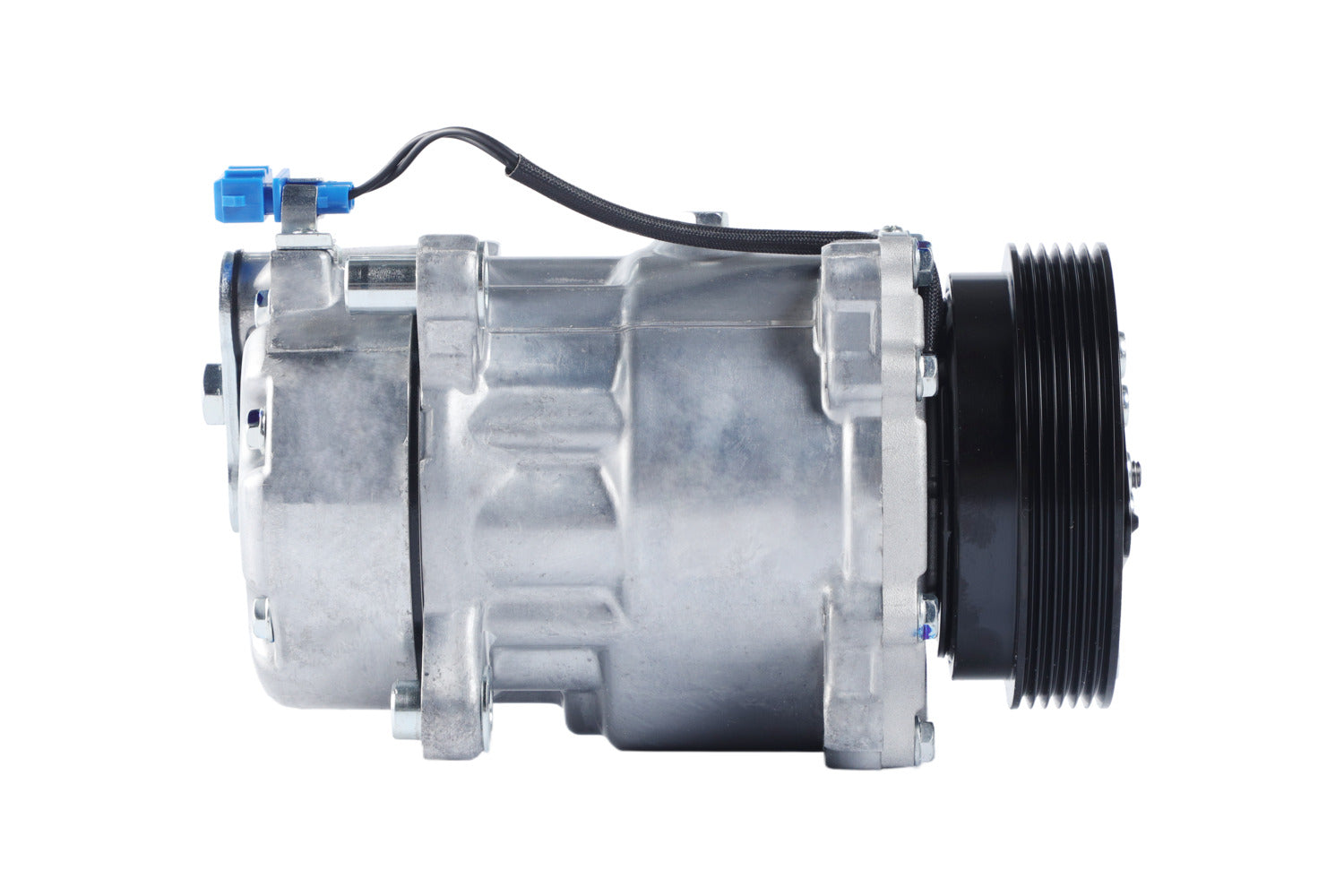

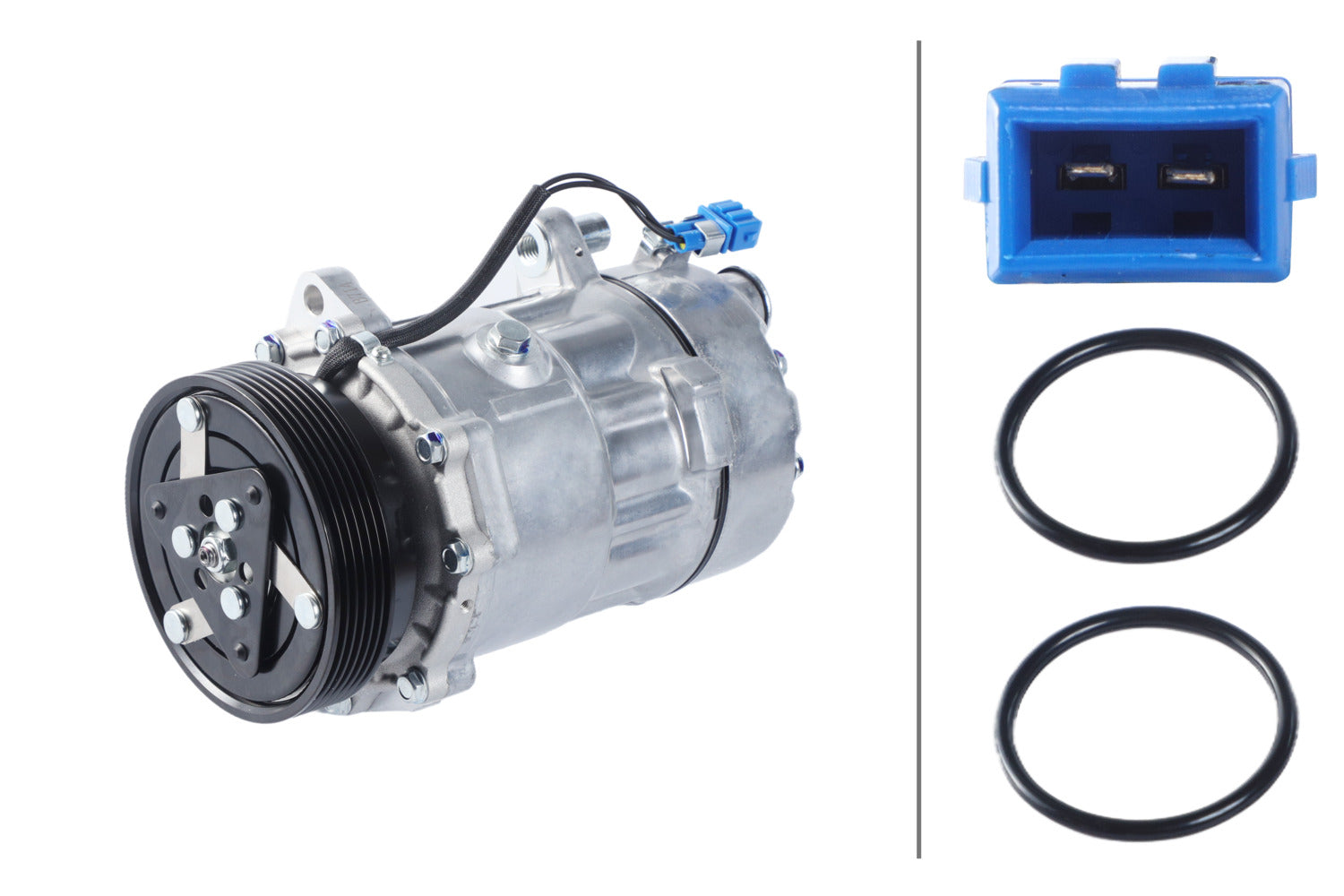

Compressor, air conditioning - SD7V16 - 12V - R 134a - PAG 46 - 125ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

  • fits e.g. VW PASSAT B3/B4 (3A2, 35I) 1.9 D (please check exact vehicle application)
  • Compressor ID: SD7V16 - for manufacturer: Sanden - Voltage: 12V

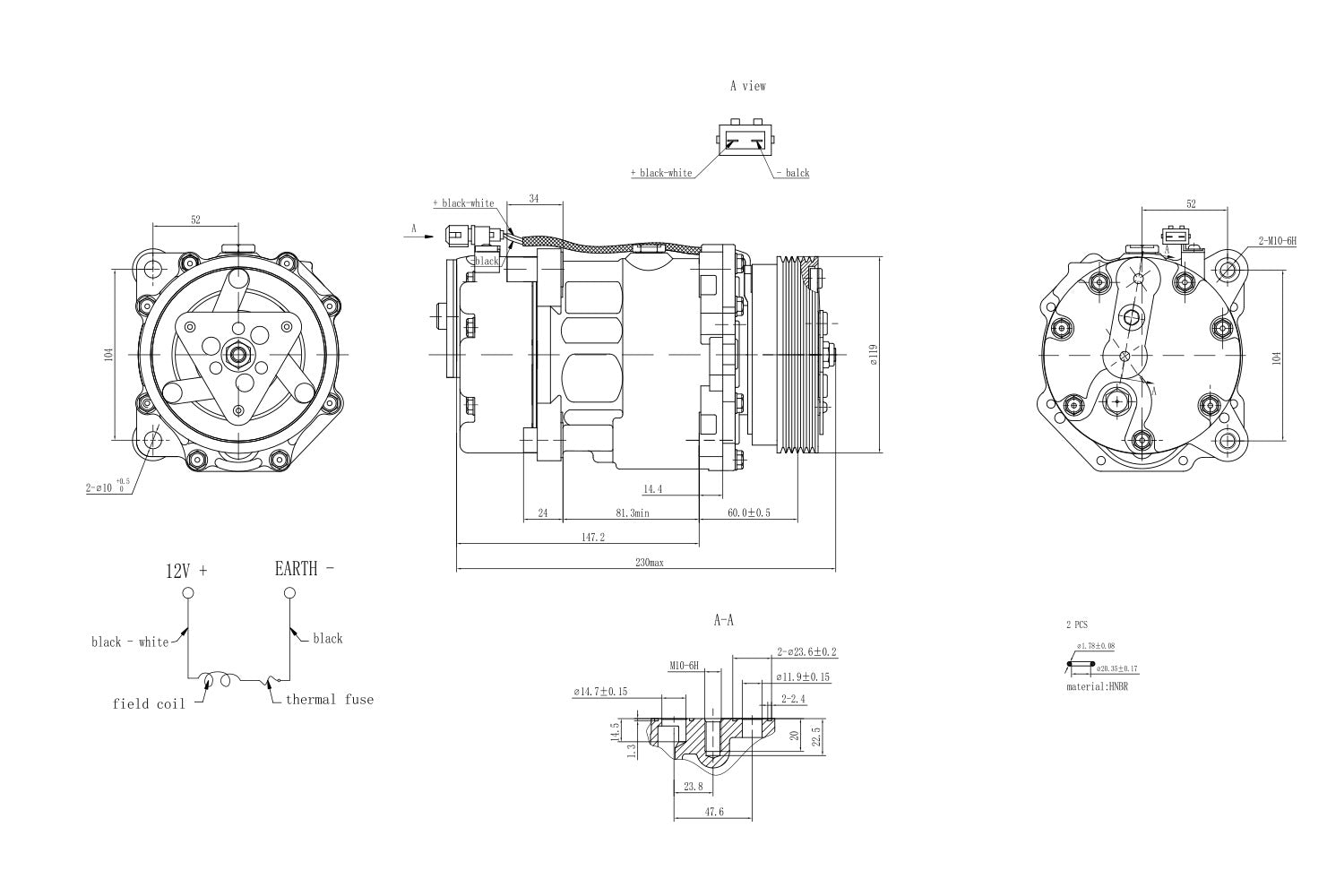

  • Inlet Ø: 14.7mm - Outlet Ø: 11.9mm - with V-ribbed belt pulley - Belt Pulley Ø: 119mmNumber of grooves: 6

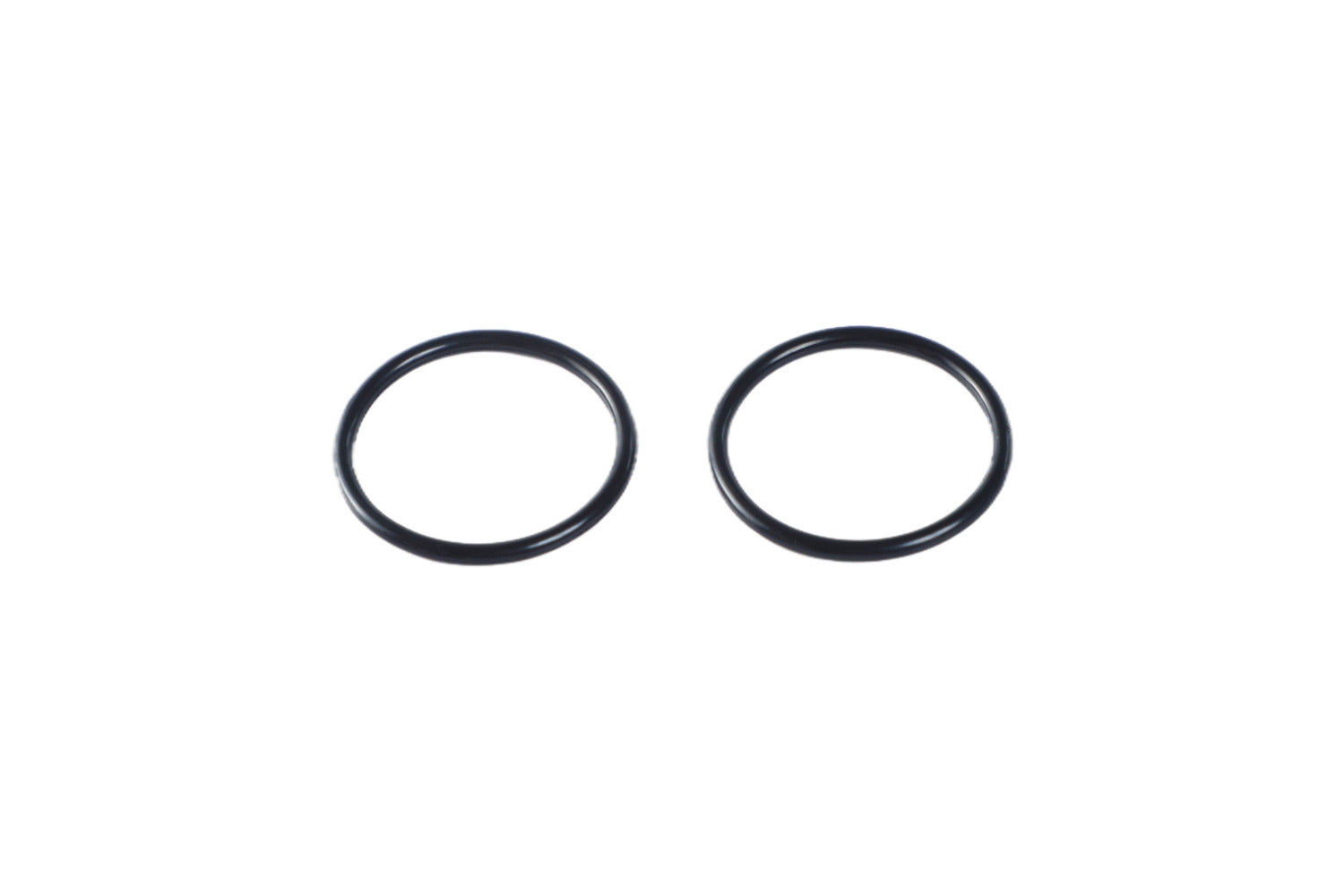

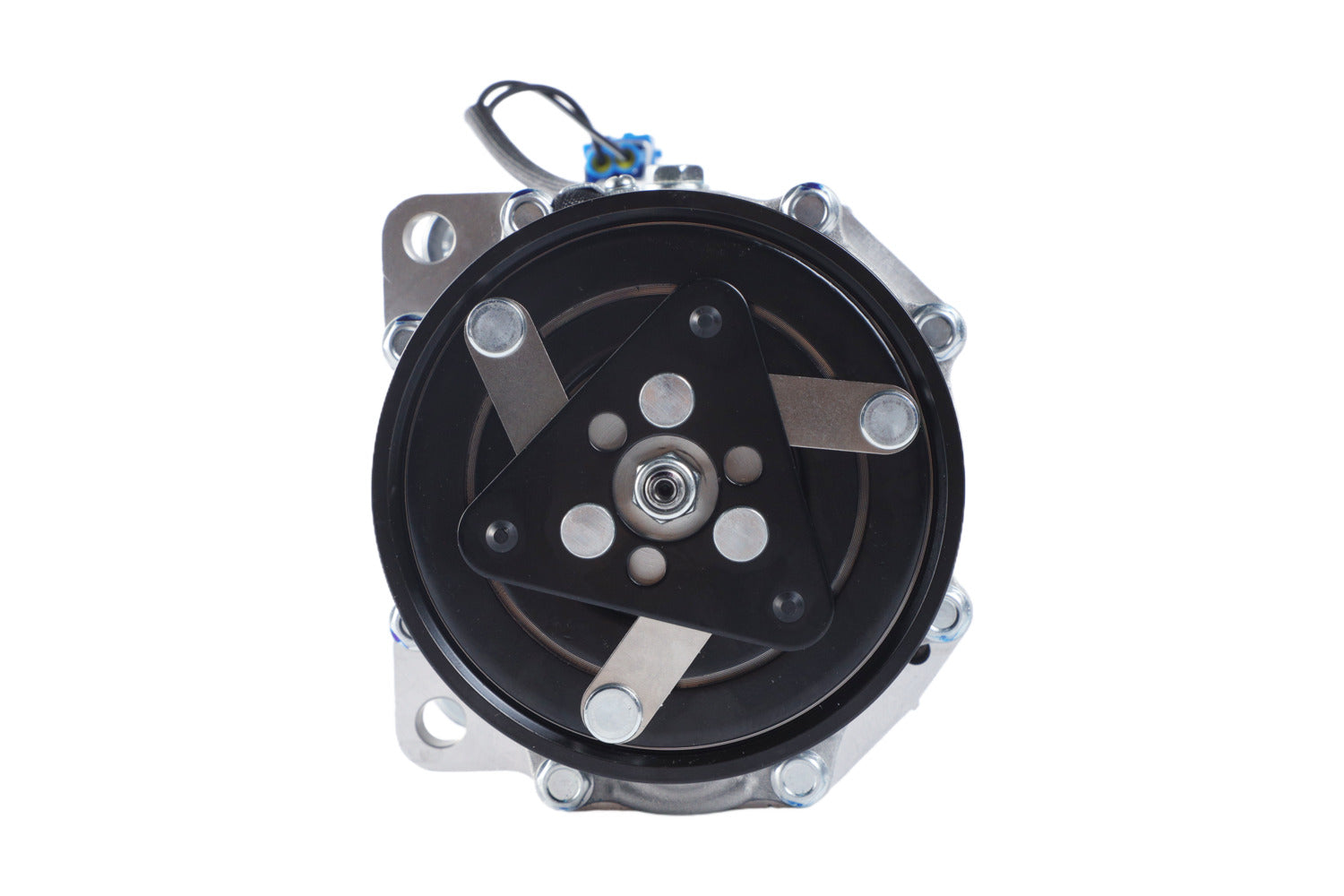

  • with magnetic clutch/with seal ring/with PAG compressor oil
  • Refrigerant: R 134a - Compressor Oil: PAG 46 - Oil Fill Quantity: 125ml
  • Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
  • Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Sanden
Compressor ID: SD7V16
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with seal ring / with magnetic clutch / with PAG compressor oil
Pulleys: with V-ribbed belt pulley
Number of grooves: 6
Belt Pulley Ø: 119 mm
Inlet Ø: 14.7 mm
Outlet Ø: 11.9 mm
Refrigerant: R 134a
Compressor Oil: PAG 46
Oil Fill Quantity: 125 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
AUDI 1GD 820 803 ; AUDI 1H0 820 803 D; AUDI 1H0 820 803 DX; AUDI 1H0 820 803 E; AUDI 357 820 803 Q; AUDI 357 820 805 K; AUDI 7M0 820 803 D; AUDI 7M0 820 803 P; AUDI 7M0 820 803 PX; AUDI 95N W19 D62 9CB; CUPRA 1GD 820 803 ; CUPRA 1H0 820 803 D; CUPRA 1H0 820 803 DX; CUPRA 1H0 820 803 E; CUPRA 357 820 803 Q; CUPRA 357 820 805 K; CUPRA 7M0 820 803 D; CUPRA 7M0 820 803 P; CUPRA 7M0 820 803 PX; FORD 1067111; FORD 7340657; FORD 7M0820803P; FORD 95NW19D629CB; FORD 95NW19D629CC; SEAT 1H0 820 803 D; SEAT 1H0 820 803 DX; SEAT 7M0 820 803 D; SEAT 7M0 820 803 P; SEAT 7M0 820 803 PX; SKODA 1H0 820 803 D; SKODA 1H0 820 803 DX; SKODA 7M0 820 803 D; SKODA 7M0 820 803 P; SKODA 7M0 820 803 PX; VW 1GD 820 803; VW 1H0 820 803 D; VW 1H0 820 803 DX; VW 1H0 820 803 E; VW 357 820 803 Q; VW 357 820 805 K; VW 7M0 820 803 D; VW 7M0 820 803 P; VW 7M0 820 803 PX; VW 95N W19 D62 9CB; VW (FAW) 1GD 820 803; VW (FAW) 1H0 820 803 D; VW (FAW) 1H0 820 803 DX; VW (FAW) 1H0 820 803 E; VW (FAW) 357 820 803 Q; VW (FAW) 357 820 805 K; VW (FAW) 7M0 820 803 D; VW (FAW) 7M0 820 803 P; VW (FAW) 7M0 820 803 PX

Replaces aftermarket reference(s):
AUTOGAMMA: 108005, AVA: VNAK172, AVA: VNK172, DELPHI: TSP0155052K, DELPHI: TSP0155058, DELPHI: TSP0159058, DENSO: DCP32012, FEBI: 45159, HOFFER: K11079, HOFFER: K11079A, KRIOS: 11079, KRIOS: 11079A, MAHLE BEHR INDUSTRY: ACP1021000S, MEAT & DORIA: K11079, MEAT & DORIA: K11079A, MOTRIO: 8671005576, MOTRIO: 8671005583, NISSENS: 89040, NRF: 32033, SIDAT: 11079, SIDAT: 11079A, VALEO: 399500, VALEO: 699115, VALEO: 699615, VAN WEZEL: 5800K172, WAECO: 8880100124
