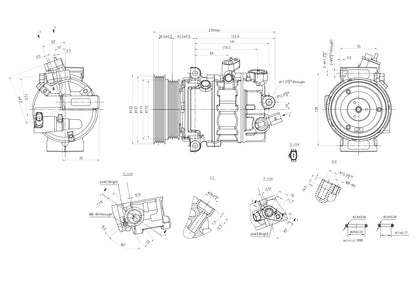

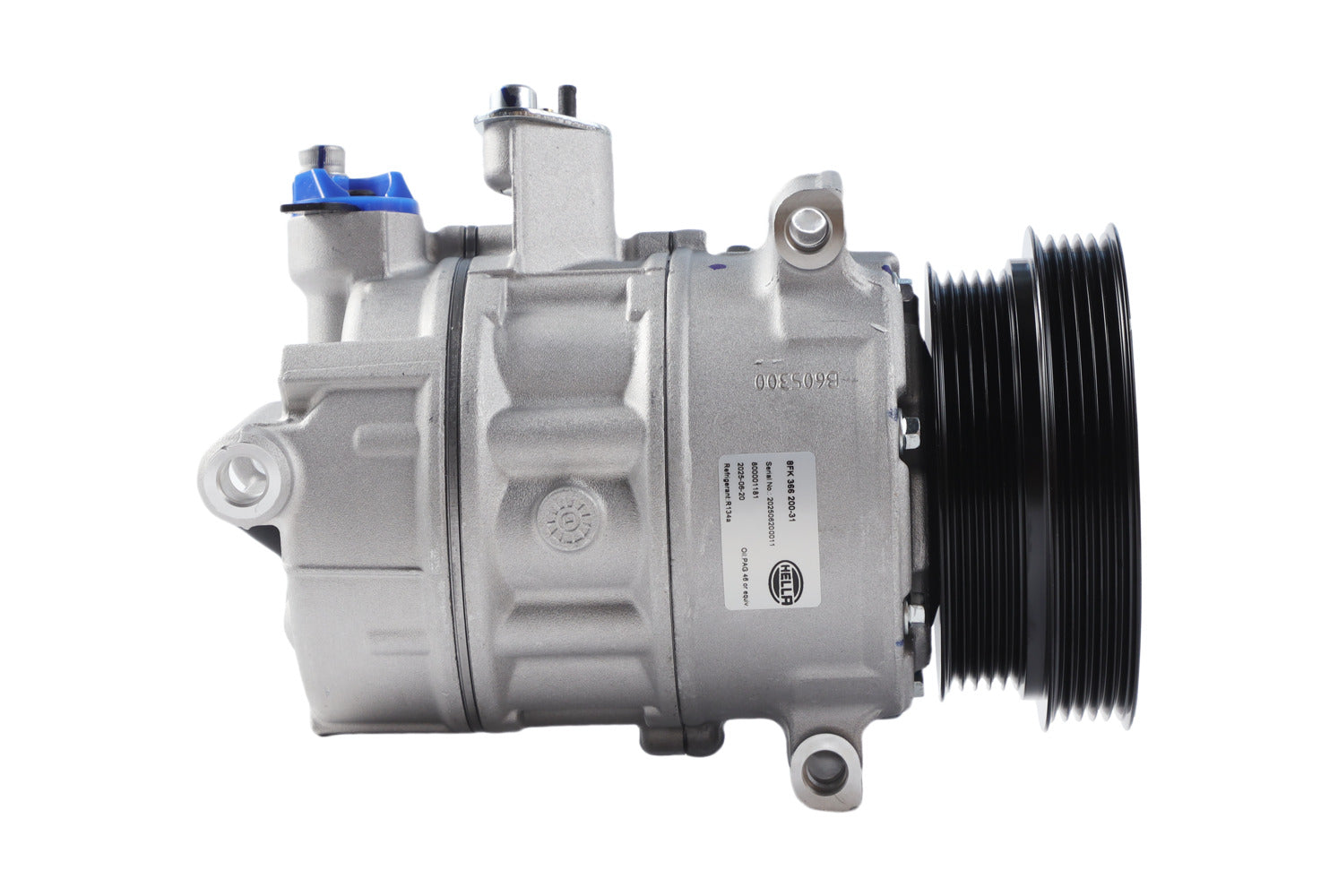

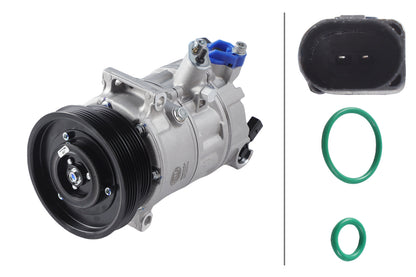

Hella Aircon Compressor 8FK366200-311
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

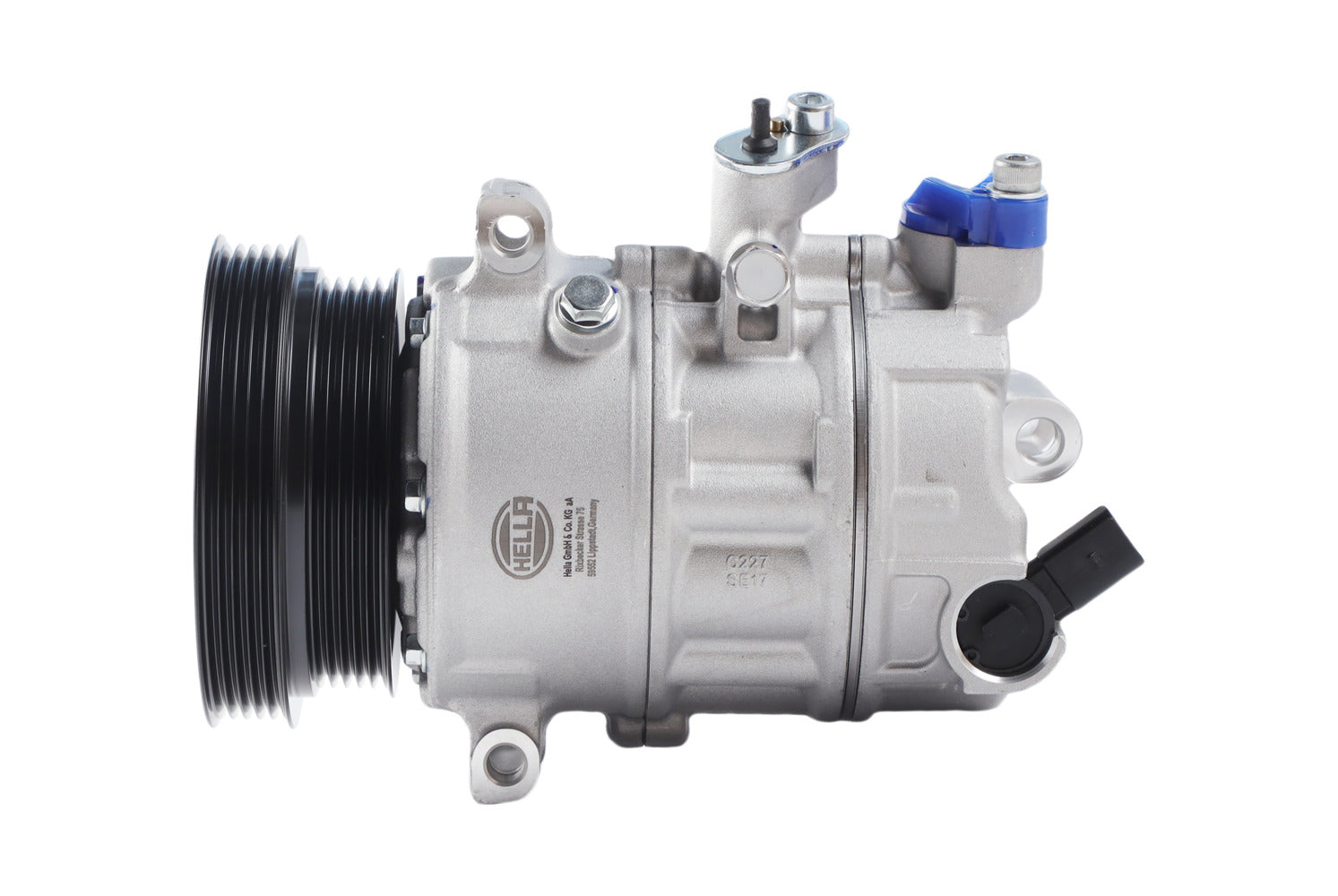

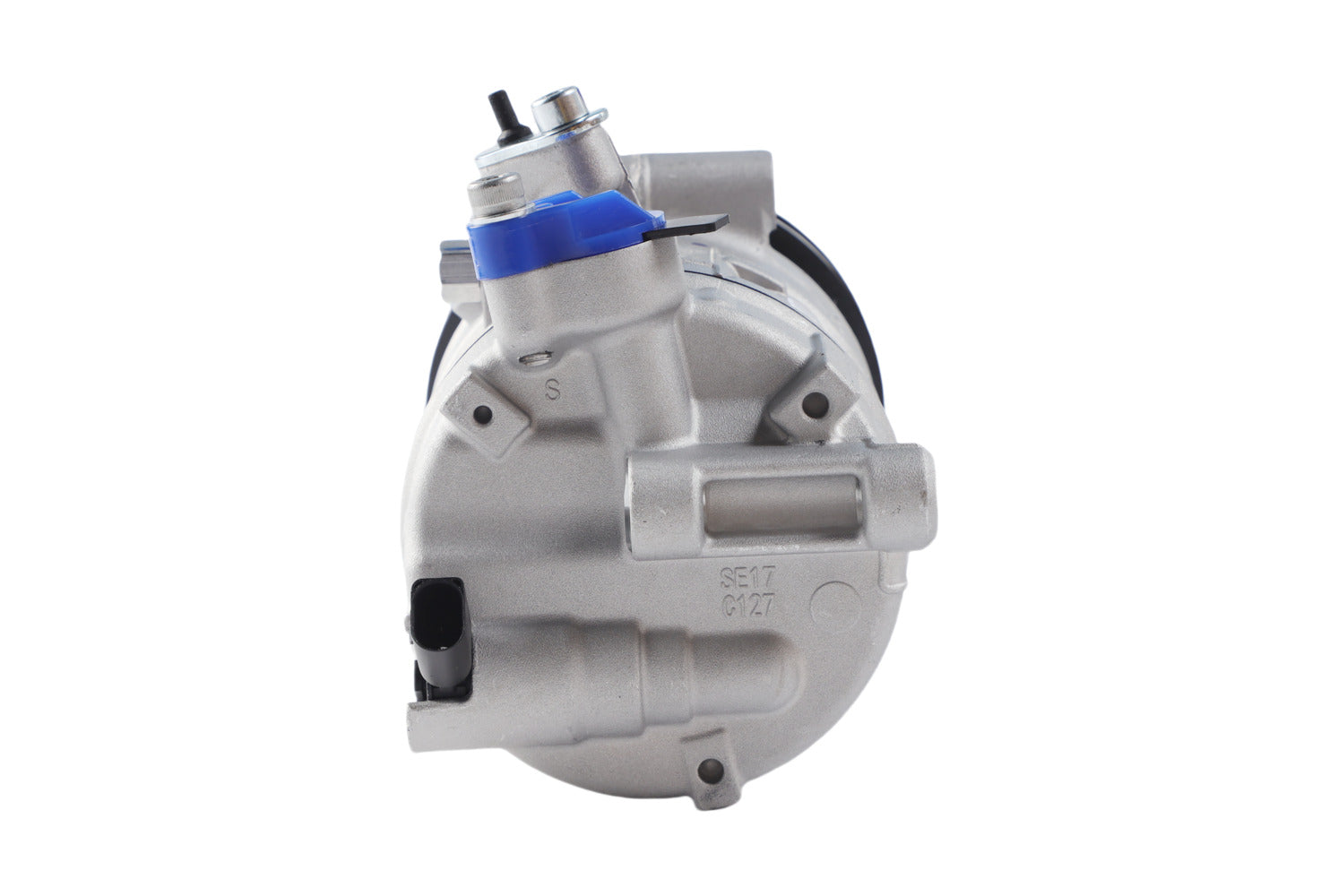

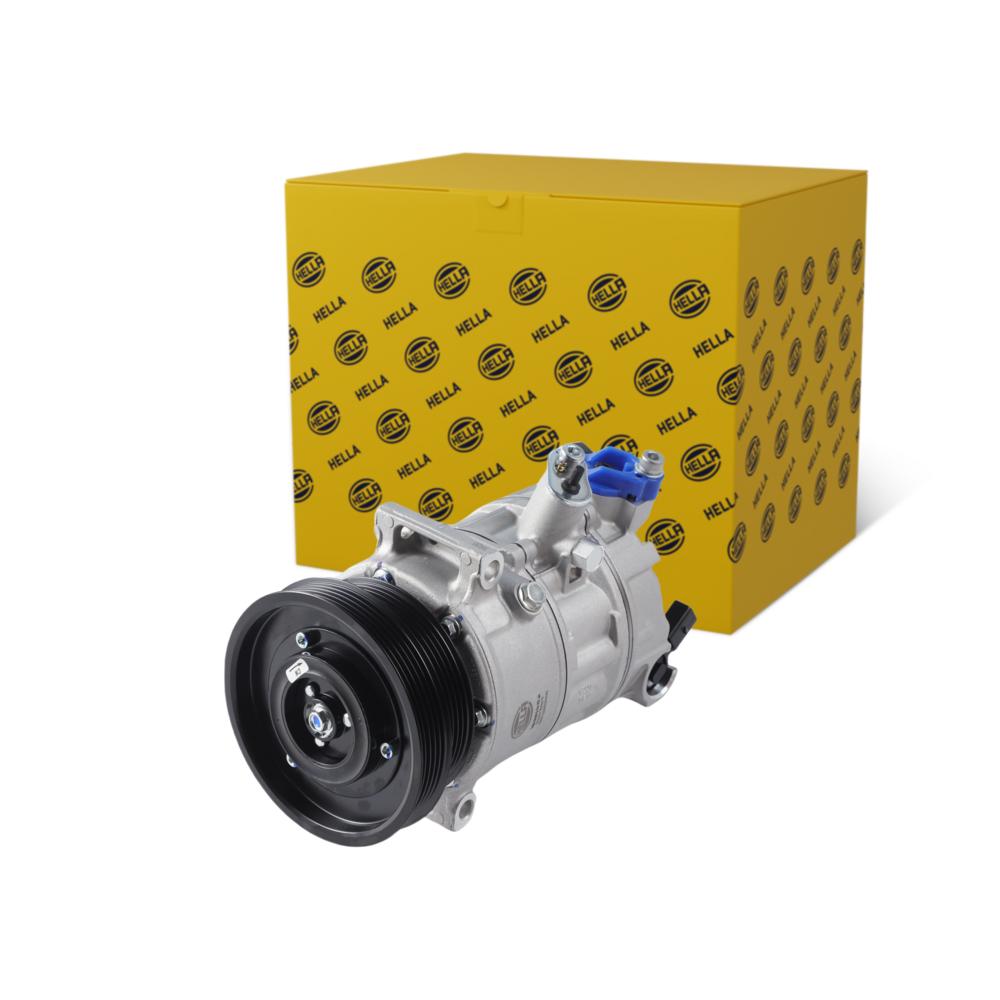

Compressor, air conditioning - PXE16 - 12V - R 134a - PAG 46 - 160ml - without magnetic clutch/with seal ring/with PAG compressor oil
BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.
- fits e.g. VW JETTA III (1K2) 2.5 (please check exact vehicle application)
- Compressor ID: PXE16 - for manufacturer: Sanden - Voltage: 12V

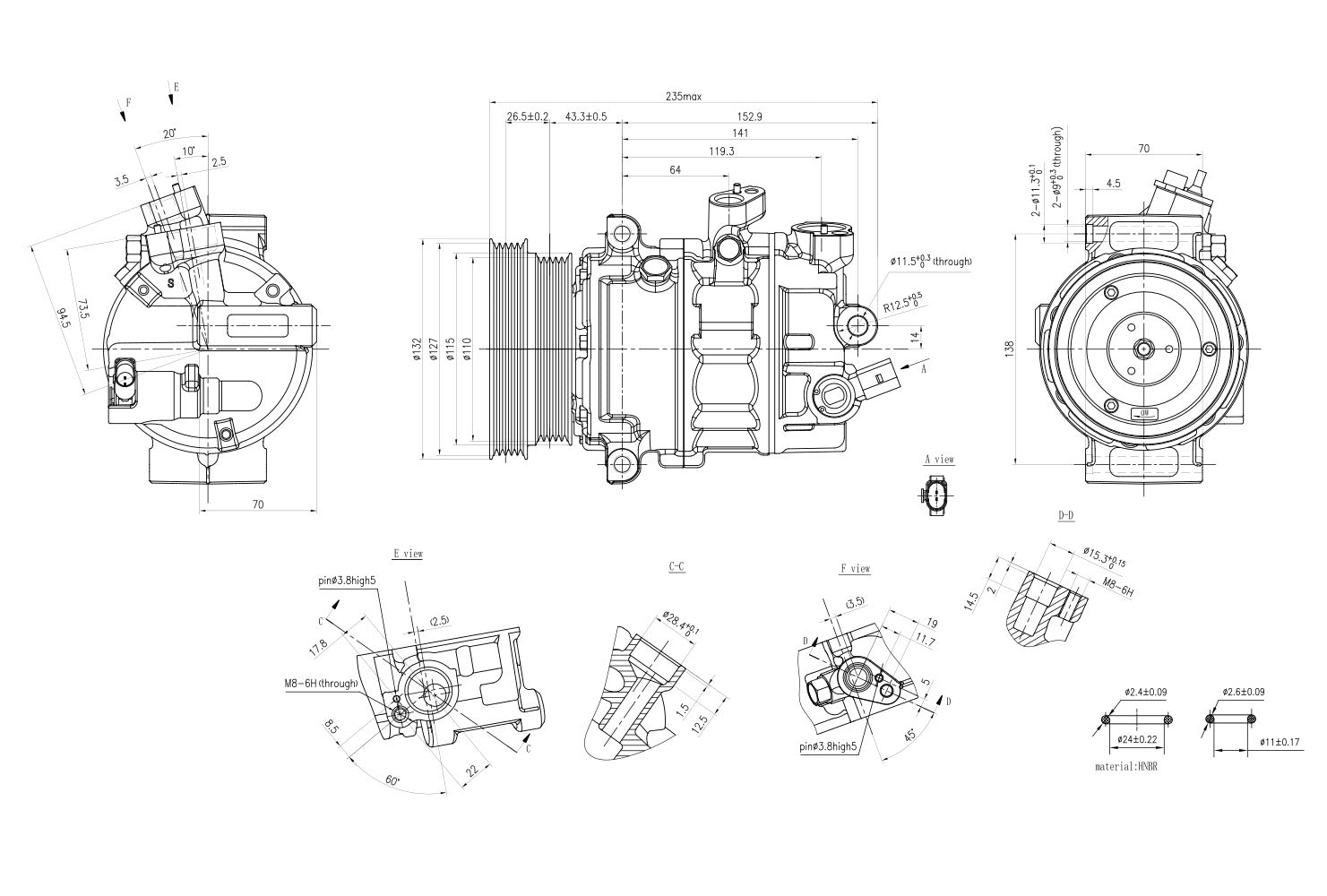

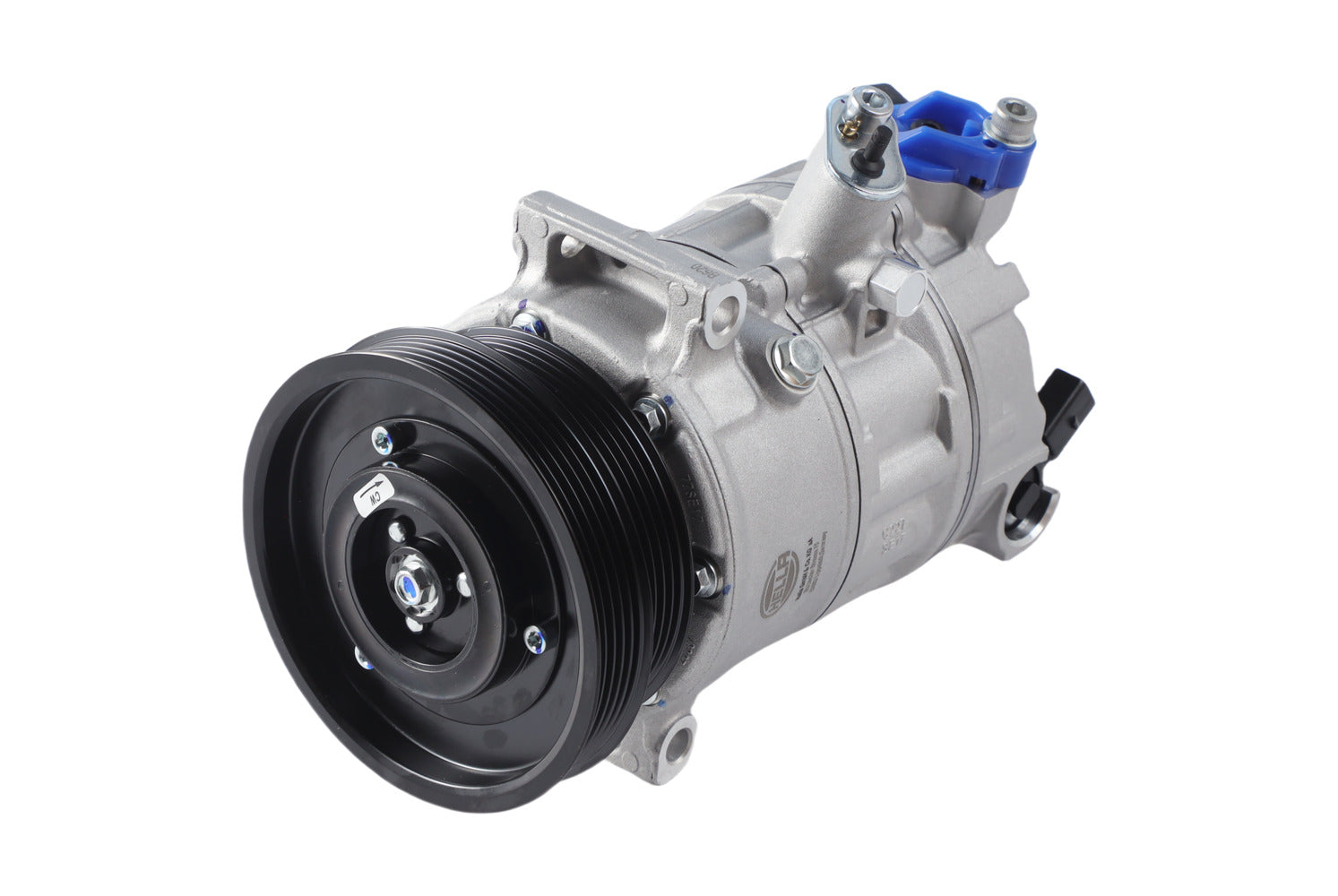

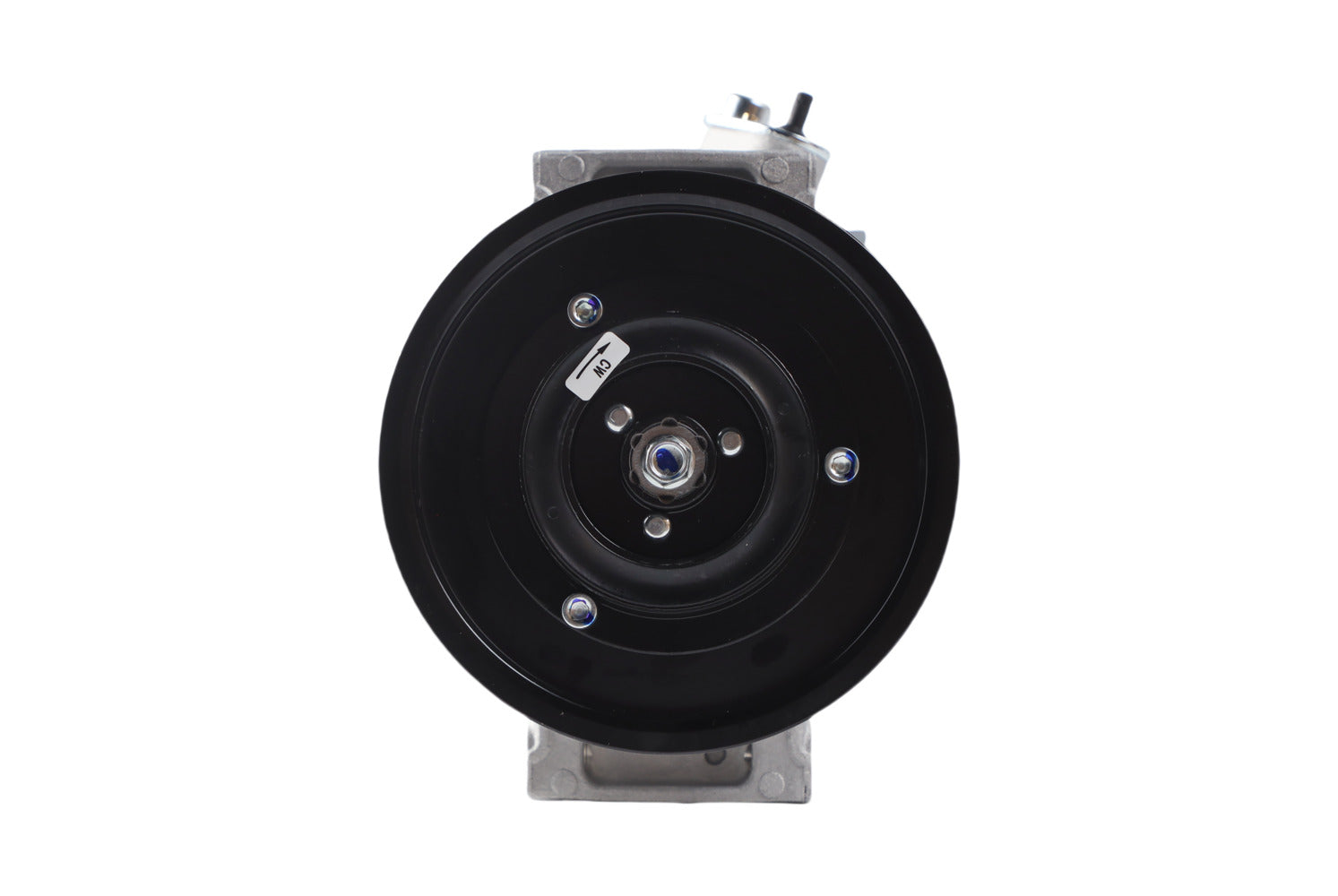

- Inlet Ø: 28.4mm - Outlet Ø: 15.4mm - with multi-belt pulley - Belt Pulley Ø: 127mmNumber of grooves: 5

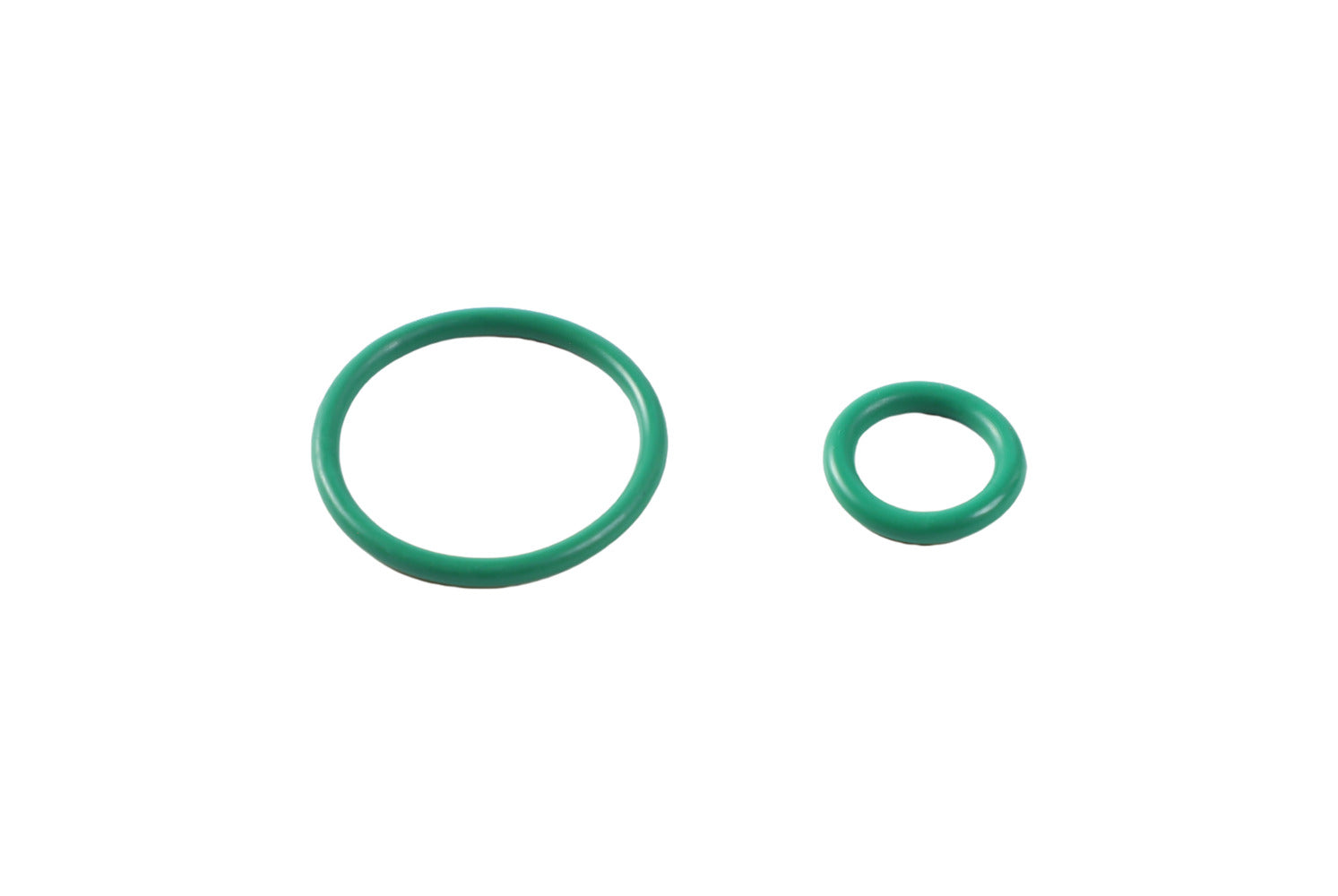

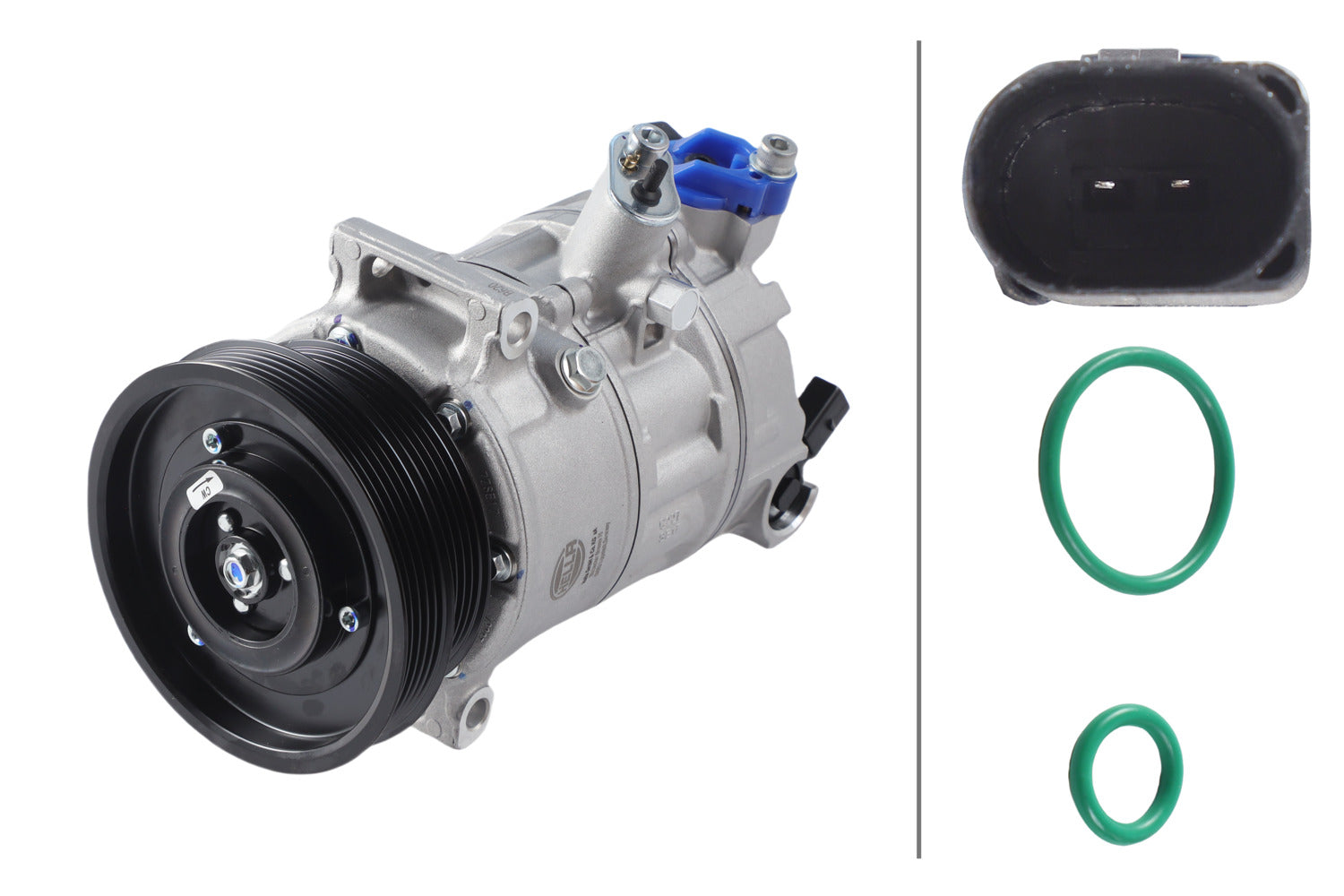

- without magnetic clutch/with seal ring/with PAG compressor oil
- Refrigerant: R 134a - Compressor Oil: PAG 46 - Oil Fill Quantity: 160ml
- Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
- Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.
Item Attributes:
for manufacturer: Sanden
Compressor ID: PXE16
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with seal ring / with PAG compressor oil / without magnetic clutch
Pulleys: with multi-belt pulley
Number of grooves: 5
Belt Pulley Ø: 127 mm
Inlet Ø: 28.4 mm
Outlet Ø: 15.4 mm
Refrigerant: R 134a
Compressor Oil: PAG 46
Oil Fill Quantity: 160 ml
Assembly by qualified personnel required!
Replaces OEM reference(s):
AUDI 1K0 820 803 K; AUDI 1K0 820 803 R; AUDI 1K0 820 803 T; AUDI 1K0 820 808 C; AUDI 1K0 820 808 E; AUDI 1K0 820 808 G; AUDI 1K0 820 808 K; AUDI 1K0 820 808 T; AUDI 1K0 820 859 G; AUDI 1K0 820 859 R; CUPRA 1K0 820 803 K; CUPRA 1K0 820 803 R; CUPRA 1K0 820 803 T; CUPRA 1K0 820 808 C; CUPRA 1K0 820 808 E; CUPRA 1K0 820 808 G; CUPRA 1K0 820 808 K; CUPRA 1K0 820 808 T; CUPRA 1K0 820 859 G; CUPRA 1K0 820 859 R; VW 1K0 820 803 K; VW 1K0 820 803 R; VW 1K0 820 803 T; VW 1K0 820 808 C; VW 1K0 820 808 E; VW 1K0 820 808 G; VW 1K0 820 808 K; VW 1K0 820 808 T; VW 1K0 820 859 G; VW 1K0 820 859 R
AVA: AIAK359, BOSCH: 1986AD1000, DELPHI: TSP0155997, HOFFER: K11452A, KRIOS: 11452A, MAHLE BEHR INDUSTRY: ACP1314000P, MAHLE BEHR INDUSTRY: ACP1314000S, MEAT & DORIA: K11452A, MOTRIO: 8660003713, NISSENS: 89421, NISSENS: 890632, NRF: 32146, NRF: 32147, NRF: 32970, SIDAT: 11452A, TITAN X: CM339004, VALEO: 399517, VALEO: 699357, VALEO: 699857, VALEO: 815263, WAECO: 8880100209, WAECO: 8880100219, WAECO: 8880100363, WAECO: 8880100404, WAECO: 8880120209, WAECO: 8880120219, WAECO: 8880120363, WAECO: 8880120404, WAECO: 8880120499
