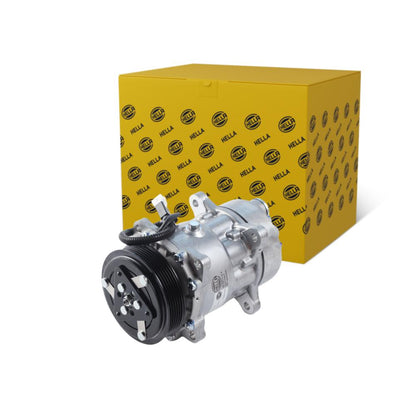

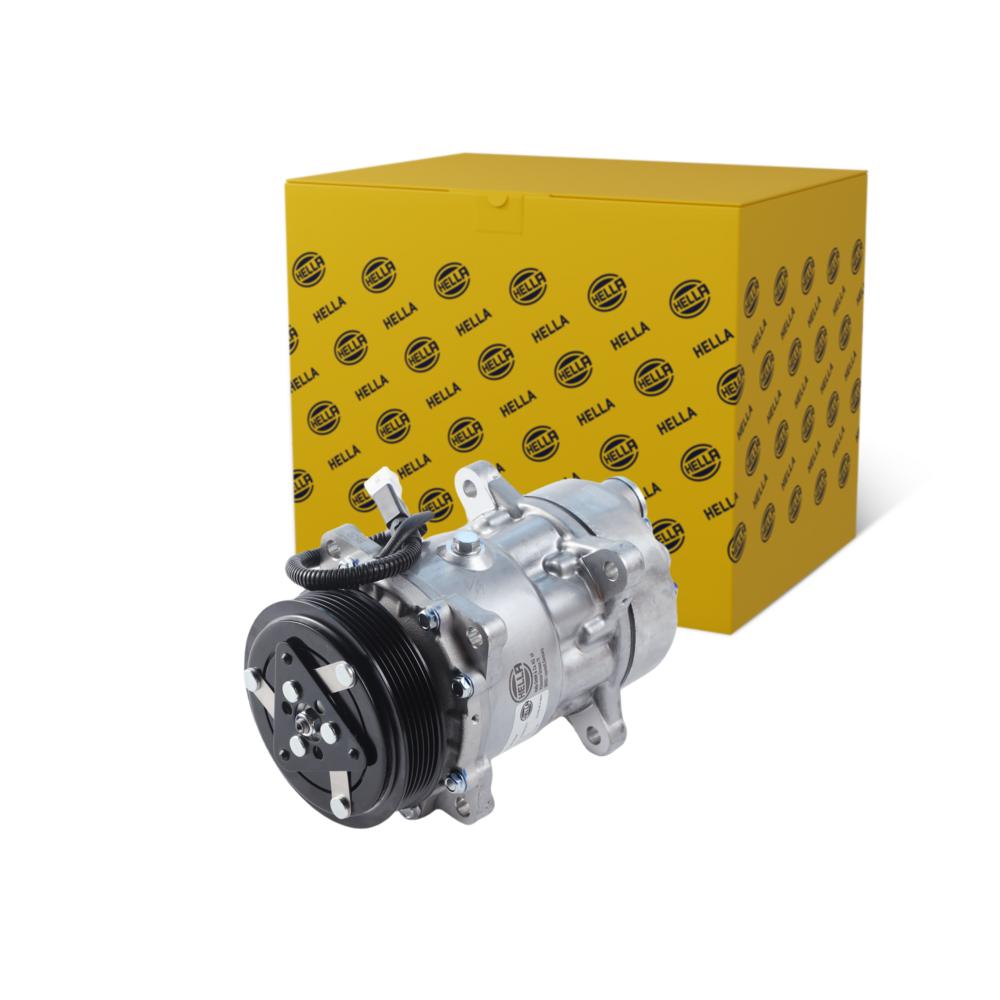

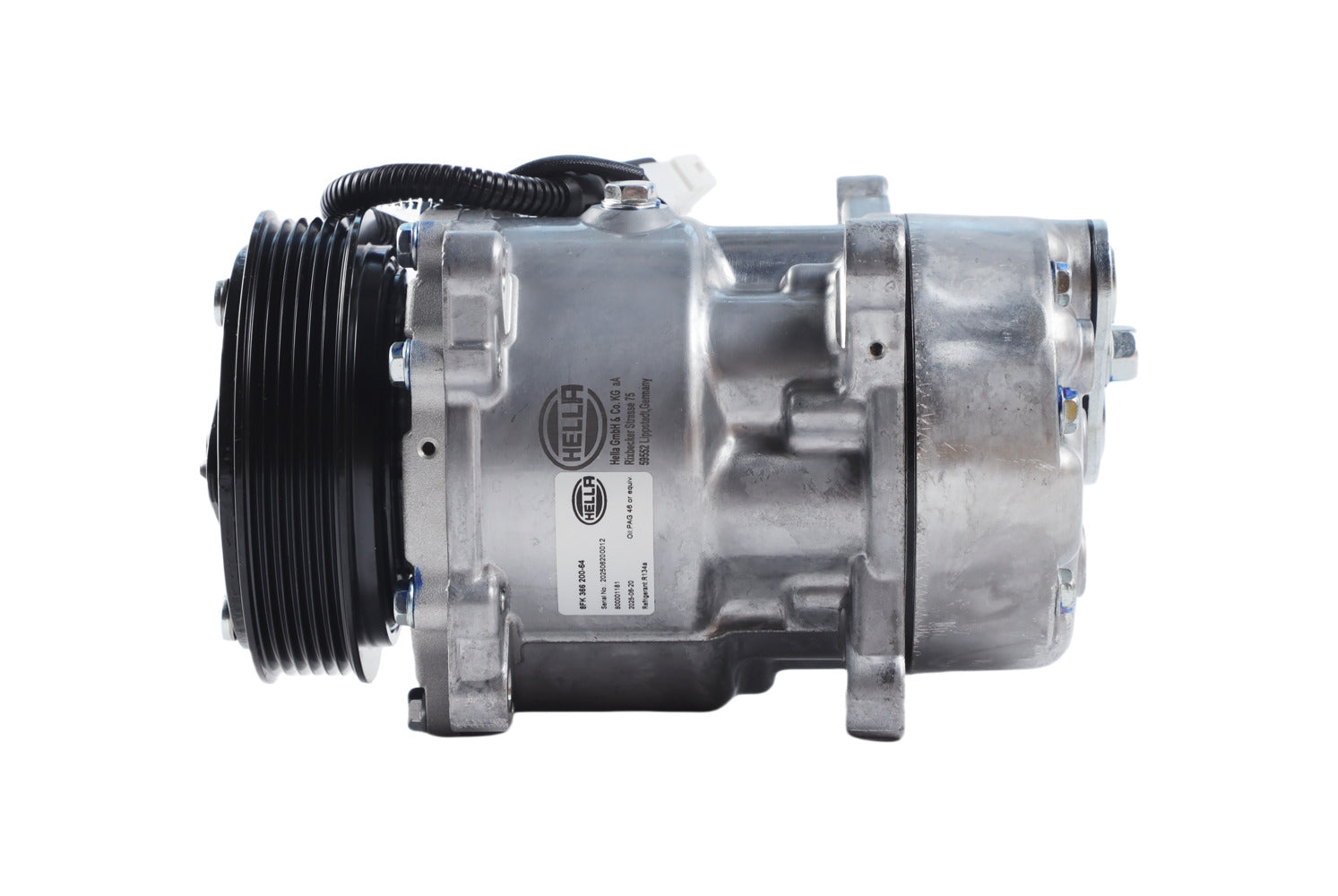

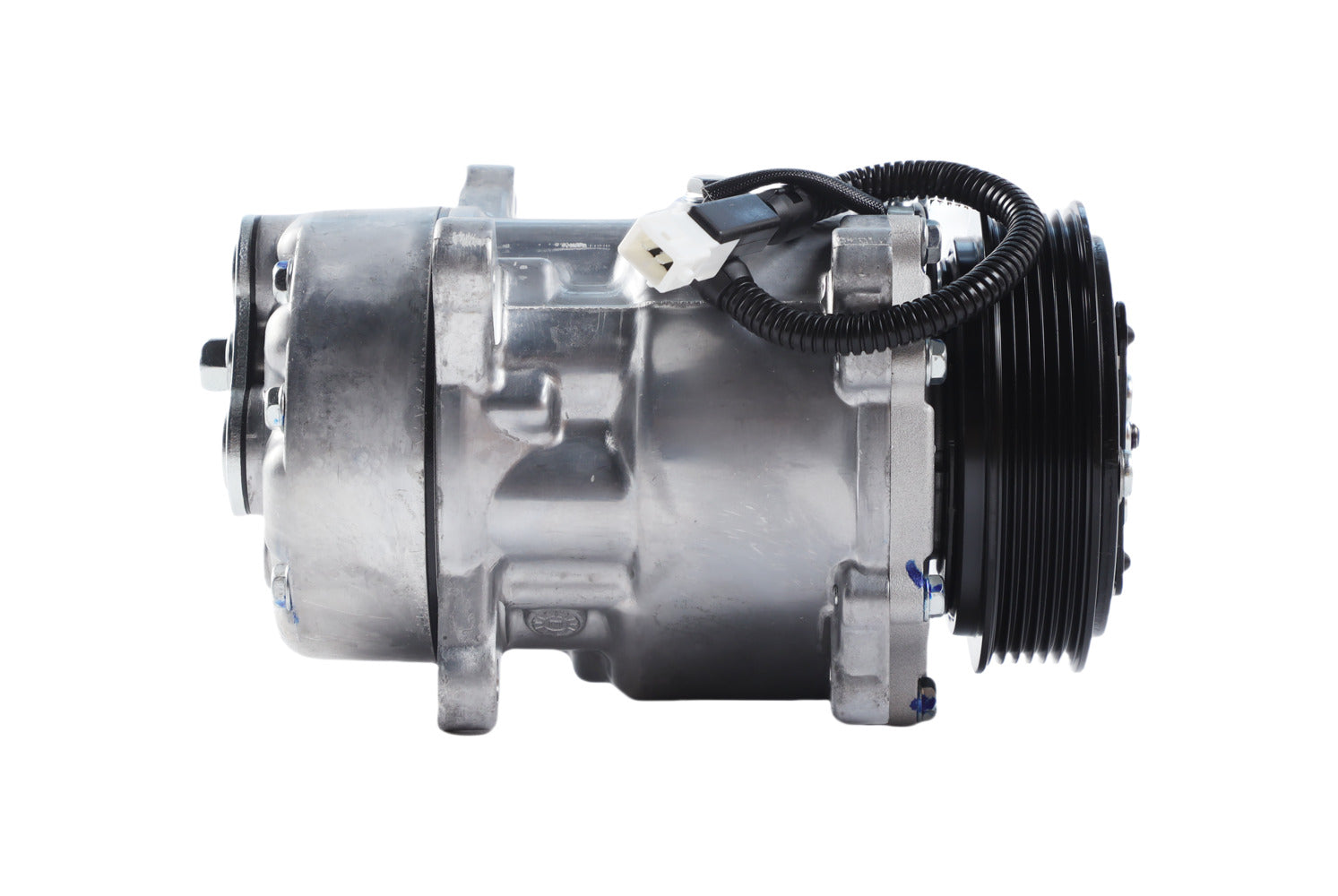

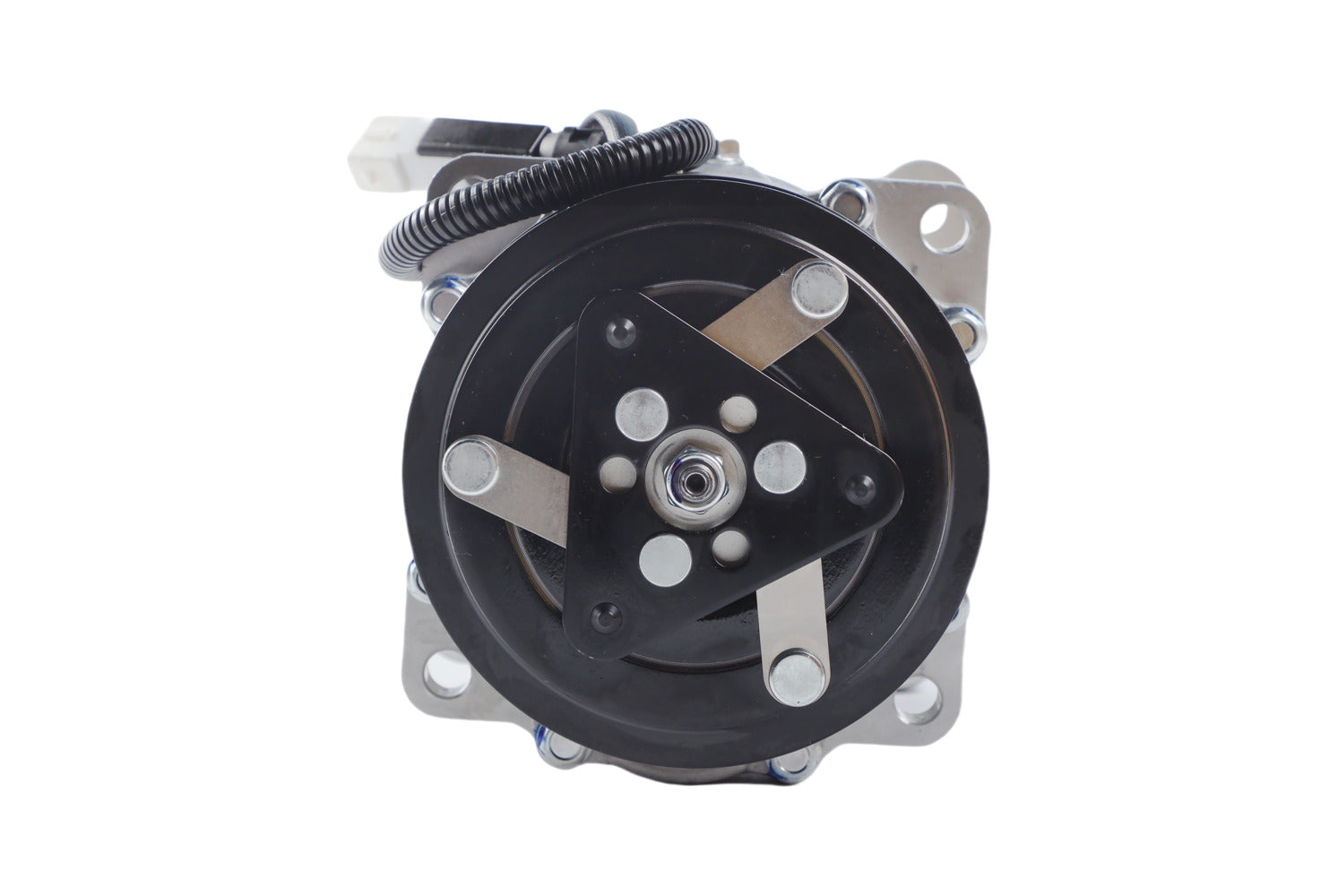

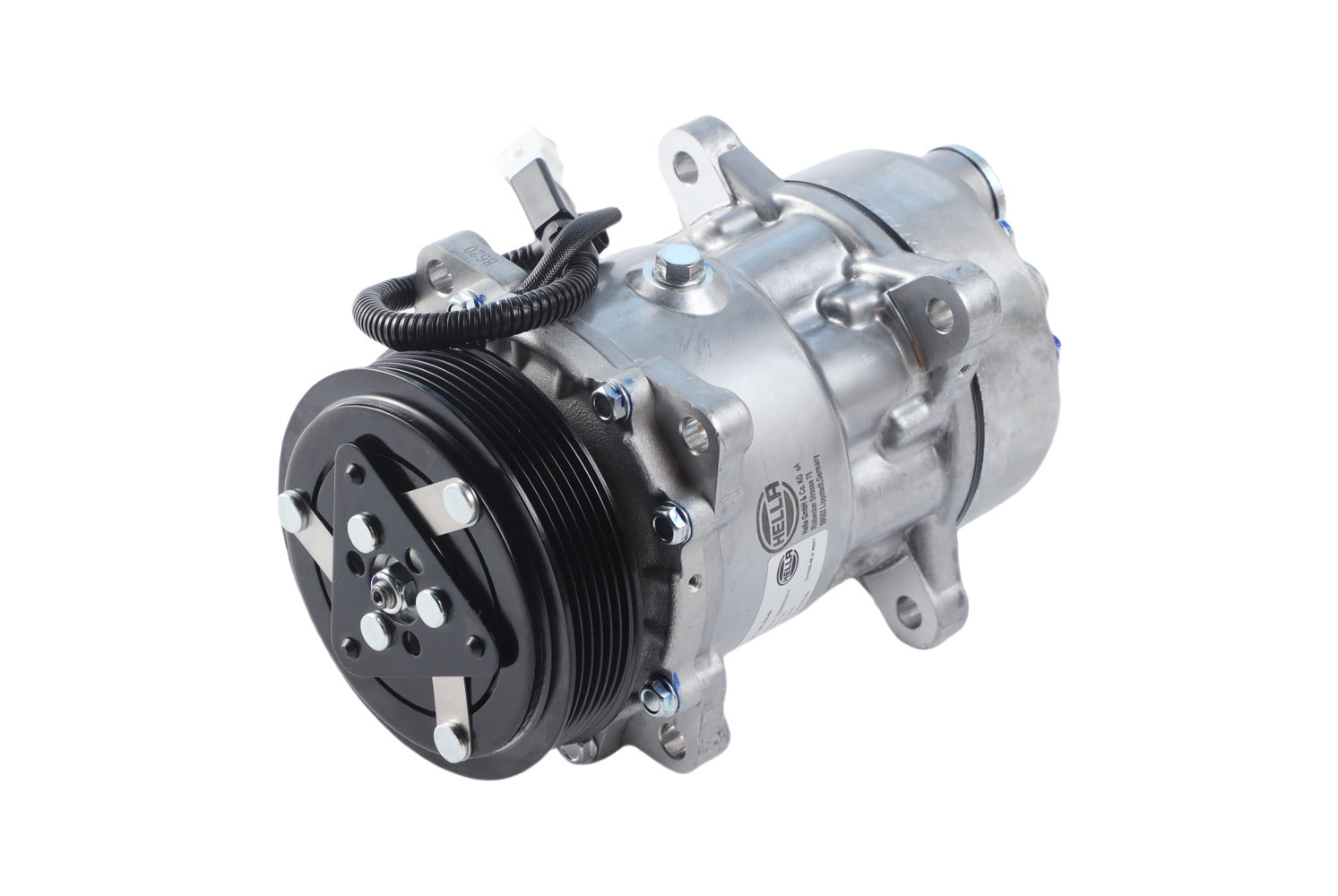

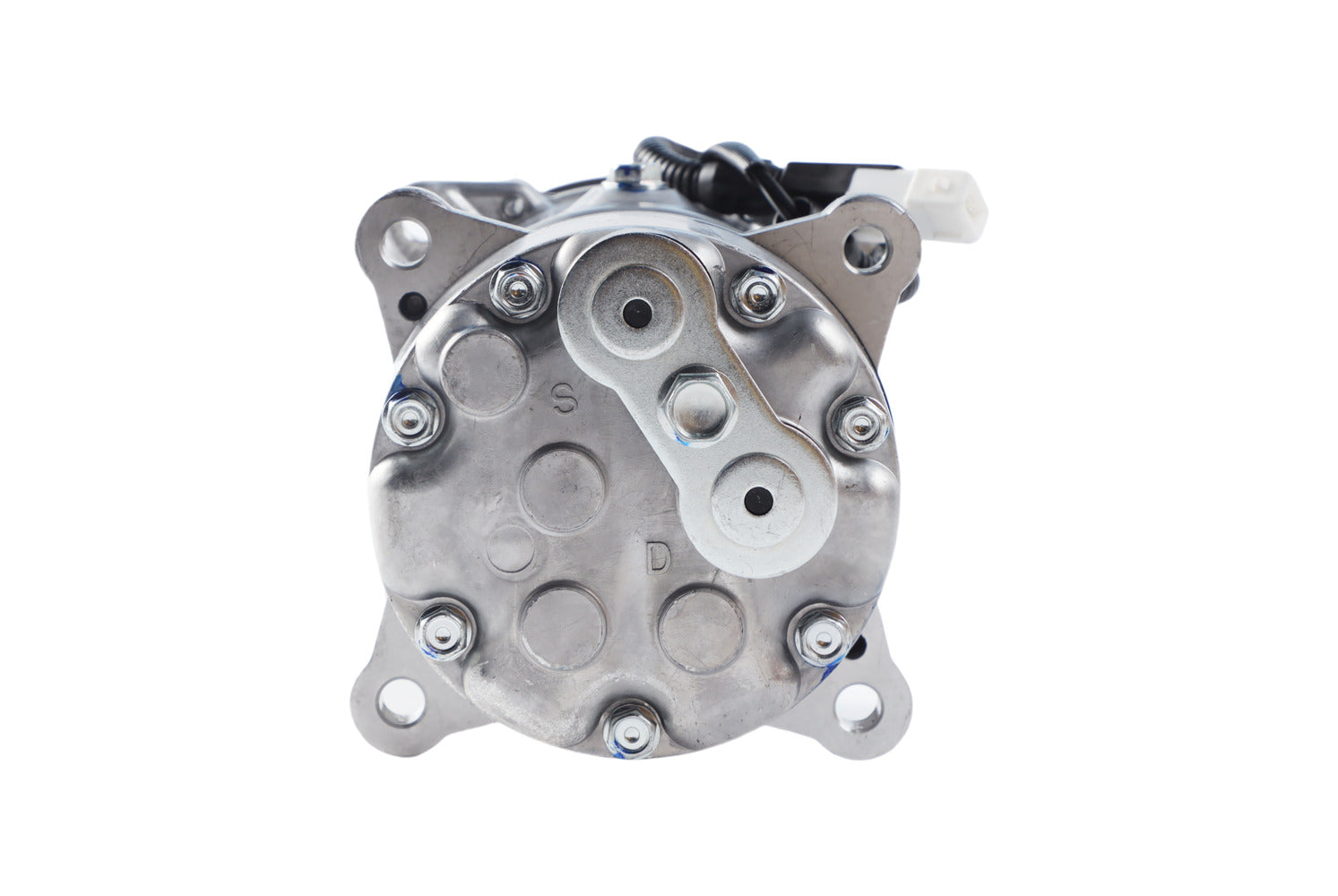

Hella Aircon Compressor 8FK366200-641

Compressor, air conditioning - SD7V16 - 12V - R 134a - PAG 46 - 135ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. FIAT DUCATO Van (244_) 2.0 (please check exact vehicle application)
• Compressor ID: SD7V16 - for manufacturer: Sanden - Voltage: 12V

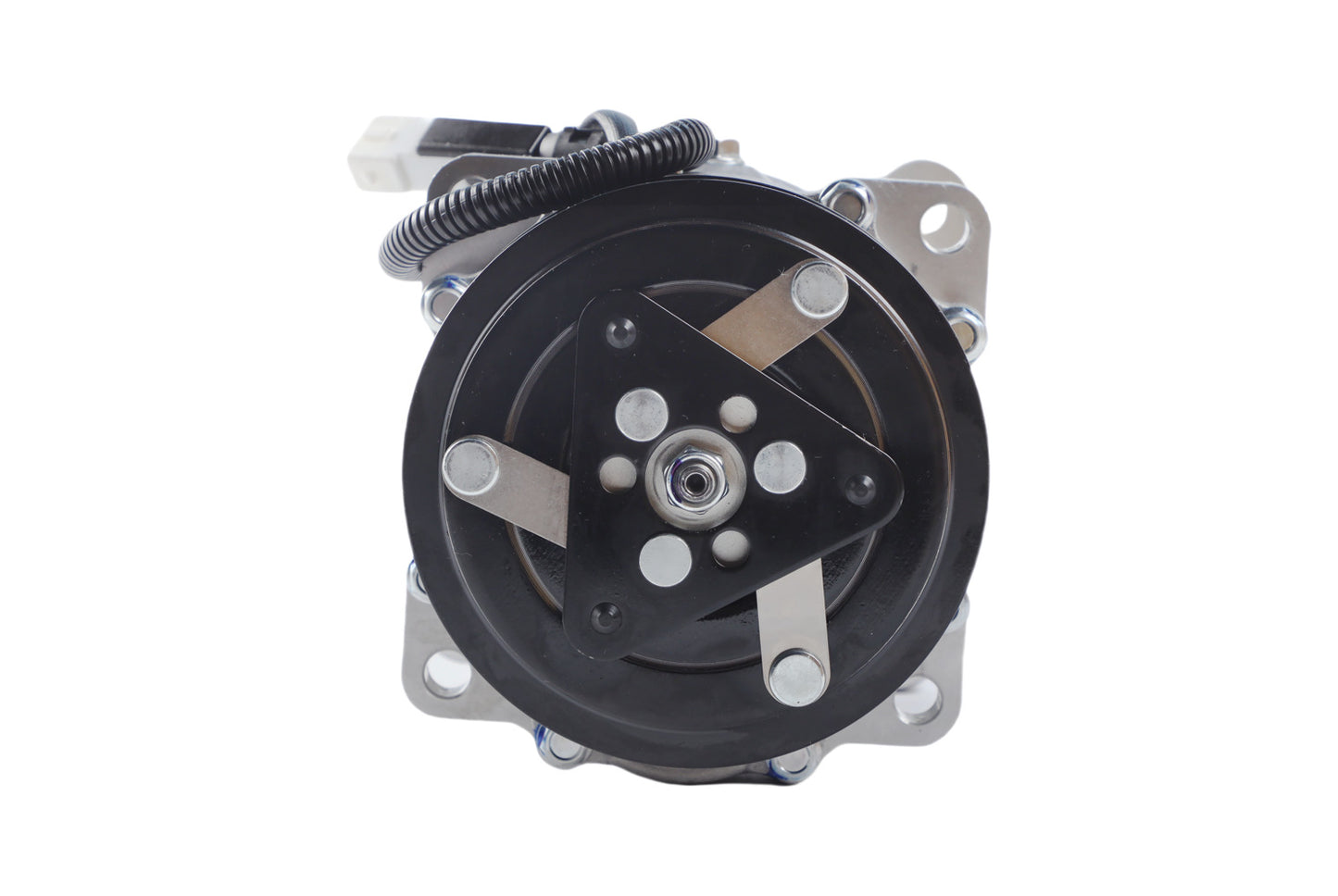

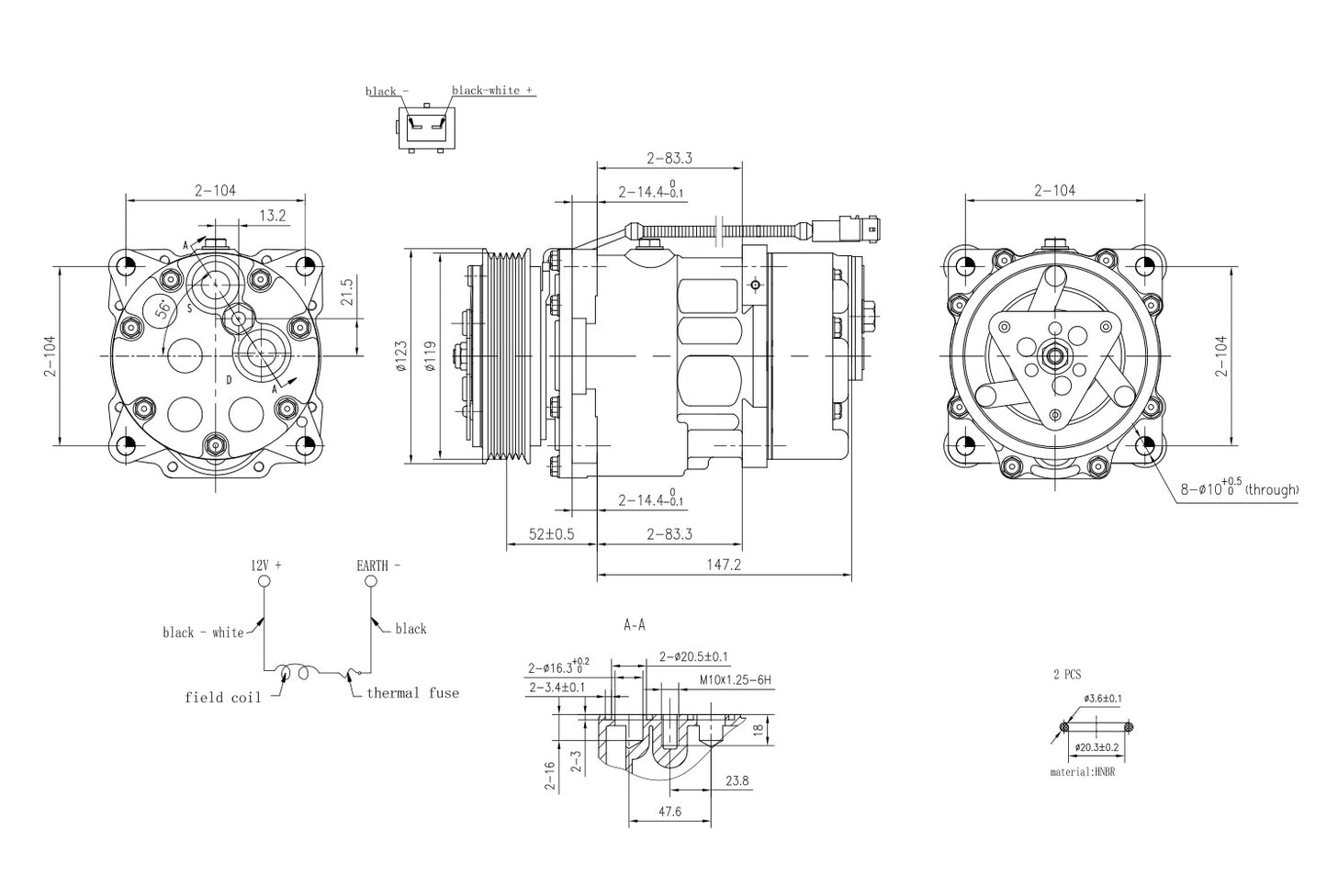

• Inlet Ø: 16mm - Outlet Ø: 16mm - with V-ribbed belt pulley - Belt Pulley Ø: 119mmNumber of grooves: 6

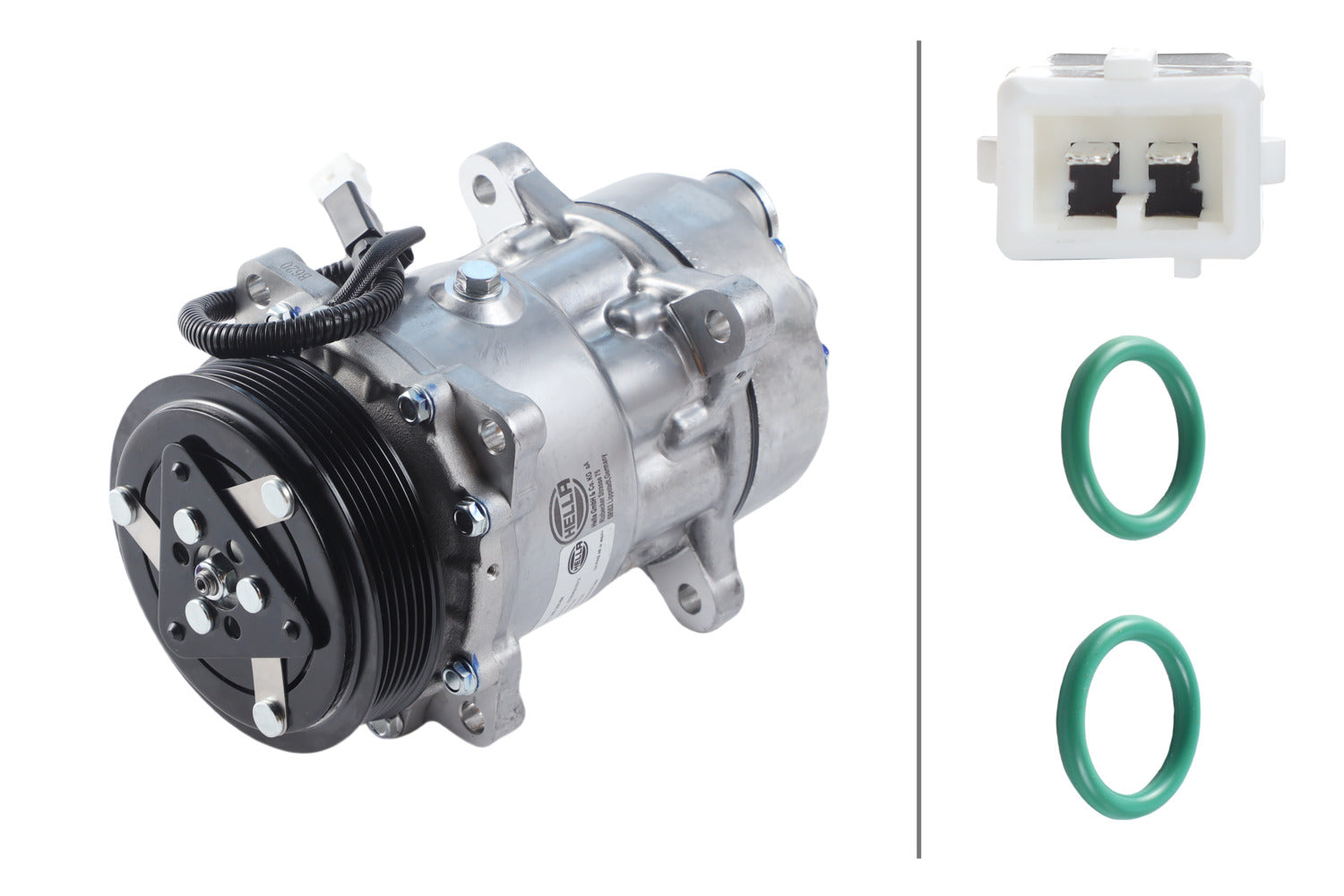

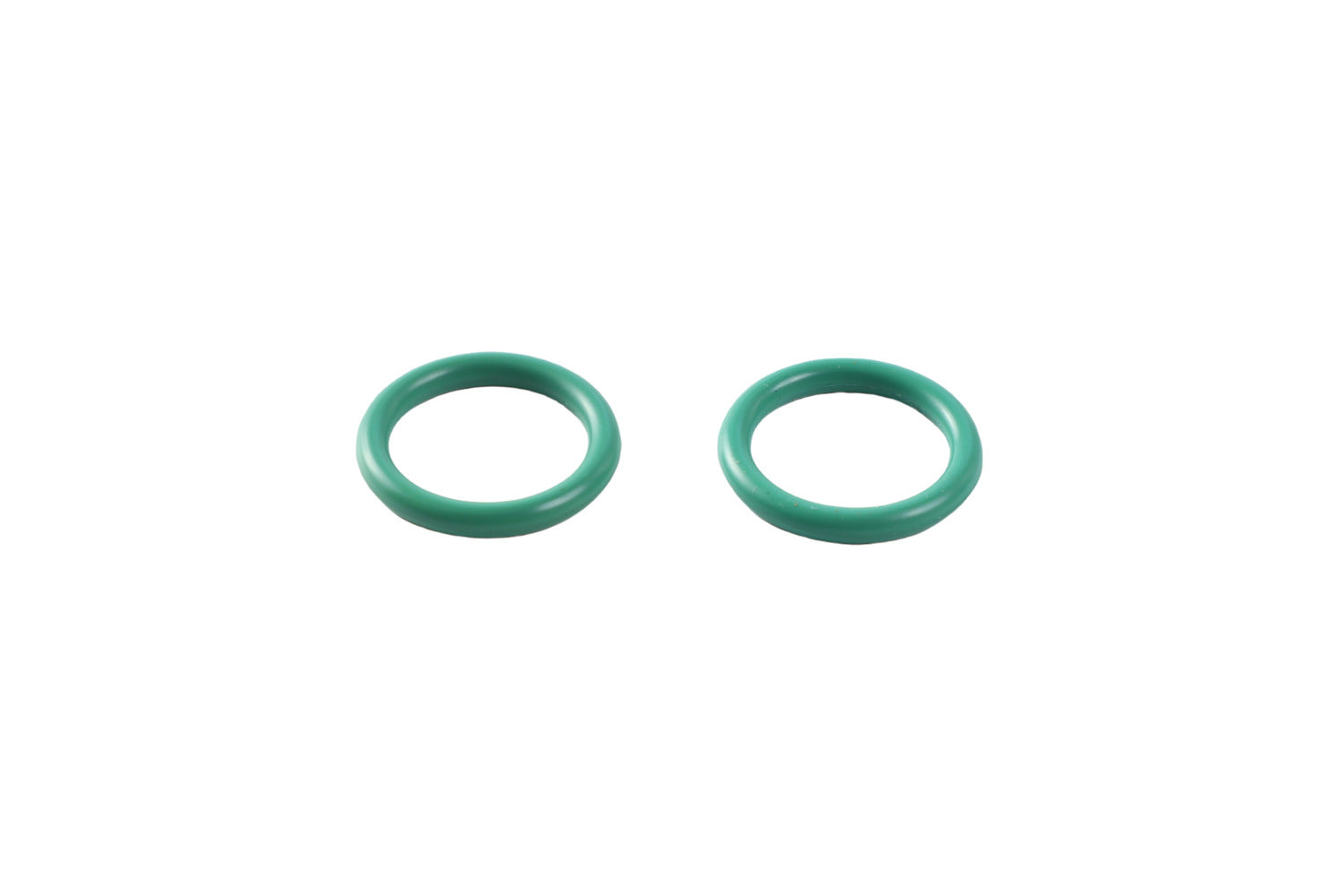

• with magnetic clutch/with seal ring/with PAG compressor oil
• Refrigerant: R 134a - Compressor Oil: PAG 46 - Oil Fill Quantity: 135ml
• Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
• Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Sanden
Compressor ID: SD7V16
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with magnetic clutch / with seal ring / with PAG compressor oil
Pulleys: with V-ribbed belt pulley
Number of grooves: 6
Belt Pulley Ø: 119 mm
Inlet Ø: 16 mm
Outlet Ø: 16 mm
Refrigerant: R 134a
Compressor Oil: PAG 46
Oil Fill Quantity: 135 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
CITROËN 6453EY; CITROËN 6453FE; CITROËN 6453GA; CITROËN 6453L5; CITROËN 6453TJ; CITROËN 6453TK; CITROËN 9613260680; CITROËN 9636729480; CITROËN 9640486480; CITROËN 9641078080; FIAT 6453GA; FIAT 9613260680; FIAT 9616821680; FIAT 9640486480; FIAT 9641078080; FIAT 9659231080; LANCIA 9613260680; LANCIA 9640486480; LANCIA 9659231080; PEUGEOT 6453EY; PEUGEOT 6453FE; PEUGEOT 6453GA; PEUGEOT 6453L5; PEUGEOT 6453TJ; PEUGEOT 6453TK; PEUGEOT 9613260680; PEUGEOT 9636729480; PEUGEOT 9640486480; PEUGEOT 9641078080

Replaces aftermarket reference(s):
AUTOGAMMA: 108025, AVA: CNAK161, BOSCH: 1986AD1107, BOSCH: 1986AD1131, DELPHI: TSP0155031, DELPHI: TSP0159031, DENSO: DCP21006, DT Spare Parts: 1277025, HOFFER: K11080, HOFFER: K11080A, KRIOS: 1108, KRIOS: 11080A, MAHLE BEHR INDUSTRY: ACP360000S, MEAT & DORIA: K11080, MEAT & DORIA: K11080A, MOTRIO: 8671005557, NISSENS: 89055, NRF: 32040, NRF: 32240, NRF: 32040G, SIDAT: 1108, SIDAT: 11080A, VALEO: 399507, VALEO: 699236, VALEO: 699736, VAN WEZEL: 900K161, WAECO: 8880100119
