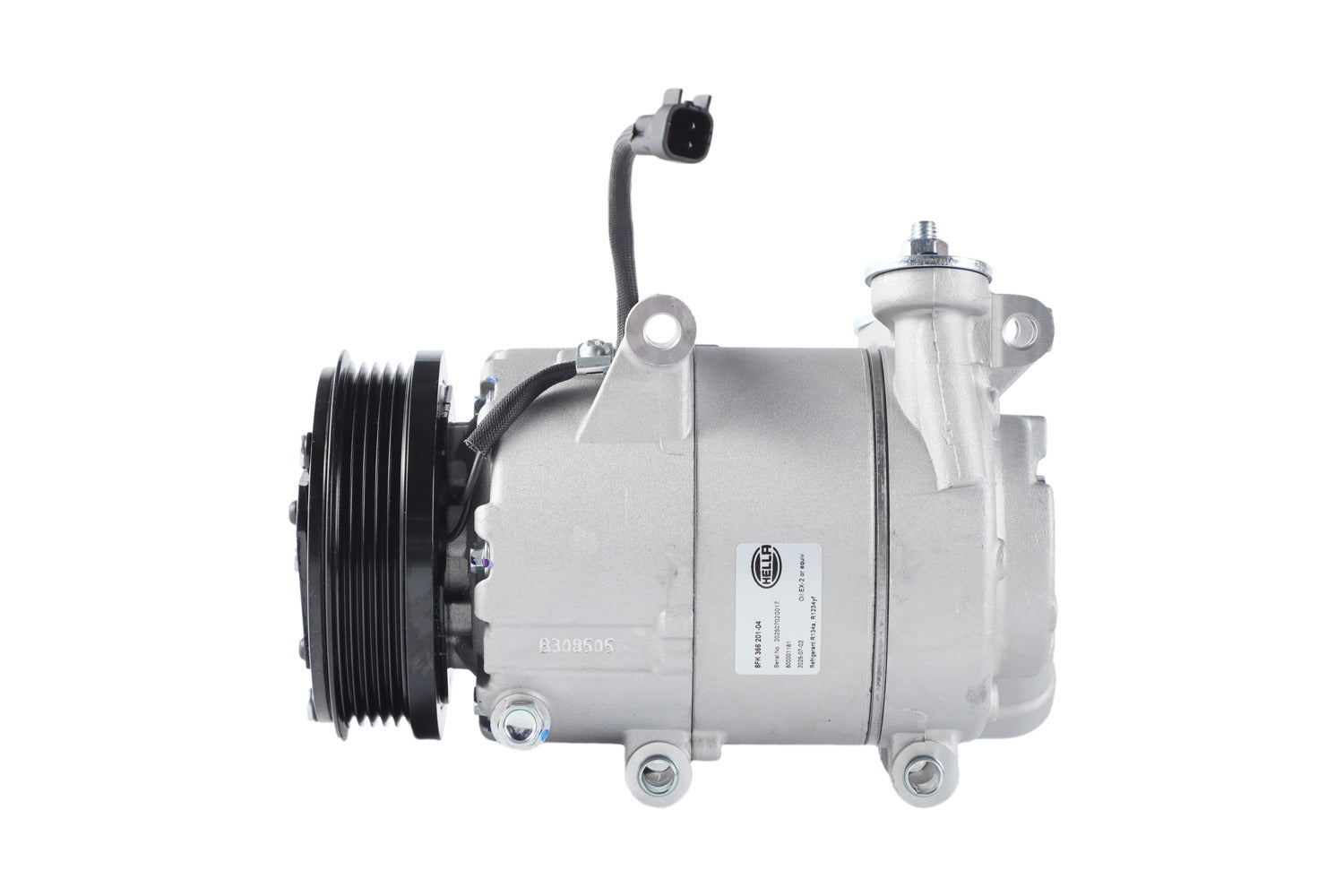

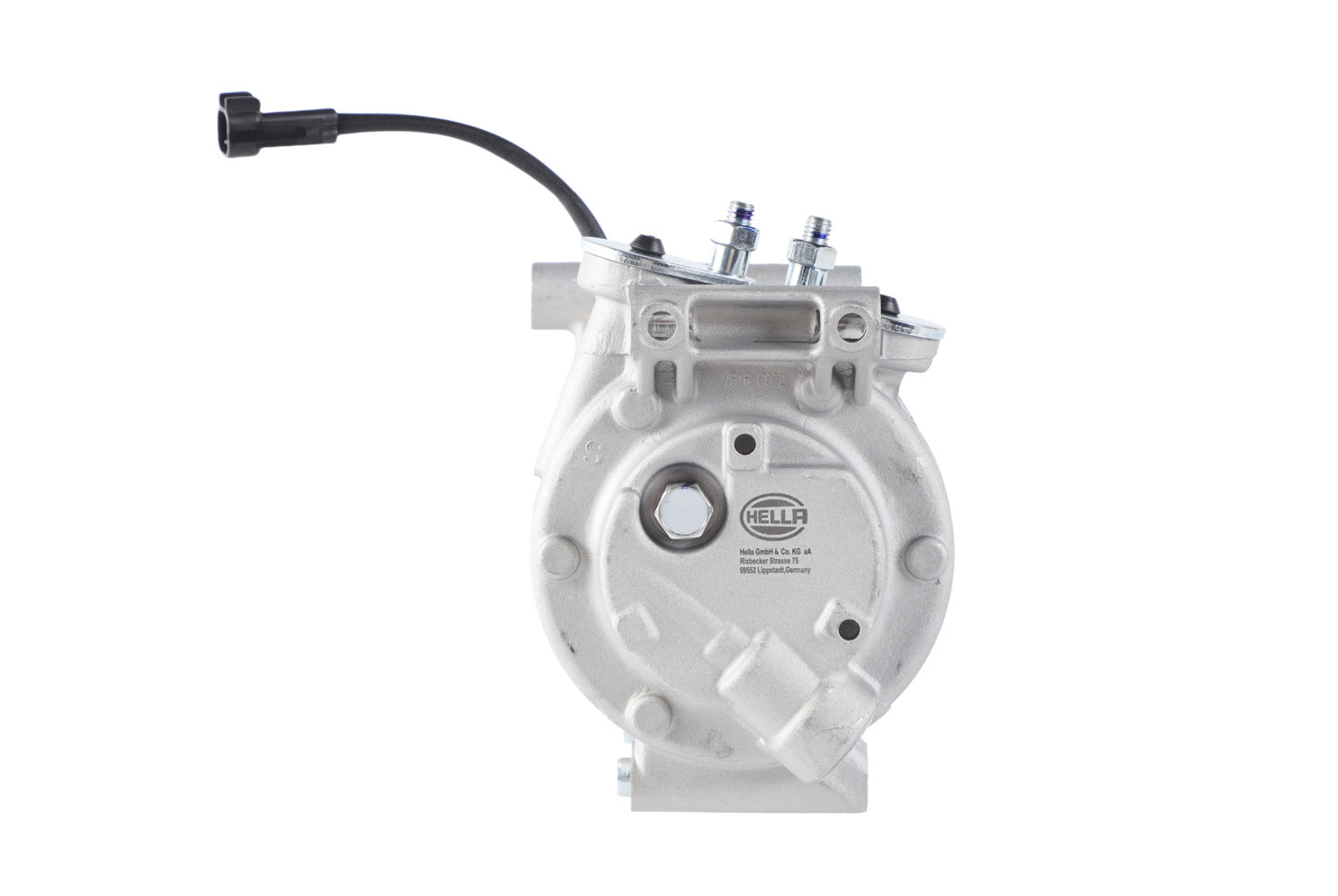

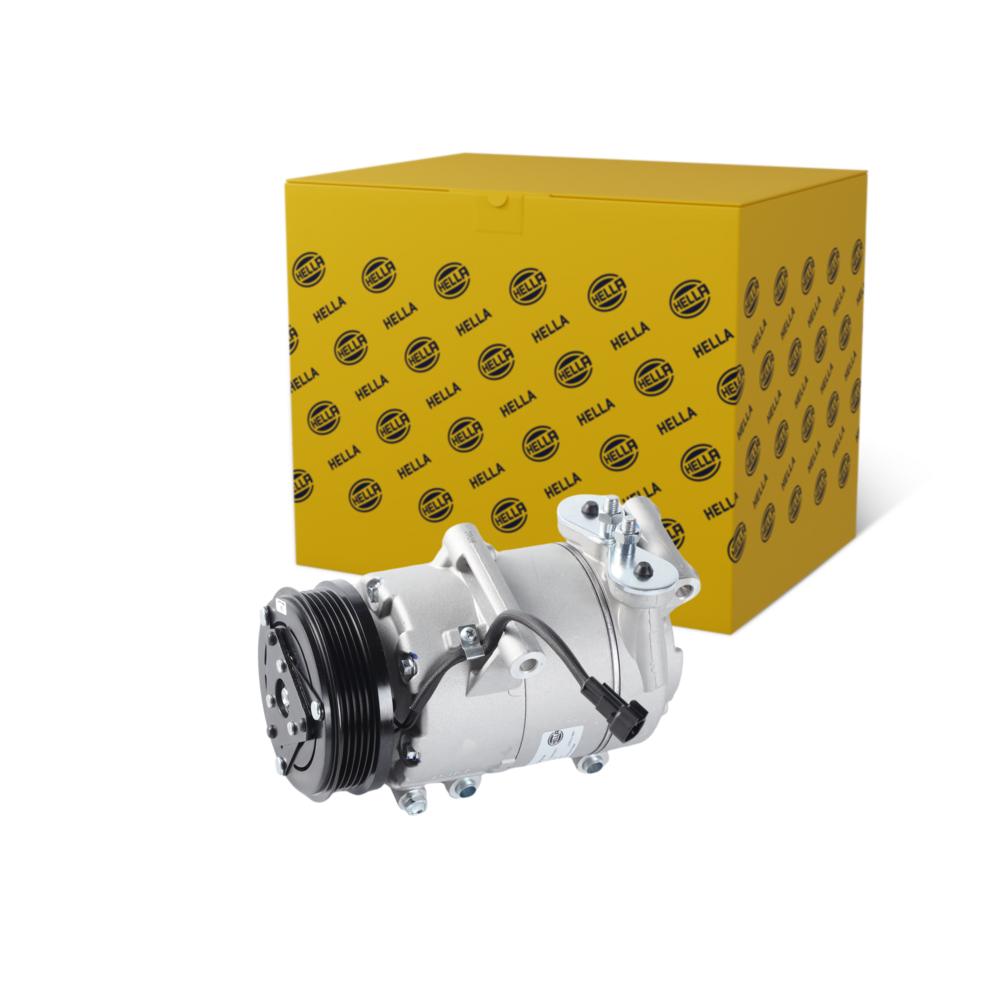

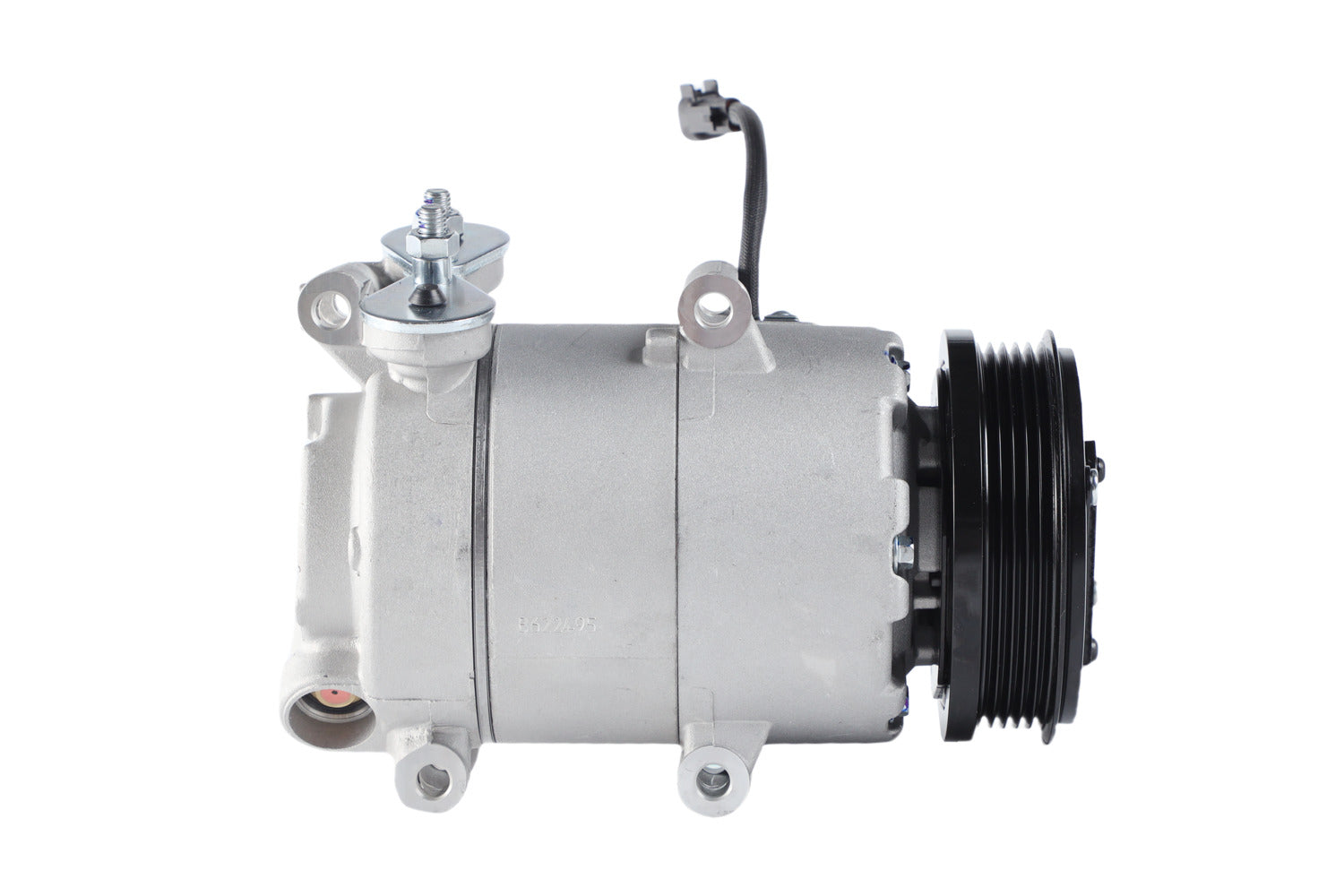

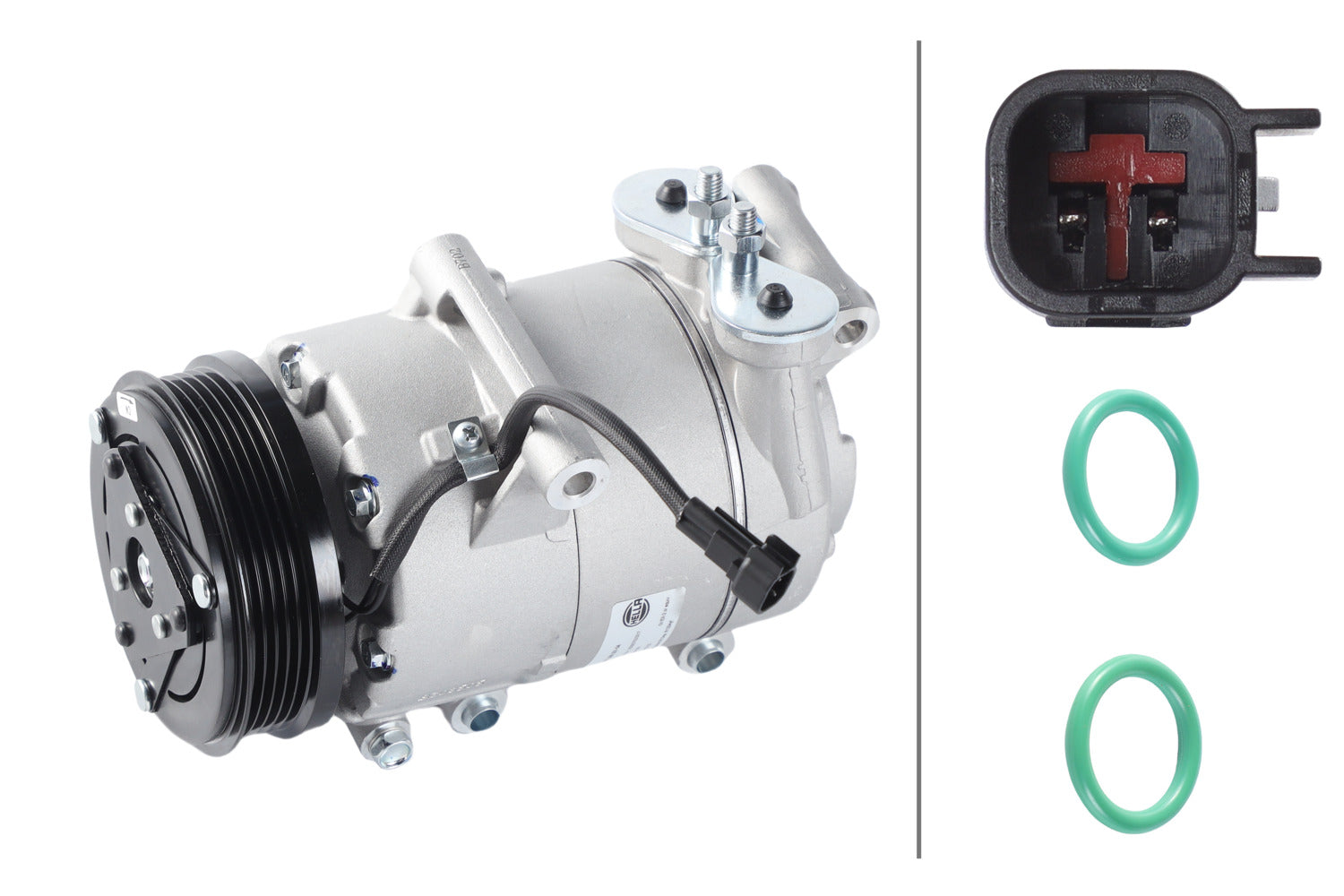

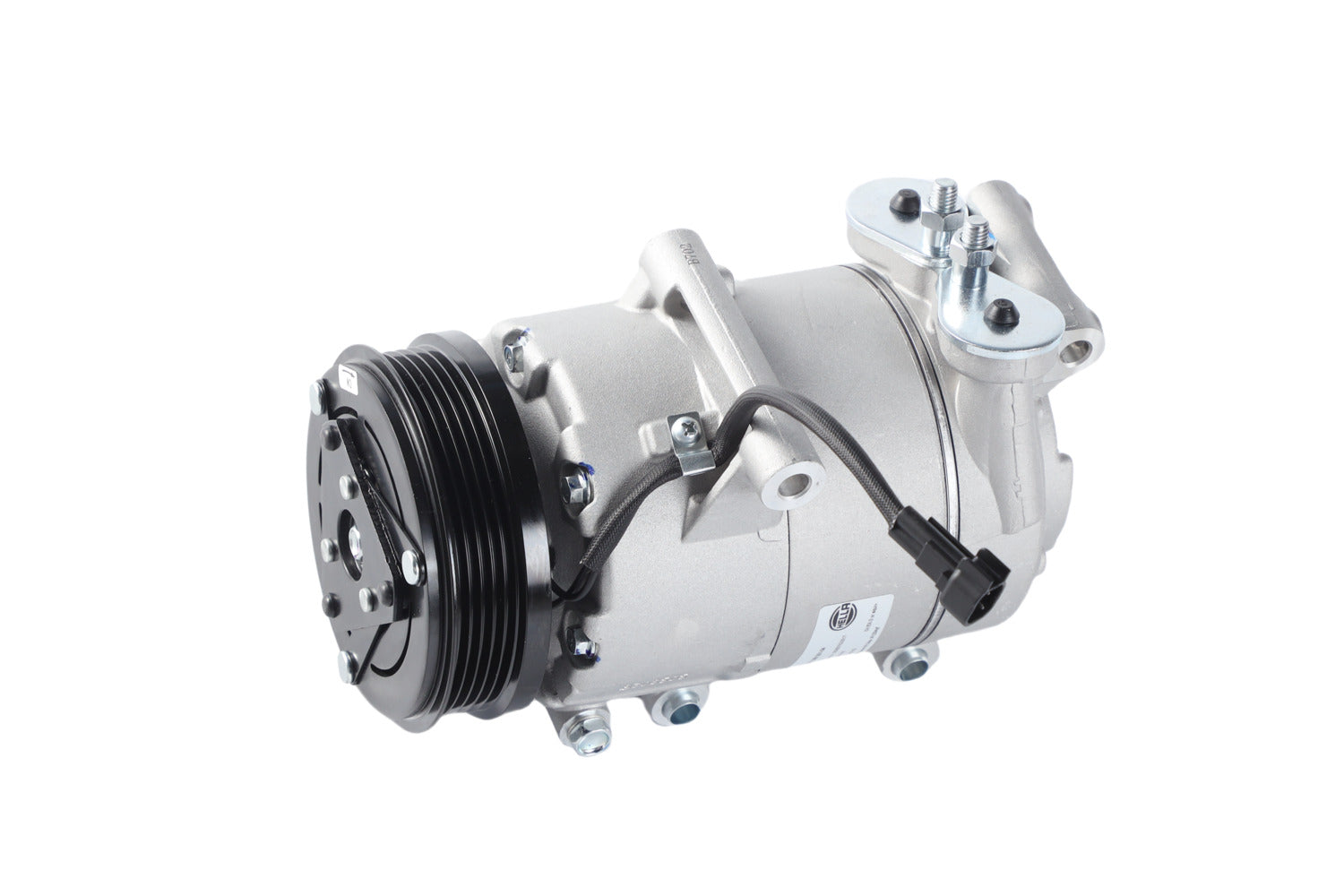

Hella Aircon Compressor 8FK366201-041

Compressor, air conditioning - 7VS16ic - 12V - R 134a/R 1234yf - PAG 46 YF - 100ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. FORD C-MAX (DM2) 2.0 (please check exact vehicle application)
• Compressor ID: 7VS16ic - for manufacturer: Hanon - Voltage: 12V

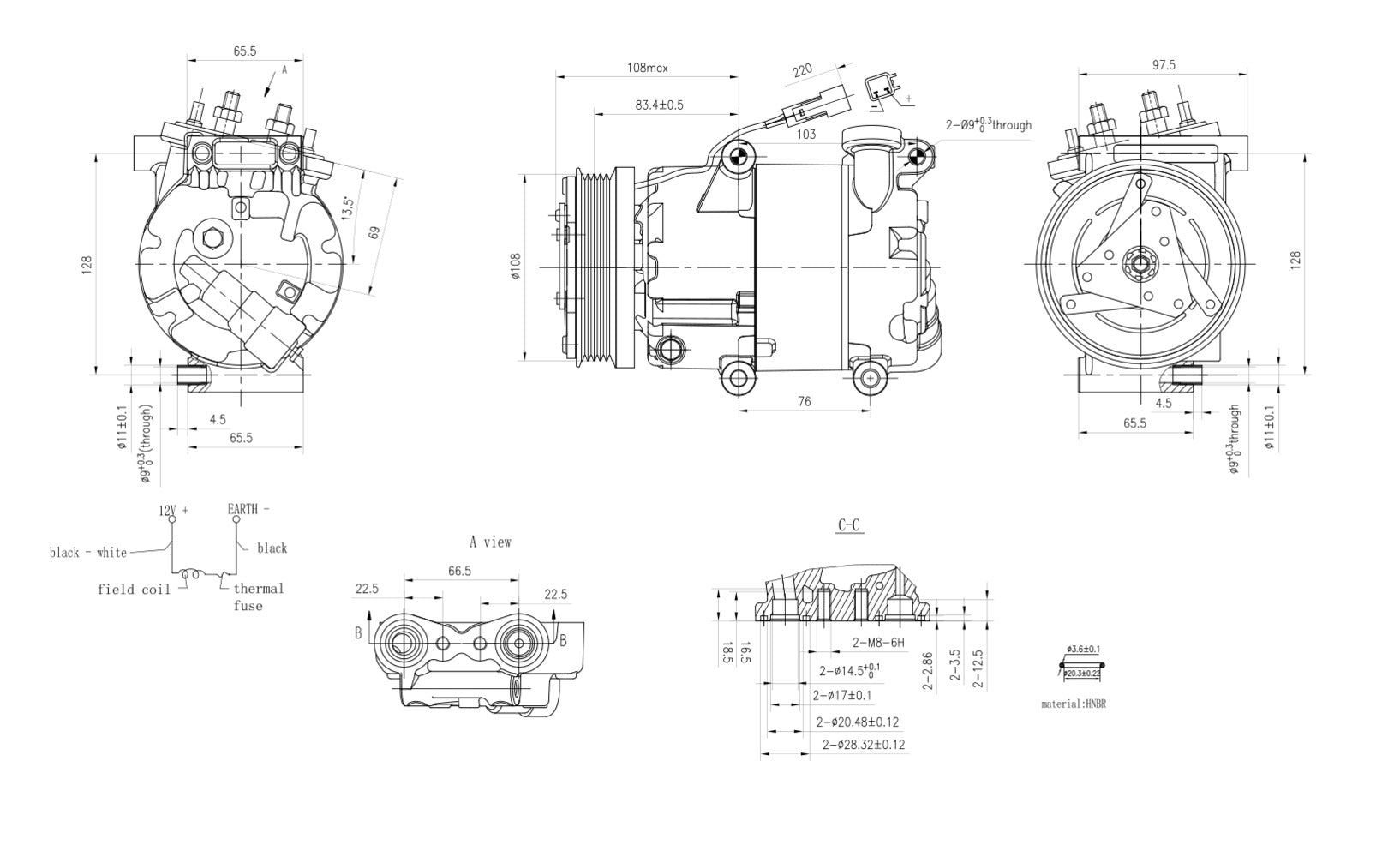

• Inlet Ø: 17mm - Outlet Ø: 17mm - with V-ribbed belt pulley - Belt Pulley Ø: 108mmNumber of grooves: 5
• with magnetic clutch/with seal ring/with PAG compressor oil
• Refrigerant: R 134a/R 1234yf - Compressor Oil: PAG 46 YF - Oil Fill Quantity: 100ml
• Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
• Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Hanon
Compressor ID: 7VS16ic
Voltage: 12 V

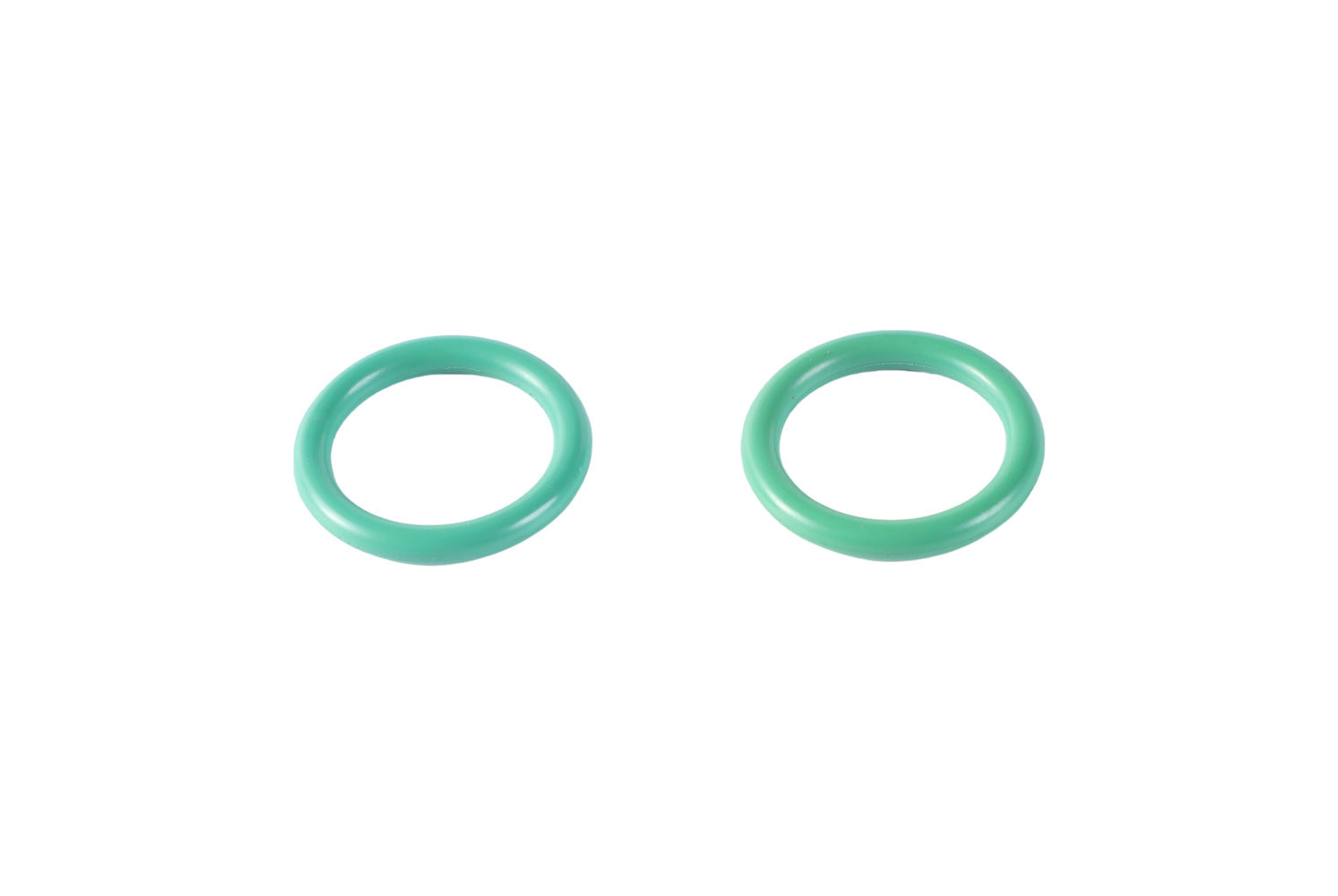

Supplementary Article/Supplementary Info 2: with seal ring / with PAG compressor oil / with magnetic clutch

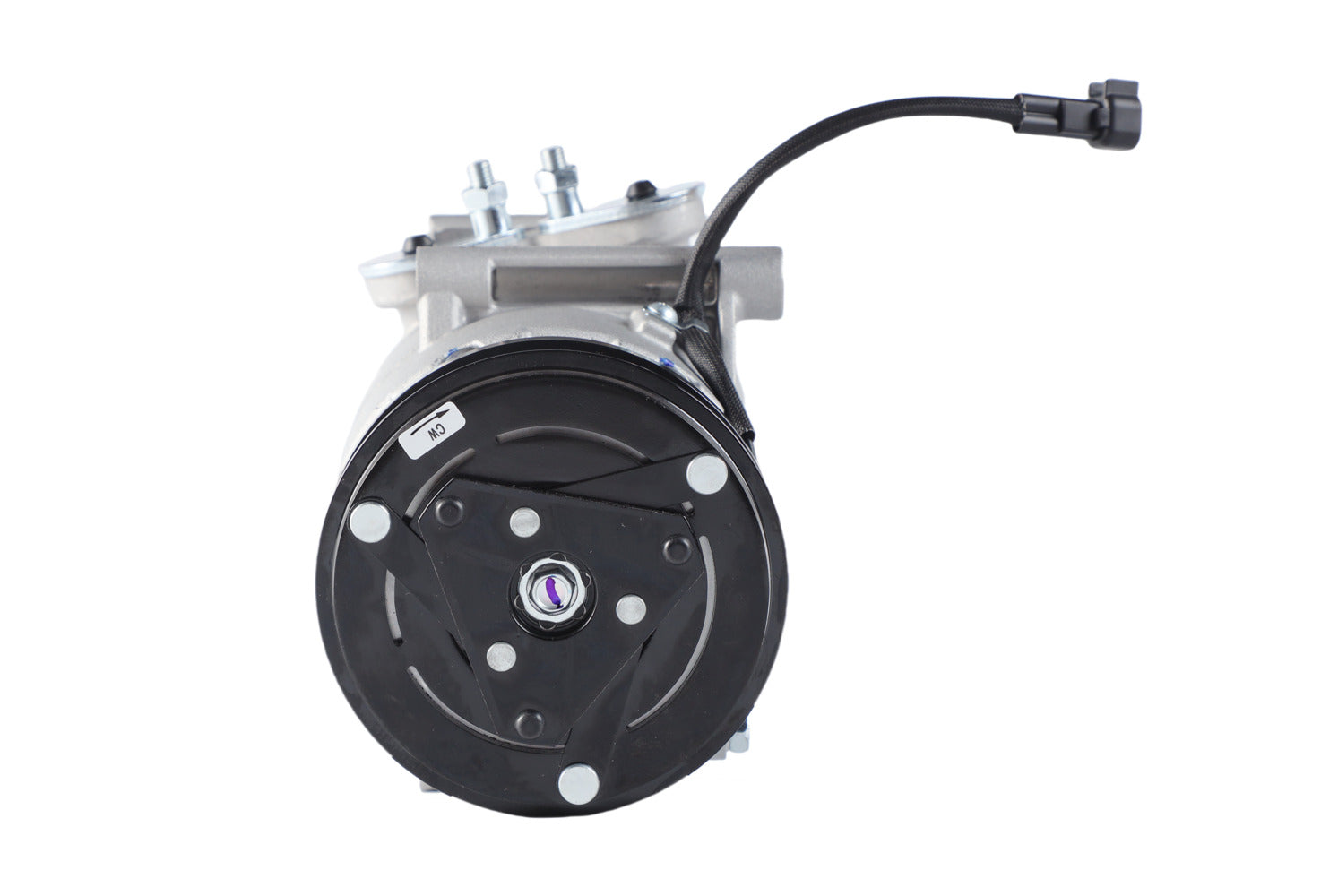

Pulleys: with V-ribbed belt pulley
Number of grooves: 5
Belt Pulley Ø: 108 mm
Inlet Ø: 17 mm
Outlet Ø: 17 mm
Refrigerant: R 1234yf / R 134a
Compressor Oil: PAG 46 YF
Oil Fill Quantity: 100 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
FORD 1329719; FORD 1333042; FORD 1368905; FORD 1388676; FORD 1428475; FORD 1432770; FORD 1465224; FORD 1490495; FORD 1681901; FORD 1686876; FORD 1744997; FORD 1784597; FORD 2014584; FORD 30676394; FORD 3M5H19497BC; FORD 3M5H19497BD; FORD 3M5H19D629CF; FORD 3M5H19D629RC; FORD 3M5H19D629RD; FORD 3M5H19D629RE; FORD 3M5H19D629RF; FORD 3M5H19D629RG; FORD 3M5H19D629RH; FORD 6M5H19D629A2G; FORD 6M5H19D629AB; FORD 6M5H19D629AC; FORD 6M5H19D629AD; FORD 6M5H19D629AE; FORD 6M5H19D629AF; FORD RM6M5H19D629AD; FORD (CHANGAN) 1329719; FORD (CHANGAN) 1333042; FORD (CHANGAN) 1368905; FORD (CHANGAN) 1388676; FORD (CHANGAN) 1428475; FORD (CHANGAN) 1432770; FORD (CHANGAN) 1490495; FORD (CHANGAN) 1681901; FORD (CHANGAN) 1686876; FORD (CHANGAN) 1784597; FORD (CHANGAN) 30676394; FORD (CHANGAN) 3M5H19497BC; FORD (CHANGAN) 3M5H19497BD; FORD (CHANGAN) 3M5H19D629CF; FORD (CHANGAN) 3M5H19D629RC; FORD (CHANGAN) 3M5H19D629RD; FORD (CHANGAN) 3M5H19D629RE; FORD (CHANGAN) 3M5H19D629RF; FORD (CHANGAN) 3M5H19D629RG; FORD (CHANGAN) 3M5H19D629RH; FORD (CHANGAN) 6M5H19D629A2F; FORD (CHANGAN) 6M5H19D629A2G; FORD (CHANGAN) 6M5H19D629AA; FORD (CHANGAN) 6M5H19D629AB; FORD (CHANGAN) 6M5H19D629AC; FORD (CHANGAN) 6M5H19D629AD; FORD (CHANGAN) 6M5H19D629AE; FORD (CHANGAN) 6M5H19D629AF; FORD ASIA & OCEANIA 3M5H19497BC; FORD ASIA & OCEANIA 3M5H19497BD; FORD ASIA & OCEANIA 3M5H19D629RF; FORD ASIA & OCEANIA 3M5H19D629RG; FORD ASIA & OCEANIA 3M5H19D629RH; FORD ASIA & OCEANIA 6M5H19D629AB; FORD ASIA & OCEANIA 6M5H19D629AC; FORD ASIA & OCEANIA 6M5H19D629AD; FORD ASIA & OCEANIA 6M5H19D629AE; VOLVO 31291954; VOLVO 36000325; VOLVO 36001441; VOLVO 36002263; VOLVO 36002858; VOLVO 8603317; VOLVO 8603615; VOLVO 8603617; VOLVO 8603651; VOLVO 8603955

Replaces aftermarket reference(s):
AVA: FDAK391, BOSCH: 1986AD1067, BOSCH: 1986AD1148, DELPHI: CS20350, DELPHI: TSP0155444, DENSO: DCP10019, HOFFER: K18036, HOFFER: K18036A, KRIOS: 18036, KRIOS: 18036A, MAHLE BEHR INDUSTRY: ACP866000P, MAHLE BEHR INDUSTRY: ACP866000S, MEAT & DORIA: K18036, MEAT & DORIA: K18036A, NISSENS: 89234, NRF: 32405, SIDAT: 18036, SIDAT: 18036A, VALEO: 813733, VALEO: 814607, VAN WEZEL: 1800K391, WAECO: 8880100408, WAECO: 8880100418
