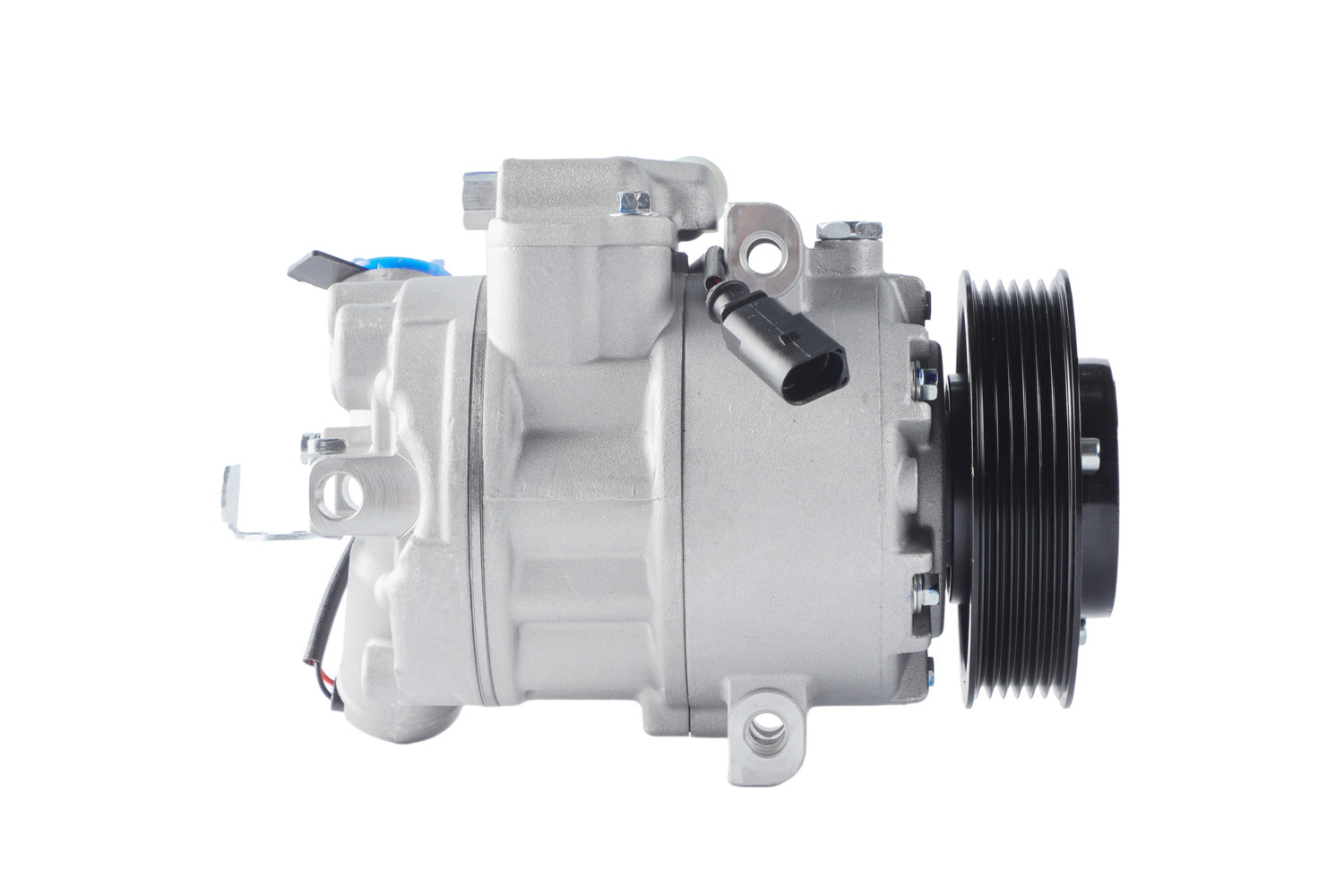

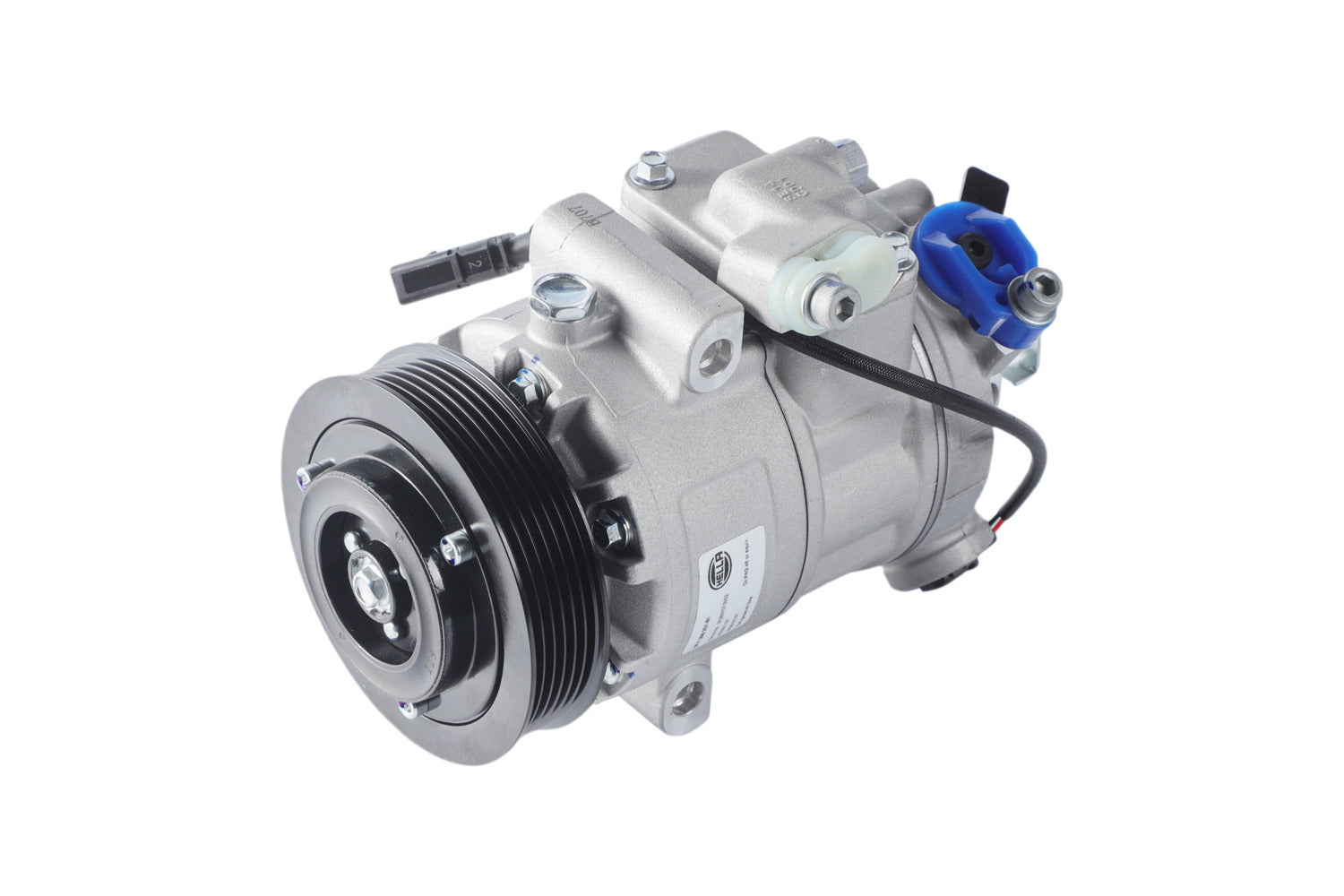

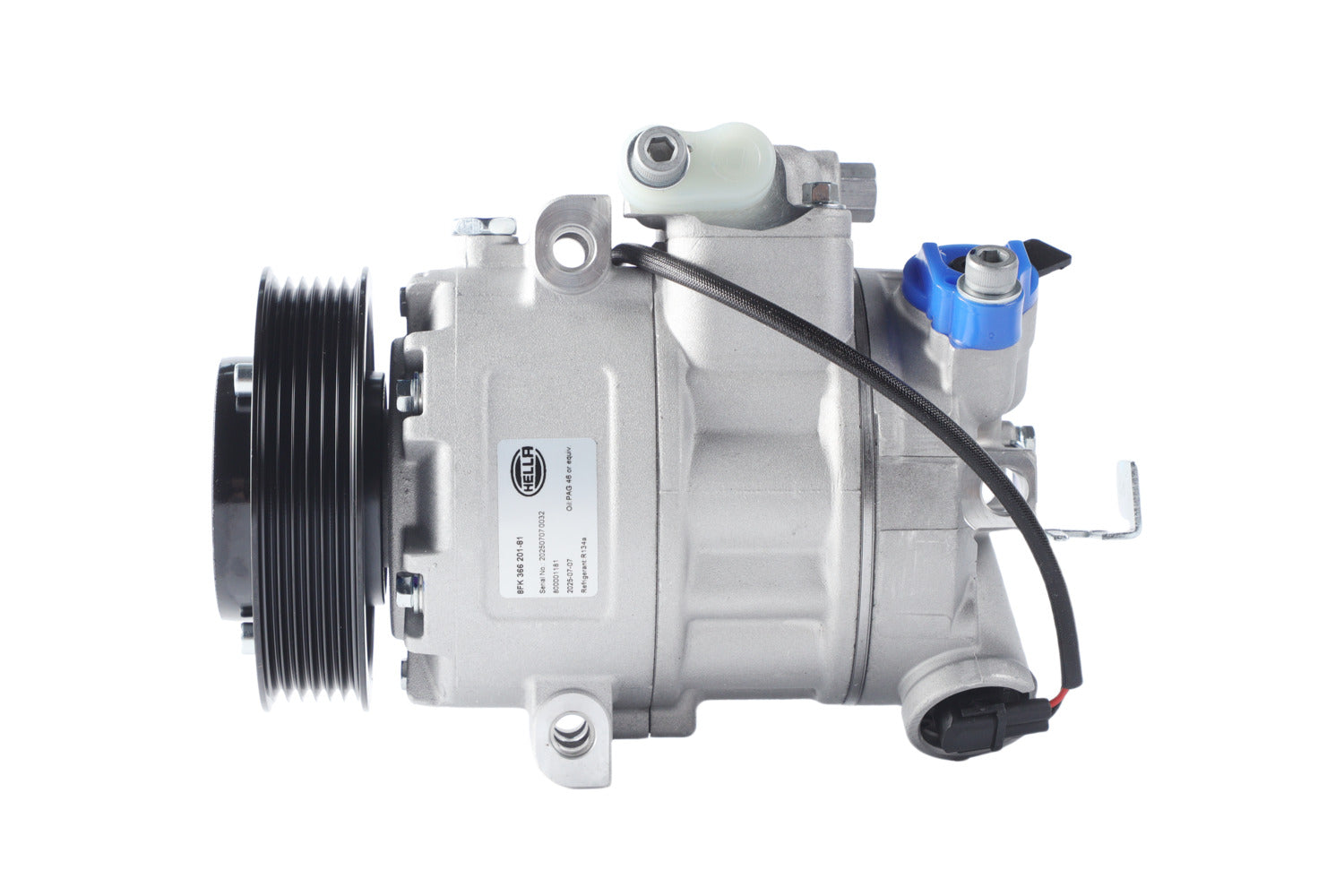

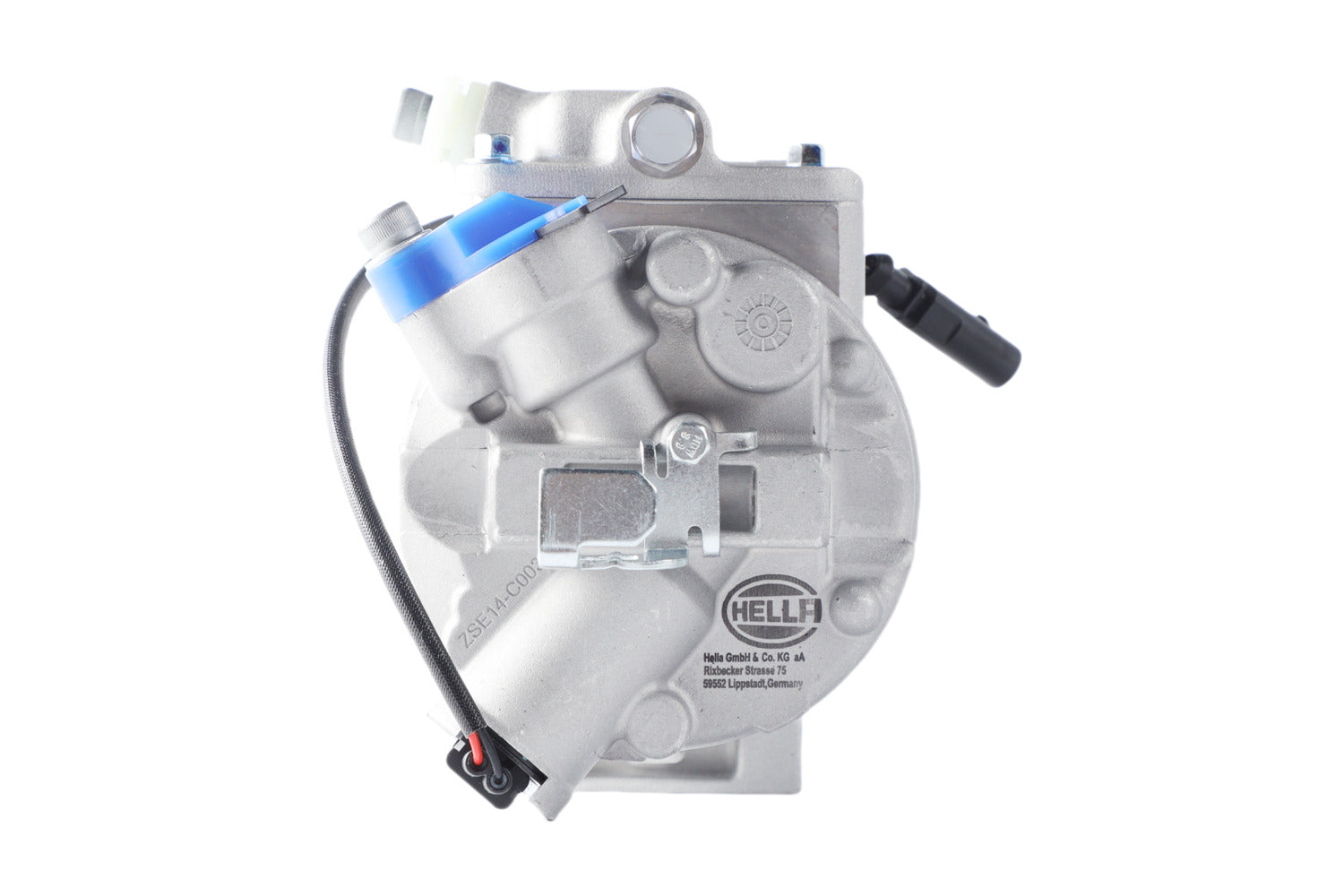

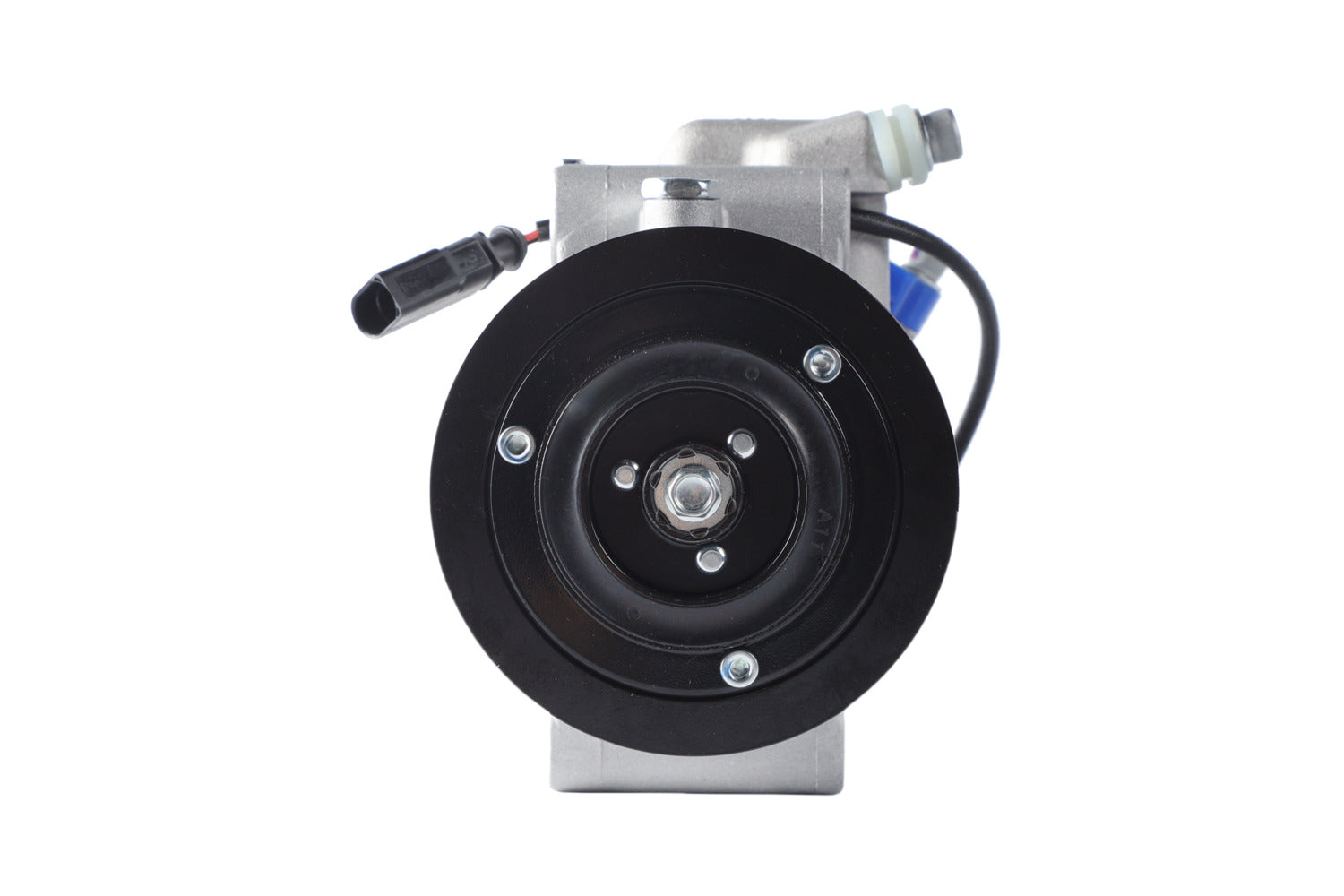

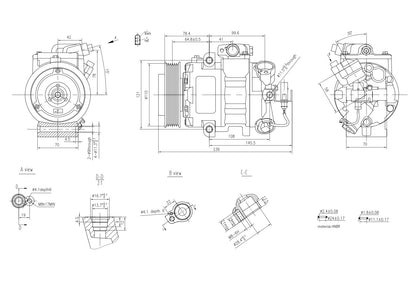

Hella Aircon Compressor 8FK366201-811

Compressor, air conditioning - 6SEU12/14 / PXE13 - 12V - R 134a - PAG 46 - 100ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. SKODA FABIA II (542) 1.4 LPG (please check exact vehicle application)
• Compressor ID: 6SEU12/14 / PXE13 - for manufacturer: Denso, Sanden - Voltage: 12V

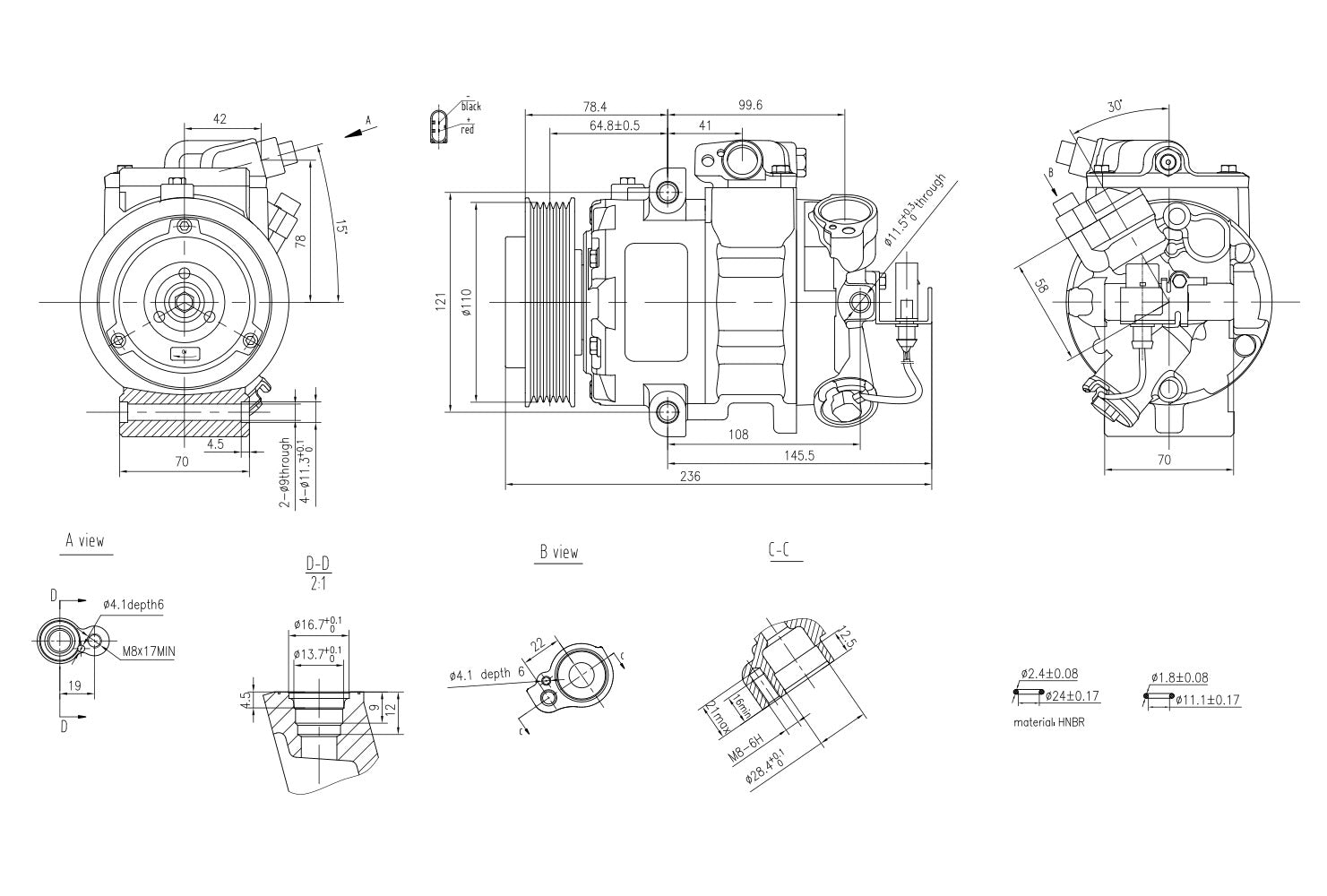

• Inlet Ø: 28mm - Outlet Ø: 17mm - with V-ribbed belt pulley - Belt Pulley Ø: 110mmNumber of grooves: 6

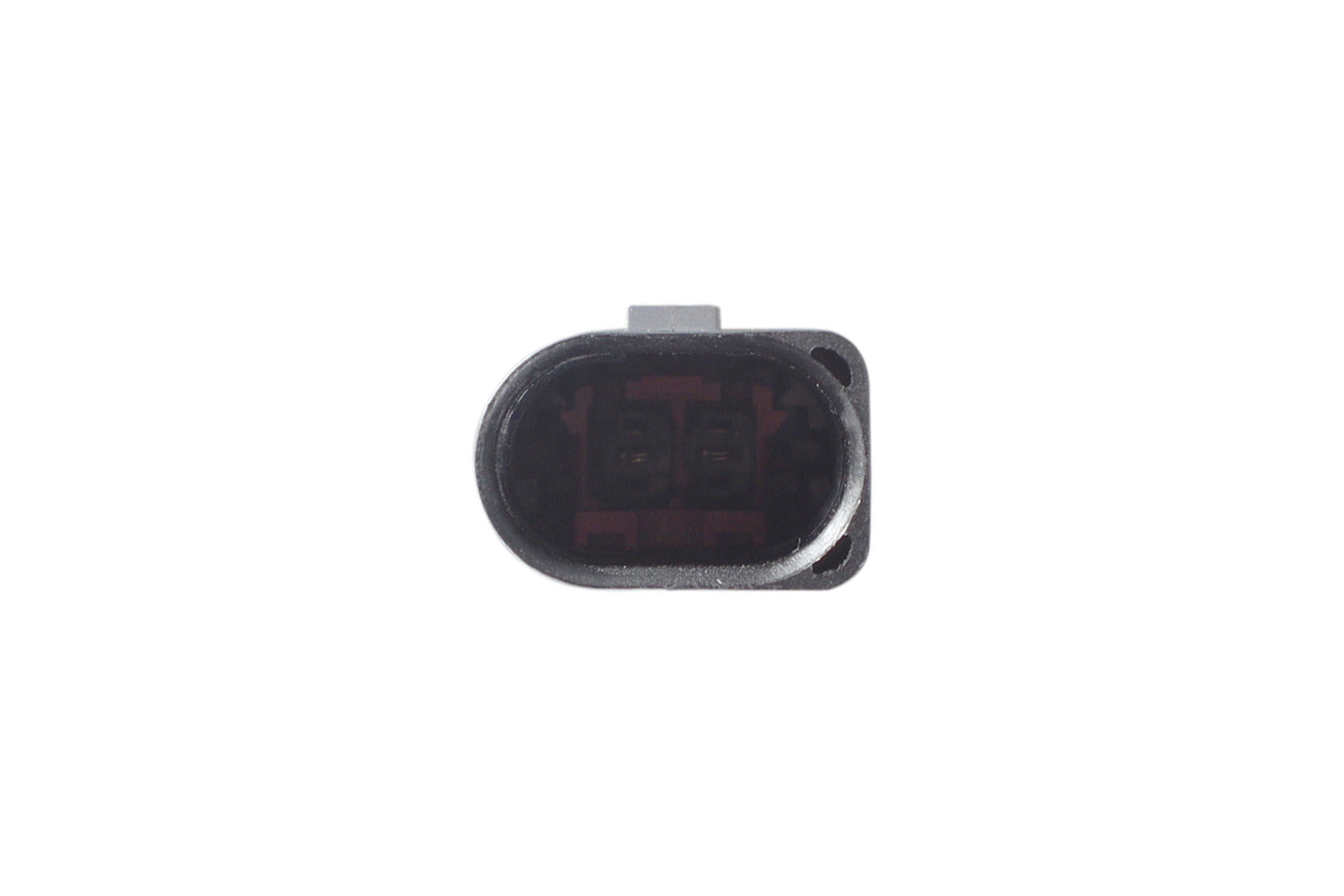

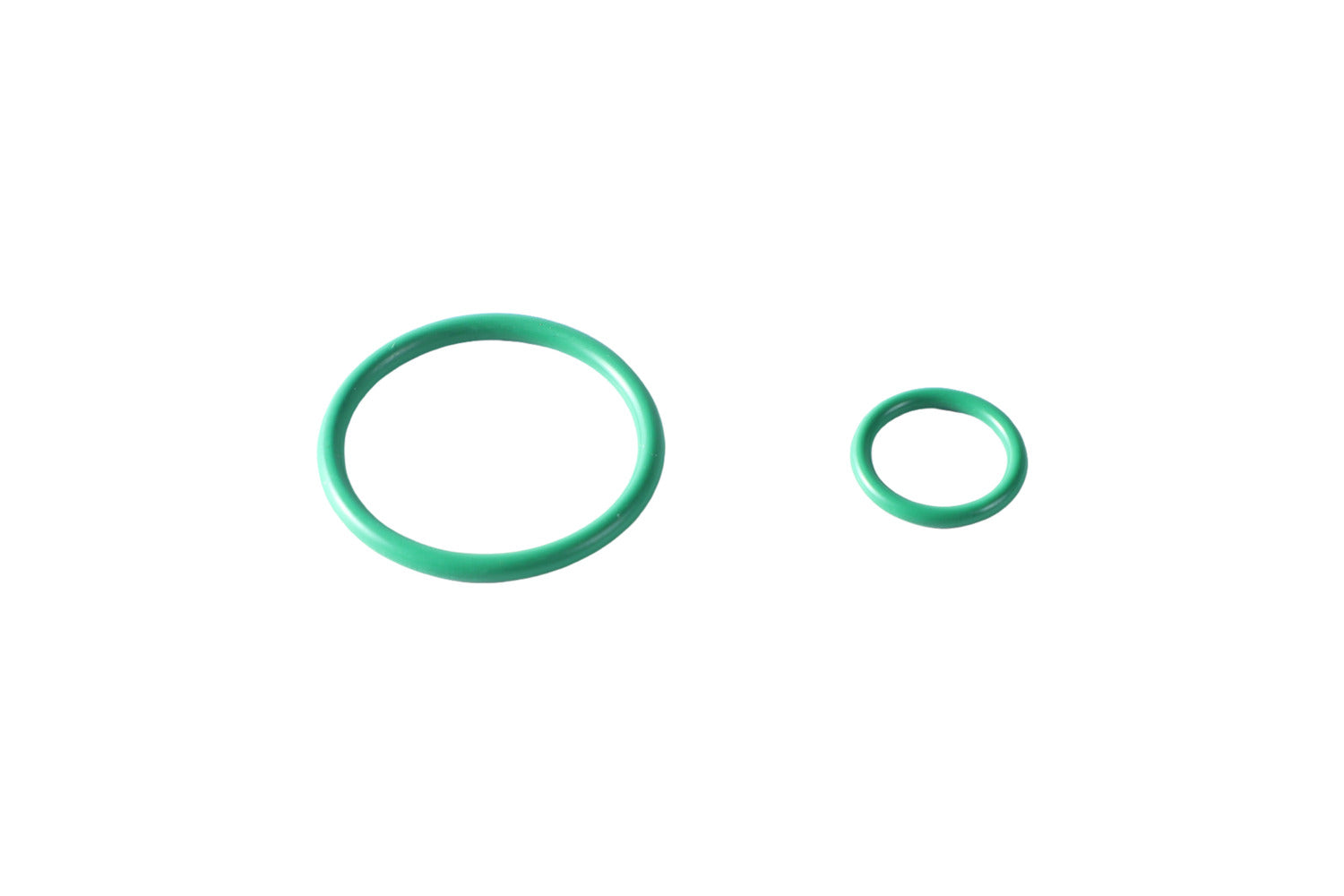

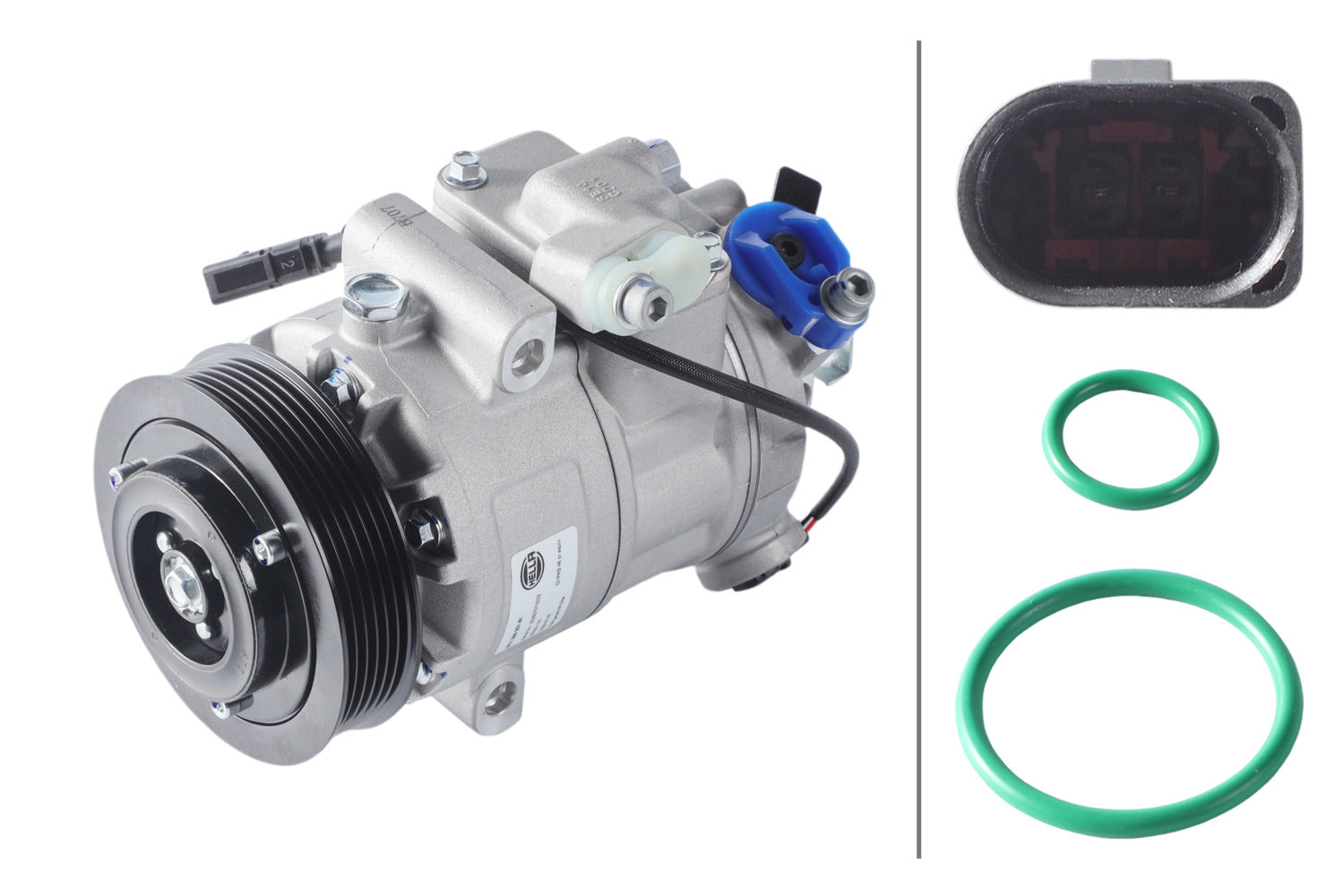

• with magnetic clutch/with seal ring/with PAG compressor oil
• Refrigerant: R 134a - Compressor Oil: PAG 46 - Oil Fill Quantity: 100ml
• Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
• Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Denso, Sanden
Compressor ID: 6SEU12/14 / PXE13
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with PAG compressor oil / with magnetic clutch / with seal ring
Pulleys: with V-ribbed belt pulley
Number of grooves: 6
Belt Pulley Ø: 110 mm
Inlet Ø: 28 mm
Outlet Ø: 17 mm
Refrigerant: R 134a
Compressor Oil: PAG 46
Oil Fill Quantity: 100 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
AUDI 0Z0 260 805 A; AUDI 6Q0 820 803 B; AUDI 6Q0 820 803 D; AUDI 6Q0 820 803 DX; AUDI 6Q0 820 803 E; AUDI 6Q0 820 803 H; AUDI 6Q0 820 803 J; AUDI 6Q0 820 803 NX; AUDI 6Q0 820 803 P; AUDI 6Q0 820 803 R; AUDI 6Q0 820 808 ; AUDI 6Q0 820 808 B; AUDI 6Q0 820 808 D; AUDI 6Q0 820 808 E; AUDI 6Q0 820 808 F; AUDI 6Q0 820 808 FX; AUDI 6Q0 820 808 G; AUDI 6R0 820 803 C; AUDI 6R0 820 803 D; AUDI 6R0 820 803 E; AUDI 6R0 820 803 F; AUDI 8Q0 820 803 R; AUDI 8Z0 260 805 ; AUDI 8Z0 260 805 A; CUPRA 0Z0 260 805 A; CUPRA 6Q0 820 803 B; CUPRA 6Q0 820 803 D; CUPRA 6Q0 820 803 DX; CUPRA 6Q0 820 803 G; CUPRA 6Q0 820 803 GX; CUPRA 6Q0 820 803 H; CUPRA 6Q0 820 803 HX; CUPRA 6Q0 820 803 J; CUPRA 6Q0 820 803 K; CUPRA 6Q0 820 803 NX; CUPRA 6Q0 820 803 P; CUPRA 6Q0 820 803 Q; CUPRA 6Q0 820 803 R; CUPRA 6Q0 820 808 ; CUPRA 6Q0 820 808 A; CUPRA 6Q0 820 808 B; CUPRA 6Q0 820 808 C; CUPRA 6Q0 820 808 D; CUPRA 6Q0 820 808 E; CUPRA 6Q0 820 808 F; CUPRA 6Q0 820 808 FX; CUPRA 6Q0 820 808 G; CUPRA 6Q0 820 808 GX; CUPRA 6R0 820 803 C; CUPRA 6R0 820 803 D; CUPRA 6R0 820 803 E; CUPRA 6R0 820 803 F; CUPRA 8Q0 820 803 R; CUPRA 8Z0 260 805 A; SEAT 6Q0 820 803 D; SEAT 6Q0 820 803 DX; SEAT 6Q0 820 803 E; SEAT 6Q0 820 803 G; SEAT 6Q0 820 803 GX; SEAT 6Q0 820 803 H; SEAT 6Q0 820 803 J; SEAT 6Q0 820 803 K; SEAT 6Q0 820 803 P; SEAT 6Q0 820 803 Q; SEAT 6Q0 820 803 R; SEAT 6Q0 820 808 ; SEAT 6Q0 820 808 A; SEAT 6Q0 820 808 B; SEAT 6Q0 820 808 C; SEAT 6Q0 820 808 D; SEAT 6Q0 820 808 E; SEAT 6Q0 820 808 F; SEAT 6Q0 820 808 FX; SEAT 6Q0 820 808 G; SEAT 6Q0 820 808 GX; SEAT 6R0 820 803 D; SEAT 6R0 820 803 E; SEAT 6R0 820 803 F; SEAT 8Q0 820 803 R; SKODA 6Q0 820 803 D; SKODA 6Q0 820 803 DX; SKODA 6Q0 820 803 E; SKODA 6Q0 820 803 G; SKODA 6Q0 820 803 GX; SKODA 6Q0 820 803 H; SKODA 6Q0 820 803 J; SKODA 6Q0 820 803 K; SKODA 6Q0 820 803 P; SKODA 6Q0 820 803 Q; SKODA 6Q0 820 803 R; SKODA 6Q0 820 808 ; SKODA 6Q0 820 808 A; SKODA 6Q0 820 808 C; SKODA 6Q0 820 808 D; SKODA 6Q0 820 808 E; SKODA 6Q0 820 808 F; SKODA 6Q0 820 808 FX; SKODA 6Q0 820 808 G; SKODA 6Q0 820 808 GX; SKODA 6R0 820 803 C; SKODA 6R0 820 803 D; SKODA 6R0 820 803 E; SKODA 6R0 820 803 F; SKODA 8Q0 820 803 R; SKODA (SVW) 6QD 820 803 ; VW 0Z0 260 805 A; VW 6Q0 820 803 B; VW 6Q0 820 803 D; VW 6Q0 820 803 DX; VW 6Q0 820 803 E; VW 6Q0 820 803 GX; VW 6Q0 820 803 H; VW 6Q0 820 803 HX; VW 6Q0 820 803 J; VW 6Q0 820 803 K; VW 6Q0 820 803 NX; VW 6Q0 820 803 P; VW 6Q0 820 803 Q; VW 6Q0 820 803 R; VW 6Q0 820 808 ; VW 6Q0 820 808 A; VW 6Q0 820 808 B; VW 6Q0 820 808 C; VW 6Q0 820 808 D; VW 6Q0 820 808 E; VW 6Q0 820 808 F; VW 6Q0 820 808 FX; VW 6Q0 820 808 G; VW 6Q0 820 808 GX; VW 6Q0820803G; VW 6R0 820 803 C; VW 6R0 820 803 D; VW 6R0 820 803 E; VW 6R0 820 803 F; VW 8Q0 820 803 R; VW 8Z0 260 805 ; VW 8Z0 260 805 A; VW (SVW) 0Z0 260 805 A; VW (SVW) 6Q0 820 803 B; VW (SVW) 6Q0 820 803 D; VW (SVW) 6Q0 820 803 DX; VW (SVW) 6Q0 820 803 G; VW (SVW) 6Q0 820 803 GX; VW (SVW) 6Q0 820 803 H; VW (SVW) 6Q0 820 803 HX; VW (SVW) 6Q0 820 803 J; VW (SVW) 6Q0 820 803 K; VW (SVW) 6Q0 820 803 P; VW (SVW) 6Q0 820 803 Q; VW (SVW) 6Q0 820 803 R; VW (SVW) 6Q0 820 808; VW (SVW) 6Q0 820 808 A; VW (SVW) 6Q0 820 808 B; VW (SVW) 6Q0 820 808 C; VW (SVW) 6Q0 820 808 D; VW (SVW) 6Q0 820 808 E; VW (SVW) 6Q0 820 808 F; VW (SVW) 6Q0 820 808 FX; VW (SVW) 6Q0 820 808 G; VW (SVW) 6Q0 820 808 GX; VW (SVW) 6QD 820 803 ; VW (SVW) 6QD 820 803 A; VW (SVW) 8Q0 820 803 R; VW (SVW) 8Z0 260 805 A

Replaces aftermarket reference(s):
AUTOGAMMA: 108123, AUTOGAMMA: 118543, AVA: SAAK018, AVA: SAK018, AVA: SAK025, AVA: SAK026, AVA: VNAK240, BOSCH: 1986AD1007, BOSCH: 1986AD1312, DELPHI: TSP0155344, DELPHI: TSP0155433, DELPHI: TSP0159344, DENSO: 4371005370, DENSO: DCP27001, DENSO: DCP27002, DENSO: DCP32005, DENSO: DCP32020, FEBI: 45163, HOFFER: K11450, HOFFER: K11451, HOFFER: K15057, HOFFER: K15069, HOFFER: K15076, HOFFER: K15188, HOFFER: K15219, JP GROUP: 1127101300, KRIOS: 1145, KRIOS: 11451, KRIOS: 15057, KRIOS: 15069, KRIOS: 15076, KRIOS: 15188, KRIOS: 15219, MAHLE BEHR INDUSTRY: ACP18000P, MAHLE BEHR INDUSTRY: ACP18000S, MEAT & DORIA: K11450, MEAT & DORIA: K11451, MEAT & DORIA: K15057, MEAT & DORIA: K15069, MEAT & DORIA: K15076, MEAT & DORIA: K15188, MEAT & DORIA: K15219, NISSENS: 89026, NRF: 32225, SIDAT: 1145, SIDAT: 11451, SIDAT: 15057, SIDAT: 15069, SIDAT: 15076, SIDAT: 15188, SIDAT: 15219, VALEO: 699383, VALEO: 699884, VAN WEZEL: 7600K018, WAECO: 8880100264, WAECO: 8880120450
