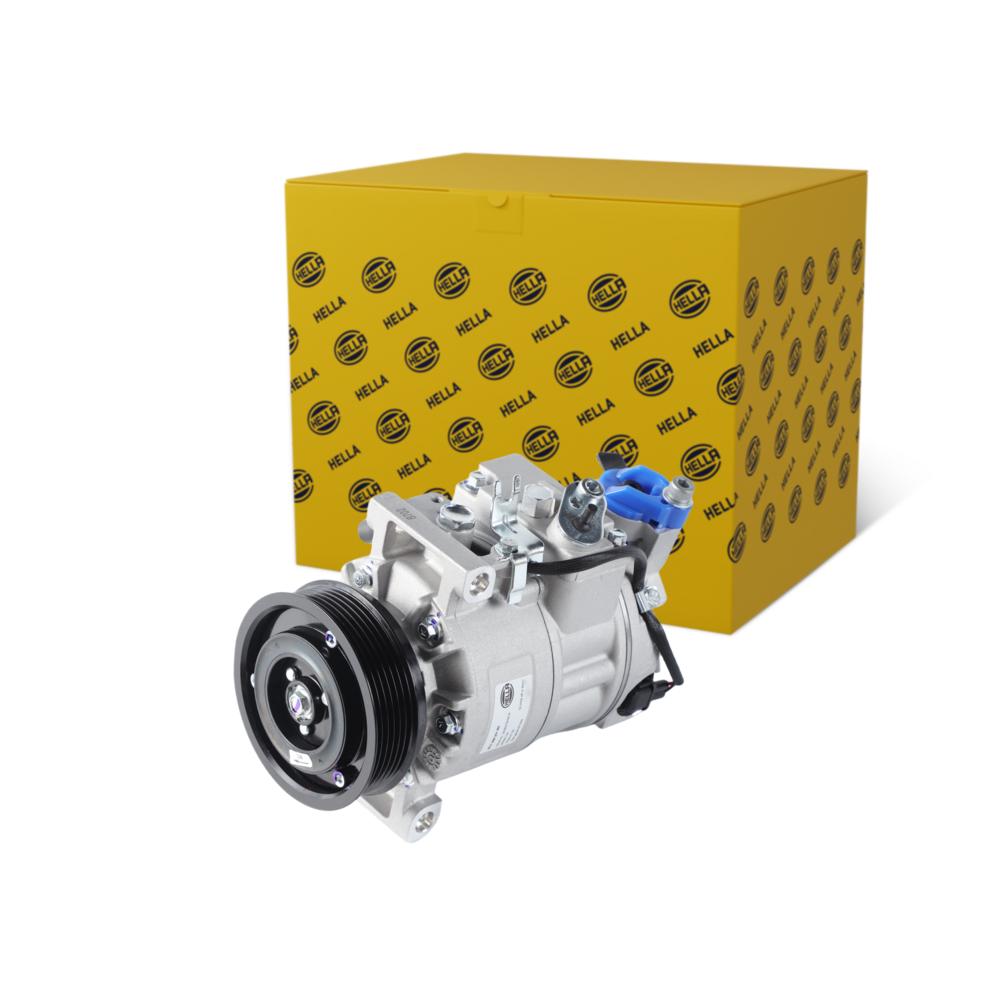

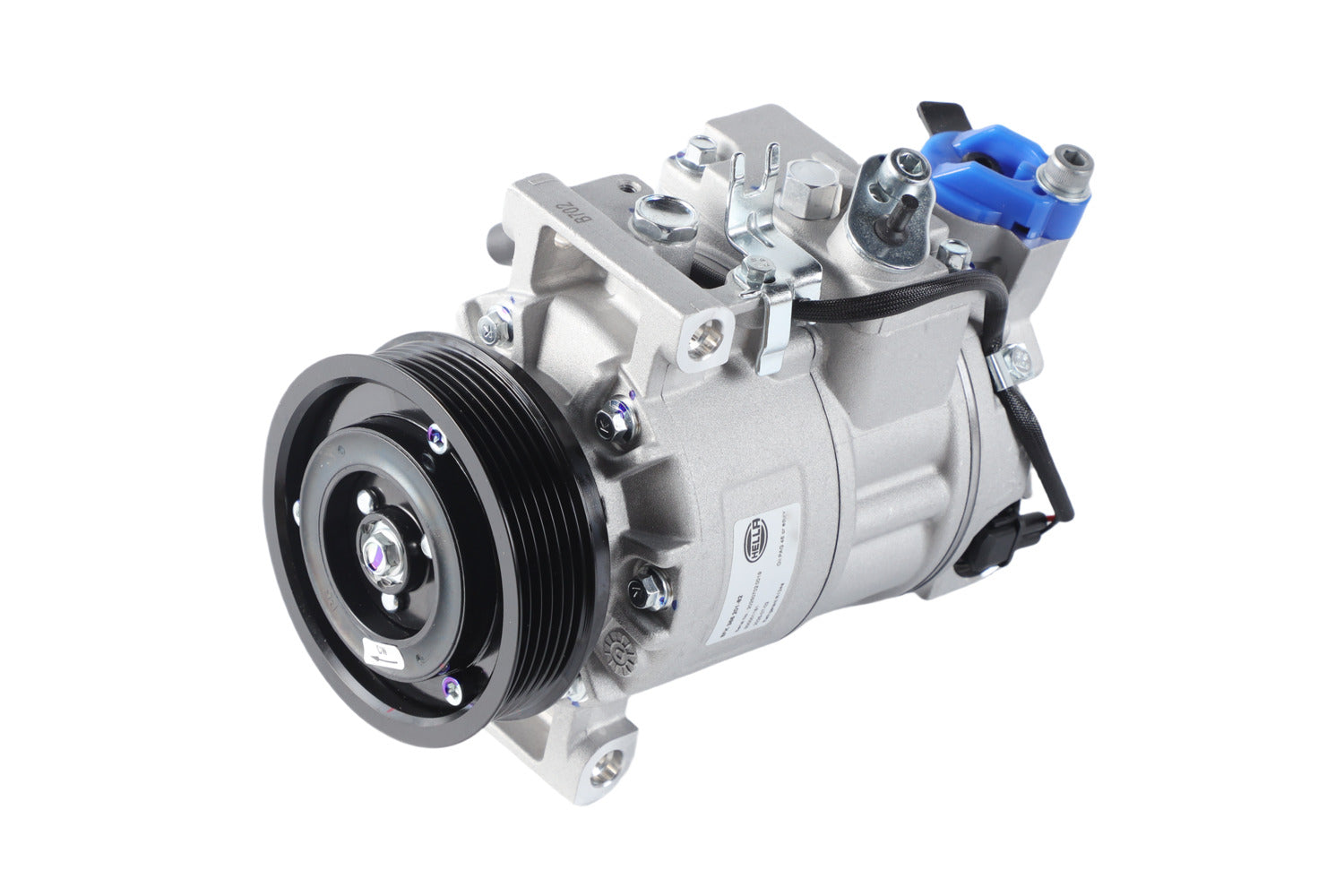

Hella Aircon Compressor 8FK366201-821

Compressor, air conditioning - 6SEU14C - 12V - R 134a - PAG 46 - 100ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. AUDI A4 B6 (8E2) 1.6 (please check exact vehicle application)
• Compressor ID: 6SEU14C - for manufacturer: Denso - Voltage: 12V

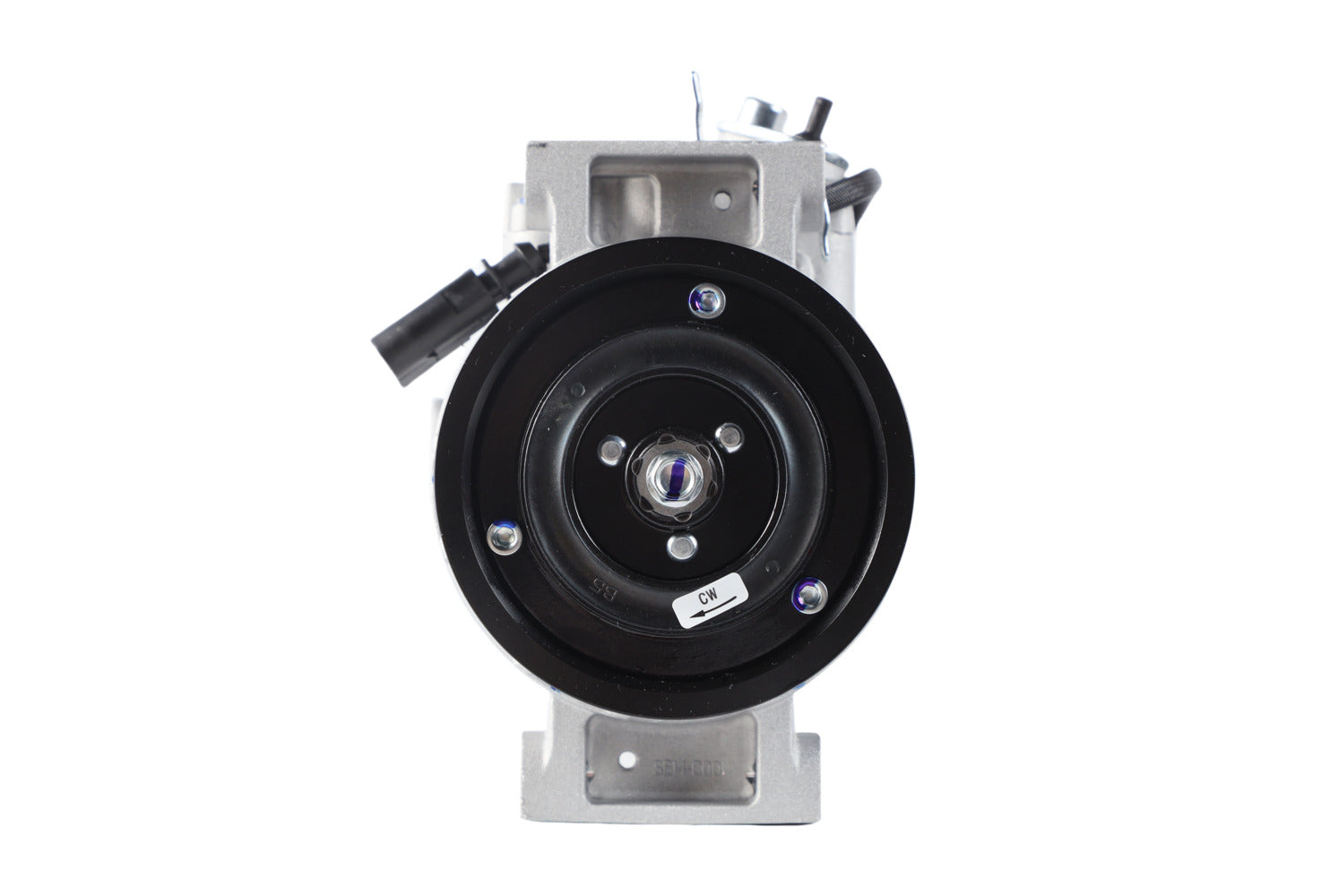

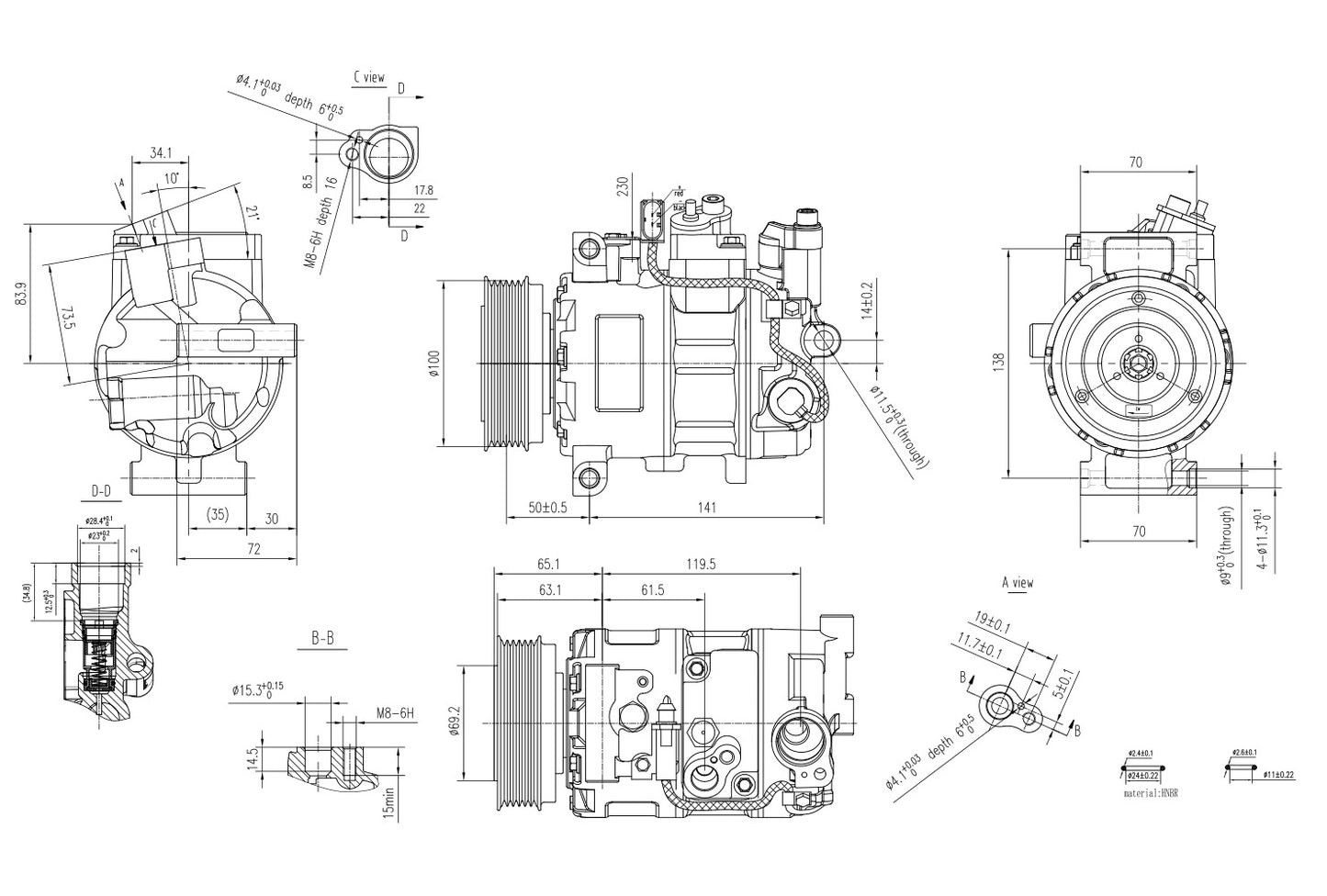

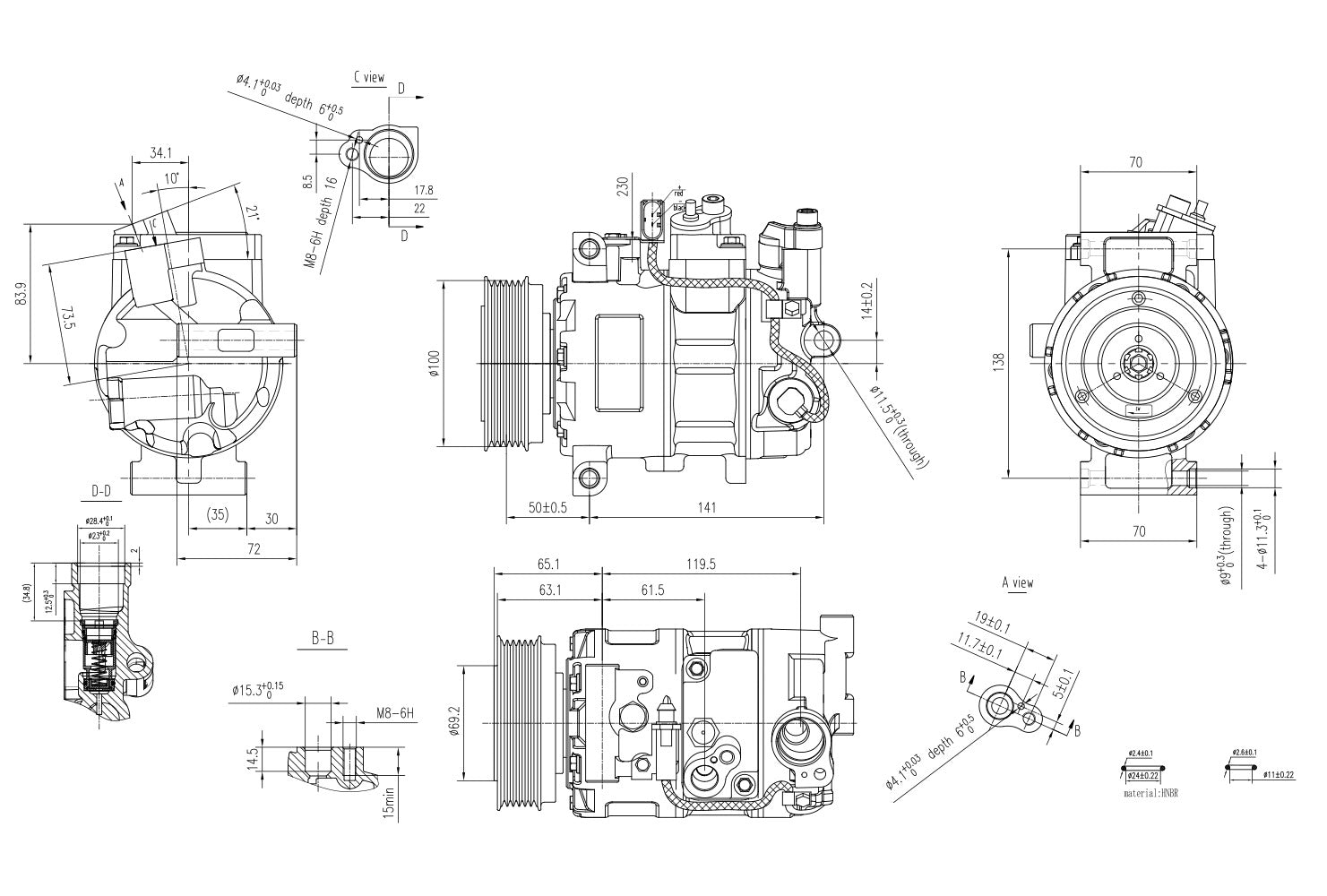

• Inlet Ø: 28.4mm - Outlet Ø: 15.3mm - with V-ribbed belt pulley - Belt Pulley Ø: 100mmNumber of grooves: 6

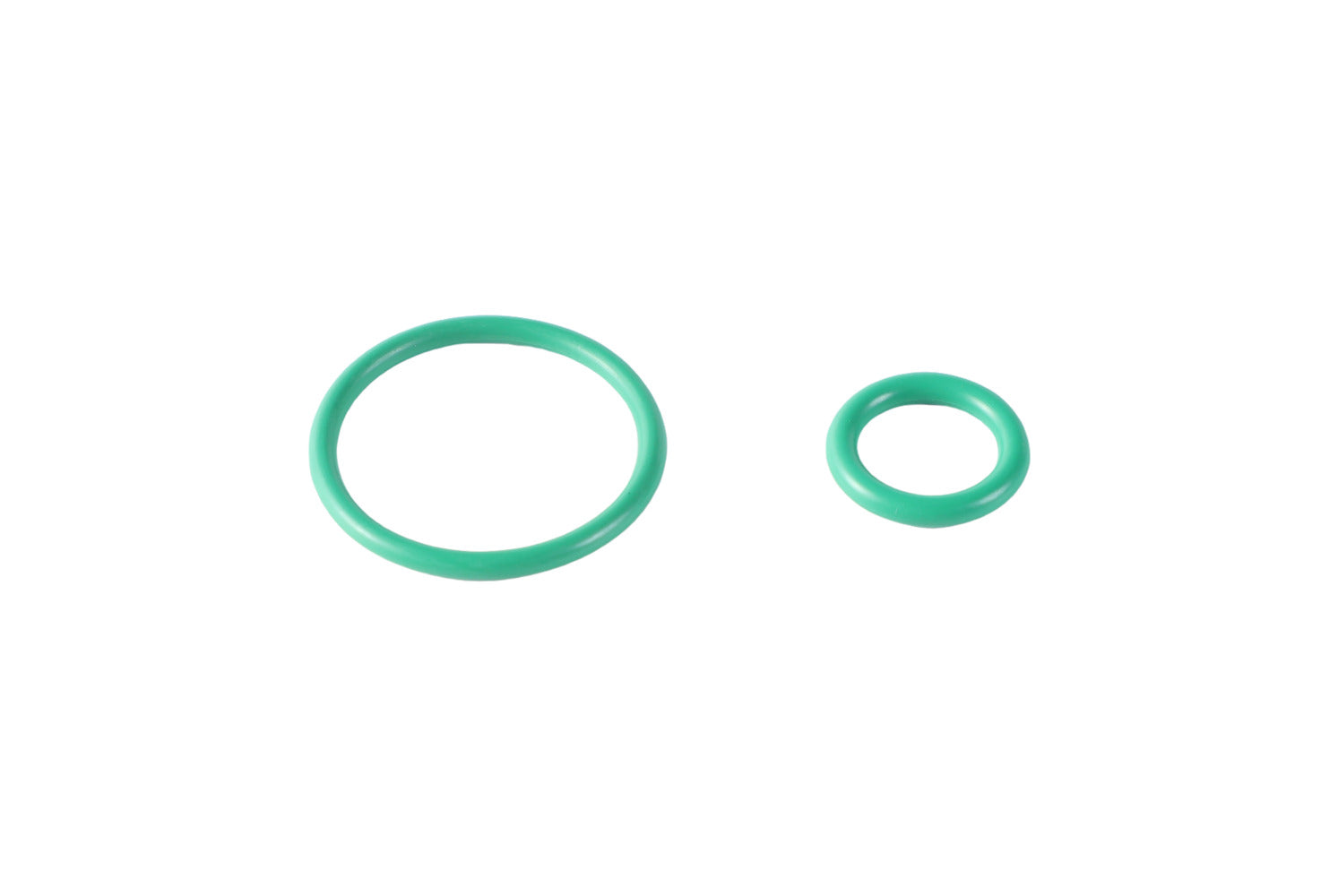

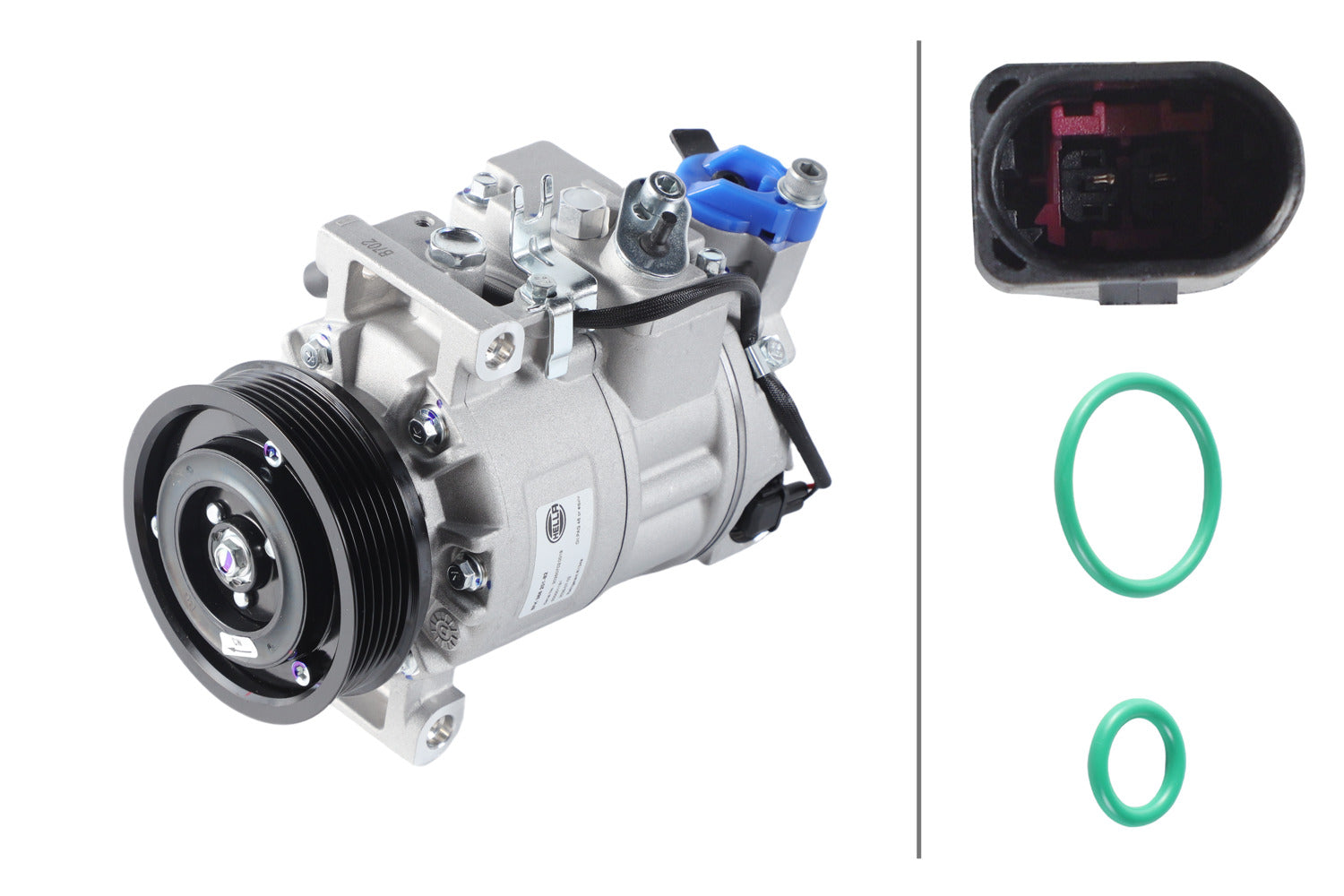

• with magnetic clutch/with seal ring/with PAG compressor oil
• Refrigerant: R 134a - Compressor Oil: PAG 46 - Oil Fill Quantity: 100ml
• Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
• Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Denso
Compressor ID: 6SEU14C
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with seal ring / with PAG compressor oil / with magnetic clutch
Pulleys: with V-ribbed belt pulley
Number of grooves: 6
Belt Pulley Ø: 100 mm
Inlet Ø: 28.4 mm
Outlet Ø: 15.3 mm
Refrigerant: R 134a
Compressor Oil: PAG 46
Oil Fill Quantity: 100 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
AUDI 4E0 260 805 AB; AUDI 4E0 260 805 AD; AUDI 4E0 260 805 AJ; AUDI 4E0 260 805 AP; AUDI 4E0 260 805 BA; AUDI 4E0 260 805 J; AUDI 4E0 260 805 N; AUDI 4F0 260 805 AC; AUDI 4F0 260 805 AG; AUDI 4F0 260 805 G; AUDI 4F0 260 805 J; AUDI 4F0 260 805 M; AUDI 4F0 260 805 N; AUDI 4F0 260 805 P; AUDI 4F0 260 805 S; AUDI 8E0 260 805 AG; AUDI 8E0 260 805 AT; AUDI 8E0 260 805 BA; AUDI 8E0 260 805 BE; AUDI 8E0 260 805 BF; AUDI 8E0 260 805 BJ; AUDI 8E0 260 805 BL; AUDI 8E0 260 805 CA; AUDI 8E0 260 805 CD; AUDI 8EO 260 805 BE; AUDI (FAW) 4F0 260 805 AC; AUDI (FAW) 4F0 260 805 AG; AUDI (FAW) 4F0 260 805 G; AUDI (FAW) 4F0 260 805 J; AUDI (FAW) 4F0 260 805 M; AUDI (FAW) 4F0 260 805 N; AUDI (FAW) 4F0 260 805 P; AUDI (FAW) 4F0 260 805 S; AUDI (FAW) 8E0 260 805 AG; AUDI (FAW) 8E0 260 805 AT; AUDI (FAW) 8E0 260 805 BA; AUDI (FAW) 8E0 260 805 BE; AUDI (FAW) 8E0 260 805 BF; AUDI (FAW) 8E0 260 805 BJ; AUDI (FAW) 8E0 260 805 BL; AUDI (FAW) 8E0 260 805 CA; AUDI (FAW) 8E0 260 805 CD; AUDI (FAW) 8EO 260 805 BE; CUPRA 4E0 260 805 AB; CUPRA 4E0 260 805 AD; CUPRA 4E0 260 805 AJ; CUPRA 4E0 260 805 AP; CUPRA 4E0 260 805 BA; CUPRA 4E0 260 805 J; CUPRA 4E0 260 805 N; CUPRA 4F0 260 805 AC; CUPRA 4F0 260 805 AG; CUPRA 4F0 260 805 G; CUPRA 4F0 260 805 J; CUPRA 4F0 260 805 M; CUPRA 4F0 260 805 N; CUPRA 4F0 260 805 P; CUPRA 4F0 260 805 S; CUPRA 8E0 260 805 AG; CUPRA 8E0 260 805 AT; CUPRA 8E0 260 805 BA; CUPRA 8E0 260 805 BE; CUPRA 8E0 260 805 BF; CUPRA 8E0 260 805 BJ; CUPRA 8E0 260 805 BL; CUPRA 8E0 260 805 CA; CUPRA 8E0 260 805 CD; CUPRA 8EO 260 805 BE; VW 4E0 260 805 AB; VW 4E0 260 805 AD; VW 4E0 260 805 AJ; VW 4E0 260 805 AP; VW 4E0 260 805 BA; VW 4E0 260 805 J; VW 4E0 260 805 N; VW 4F0 260 805 AC; VW 4F0 260 805 AG; VW 4F0 260 805 G; VW 4F0 260 805 J; VW 4F0 260 805 M; VW 4F0 260 805 N; VW 4F0 260 805 P; VW 4F0 260 805 S; VW 8E0 260 805 AG; VW 8E0 260 805 AT; VW 8E0 260 805 BA; VW 8E0 260 805 BE; VW 8E0 260 805 BF; VW 8E0 260 805 BJ; VW 8E0 260 805 BL; VW 8E0 260 805 CA; VW 8E0 260 805 CD; VW 8EO 260 805 BE

Replaces aftermarket reference(s):
AUTOGAMMA: 108029, AUTOGAMMA: 108954, AVA: AIAK262, AVA: AIAK279, AVA: AIAK334, AVA: AIK262, AVA: AIK279, BOSCH: 1986AD1003, DELPHI: CS20080, DELPHI: CS8621611B1, DELPHI: TSP0155969, DELPHI: TSP0159969, DENSO: 570675200, DENSO: 4371005650, DENSO: DCP02014, DENSO: DCP02035, DENSO: DCP02037, DENSO: DCP02038, FEBI: 45164, HOFFER: K15175, HOFFER: K15185, HOFFER: K15185A, HOFFER: K15218, HOFFER: K15245, HOFFER: K15334, HOFFER: KSB218D, KRIOS: 15175, KRIOS: 15185, KRIOS: 15218, KRIOS: 15245, KRIOS: 15334, KRIOS: 15185A, KRIOS: SB218D, MAHLE BEHR INDUSTRY: ACP44000S, MEAT & DORIA: K15175, MEAT & DORIA: K15185, MEAT & DORIA: K15185A, MEAT & DORIA: K15218, MEAT & DORIA: K15245, MEAT & DORIA: K15334, MEAT & DORIA: KSB218D, NISSENS: 89052, NRF: 32263, SIDAT: 15175, SIDAT: 15185, SIDAT: 15218, SIDAT: 15245, SIDAT: 15334, SIDAT: 15185A, SIDAT: SB218D, VALEO: 559415, VALEO: 813150, VAN WEZEL: 300K279, WAECO: 8880100238, WAECO: 8880100262
