HELLA Brake Disc - 54206PRO_HC - for e.g. AUDI / SEAT / SKODA / VOLKSWAGEN 8DD355127-981

Brake Disc - 54206PRO_HC - High-carbon - Coated - 345mm - 30mm - Internally Vented - for e.g. AUDI / SEAT / SKODA / VOLKSWAGEN

HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.

• fits e.g. AUDI / SEAT / SKODA / VOLKSWAGEN (please check exact vehicle application)
• without wheel hub/without wheel bearing/without wheel studs/with bolts/screws

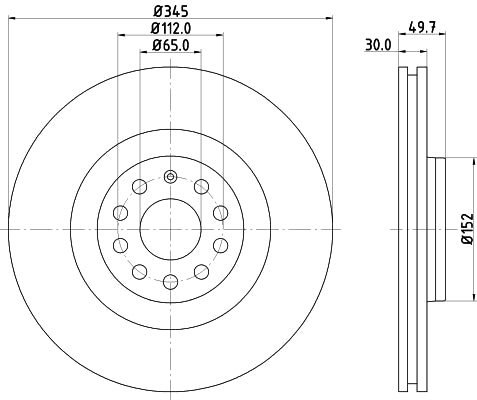

• Outer Diameter: 345mm - Brake Disc Thickness: 30mm - Inner Diameter: 140.3mm - Centering Diameter: 65mm - Bolt Hole Circle Ø: 112mm - Wheel Bolt Bore Ø: 15.3mm - Height: 49.7mm - Weight: 12kg
• Premium quality brake discs
• The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
• Optimum braking performance in all conditions
• Hella brake discs far exceed the required specifications of the ECE R90 directive

Item Attributes:
Brake Disc Type: internally vented
Outer Diameter: 345 mm
Brake Disc Thickness: 30 mm
Height: 49.7 mm
Min. thickness: 27 mm
Machining: High-carbon
Surface: Coated
Inner Diameter: 140.3 mm
Bolt Hole Circle Ø: 112 mm
Centering Diameter: 65 mm
Hole Pitch/Number: 05/10
Wheel Bolt Bore Ø: 15.3 mm
Supplementary Article/Supplementary Info 2: without wheel hub / without wheel studs / without wheel bearing / with bolts/screws
Number of bolts/screws: 1
Weight: 12 kg
Assembly by qualified personnel required!

OE references: AUDI 1K0 615 301 AB; AUDI 1K0 615 301 M; AUDI 1K0615301AR; SEAT 1K0 615 301 AB; SEAT 1K0 615 301 M; SKODA 1K0 615 301 AB; SKODA 1K0 615 301 M; SKODA 1K0615301AR; VW 1K0 615 301 AB; VW 1K0 615 301 M; VW 1K0615301AR
