HELLA Brake Disc - 54422PRO - for e.g. RENAULT 8DD355112-361
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Brake Disc - 54422PRO - Coated - 274mm - 11mm - Solid - for e.g. RENAULT
HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.
- fits e.g. RENAULT (please check exact vehicle application)
- with integrated magnetic sensor ring/with wheel bearing/without wheel studs

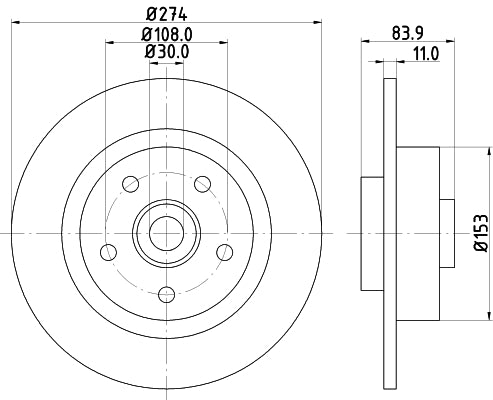

- Outer Diameter: 274mm - Brake Disc Thickness: 11mm - Centering Diameter: 30mm - Bolt Hole Circle Ø: 108mm - Height: 83.9mm - Stub Axle Ø: 30mm - Weight: 7kg
- Premium quality brake discs
- The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
- Optimum braking performance in all conditions
- Hella brake discs far exceed the required specifications of the ECE R90 directive
Item Attributes:
Brake Disc Type: solid
Outer Diameter: 274 mm
Brake Disc Thickness: 11 mm
Min. thickness: 9.5 mm
Surface: Coated
Height: 83.9 mm
Hole Pitch/Number: 05/05
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 30 mm
Stub Axle Ø: 30 mm
Supplementary Article/Supplementary Info 2: with wheel bearing / with integrated magnetic sensor ring / without wheel studs
Supplementary Article/Supplementary Info: with axle nut
Weight: 7 kg
Assembly by qualified personnel required!
OE references: RENAULT 7701472838; RENAULT 7701713008; RENAULT 8200209774; RENAULT 8200367094; RENAULT 8200655249; RENAULT 820655249; RENAULT 8671018108; TOYOTA 4243108040
