HELLA Brake Disc - 54570 - for e.g. CITROEN / FIAT / PEUGEOT / TOYOTA 8DD355113-671
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Brake Disc - 54570 - 304mm - 28mm - Internally Vented - for e.g. CITROEN / FIAT / PEUGEOT / TOYOTA
HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.
- fits e.g. CITROEN / FIAT / PEUGEOT / TOYOTA (please check exact vehicle application)
- without wheel hub/without wheel studs

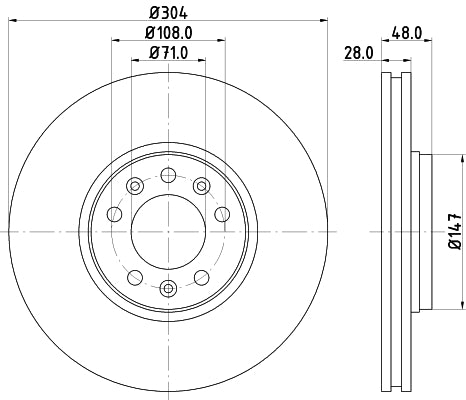

- Outer diameter: 304mm - Brake Disc Thickness: 28mm - Centering Diameter: 71mm - Bolt Hole Circle Ø: 108mm - Height: 48mm - Weight: 9.7kg
- Premium quality brake discs
- The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
- Optimum braking performance in all conditions
- Hella brake discs far exceed the required specifications of the ECE R90 directive
Item Attributes:
Brake Disc Type: internally vented
Outer Diameter: 304 mm
Brake Disc Thickness: 28 mm
Height: 48 mm
Min. thickness: 26 mm
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 71 mm
Hole Pitch/Number: 05/08
Supplementary Article/Supplementary Info 2: without wheel hub / without wheel studs
Weight: 9.7 kg
Assembly by qualified personnel required!
OE references: CITROËN 1611841980; CITROËN 1618865180; CITROËN 424924; CITROËN 424925; CITROËN 424992; CITROËN 4249K0; FERRARI 000 1440 027088; FERRARI 946 7548 488; FERRARI 946 7548 587; FERRARI 946 7548 588; FIAT 1440027088; FIAT 9467548488; FIAT 9467548587; FIAT 9467548588; PEUGEOT 1618865180; PEUGEOT 4249.24; PEUGEOT 4249.25; PEUGEOT 4249.92; PEUGEOT 4249.K0; TOYOTA SU001A1064
