HELLA Brake Disc - 55239PRO_HC - for e.g. LEXUS / TOYOTA 8DD355129-861
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Brake Disc - 55239PRO_HC - High-carbon - Coated - 338mm - 32mm - Internally Vented - for e.g. LEXUS / TOYOTA
HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.
- fits e.g. LEXUS / TOYOTA (please check exact vehicle application)
- without wheel hub/without wheel bearing/without wheel studs

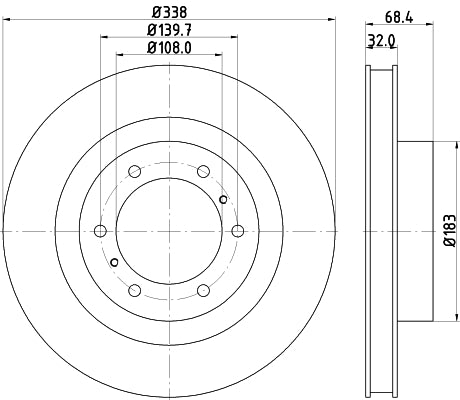

- Outer Diameter: 338mm - Brake Disc Thickness: 32mm - Inner Diameter: 172.1mm - Centering Diameter: 108mm - Bolt Hole Circle Ø: 139.7mm - Wheel Bolt Bore Ø: 14.7mm - Height: 68.4mm - Weight: 9.9kg
- Premium quality brake discs
- The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
- Optimum braking performance in all conditions
- Hella brake discs far exceed the required specifications of the ECE R90 directive
Item Attributes:
Brake Disc Type: internally vented
Outer Diameter: 338 mm
Brake Disc Thickness: 32 mm
Height: 68.4 mm
Min. thickness: 29 mm
Machining: High-carbon
Surface: Coated
Inner Diameter: 172.1 mm
Bolt Hole Circle Ø: 139.7 mm
Centering Diameter: 108 mm
Hole Pitch/Number: 06/08
Wheel Bolt Bore Ø: 14.7 mm
Supplementary Article/Supplementary Info 2: without wheel bearing / without wheel studs / without wheel hub
Weight: 9.9 kg
Assembly by qualified personnel required!
OE references: LEXUS 4351260190; LEXUS 4351260191; TOYOTA 4351260190; TOYOTA 4351260191
