HELLA Brake Disc - 55298PRO_HC - for e.g. AUDI / CUPRA / SEAT / SKODA / VOLKSWAGEN 8DD355129-241
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Brake Disc - 55298PRO_HC - High-carbon - Coated - 340mm - 30mm - Internally Vented - for e.g. AUDI / CUPRA / SEAT / SKODA / VOLKSWAGEN
HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.
- fits e.g. AUDI / CUPRA / SEAT / SKODA / VOLKSWAGEN (please check exact vehicle application)
- without wheel hub/without wheel bearing/without wheel studs

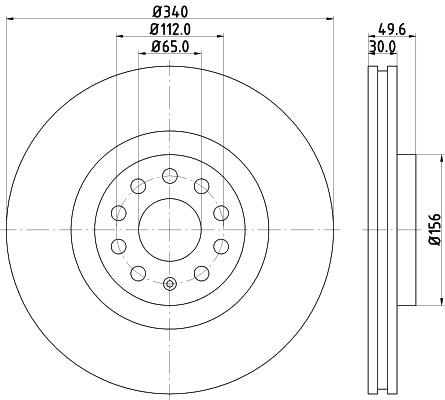

- Outer Diameter: 340mm - Brake Disc Thickness: 30mm - Inner Diameter: 145mm - Centering Diameter: 65mm - Bolt Hole Circle Ø: 112mm - Wheel Bolt Bore Ø: 15.3mm - Height: 49.6mm - Weight: 10.8kg
- Premium quality brake discs
- The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
- Optimum braking performance in all conditions
- Hella brake discs far exceed the required specifications of the ECE R90 directive
Item Attributes:
Brake Disc Type: internally vented
Outer Diameter: 340 mm
Brake Disc Thickness: 30 mm
Height: 49.6 mm
Min. thickness: 27 mm
Machining: High-carbon
Surface: Coated
Inner Diameter: 145 mm
Bolt Hole Circle Ø: 112 mm
Centering Diameter: 65 mm
Hole Pitch/Number: 05/10
Wheel Bolt Bore Ø: 15.3 mm
Supplementary Article/Supplementary Info 2: without wheel hub / without wheel bearing / without wheel studs
Weight: 10.8 kg
Assembly by qualified personnel required!
OE references: AUDI 1K0 615 301 AD; AUDI 3C0 615 301 C; AUDI 5Q0 615 301 G; AUDI 5Q0615301C; AUDI 8S0 615 301; AUDI 8S0615301D; CUPRA 5Q0615301G; SEAT 1K0 615 301 AD; SEAT 3C0 615 301 C; SEAT 5Q0 615 301 G; SEAT 5Q0615301C; SEAT 8S0 615 301; SEAT 8S0615301D; SKODA 1K0 615 301 AD; SKODA 3C0 615 301 C; SKODA 5Q0 615 301 G; SKODA 5Q0615301C; SKODA 8S0 615 301; SKODA 8S0615301D; VW 1K0 615 301 AD; VW 3C0 615 301 C; VW 3C0615301D; VW 5Q0 615 301 G; VW 5Q0615301C; VW 8S0 615 301; VW 8S0615301D; VW JZW698302DG; VW (FAW) 1K0 615 301 AD; VW (FAW) 3C0 615 301 C; VW (FAW) 5Q0 615 301 G; VW (FAW) 8S0 615 301; VW (SVW) 1K0 615 301 AD; VW (SVW) 3C0 615 301 C; VW (SVW) 5Q0 615 301 G; VW (SVW) 8S0 615 301
