HELLA Brake Disc - 56054PRO - for e.g. CITROEN / OPEL / PEUGEOT / VAUXHALL 8DD355132-161
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Brake Disc - 56054PRO - Coated - 244mm - 9mm - Solid - for e.g. CITROEN / OPEL / PEUGEOT / VAUXHALL
HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.
- fits e.g. CITROEN / OPEL / PEUGEOT / VAUXHALL (please check exact vehicle application)
- with integrated magnetic sensor ring/with wheel bearing/with wheel hub

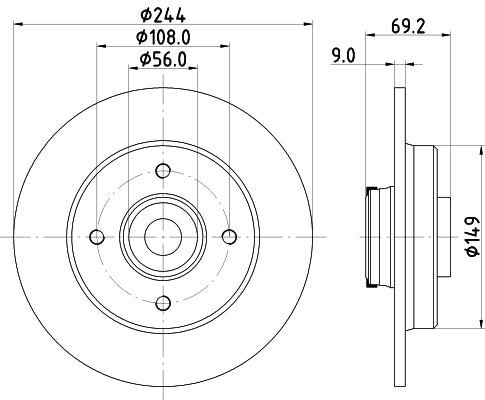

- Outer Diameter: 244mm - Brake Disc Thickness: 9mm - Inner Diameter: 142.5mm - Centering Diameter: 56mm - Bolt Hole Circle Ø: 108mm - Wheel Bolt Bore Ø: 12mm - Height: 69.2mm - Stub Axle Ø: 30mm - Weight: 5.1kg
- Premium quality brake discs
- The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
- Optimum braking performance in all conditions
- Hella brake discs far exceed the required specifications of the ECE R90 directive
Item Attributes:
Brake Disc Type: solid
Outer Diameter: 244 mm
Brake Disc Thickness: 9 mm
Min. thickness: 7 mm
Surface: Coated
Height: 69.2 mm
Hole Pitch/Number: 04/04
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 56 mm
Stub Axle Ø: 30 mm
Inner Diameter: 142.5 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: with integrated magnetic sensor ring / with wheel hub / with wheel bearing
Supplementary Article/Supplementary Info: with axle nut
Weight: 5.1 kg
Assembly by qualified personnel required!
OE references: CITROËN 1623835180; OPEL 39181957
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
