HELLA Brake Disc - 56152PRO - for e.g. MAZDA 8DD355132-691

Brake Disc - 56152PRO - Coated - 320mm - 28mm - Externally Vented - for e.g. MAZDA

HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.

• fits e.g. MAZDA (please check exact vehicle application)
• without wheel hub/without wheel bearing/without wheel studs

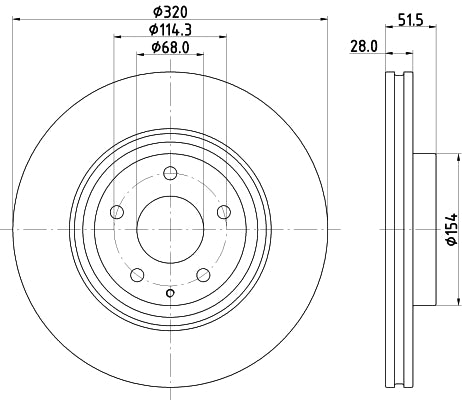

• Outer Diameter: 320mm - Brake Disc Thickness: 28mm - Inner Diameter: 142.8mm - Centering Diameter: 68mm - Bolt Hole Circle Ø: 114.3mm - Wheel Bolt Bore Ø: 13.3mm - Height: 51.5mm - Weight: 10kg
• Premium quality brake discs
• The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
• Optimum braking performance in all conditions
• Hella brake discs far exceed the required specifications of the ECE R90 directive

Item Attributes:
Brake Disc Type: Externally Vented
Outer Diameter: 320 mm
Brake Disc Thickness: 28 mm
Height: 51.5 mm
Min. thickness: 26 mm
Surface: Coated
Inner Diameter: 142.8 mm
Bolt Hole Circle Ø: 114.3 mm
Centering Diameter: 68 mm
Hole Pitch/Number: 05/06
Wheel Bolt Bore Ø: 13.3 mm
Supplementary Article/Supplementary Info 2: without wheel bearing / without wheel hub / without wheel studs
Weight: 10 kg
Assembly by qualified personnel required!

OE references: MAZDA TK7833251A; MAZDA TK7833251B
