HELLA Brake Disc - 56204PRO_HC - for e.g. BMW 8DD355133-181

Brake Disc - 56204PRO_HC - High-carbon - Coated - 348mm - 30mm - Internally Vented - for e.g. BMW

HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.

• fits e.g. BMW (please check exact vehicle application)
• without wheel hub/without wheel bearing/without wheel studs

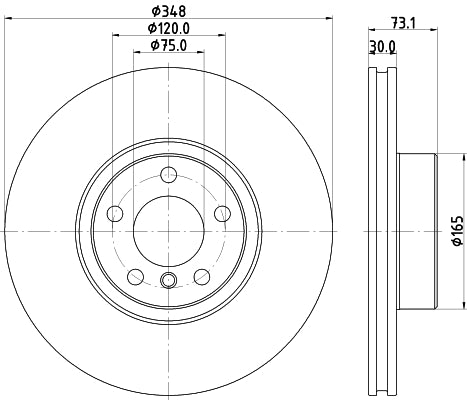

• Outer Diameter: 348mm - Brake Disc Thickness: 30mm - Inner Diameter: 153.8mm - Centering Diameter: 75mm - Bolt Hole Circle Ø: 120mm - Wheel Bolt Bore Ø: 16.7mm - Height: 73.1mm - Weight: 12.5kg
• Premium quality brake discs
• The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity
• Optimum braking performance in all conditions
• Hella brake discs far exceed the required specifications of the ECE R90 directive

Item Attributes:
Brake Disc Type: internally vented
directional
paired article number: 8DD 355 133-201
Outer Diameter: 348 mm
Brake Disc Thickness: 30 mm
Height: 73.1 mm
Min. thickness: 28.4 mm
Machining: High-carbon
Surface: Coated
Inner Diameter: 153.8 mm
Bolt Hole Circle Ø: 120 mm
Centering Diameter: 75 mm
Hole Pitch/Number: 05/06
Wheel Bolt Bore Ø: 16.7 mm
Supplementary Article/Supplementary Info 2: without wheel studs / without wheel hub / without wheel bearing
Weight: 12.5 kg
Assembly by qualified personnel required!

OE references: BMW 34 11 6 871 799; BMW 6871799
