HELLA DE/FF/Halogen-Headlight - 90mm Performance - 12V 1LL009998-011

DE/FF/Halogen-Headlight - 90mm Performance - 12V - round - ECE - Hardened diffusing lens - Plug: AMP - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Excellent light output and extremely homogeneous illumination with little scattered light from a 70 mm optic-free lens
• Simple installation with pre-mounted adjusting screws
• Height: 108mm - Depth: 182mm - Lamp Type: H7 - with bulb - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with low beam/with high beam
• Registration Type: ECE - for left-hand traffic

Item Attributes:
Mounting Type: Fitting
Lamp Type: H7
Light Design: FF / Halogen / DE
Voltage: 12 V
Fitting Position: left / right
Height: 108 mm
Depth: 182 mm
Light Function: with low beam / with high beam
Light functions: 2
Registration Type: ECE

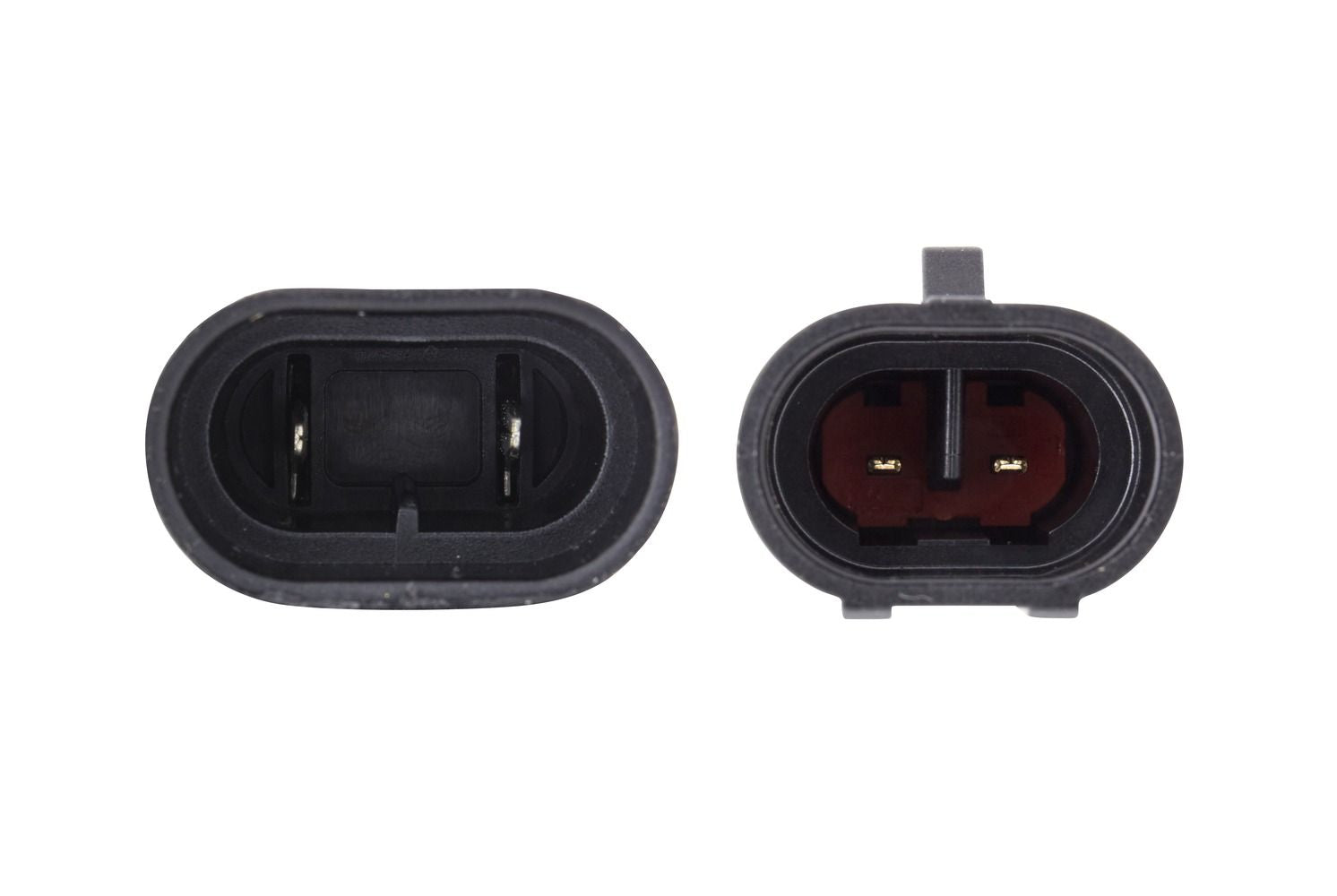

Plug: AMP
Left-hand/Right-hand Traffic: for left-hand traffic
Shape: round
Housing Colour: black
Illuminated Area: 90 mm
Diffusing Lens Material: Glass
Diffusing Lens Type: Hardened diffusing lens
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info: with bulb
SVHC: 7439-92-1; Lead / 556-67-2; Octamethylcyclotetrasiloxane
Assembly by qualified personnel required!

OE references: AGCO 63995000; AGCO 644809; AGCO 72617352; AGCO G334 900 160 011; BLUECAR T0920-06316; BUCHER 46-420; CARRARO 461465; CASE IH 47573231; CLAAS 21 659 500; DEUTZ-FAHR 2.8039.321.0; FENDT 72617352; FENDT G 334 900 160 011; FENDT G334.900.160.010; FIAT 50526133; FIAT 50526152; HYMER 1671662; HYMER 2127553; HYMER 8017409-00; KRONE 200844940; KUBOTA 3J03284250; KUBOTA 3J03284251; KUBOTA 3J032-84252; LAIKA 2127553; LANDINI 6603321A_1; MASERATI A00505261330; MASERATI A00505261520; SAME 2.8039.321.0; STREETSCOOTER B16X1376C732_01
