HELLA DE-Insert, headlight - 90mm Performance L4060 - 12/24V 1BL012488-001

DE-Insert, headlight - 90mm Performance L4060 - 12/24V - round - SAE - Crystal clear - Plug: FEP - both sides - Quantity: 1

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• Maximum freedom of design and technology thanks to modular system.
• More illumination and safety through innovative LED technology.
• Striking design: Annular homogeneous daytime running light / position light or direction indicator
• Robust die-cast aluminium housing with integrated electronics.
• LED headlights increase safety. Thanks to the daylight-like illumination, the driver sees much better and does not tire as quickly.
• Ø: 90mm - Length: 125mm - Height: 126mm - Depth: 143mm - Lamp Type: LED - with accessories - Electromagnetic Compatibility (EMC)
• Light functions: 1 - with low beam (LED)

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: 3-point attachment
Light Design: DE
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: both sides
Height: 126 mm
Length: 125 mm
Depth: 143 mm
Ø: 90 mm
Light Function: with low beam (LED)
Light functions: 1
fulfils ECE standard: R87 / R112
Registration Type: SAE
Plug: FEP
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: black
Illuminated Area: 62 mm
Shape: round
Diffusing Lens Material: Thermoplast
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)

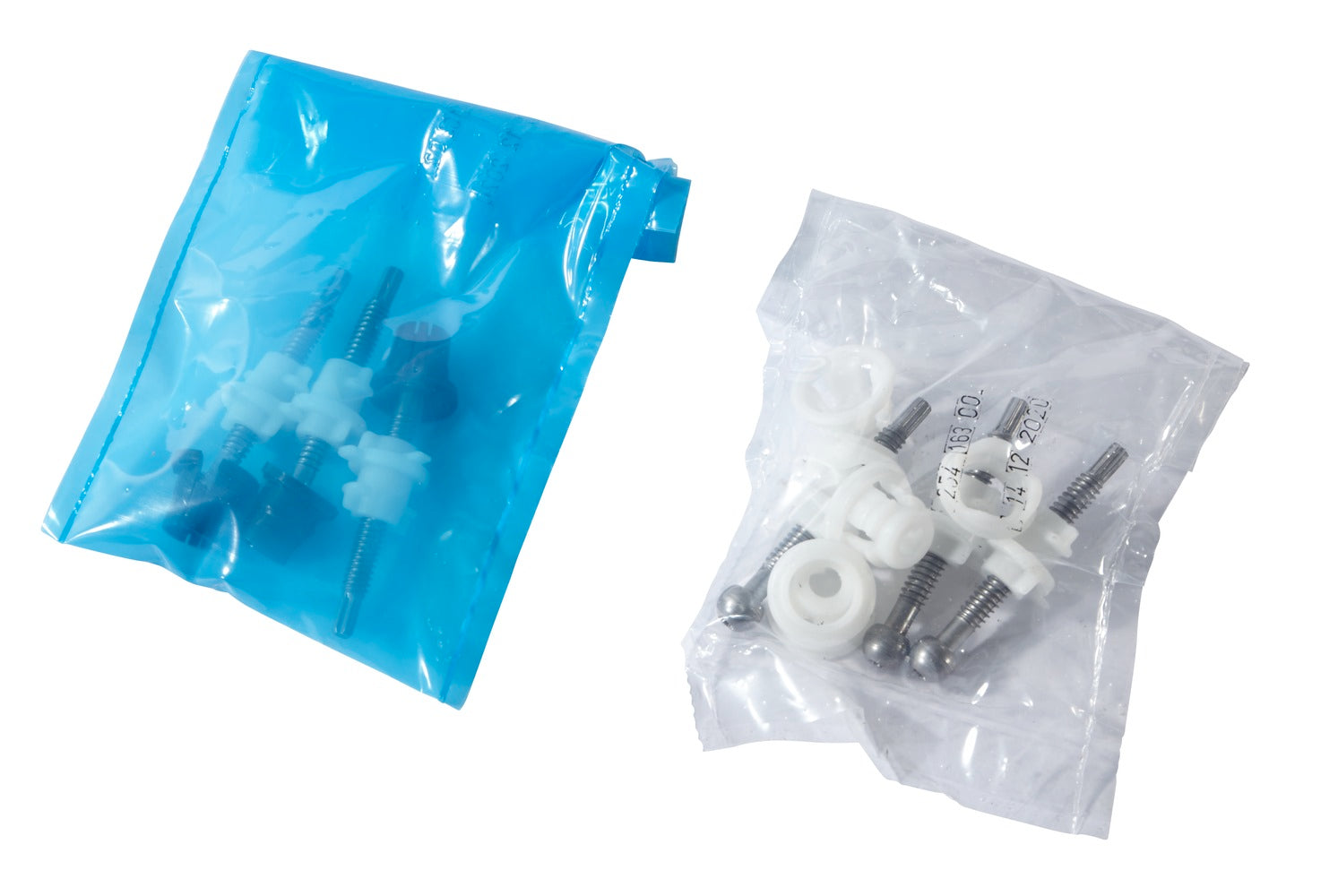

Supplementary Article/Supplementary Info: with accessories
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGRIFAC 7700225; ALEXANDER DENNIS 76102170; GOLDHOFER 261269; HYMER 2918363; HYMER 8062320; KNAUS R0101P01082; PLAXTON 76102170; RENAULT TRUCKS 4722964107; RENAULT TRUCKS 7422826408; SCANIA 2427531; VAN HOOL 11473546; VDL 30189017; VDL 30212945; VDL 900120641/00
