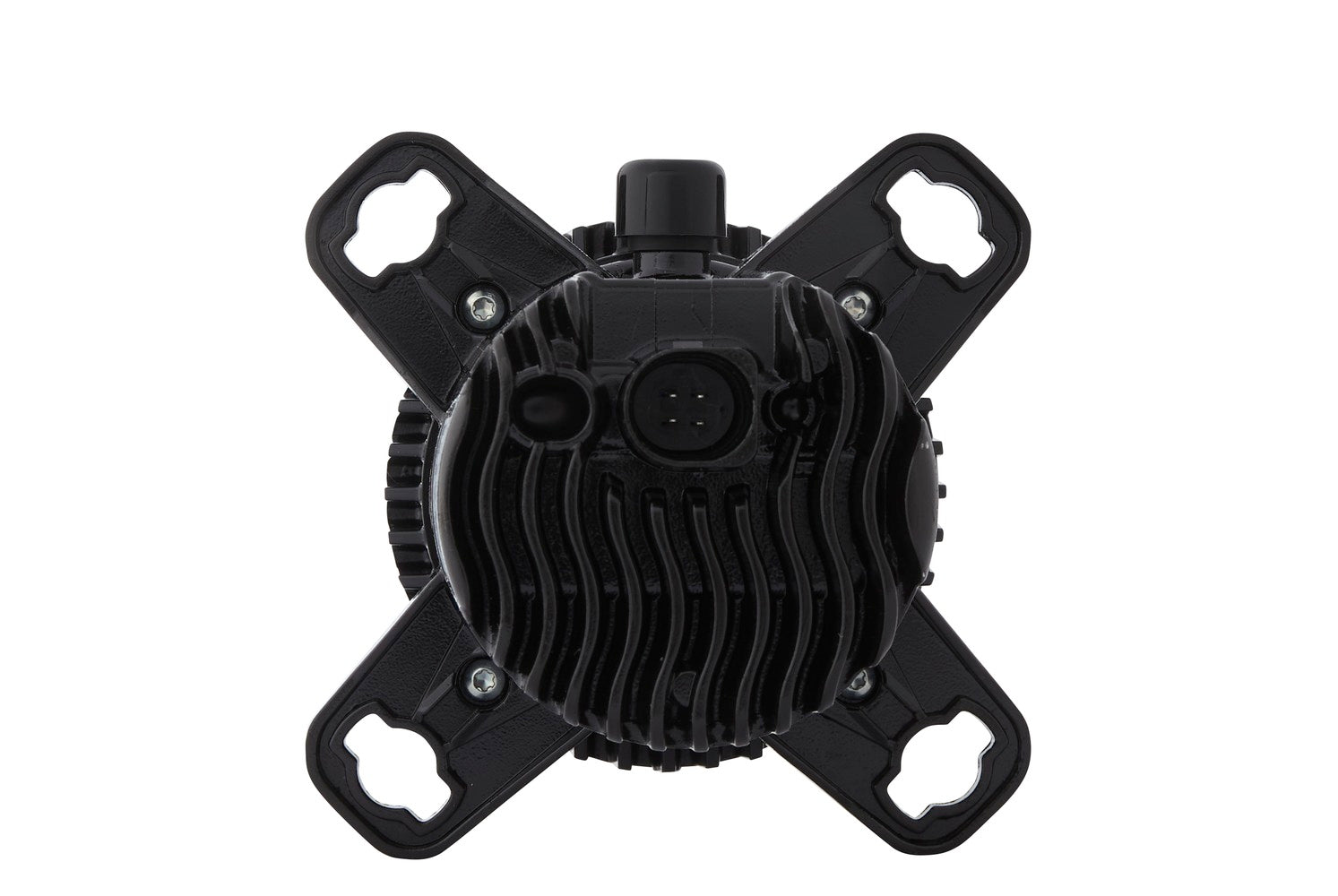

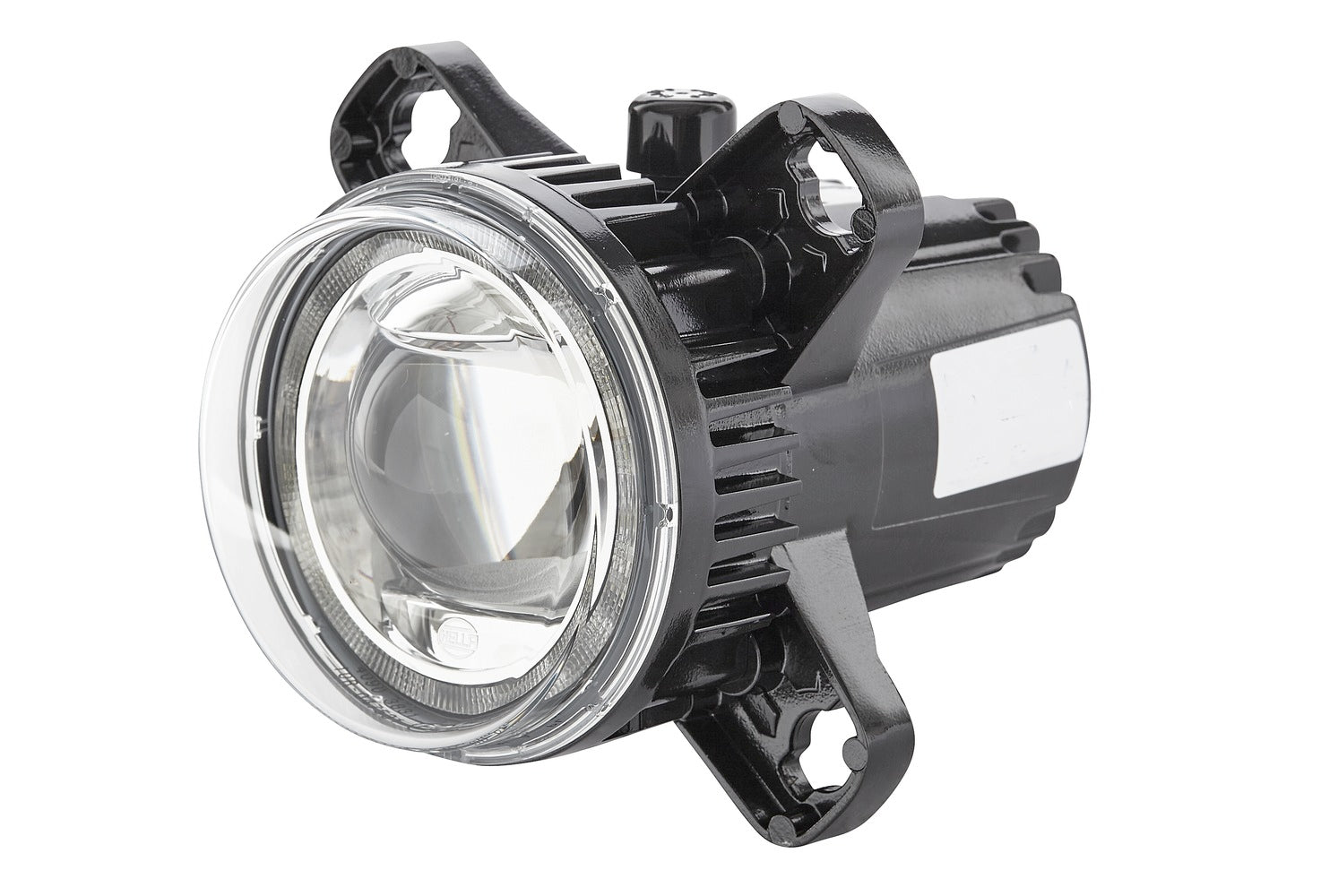

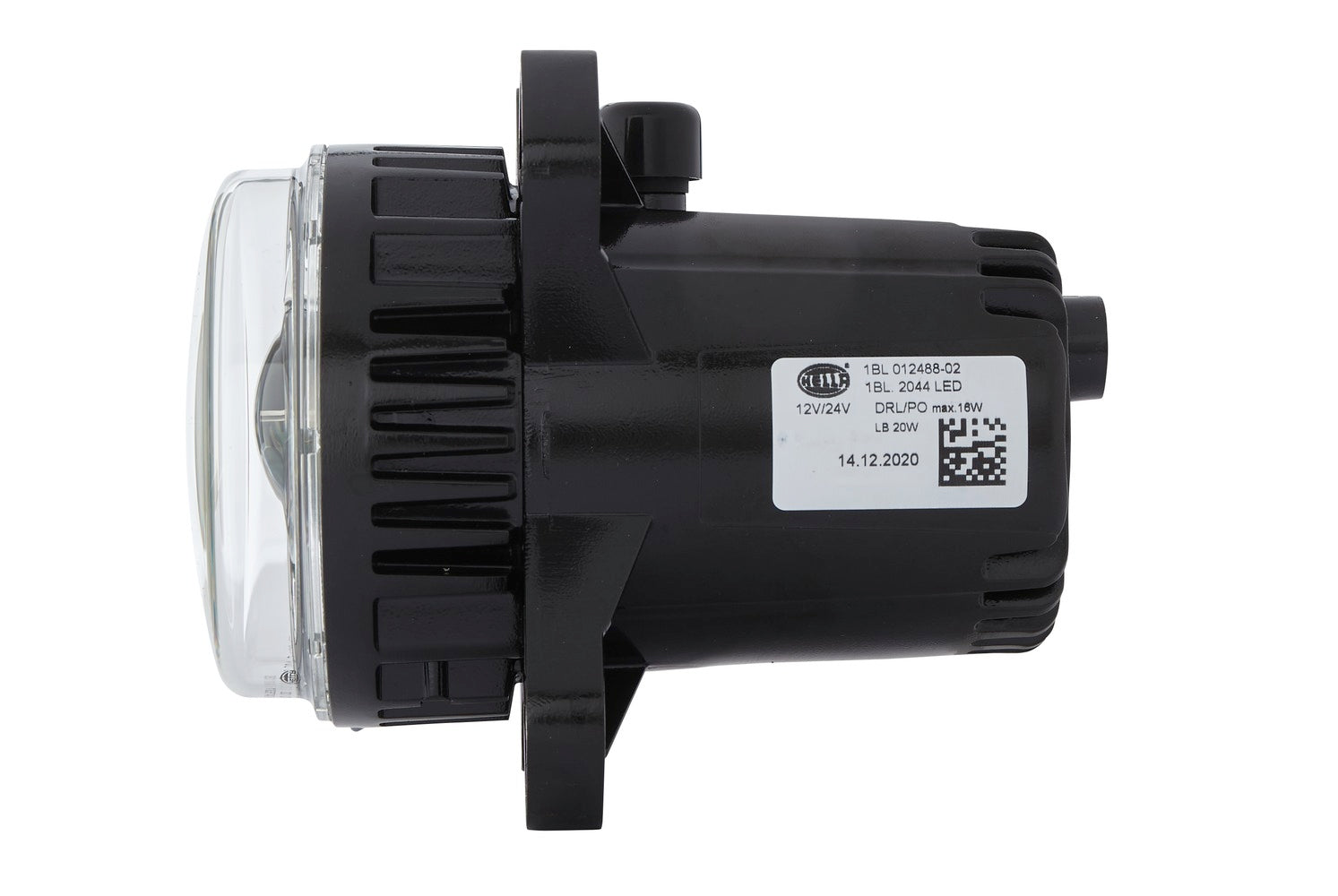

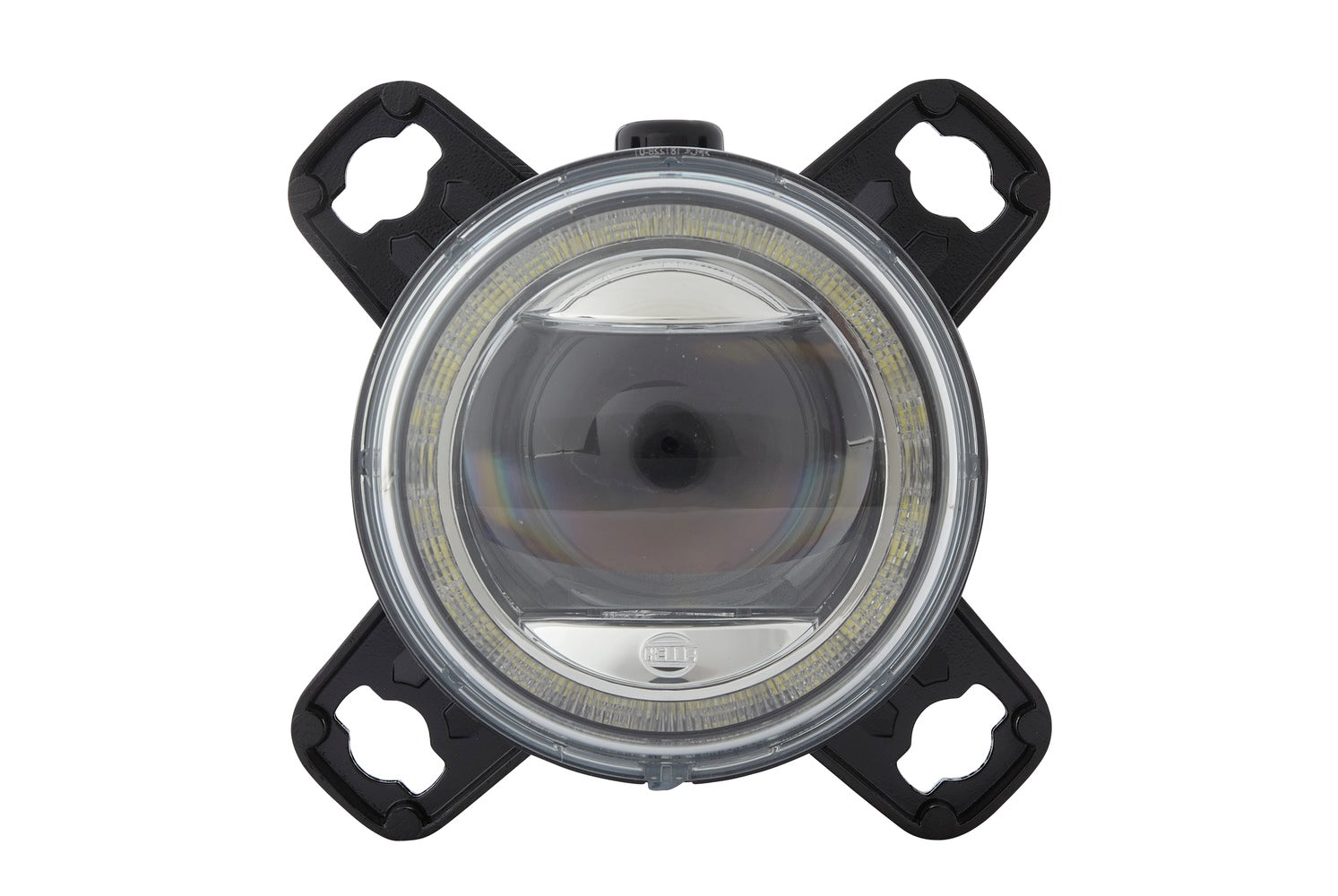

HELLA DE-Insert, headlight - 90mm Performance L4060 - 12/24V 1BL012488-021
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
DE-Insert, headlight - 90mm Performance L4060 - 12/24V - round - SAE - Crystal clear - Plug: FEP - both sides - Quantity: 1
HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.
- Maximum freedom of design and technology thanks to modular system.
- More illumination and safety through innovative LED technology.
- Striking design: Annular homogeneous daytime running light / position light or direction indicator
- Robust die-cast aluminium housing with integrated electronics.
- LED headlights increase safety. Thanks to the daylight-like illumination, the driver sees much better and does not tire as quickly.
- Ø: 90mm - Length: 125mm - Height: 126mm - Depth: 143mm - Lamp Type: LED - with accessories - Electromagnetic Compatibility (EMC)
- Light functions: 3 - with position light (LED)/with daytime running light (LED)/with low beam (LED)
Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: 3-point attachment
Fitting Position: both sides
Lamp Type: LED
Light Function: with position light (LED) / with daytime running light (LED) / with low beam (LED)
Light Design: DE
Voltage: 24 V / 12 V
Length: 125 mm
Height: 126 mm
Depth: 143 mm
Ø: 90 mm
Diffusing Lens Material: Thermoplast
Plug: FEP
Housing Colour: black
Lens Colour: Crystal clear
fulfils ECE standard: R7 / R87 / R10 / R112
Quantity: 1
Illuminated Area: 62 mm
Light functions: 3
SVHC: 7439-92-1; Lead
Registration Type: SAE
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic

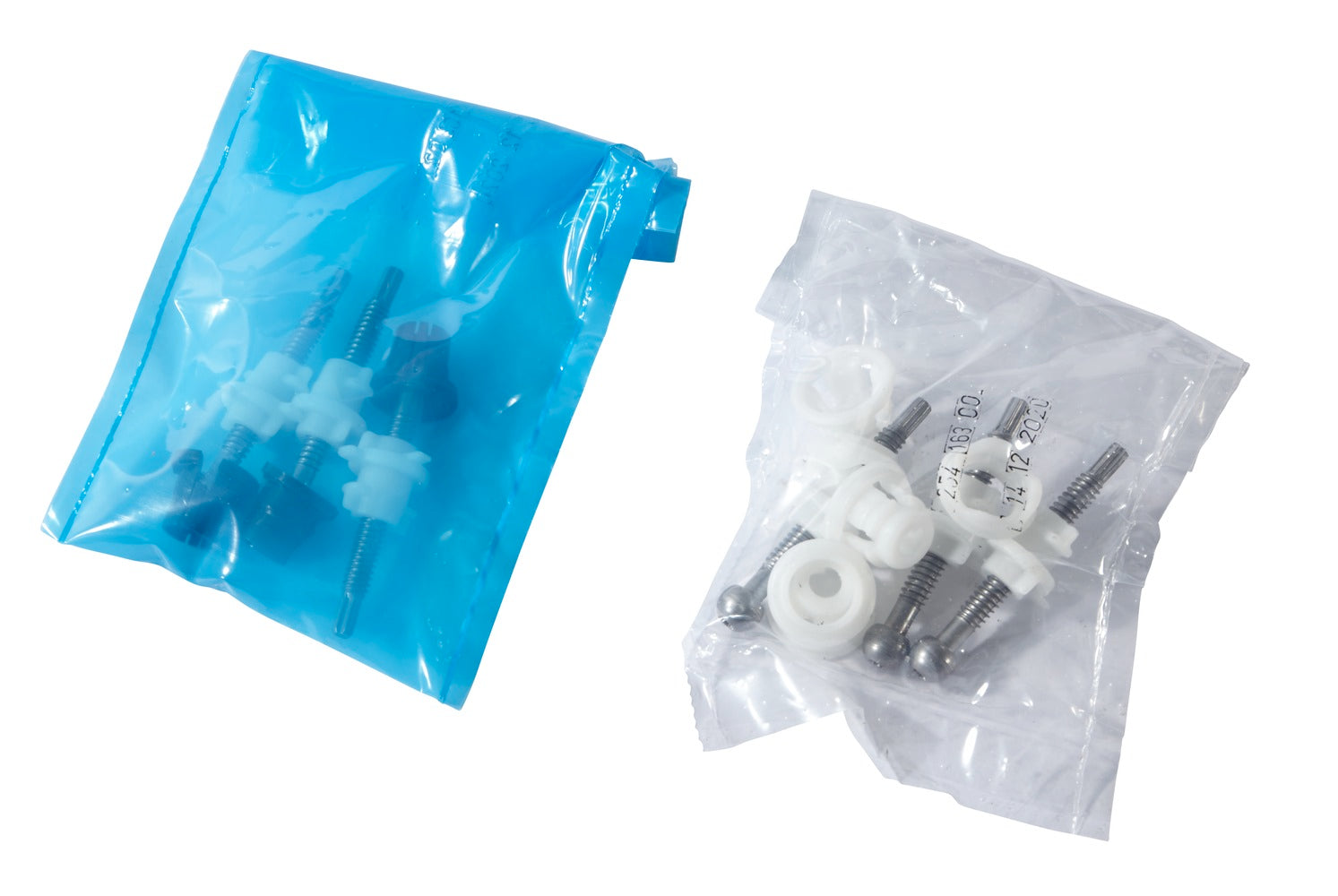

Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!
OE references: GOLDHOFER 261873; HYMER 3062620; IRIZAR 400000231; LAIKA 3062620; STILL 0009740370; VAN HOOL 11470474; VINFAST BEX40000179; VINFAST BEX40000179-INSERT, HEADLIGHT
