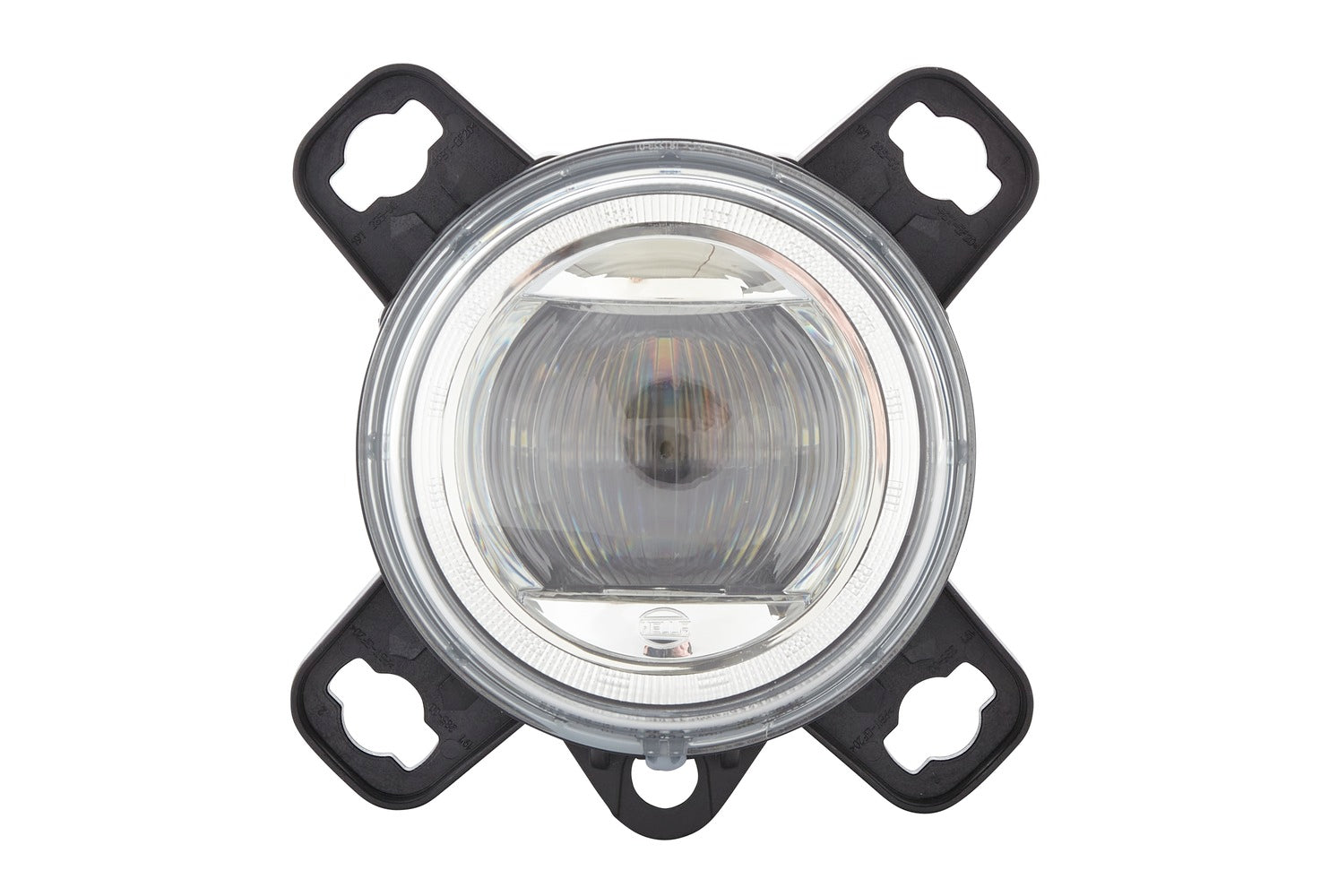

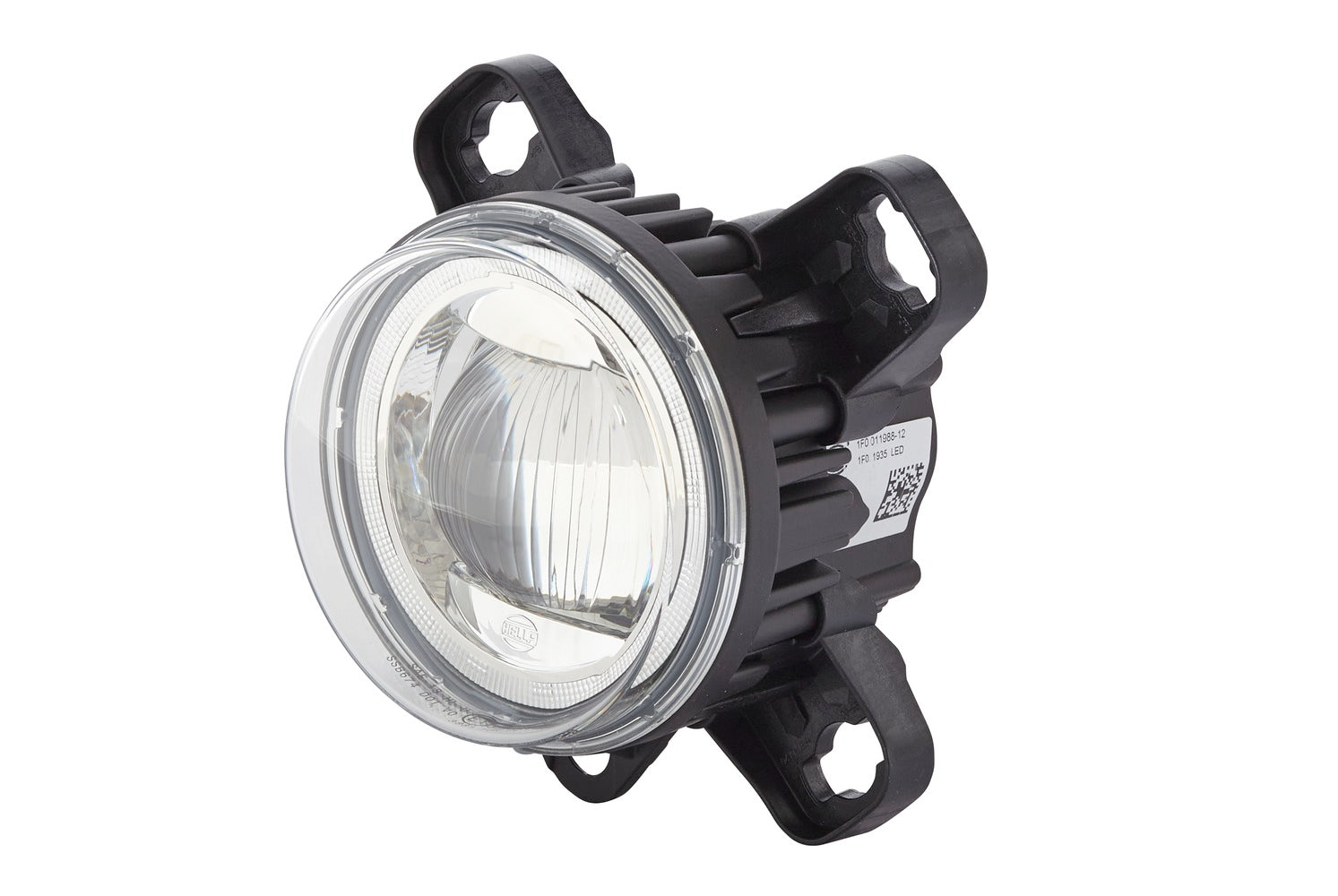

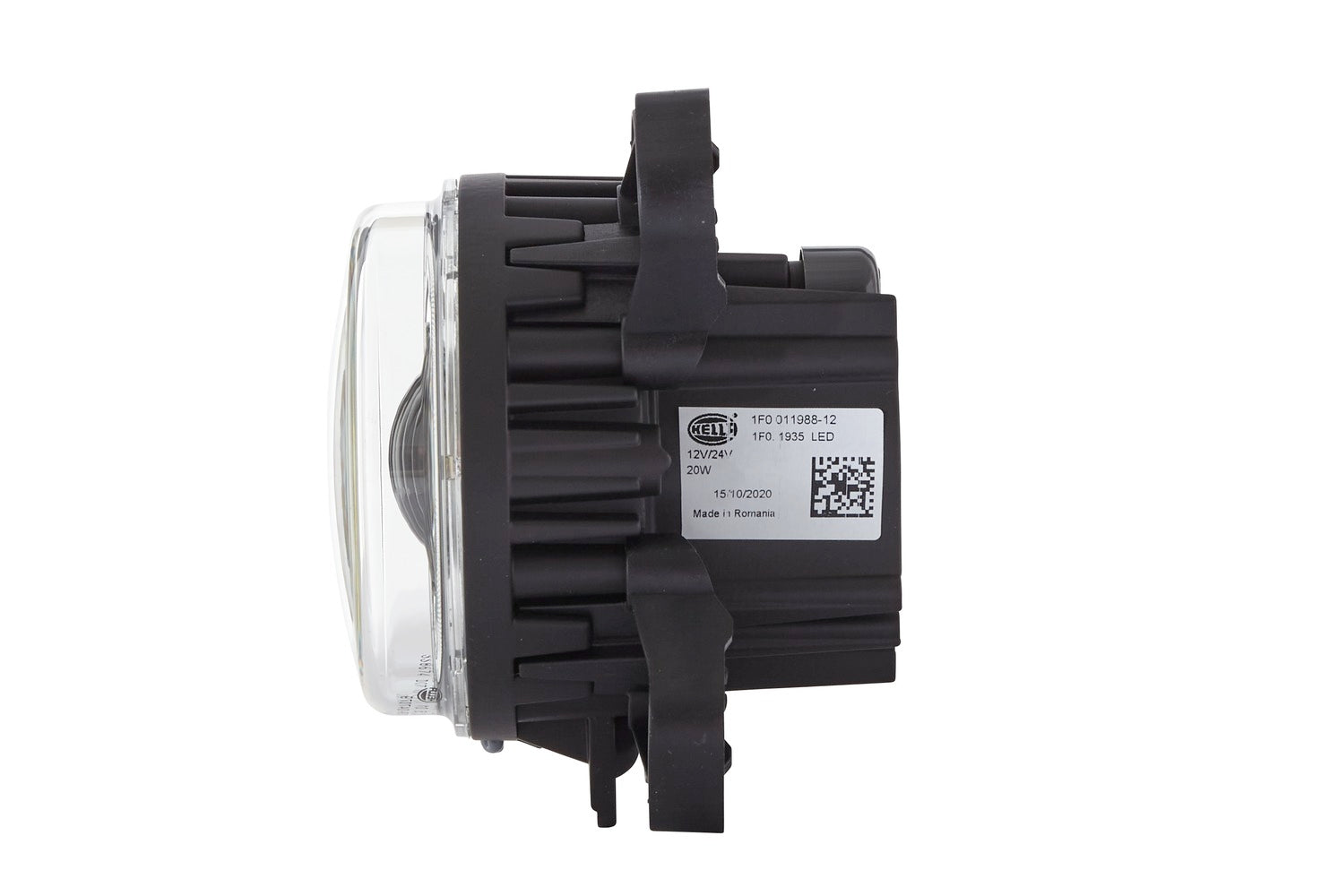

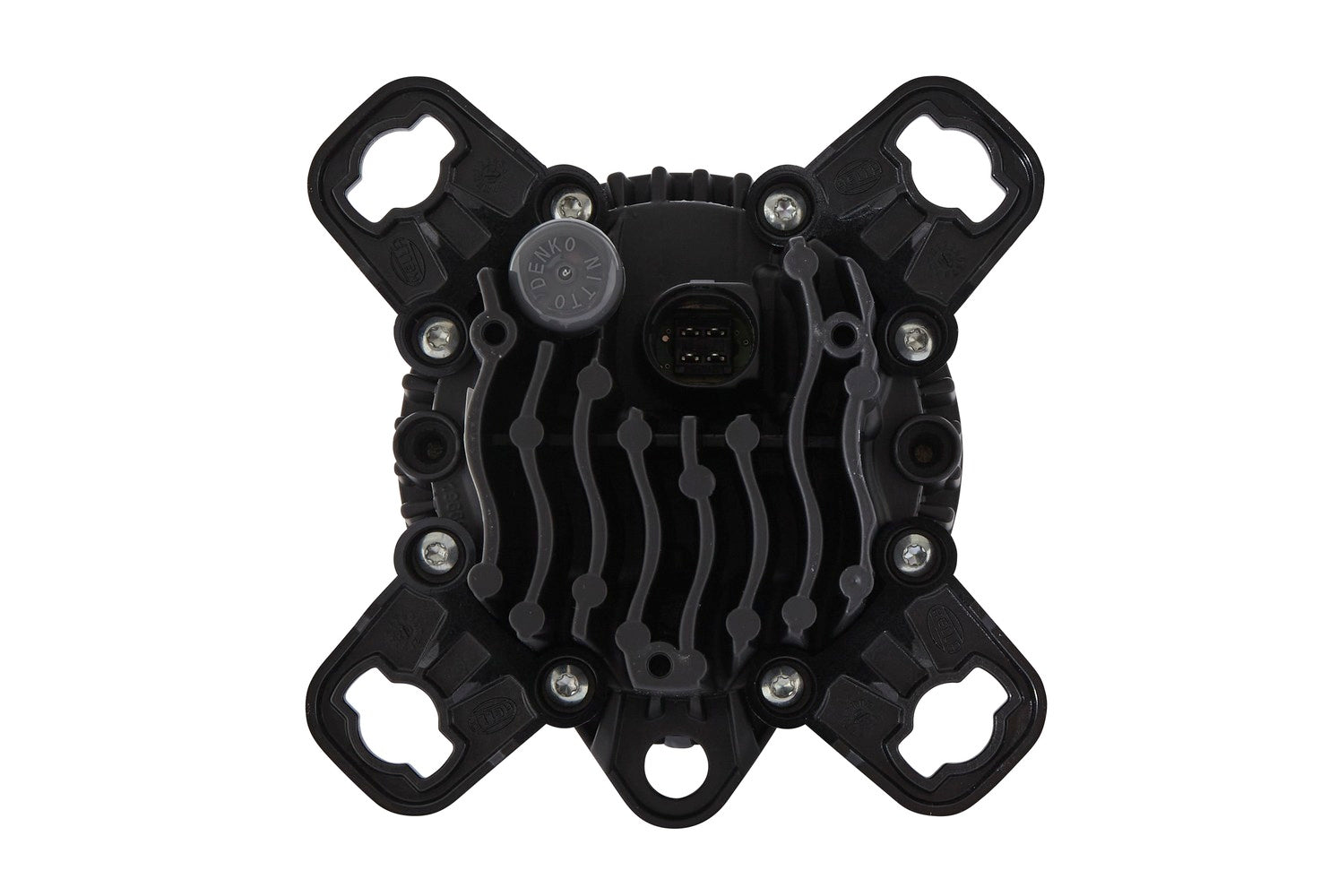

HELLA DE/LED-Spotlight - 90mm Performance L4060 - 12/24V 1F0011988-121

DE/LED-Spotlight - 90mm Performance L4060 - 12/24V - round - Reference number: 12.5 - SAE - Clear diffusing lens - Crystal clear - left/right

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• Maximum freedom of design and technology thanks to modular system.
• More illumination and safety through innovative LED technology.
• Striking design: Annular homogeneous daytime running light / position light or direction indicator
• Robust die-cast aluminium housing with integrated electronics.
• LED headlights increase safety. Thanks to the daylight-like illumination, the driver sees much better and does not tire as quickly.
• Width: 126mm - Height: 91mm - Depth: 91mm - Fitting Depth: 55mm - Overall Height: 126mm - Lamp Type: LED - with LED - without carrier frame
• Light functions: 1 - with high beam (LED)

Item Attributes:
Mounting Type: Screw Connection
Fastening Type: 3-point attachment
Light Design: DE / LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: right / left
Height: 91 mm
Overall Height: 126 mm
Width: 126 mm
Depth: 91 mm
Fitting Depth: 55 mm
Light Function: with high beam (LED)
Light functions: 1
fulfils ECE standard: R10 / R112 / R149
fulfils SAE standard: SSB 674
Registration Type: SAE
Reference number: 12.5
Housing Colour: black
Lens Colour: Crystal clear
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without carrier frame
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AEBI 1312302-3; AGRIFAC 7700226; ALEXANDER DENNIS 76102172; CLAAS 181 284 10; HYMER 2918368; IVECO 5802349706; IVECO E5802349706; JCB 400/E5253; KNAUS R0101P01076; MCI 07071572; MERCEDES-BENZ 514 908 15 40; MERCEDES-BENZ 514908154 000 00; MERCEDES-BENZ 956 820 06 39; MERCEDES-BENZ A 514 908 15 40; MERCEDES-BENZ A 956 820 06 39; PLAXTON 76102172; SCANIA 2497628; TATRA TW06425; VAN HOOL 11474948; VDL 11474948; VDL 30195464; VDL 30212939; VINFAST BEX40000521; VINFAST BEX40000521-MAIN HIGH BEAM LIGHT; VINFAST BEX40000521-SPOTLIGHT L4060, LED
