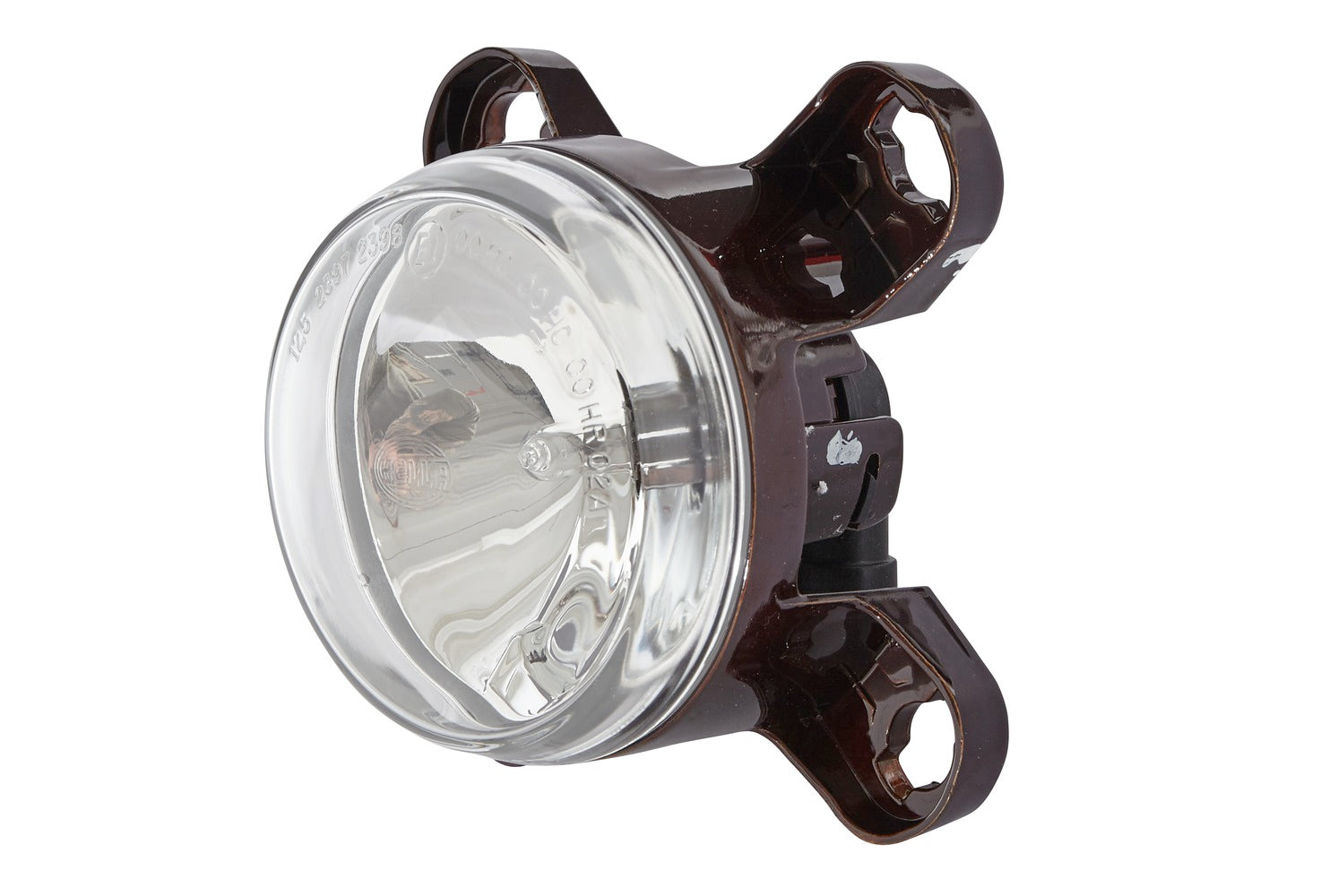

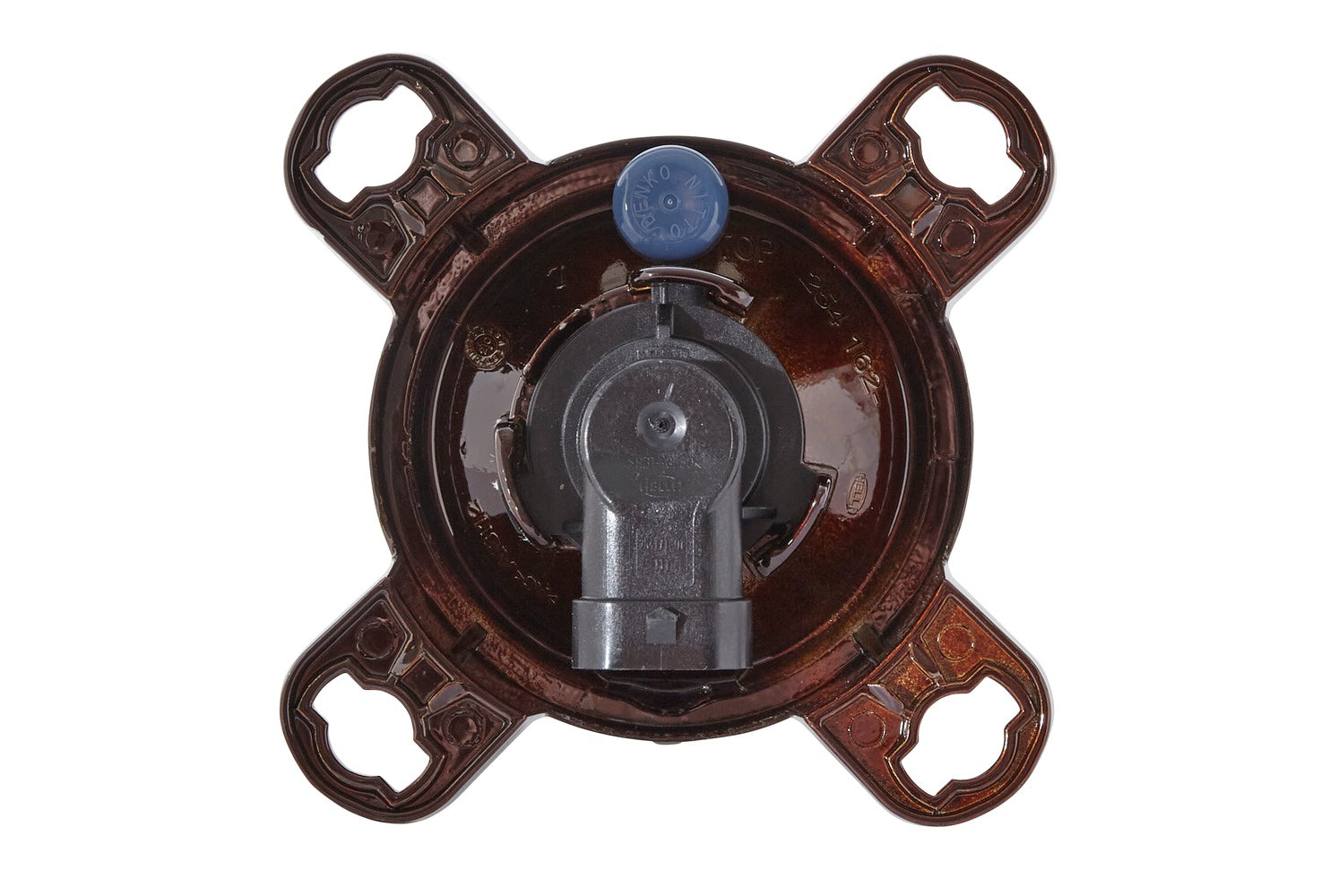

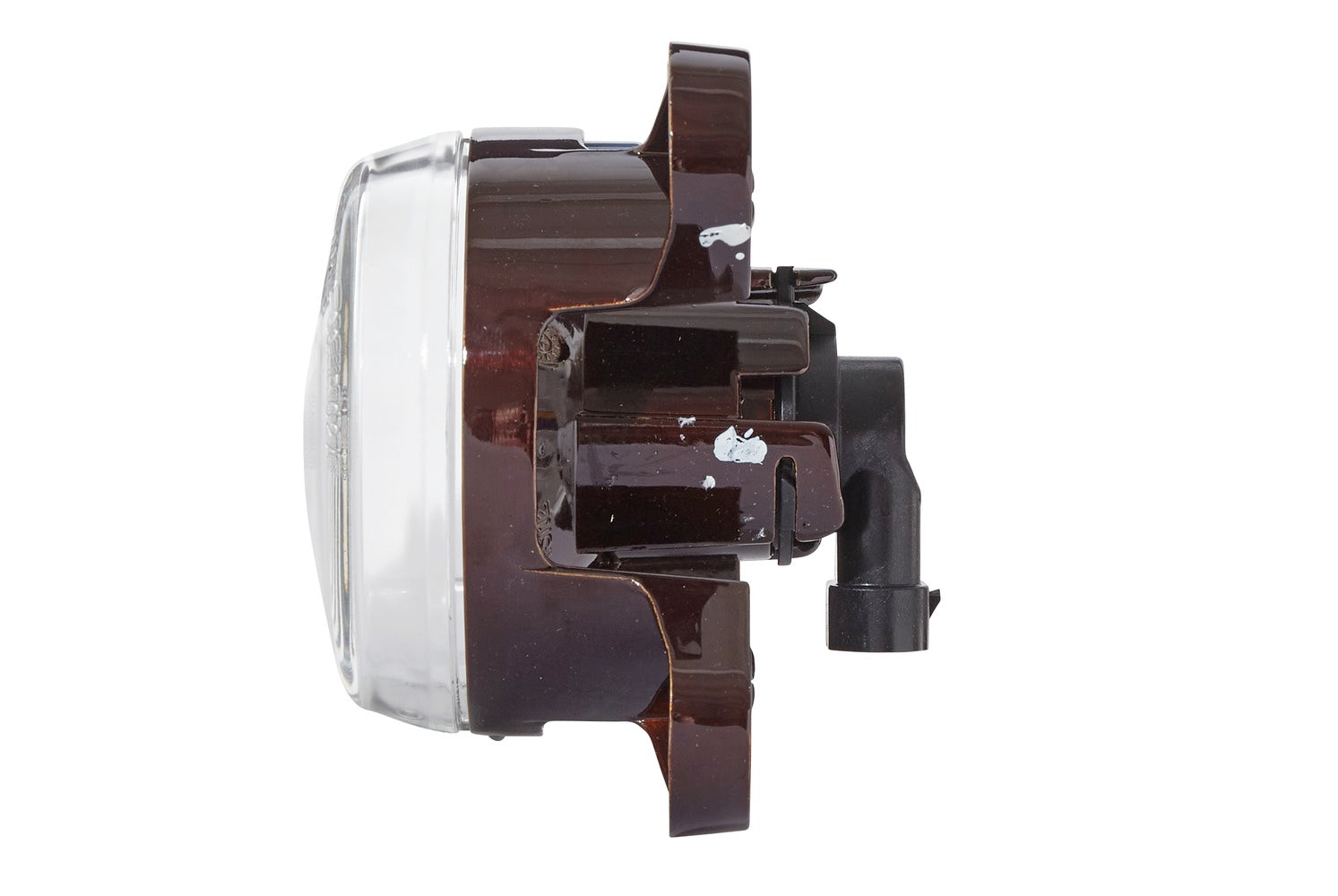

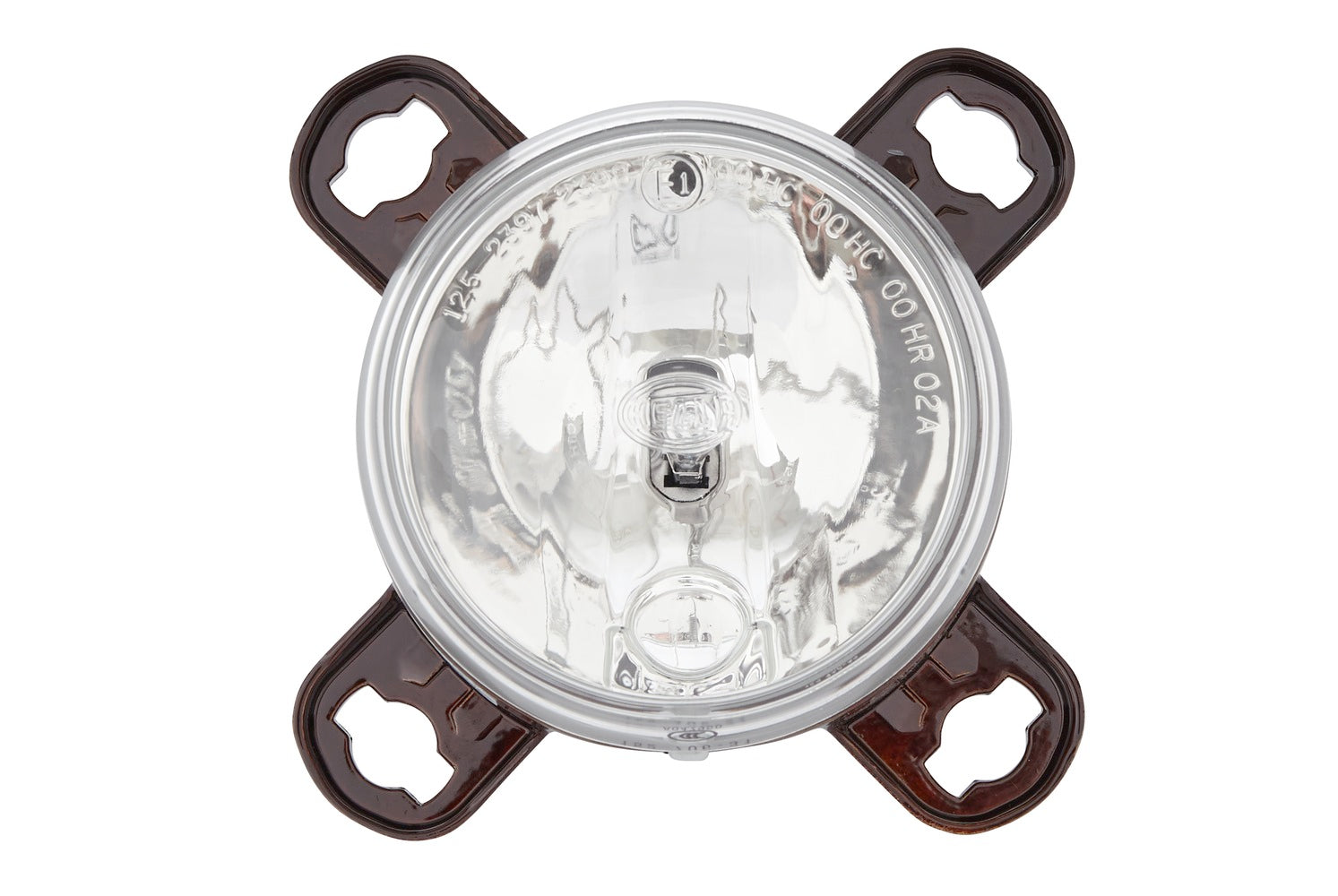

HELLA FF/DE/Halogen-Headlight - 90mm Performance - 12V 1K0247043-011
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
FF/DE/Halogen-Headlight - 90mm Performance - 12V - round - Reference number: 12.5 - ECE - Hardened diffusing lens - transparent - left/right
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.
- Individual front design thanks to modular construction
- Numerous application possibilities even in more demanding environments
- Optimised light output and homogeneous illumination with little stray light
- Water-protected standard plug-in system for incandescent lamps
- Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1 - with bulb - Electromagnetic Compatibility (EMC)
- Light functions: 1 - with high beam/without position light
- Registration Type: ECE - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IPX4K/IPX9K
Item Attributes:
Mounting Type: Fitting

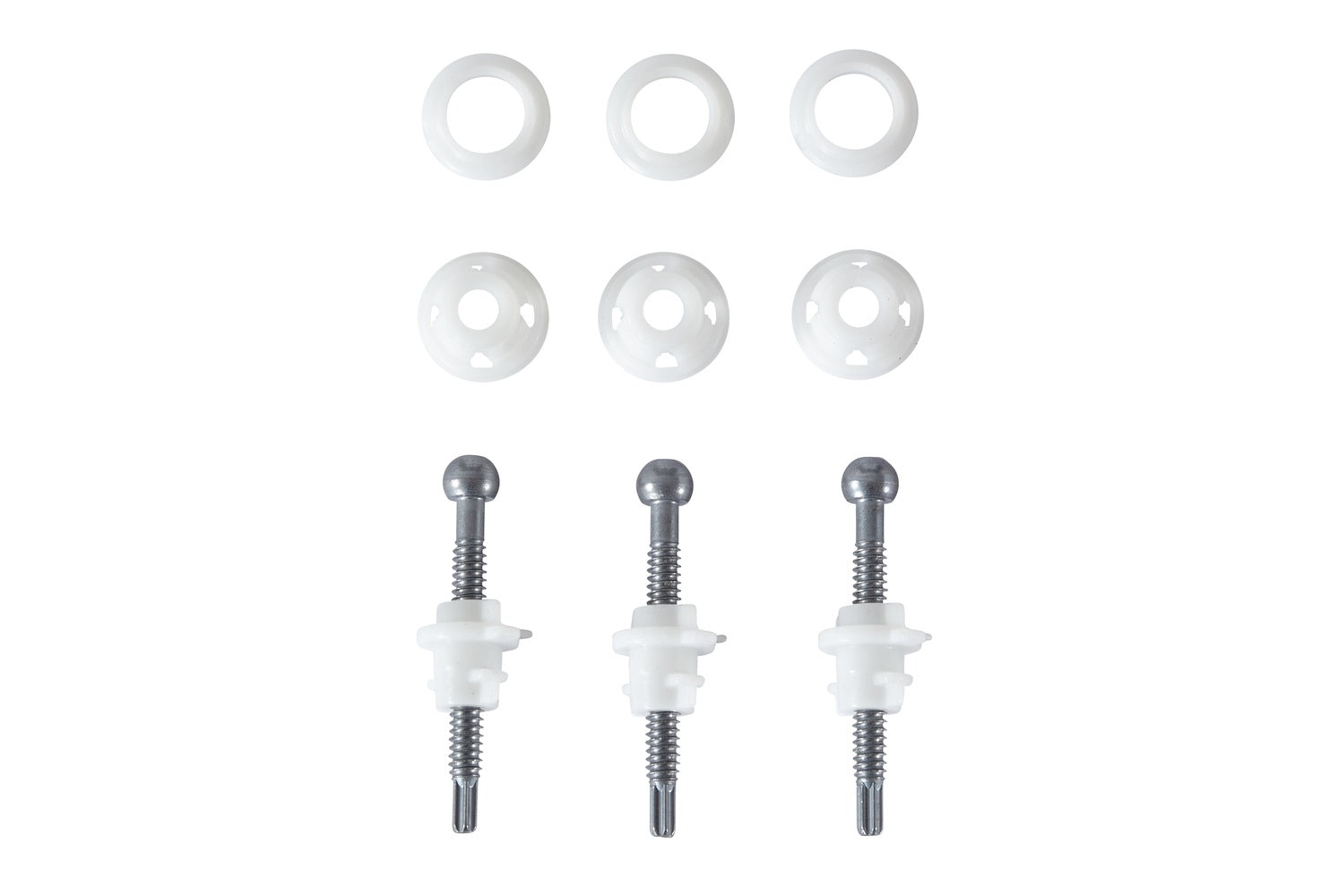

Fastening Type: 3-point attachment
Fitting Position: right / left
Lamp Type: H1
Light Function: without position light / with high beam
Light Design: Halogen / DE / FF
Voltage: 12 V
Width: 113 mm
Height: 113 mm
Depth: 97 mm
Diffusing Lens Material: Glass
Housing Colour: black
Diffusing Lens Type: Hardened diffusing lens
Lens Colour: transparent
Prot.type (IP Code): IPX4K / IPX9K
Illuminated Area: 90 mm
Additionally required parts: 8JD 156 151-801
Light functions: 1
Reference number: 12.5
Registration Type: ECE
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic / for left-hand traffic
Supplementary Article/Supplementary Info: with bulb
Dust Cover: with dust cover
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!
OE references: BELLIER 00453275; CLAAS 11244110; CLAAS 30767290; CLAAS R01010175; DELVANO 8041330; HYMER 1893947; JCB 333/W7817; KNAUS 1893947; KNAUS R01010175; RENAULT 11244110; RENAULT 7711733562
