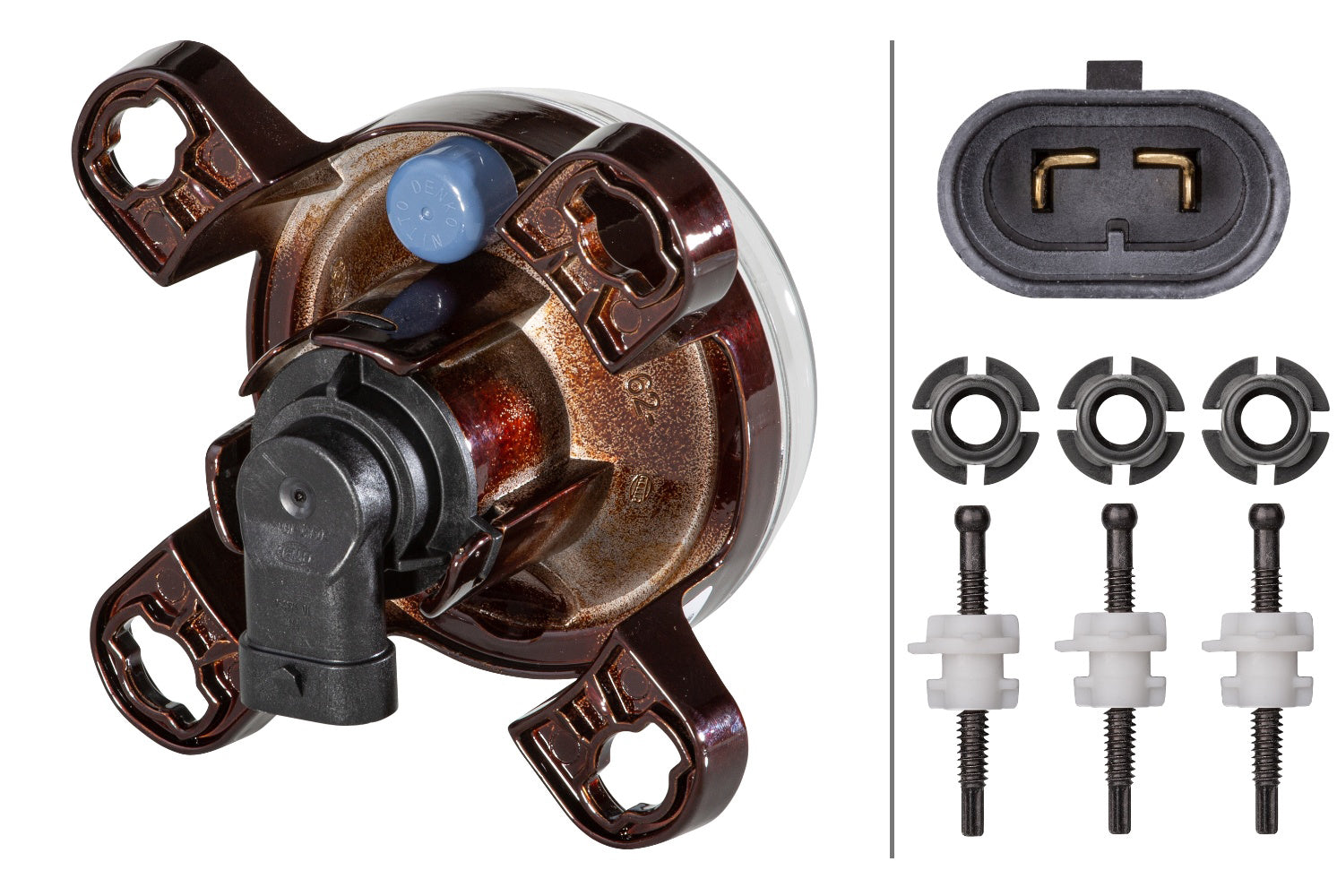

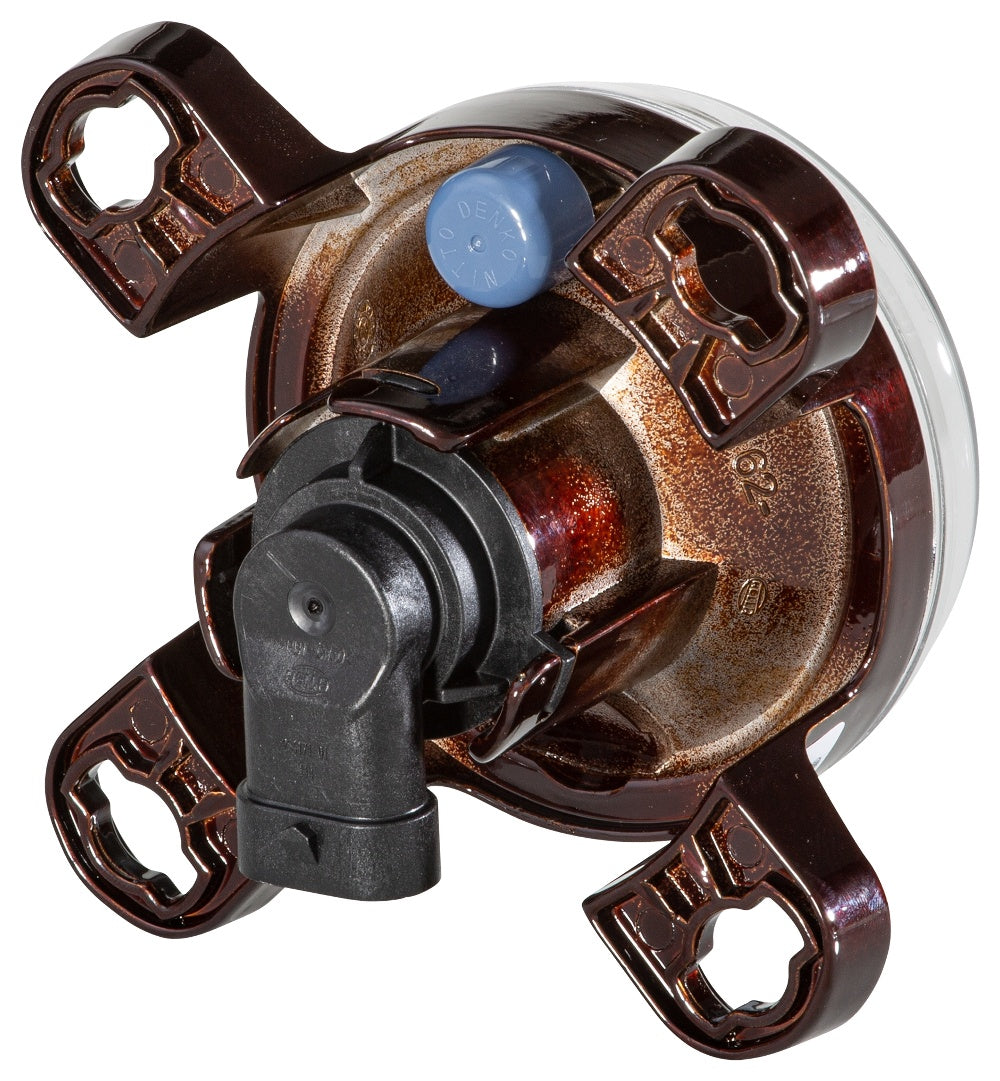

HELLA FF/Halogen/DE-Headlight - 90mm Performance - 24V 1K0247043-107
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
FF/Halogen/DE-Headlight - 90mm Performance - 24V - round - Reference number: 12.5 - ECE - Hardened diffusing lens - transparent - left/right
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.
- Individual front design thanks to modular construction
- Numerous application possibilities even in more demanding environments
- Optimised light output and homogeneous illumination with little stray light
- Water-protected standard plug-in system for incandescent lamps
- Width: 113mm - Height: 113mm - Depth: 97mm - Lamp Type: H1 - with bulb
- Light functions: 1 - without position light/with high beam
- Registration Type: ECE - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IPX9K/IPX4K
Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Lamp Type: H1
Light Design: DE / Halogen / FF
Voltage: 24 V
Fitting Position: left / right
Width: 113 mm
Height: 113 mm
Depth: 97 mm
Light Function: without position light / with high beam
Light functions: 1
Prot.type (IP Code): IPX4K / IPX9K
Dust Cover: with dust cover
Registration Type: ECE
Reference number: 12.5
Shape: round
Housing Colour: Black
Illuminated Area: 90 mm

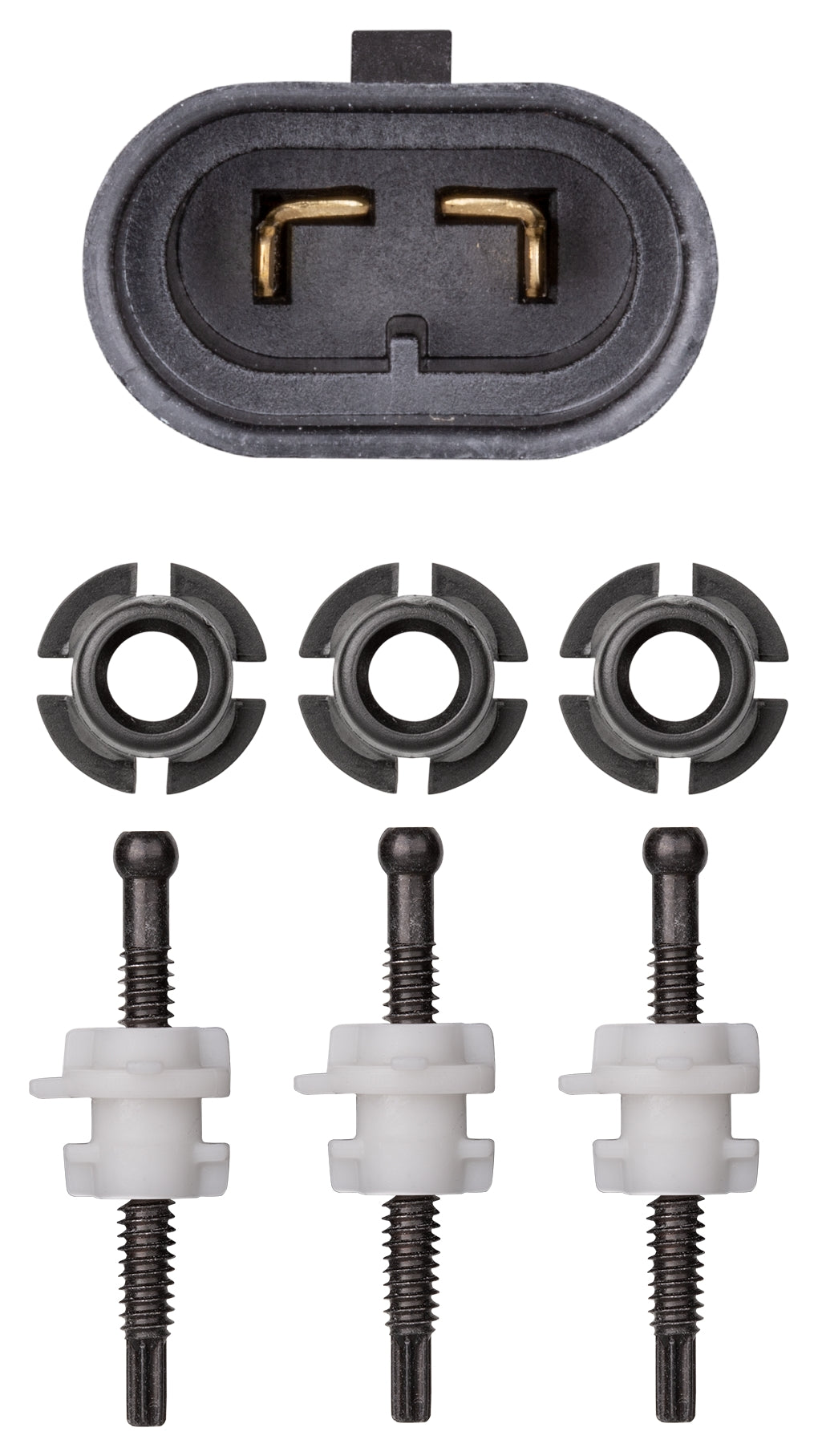

Additionally required parts: 8JD 156 151-807
Diffusing Lens Material: Glass
Lens Colour: transparent
Diffusing Lens Type: Hardened diffusing lens
Supplementary Article/Supplementary Info: with bulb
Left-hand/Right-hand Traffic: for left-hand traffic / for right-hand traffic
Assembly by qualified personnel required!
OE references: SCANIA 2053967; VAN HOOL 11214309; VDL 11214309; VDL 30038249; YUTONG 4101-00217
