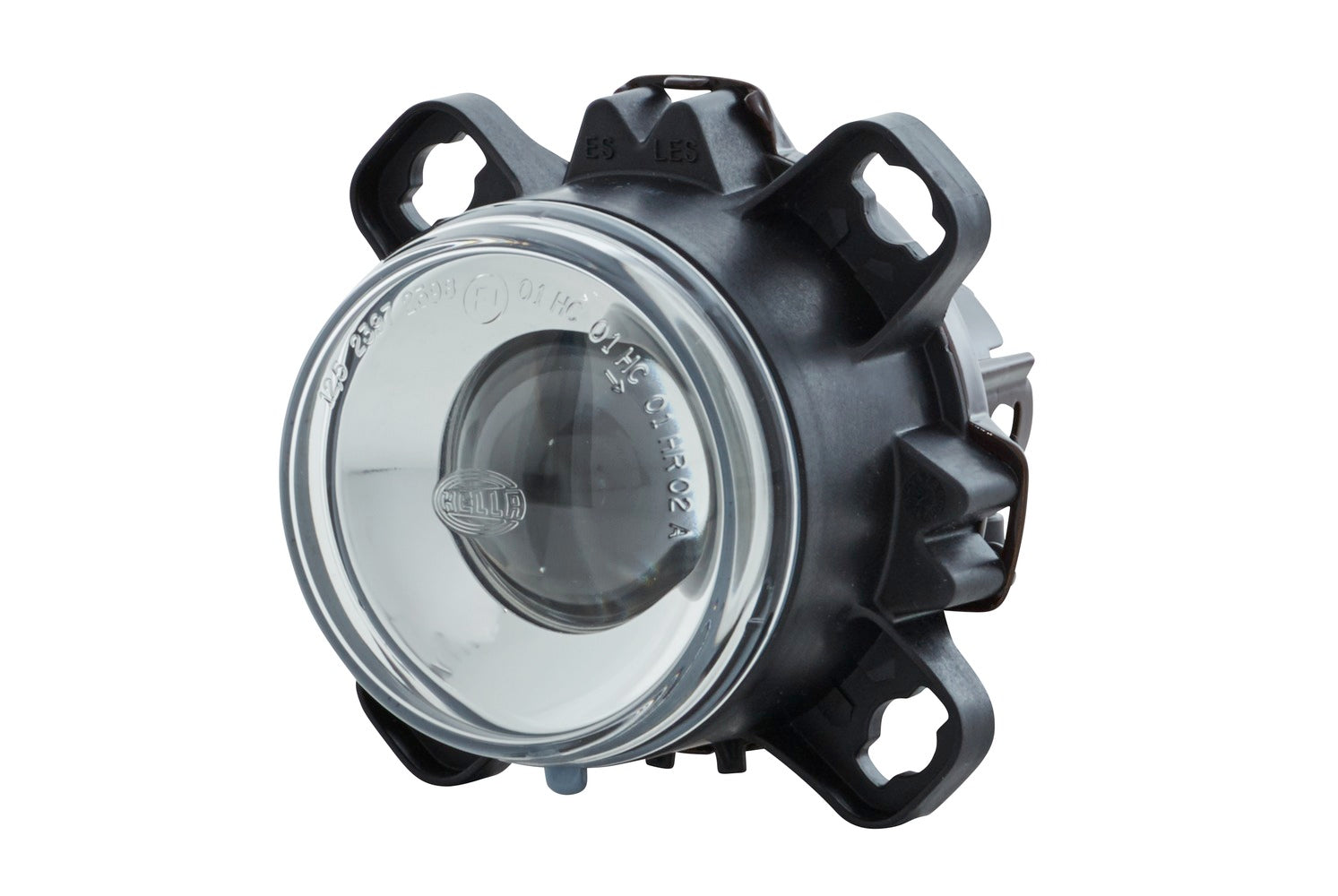

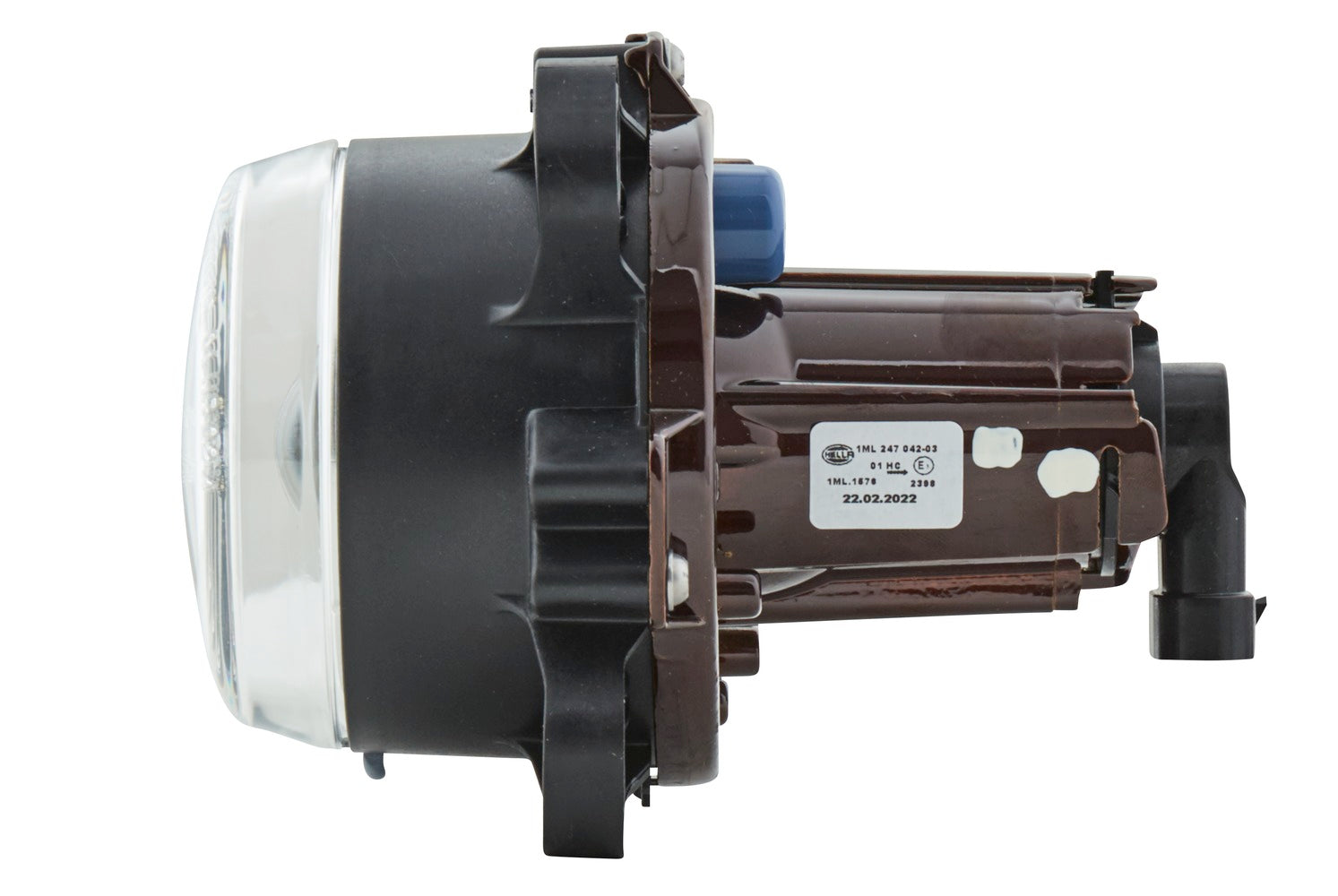

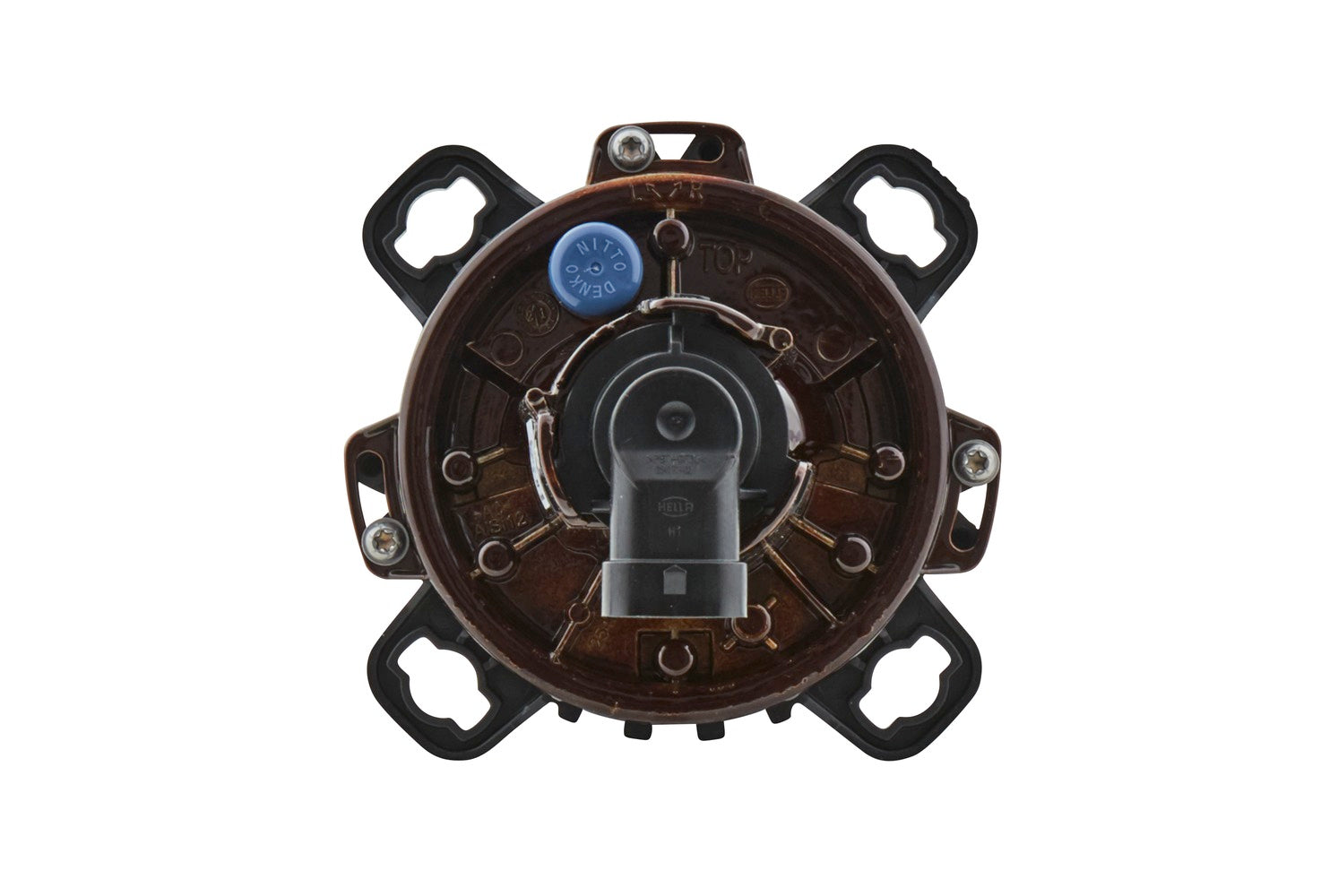

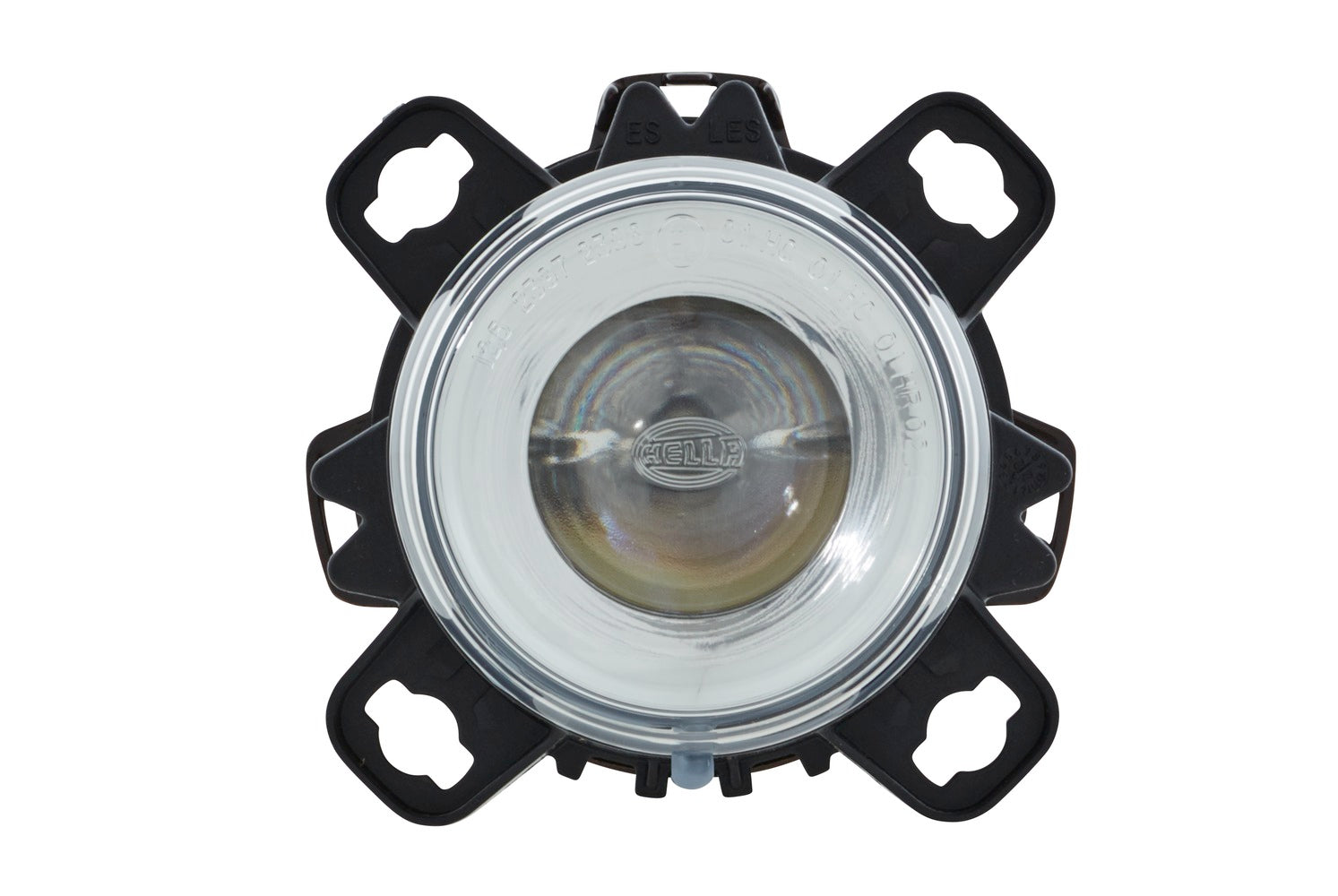

HELLA Halogen/DE-Headlight - 90mm Performance - 24V 1ML247042-037
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen/DE-Headlight - 90mm Performance - 24V - round - ECE - Hardened diffusing lens - left/right
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.
- Individual front design thanks to modular construction
- Numerous application possibilities even in more demanding environments
- Optimised light output and homogeneous illumination with little stray light

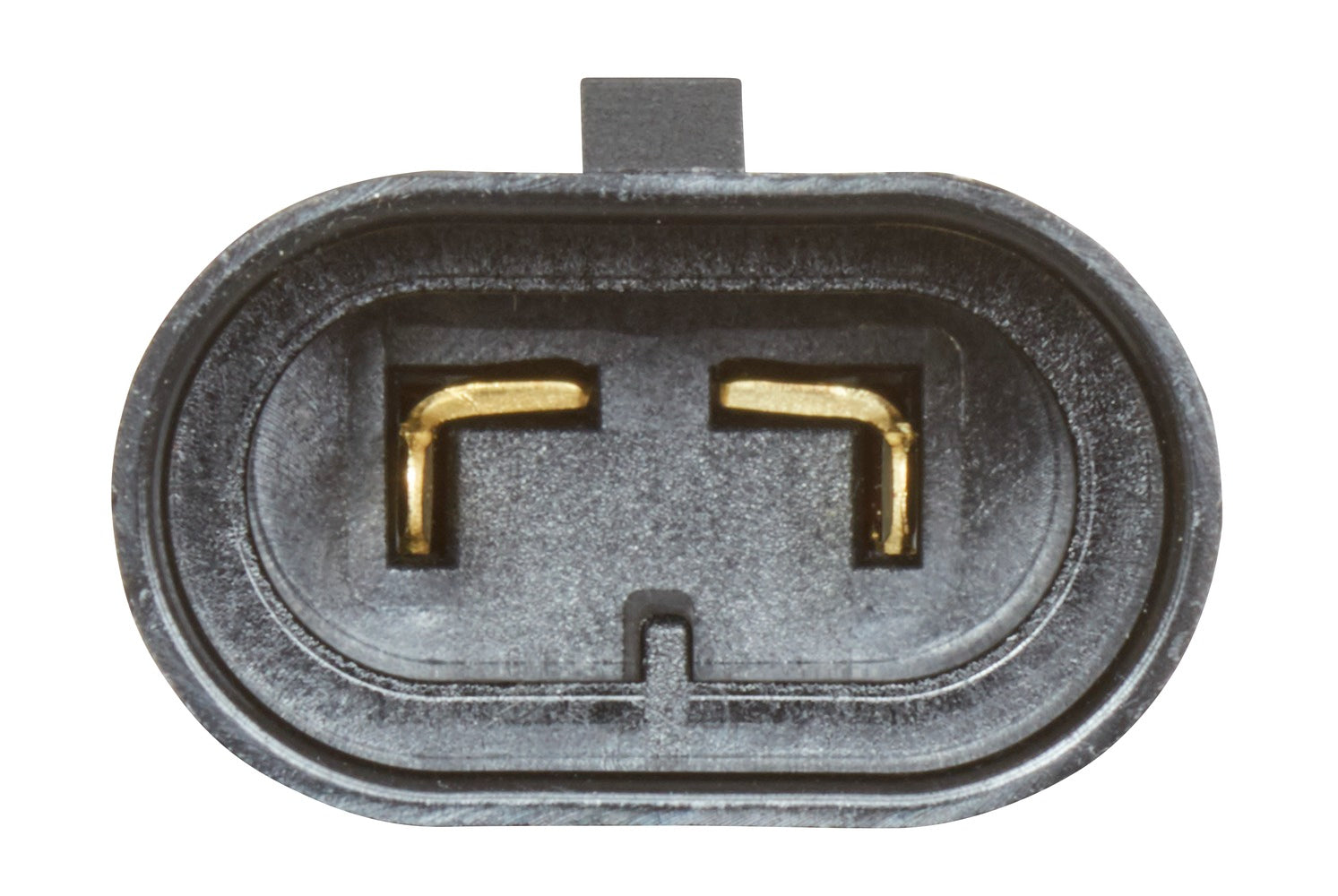

- Water-protected standard plug-in system for incandescent lamps
- Width: 113mm - Height: 113mm - Depth: 160mm - Lamp Type: H1 - with bulb - Electromagnetic Compatibility (EMC)
- Light functions: 1 - with low beam
- Registration Type: ECE - for left-hand traffic
Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Lamp Type: H1
Light Design: DE / Halogen
Voltage: 24 V
Fitting Position: left / right
Width: 113 mm
Height: 113 mm
Depth: 160 mm
Light Function: with low beam
Light functions: 1
Registration Type: ECE
Left-hand/Right-hand Traffic: for left-hand traffic
Shape: round
Illuminated Area: 90 mm
Diffusing Lens Type: Hardened diffusing lens
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info: with bulb
Assembly by qualified personnel required!
OE references: ALEXANDER DENNIS 103760C; ALEXANDER DENNIS 7610002L46; BUCHER 46-437; DAF 1548769; MERCEDES-BENZ 956 820 01 39; MERCEDES-BENZ A 956 820 01 39; PLAXTON 103760C; SCANIA 2053966; SCANIA 2053967; VDL 30123646; VOLVO 22002078
