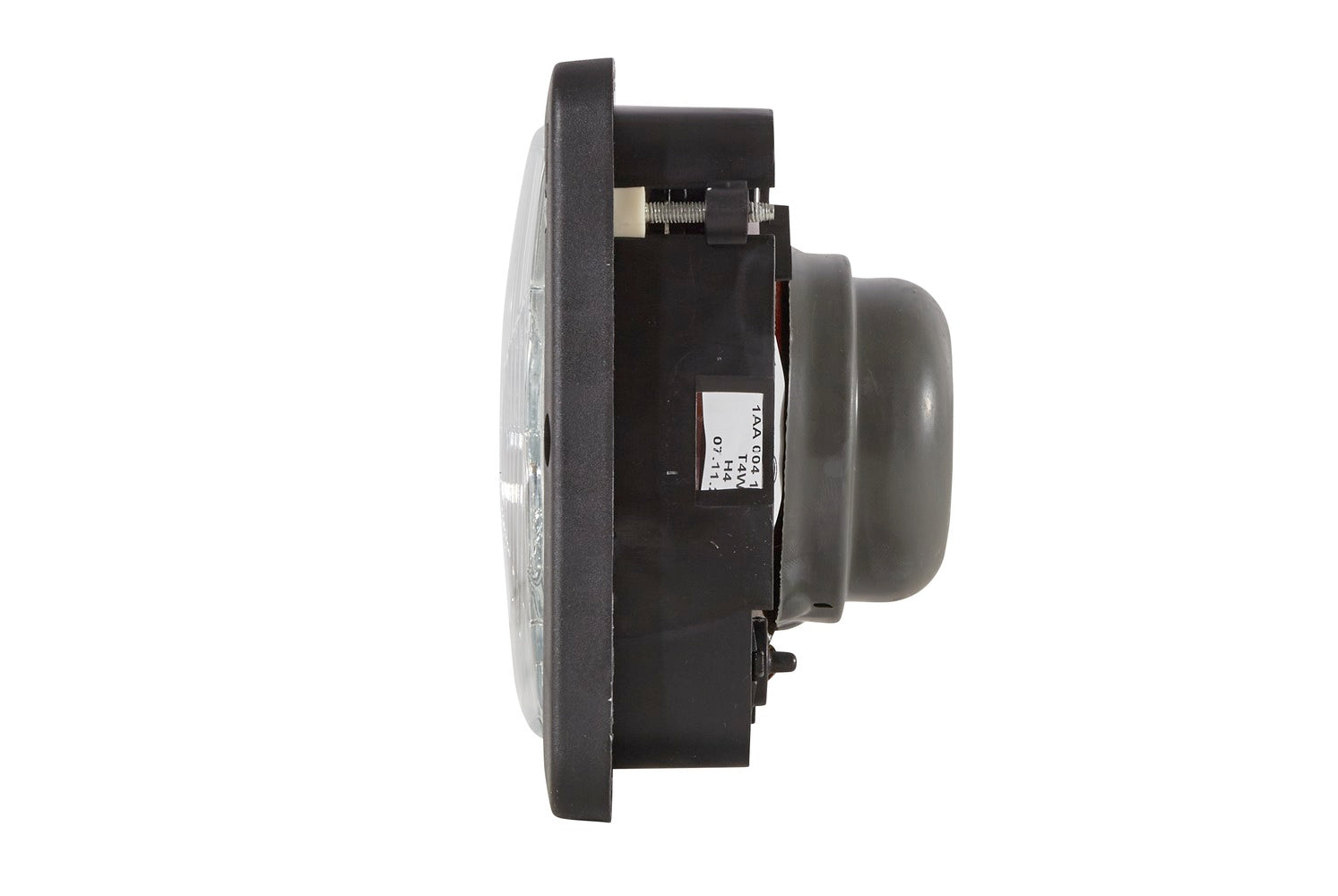

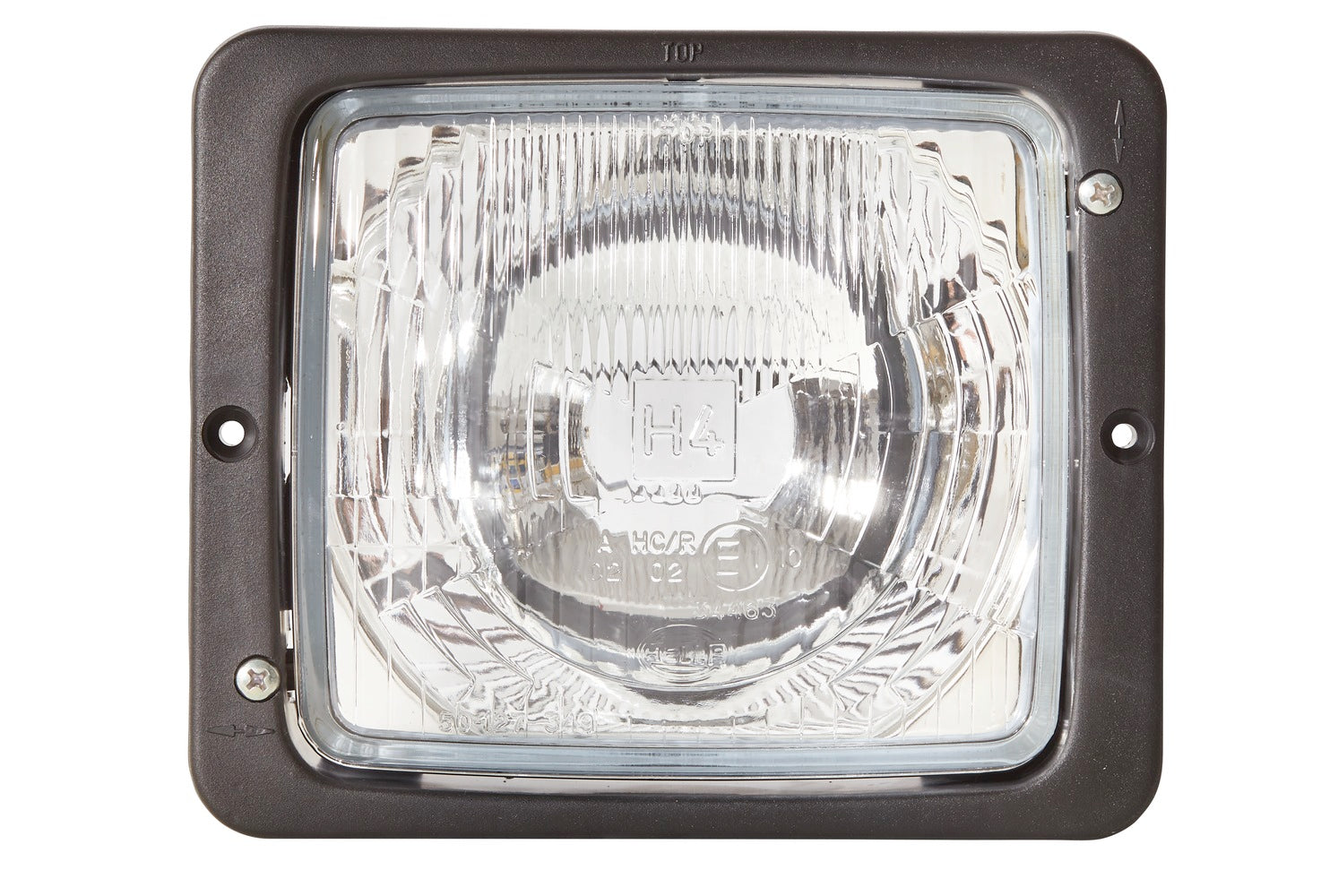

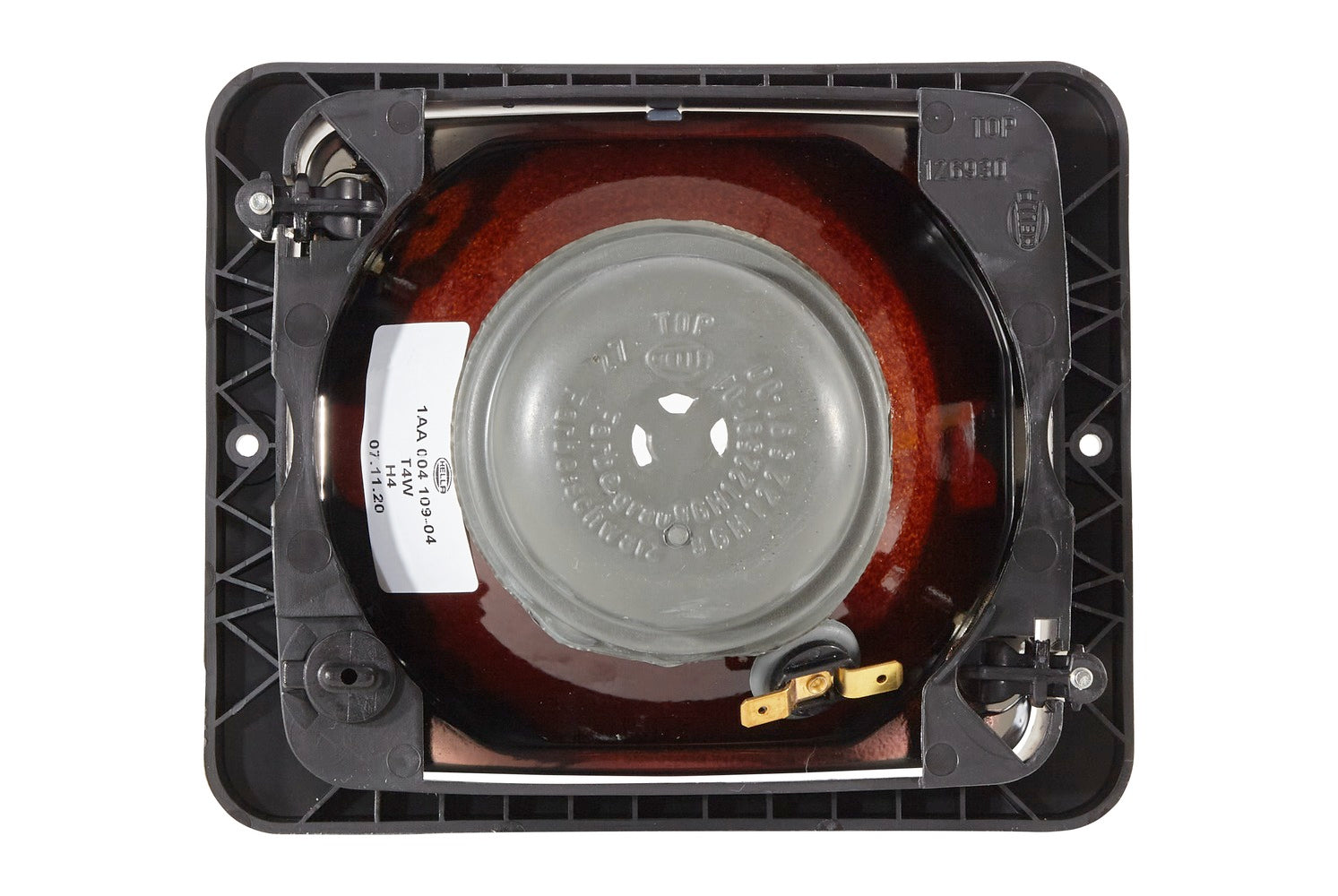

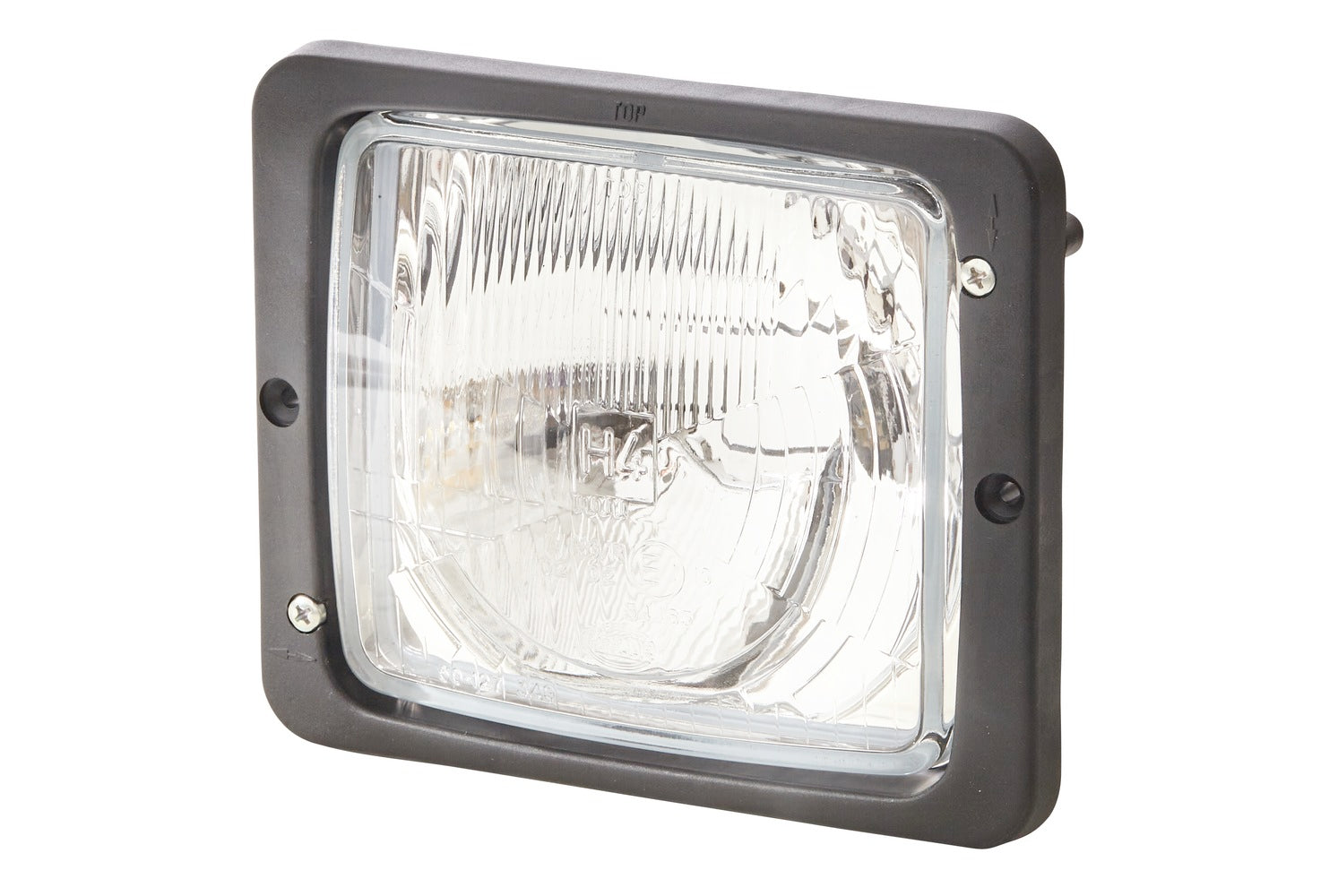

HELLA Halogen-Headlight - 12/24V 1AA004109-041
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen-Headlight - 12/24V - Reference number: 10 - ECE - transparent - Plug: Blade Terminal - right/left
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.
- Halogen main headlamp for installation - for right-hand traffic, with ECE approval
- The headlamp has 3 light functions: Low beam / High beam / Position light
- Lamp type: H4/T4W, without bulbs
- Width: 173mm - Height: 144mm - Depth: 99mm - Lamp Type: T4W/H4 - without bulbs
- Light functions: 3 - with position light/with high beam/with low beam
- Registration Type: ECE - for right-hand traffic - Prot.type (IP Code): IP5K4K
- Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: transparent
Item Attributes:
Mounting Type: Fitting
Lamp Type: T4W / H4
Light Design: Halogen
Voltage: 24 V / 12 V
Fitting Position: right / left
Width: 173 mm
Height: 144 mm
Depth: 99 mm
Outer Diameter: 131 mm
Light Function: with position light / with high beam / with low beam
Light functions: 3
Prot.type (IP Code): IP5K4K
Registration Type: ECE
Plug: Blade Terminal
Reference number: 10
Left-hand/Right-hand Traffic: for right-hand traffic
Housing Colour: black
Illuminated Area: 138 x 124 mm
Diffusing Lens Material: Glass
Lens Colour: transparent
Supplementary Article/Supplementary Info 2: without bulbs
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
OE references: AGCO D45085800; ATLAS COPCO 5350660915; CASE IH 1709575; CASE IH 1709675; CASE IH 3404170R94; CASE IH 71403698; CATERPILLAR 170-9675; CATERPILLAR 417-7577; FENDT D 450 858 00; GOLDHOFER 602448; HITACHI 503.771; KAMAG 331466; KAMAG 80331466; KÄSSBOHRER 7.512.029.000; KÄSSBOHRER 7.512.029.000.0; KÖGEL 331466; KÖGEL 80331466; KOMATSU 4918 463 M91; KOMATSU 4918463M; LANDINI 34041170P94; LIEBHERR 6 001 191; LIEBHERR 6 071 428 08; LINDE 001 970 04 00; MACK 4381 95130; MAFI 000,580,0023; MAN 82.25101-6029; MASSEY FERGUSON 56021; MASSEY FERGUSON U.56021; O&K 1709575; O&K 1709675; SENNEBOGEN 027347; TEREX 335350660915; TEREX 5350660915 .; VOLVO 14529032; YANMAR 5350660915
