HELLA Halogen-Headlight - 24V 1SA996120-051
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

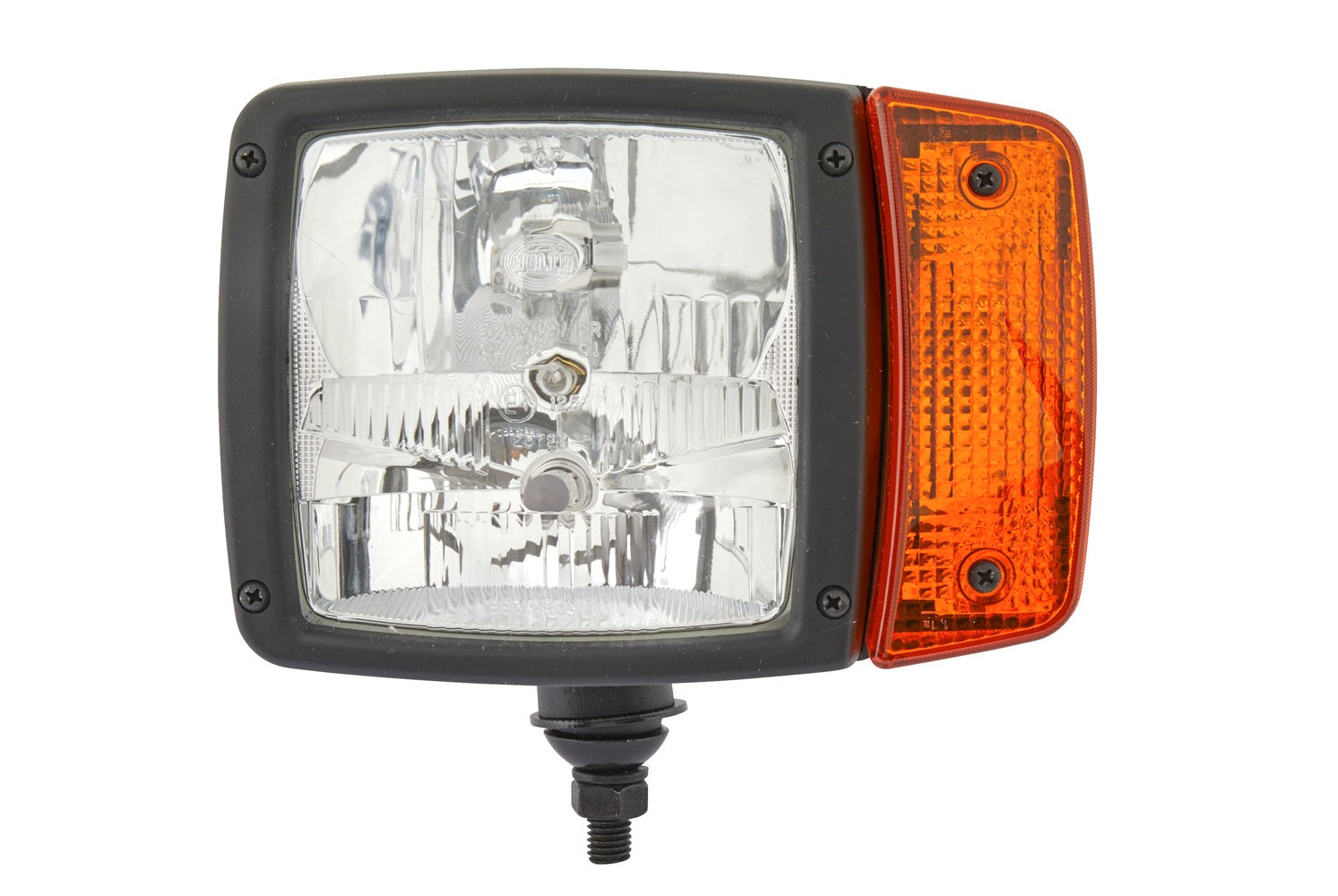

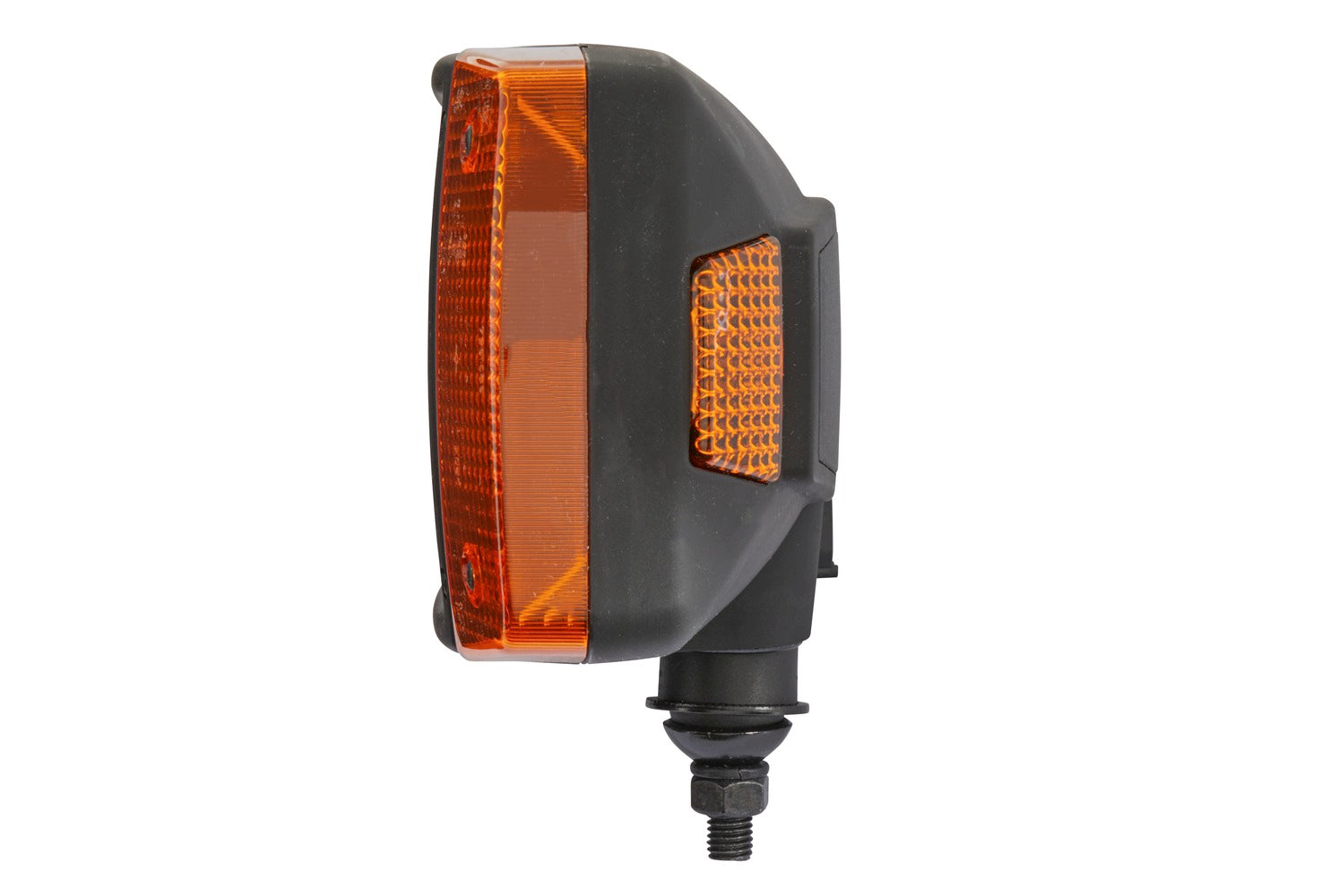

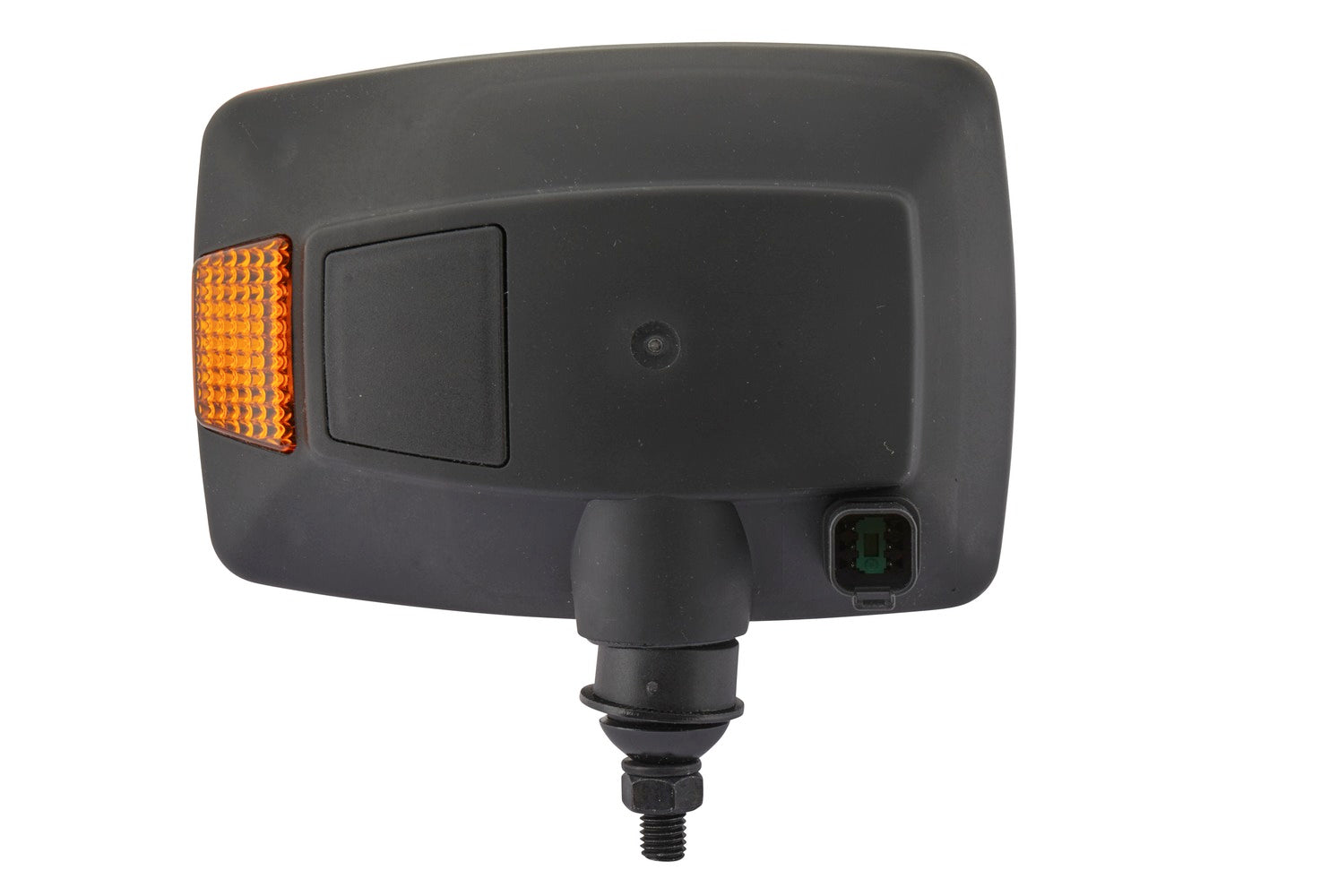

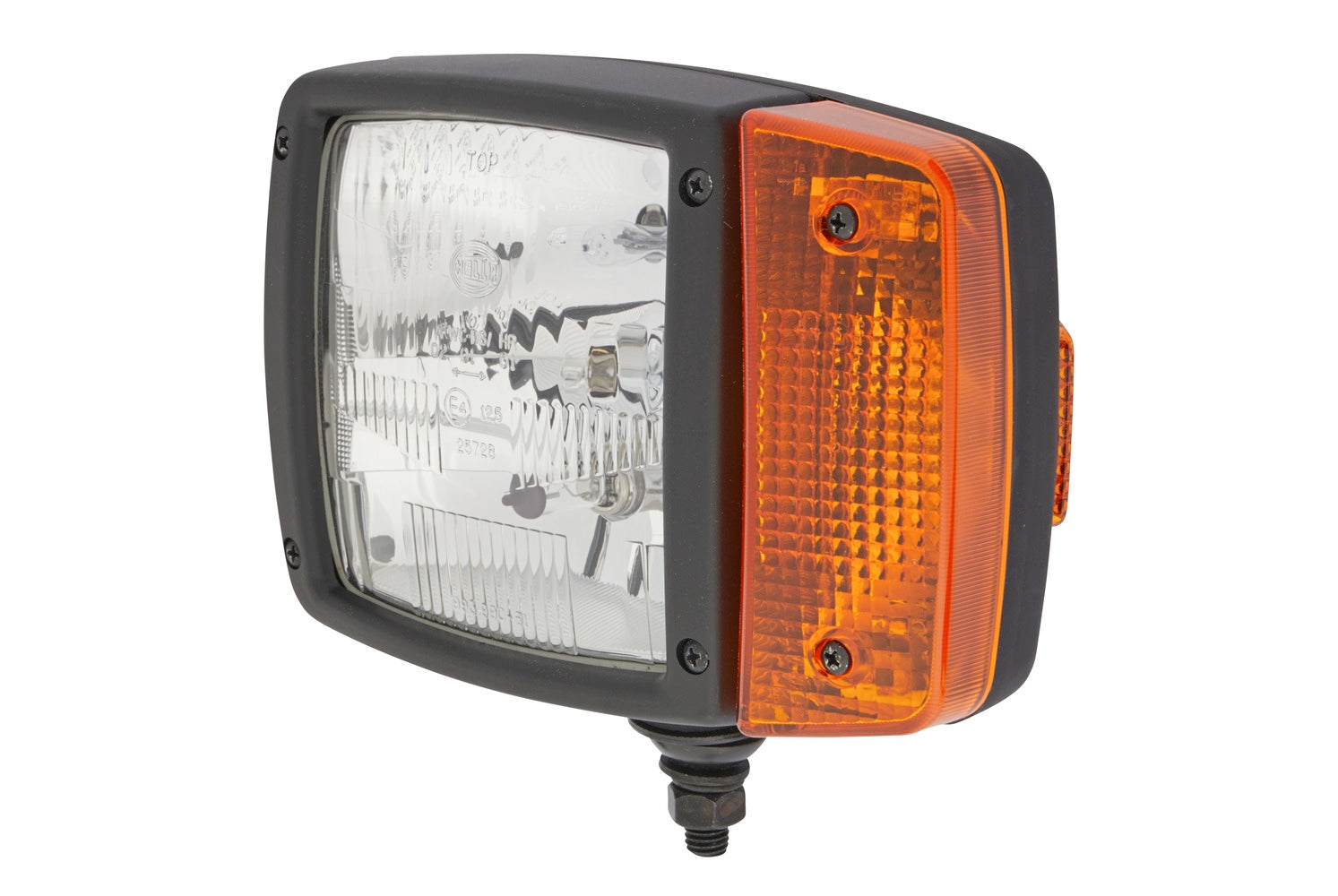

Halogen-Headlight - 24V - yellow (amber) - Plug: DEUTSCH plug - left
- The M120 combination headlamp is optimised for additional use on agricultural and construction machinery thanks to its homogeneous, wide and long-range illumination of the field of vision without inherent glare.
- The reflector is made of plastic with a glued glass diffuser.
- The housing and the glass holder frame are also made of plastic with a protruding edge to protect the diffusing lens.
- A major advantage of the M120 is its symmetrical light distribution. Thanks to this, no additional version of the headlamp for left-hand traffic is required.
- The spotlight is protected against water during high-pressure/steam jet cleaning according to IP protection class IP X9K.
- Width: 150mm - Height: 212mm - Depth: 101mm - Lamp Type: H3/H7/P21W/T4W - with bulbs
- Light functions: 4 - with low beam/with indicator/with high beam/with position light
Item Attributes:
Mounting Type: mounting
Fastening Type: Vertical
Fitting Position: left
Lamp Type: H7 / H3 / T4W / P21W
Light Function: with high beam / with low beam / with position light / with indicator
Light Design: Halogen
Voltage: 24 V
Width: 150 mm
Height: 212 mm
Depth: 101 mm

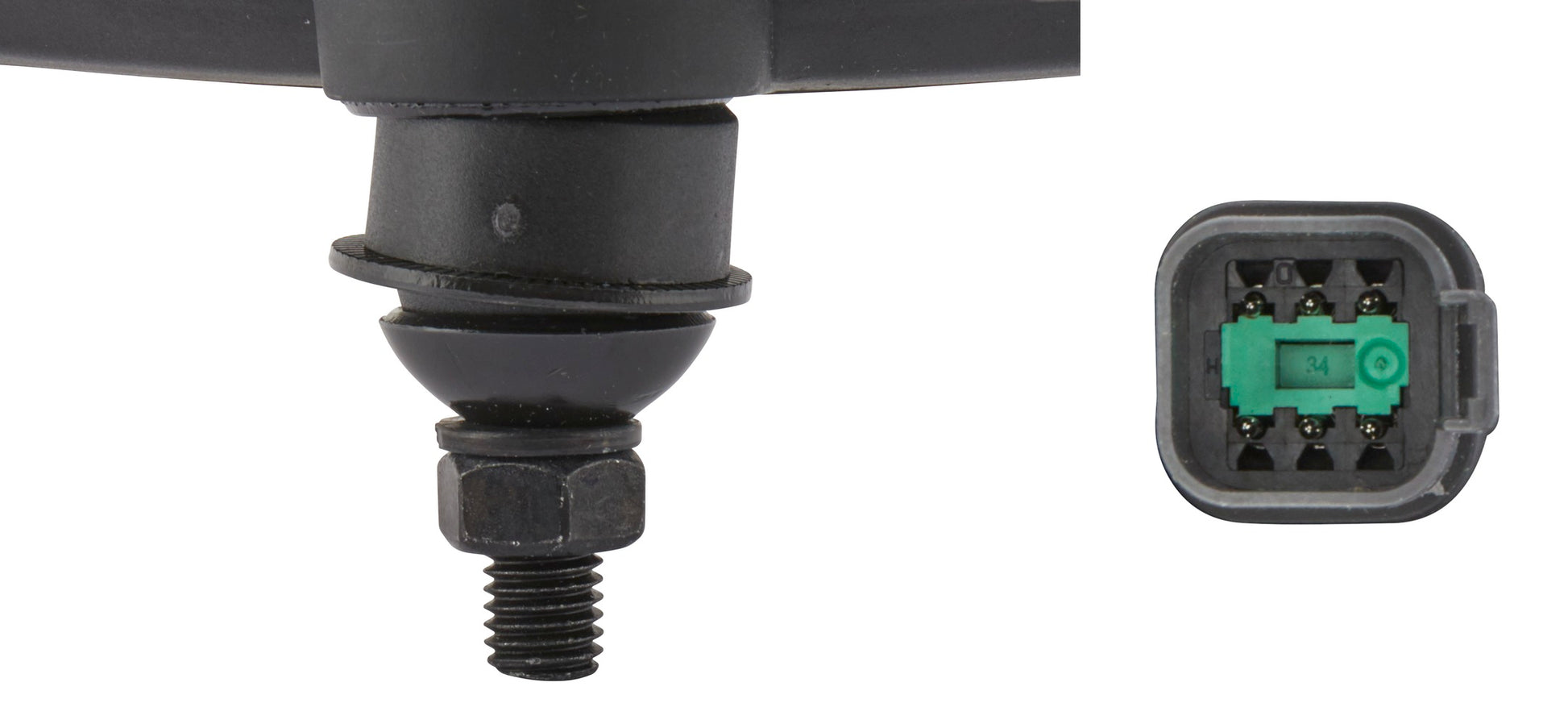

Plug: DEUTSCH plug
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP5K4K / IPX9K
fulfils ECE standard: R113
Light functions: 4
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!
OE references: DAF 2171786; GRIMME B94.08335; JOHN DEERE AX E7 2078; JOHN DEERE AZ54038; KÄSSBOHRER 7.512.320.000.0; KOMATSU 42W-06-33160; MANITOU 224581; MANITOU 961312; ROSENBAUER 865361; TEREX 5350246888; VERSATILE 86055924; VERSATILE 86056864 - 86055924; VERSATILE 86080059; VOLVO 11881088; VOLVO 13351887; VOLVO 15244710; VOLVO RM13351887; YANMAR 5350246888
