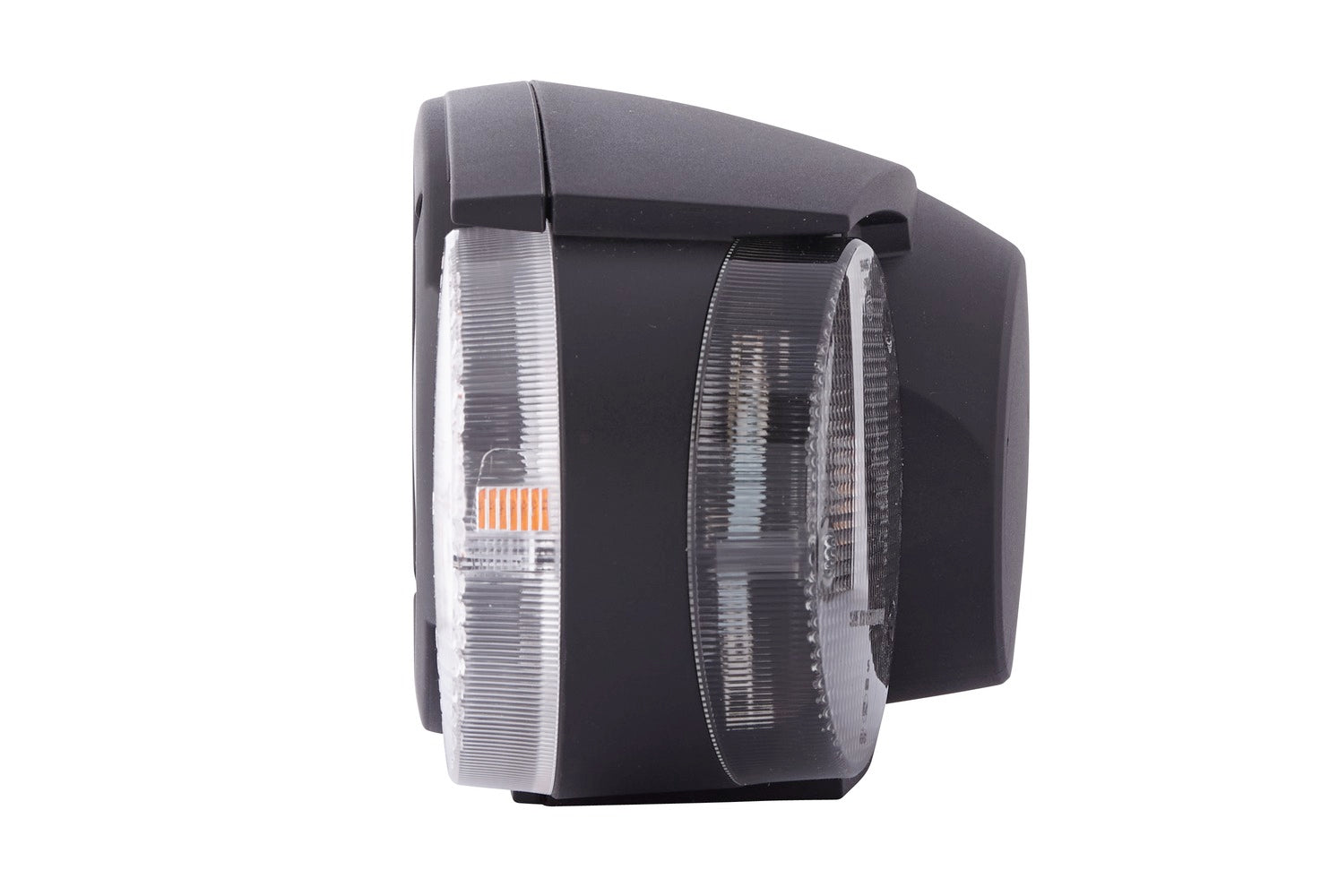

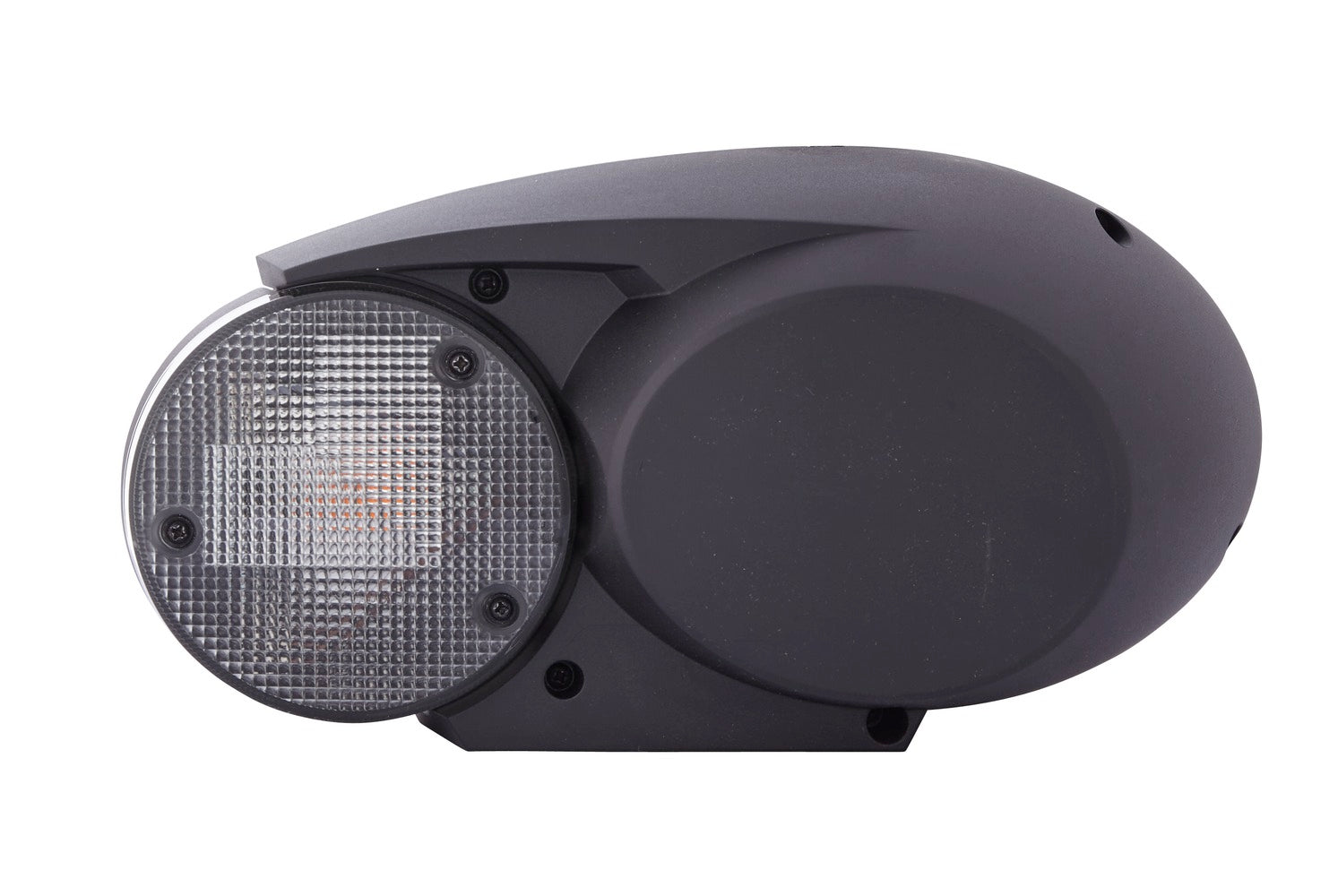

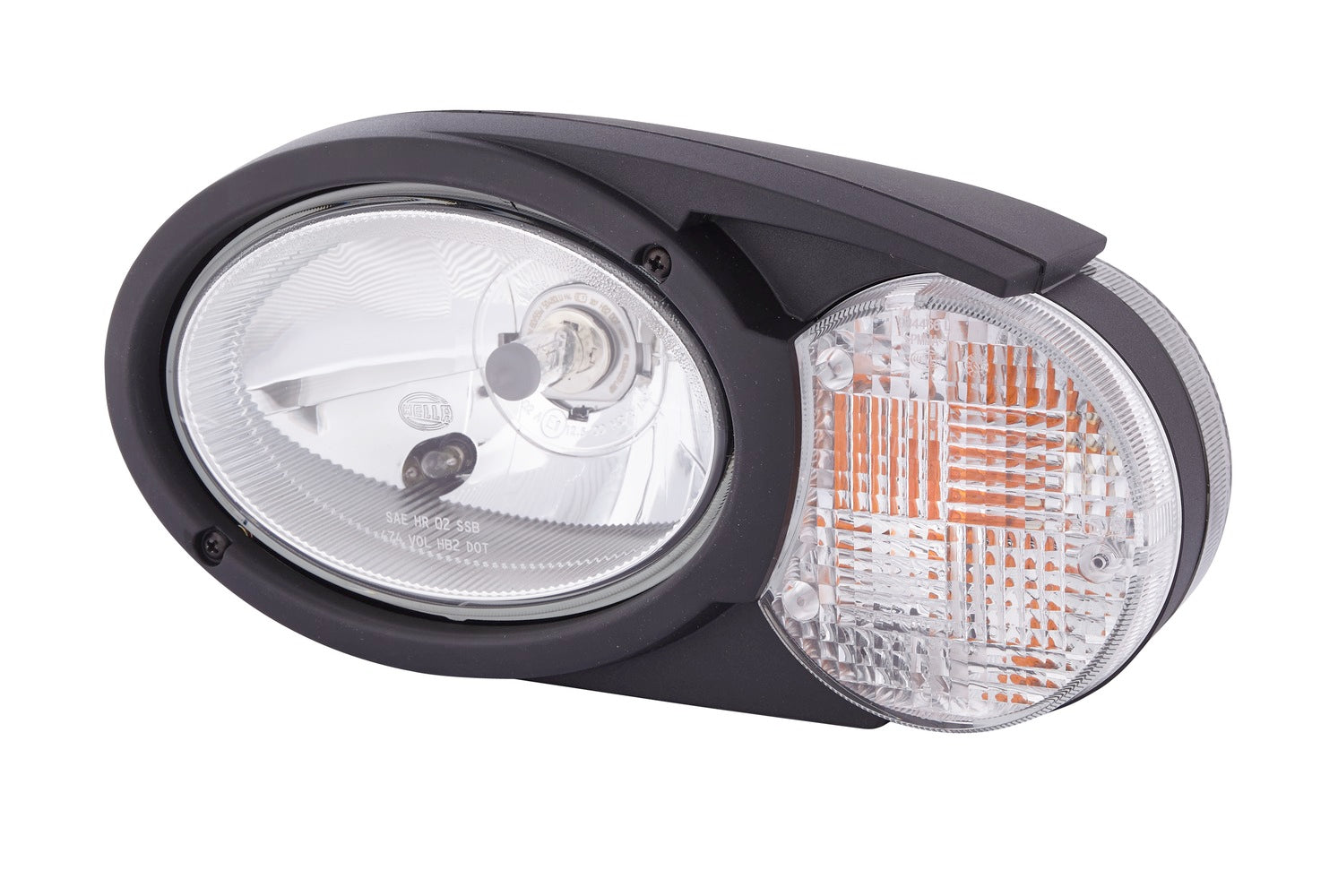

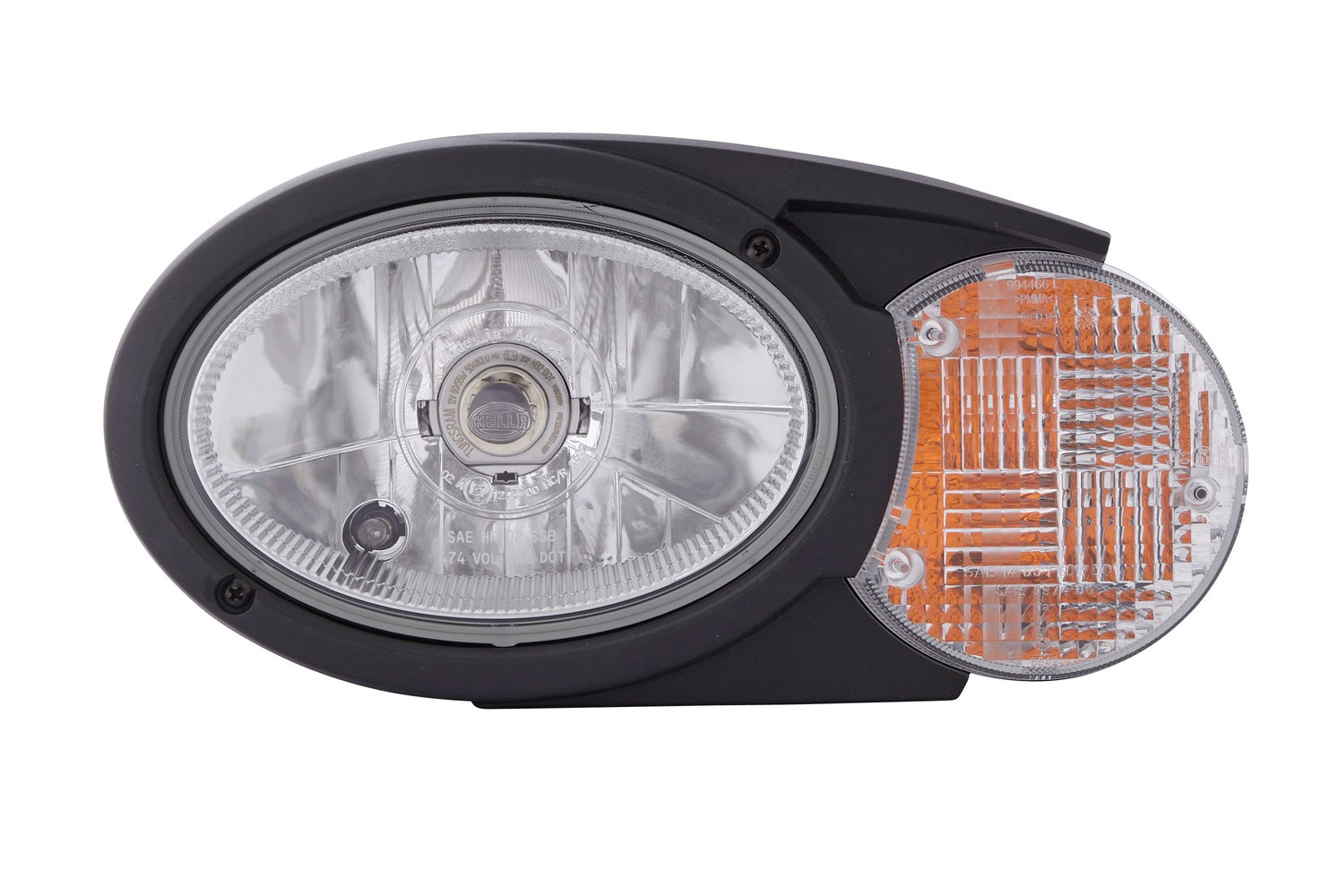

HELLA Halogen-Headlight - Combi 120 - 12/24V 1EB996167-031
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen-Headlight - Combi 120 - 12/24V - Reference number: 12.5 - ECE - Clear diffusing lens - transparent - Plug: DEUTSCH plug - 6-pin connector - left
Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlamps - neither on the road nor on the field. They are, so to speak, a vehicle's eyes and therefore an essential safety feature when driving and working at night.
- Main headlamp for surface-mounting
- Position light and indicator light with crystal clear lens to the front and grey lens to the rear
- Width: 305mm - Height: 153mm - Depth: 146mm - Lamp Type: H4/P21W/T4W/PY21W - with bulbs
- Light functions: 4 - with low beam/with indicator/with high beam/with position light
- Registration Type: ECE - for right-hand traffic
- Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: transparent
- Mounting Type: Fitting/mounting
Item Attributes:
Mounting Type: Fitting / mounting
Fitting Position: left
Lamp Type: H4 / PY21W / P21W / T4W
Light Function: with position light / with indicator / with low beam / with high beam
Light Design: Halogen
Voltage: 24 V / 12 V
Width: 305 mm
Height: 153 mm
Depth: 146 mm
Diffusing Lens Material: Glass

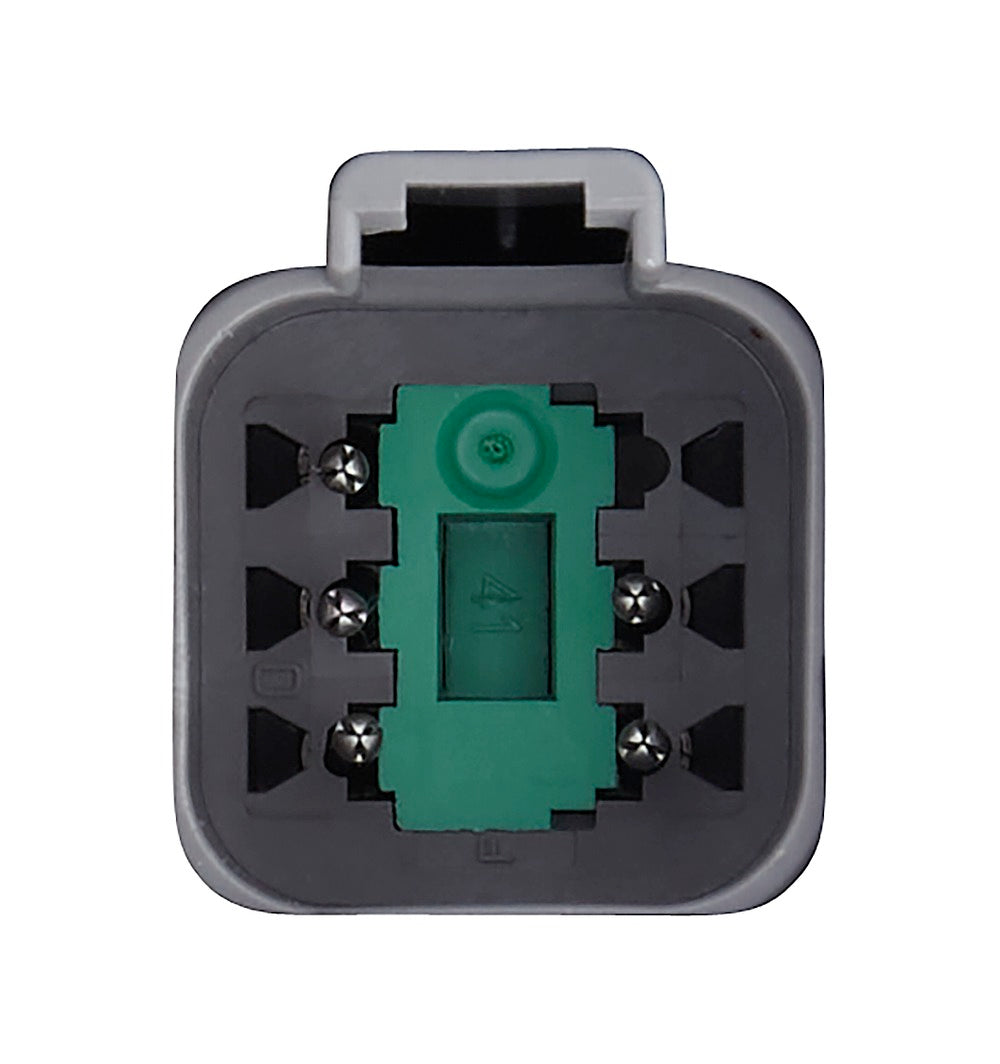

Plug: DEUTSCH plug
Number of pins: 6 -pin connector
Housing Colour: black
Diffusing Lens Type: Clear diffusing lens
Lens Colour: transparent
Illuminated Area: 161 x 100 mm
Light functions: 4
Reference number: 12.5
Registration Type: ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!
OE references: AEBI 1049326-3; AGCO G930 900 020 080; AGRIFAC 7788651; BOMAG 057 512 26; FENDT G930.900.020.080
