HELLA Halogen-Headlight - Combi 220 - 12V 1EE996174-211

Halogen-Headlight - Combi 220 - 12V - ECE - Hardened diffusing lens - transparent - Plug: DEUTSCH plug - 6-pin connector - left

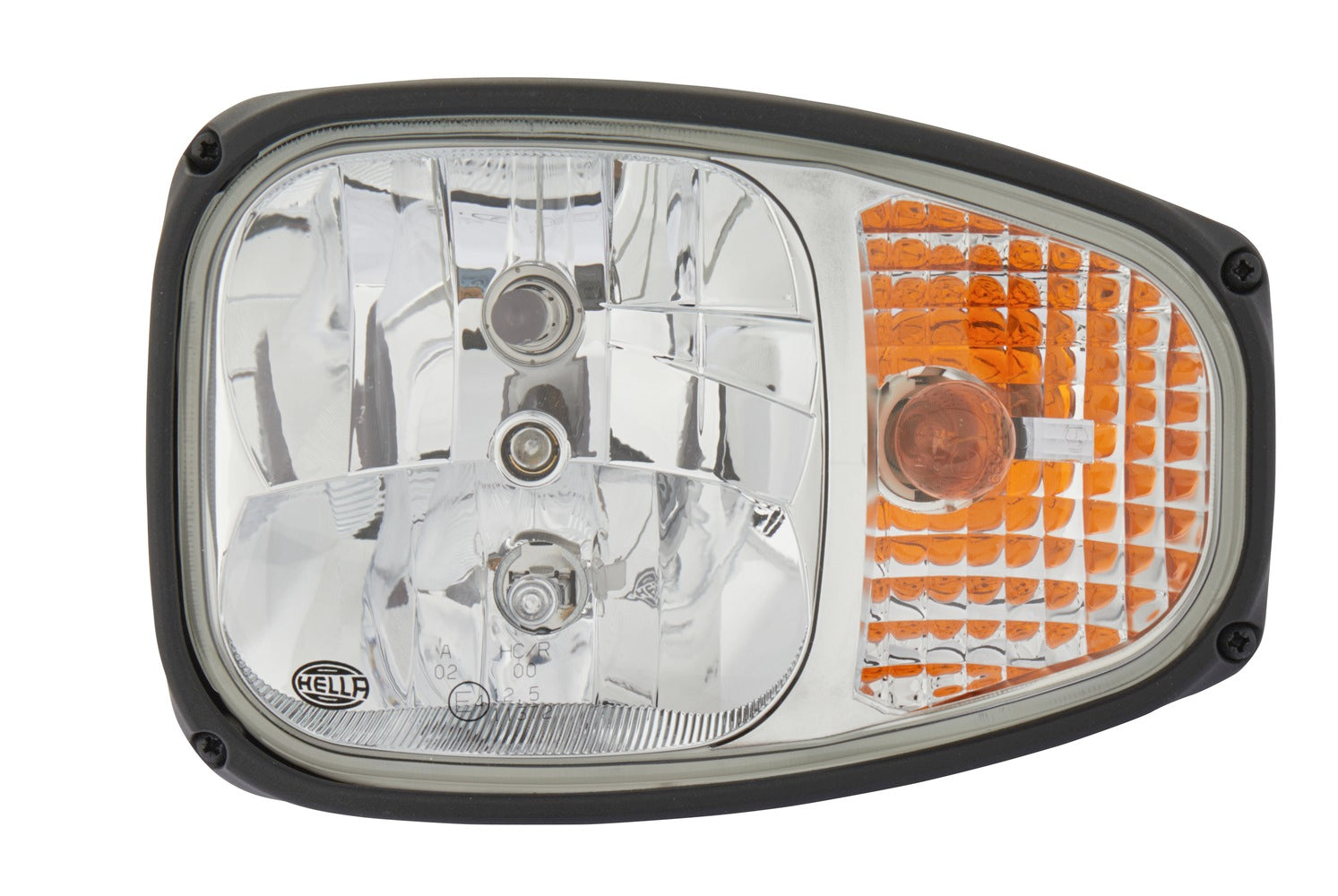

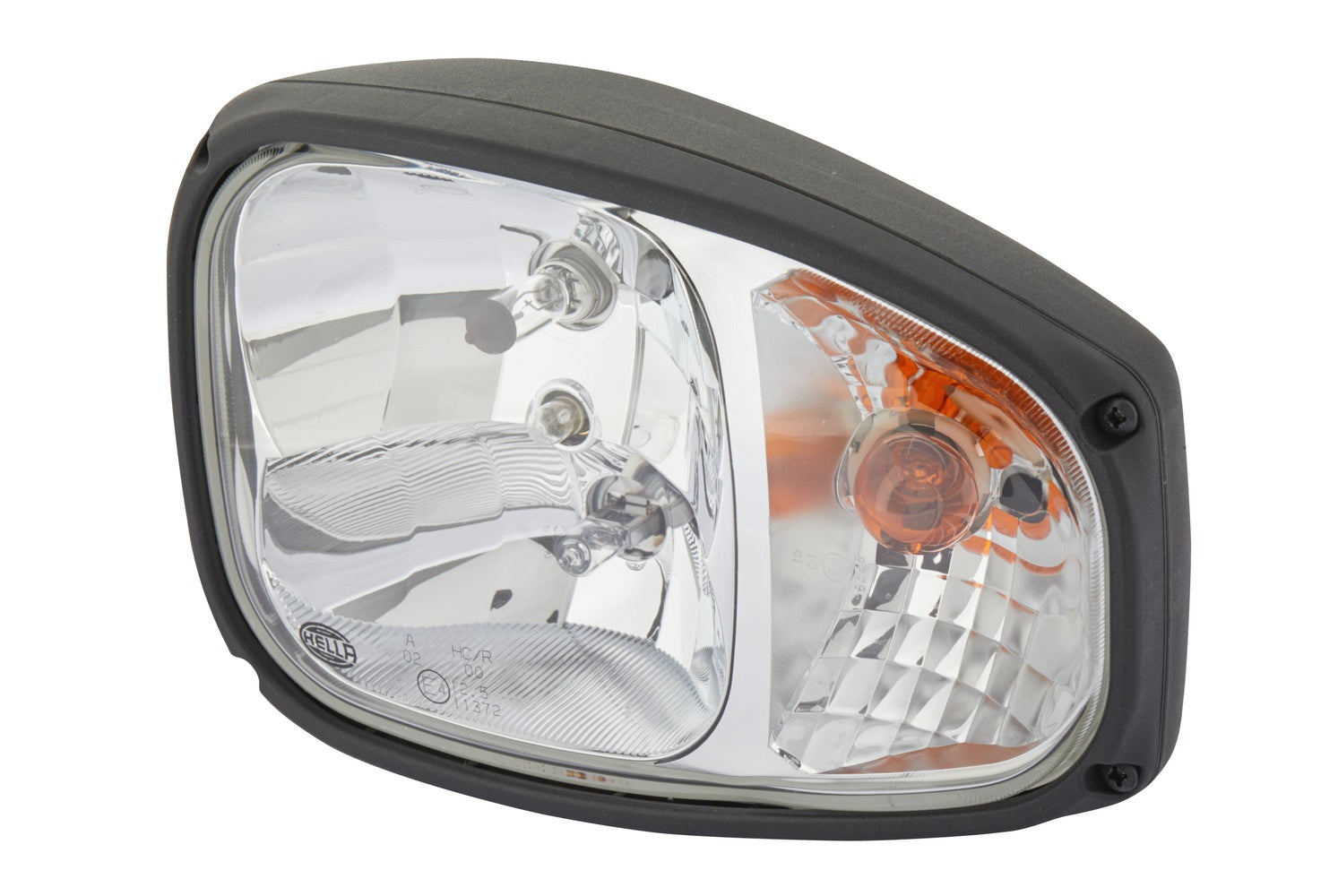

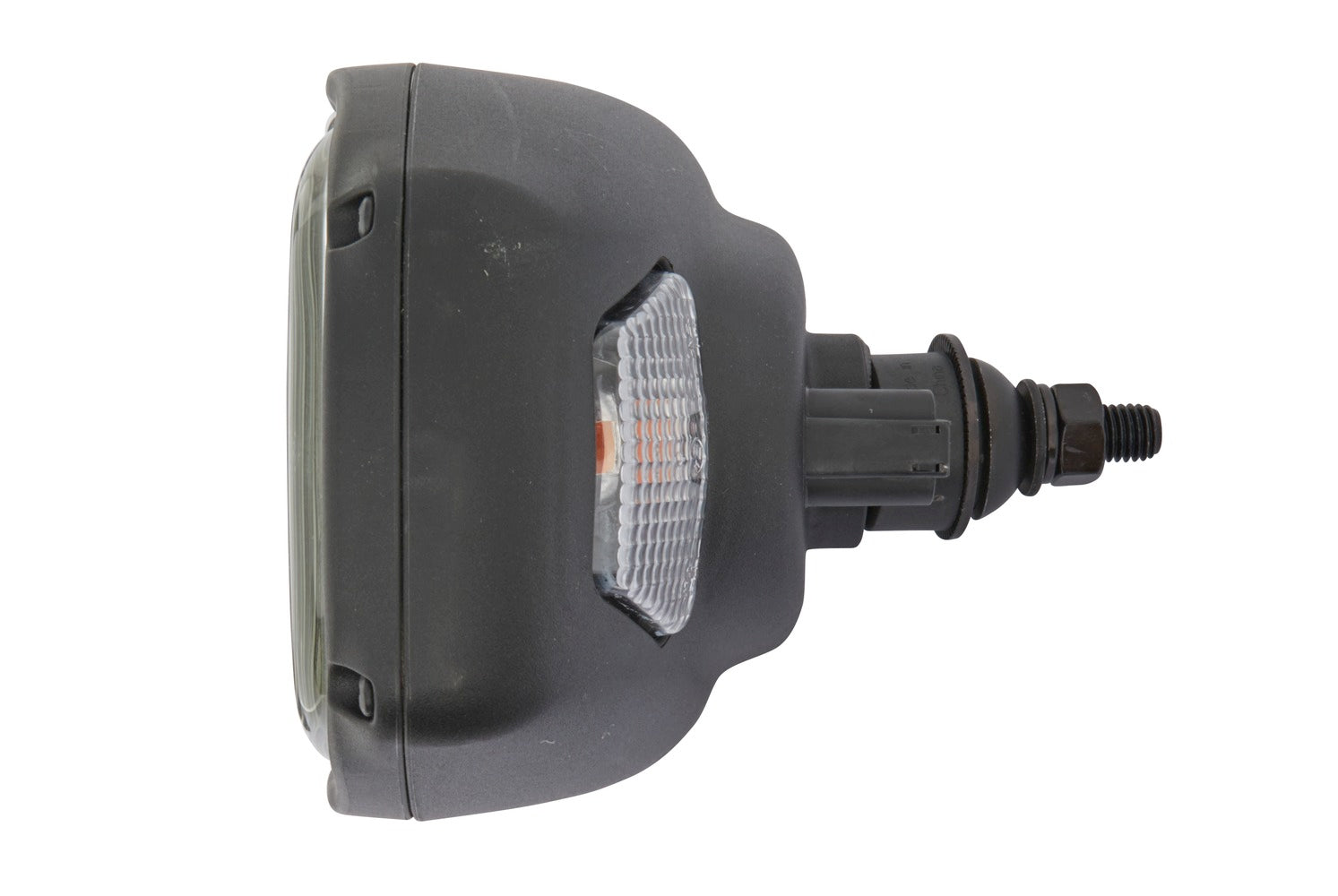

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

• HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
• It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
• Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
• The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
• Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
• Width: 225mm - Height: 150mm - Depth: 127mm - Lamp Type: H7/H3/PY21W/T4W - with bulbs
• Light functions: 4 - with indicator/with high beam/with low beam/with position light

Item Attributes:
Mounting Type: Fitting / mounting
Fastening Type: Horizontal fastening
Lamp Type: H7/H3 / T4W / PY21W
Light Design: Halogen
Voltage: 12 V
Fitting Position: left
Width: 225 mm
Height: 150 mm
Depth: 127 mm
Light Function: with position light / with high beam / with low beam / with indicator
Light functions: 4
Prot.type (IP Code): IPX9K / IP6K4K
Registration Type: ECE
Plug: DEUTSCH plug
Left-hand/Right-hand Traffic: for right-hand traffic
Housing Colour: black
Illuminated Area: 205 x 120 mm
Additionally required parts: 8JA 201 022-831
Diffusing Lens Material: Glass
Lens Colour: transparent
Diffusing Lens Type: Hardened diffusing lens
Number of pins: 6 -pin connector
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!

OE references: AEBI R03F401002; KOMATSU 42N-06-35230; MERLO 103133; YANMAR 5350247536
