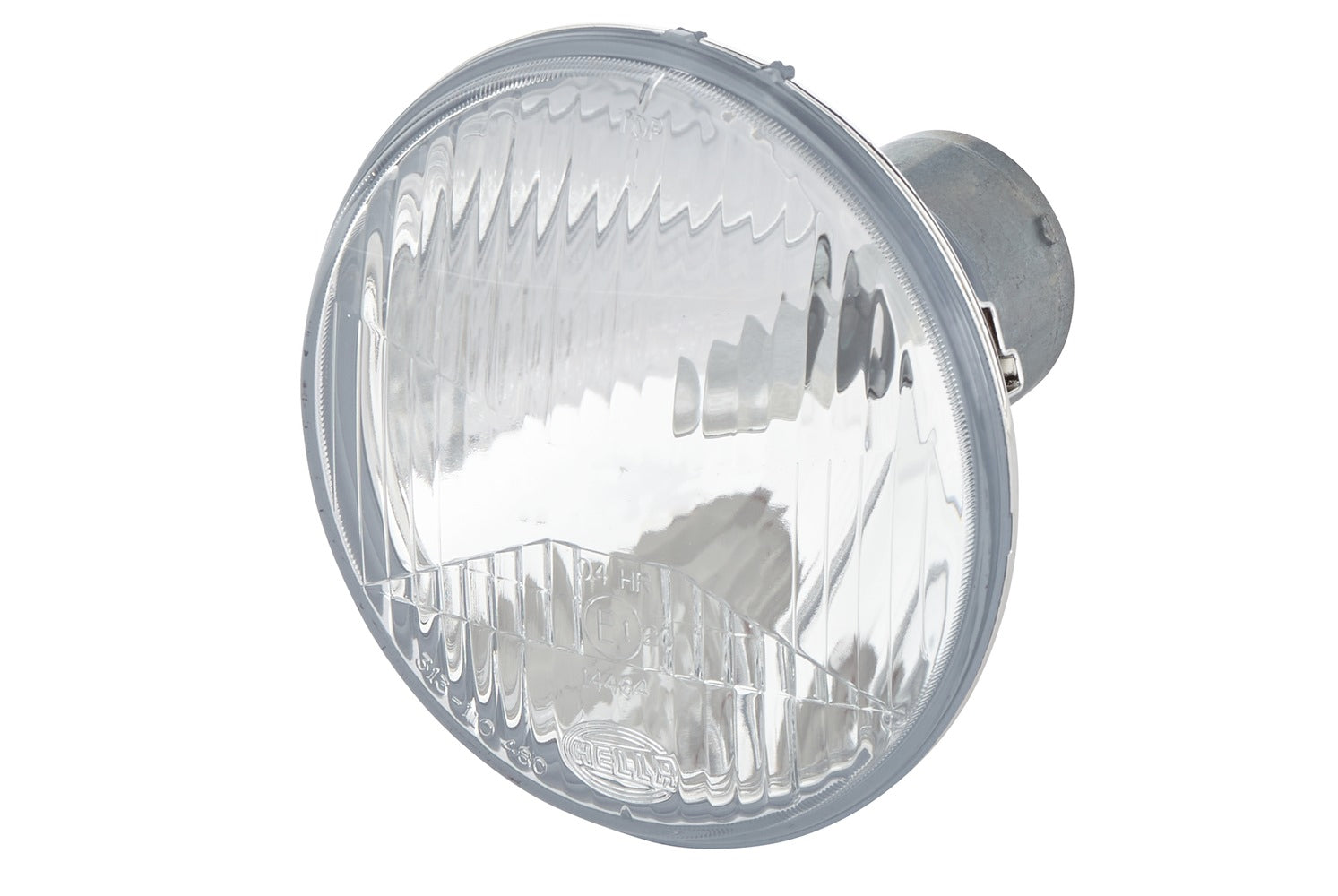

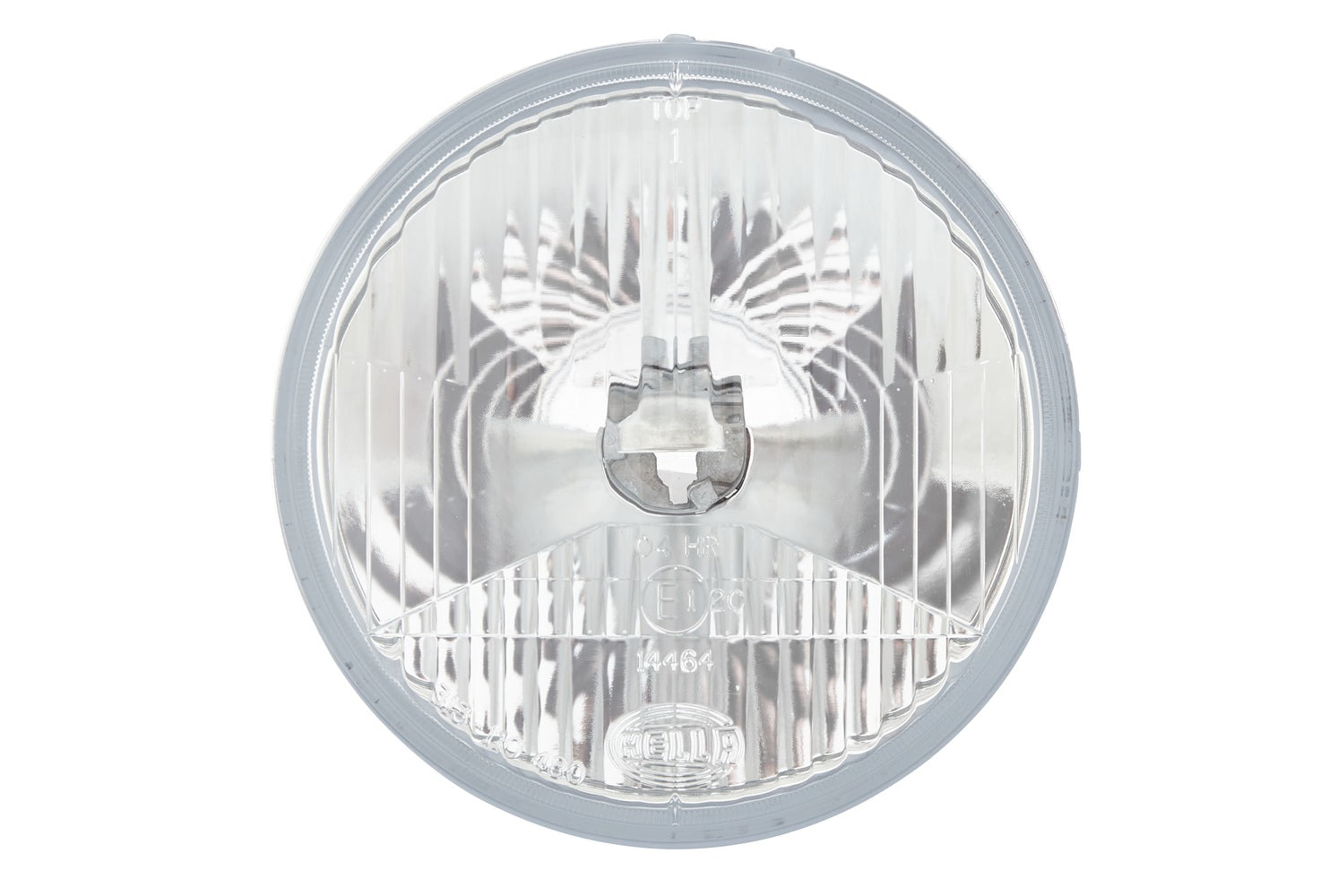

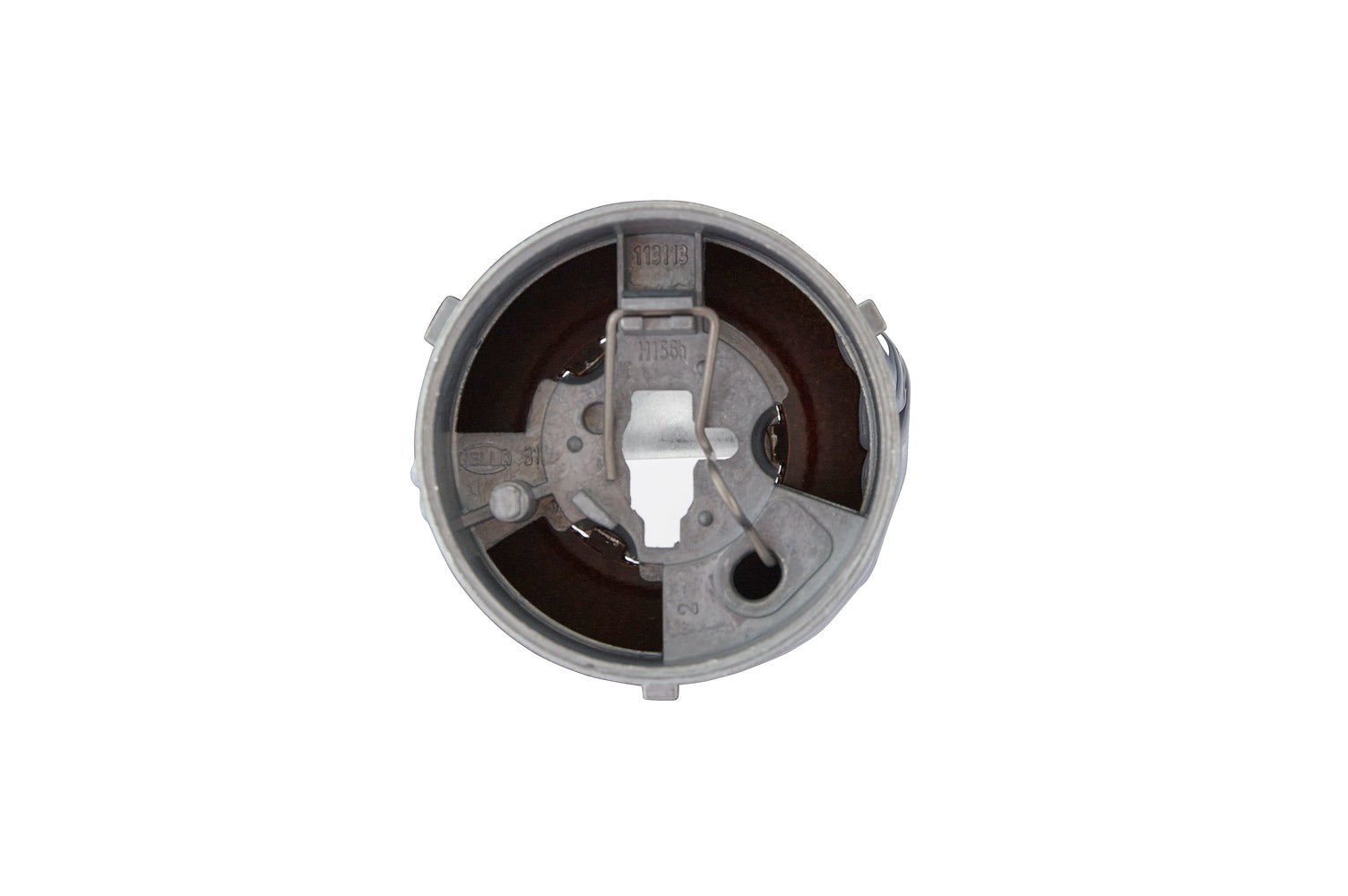

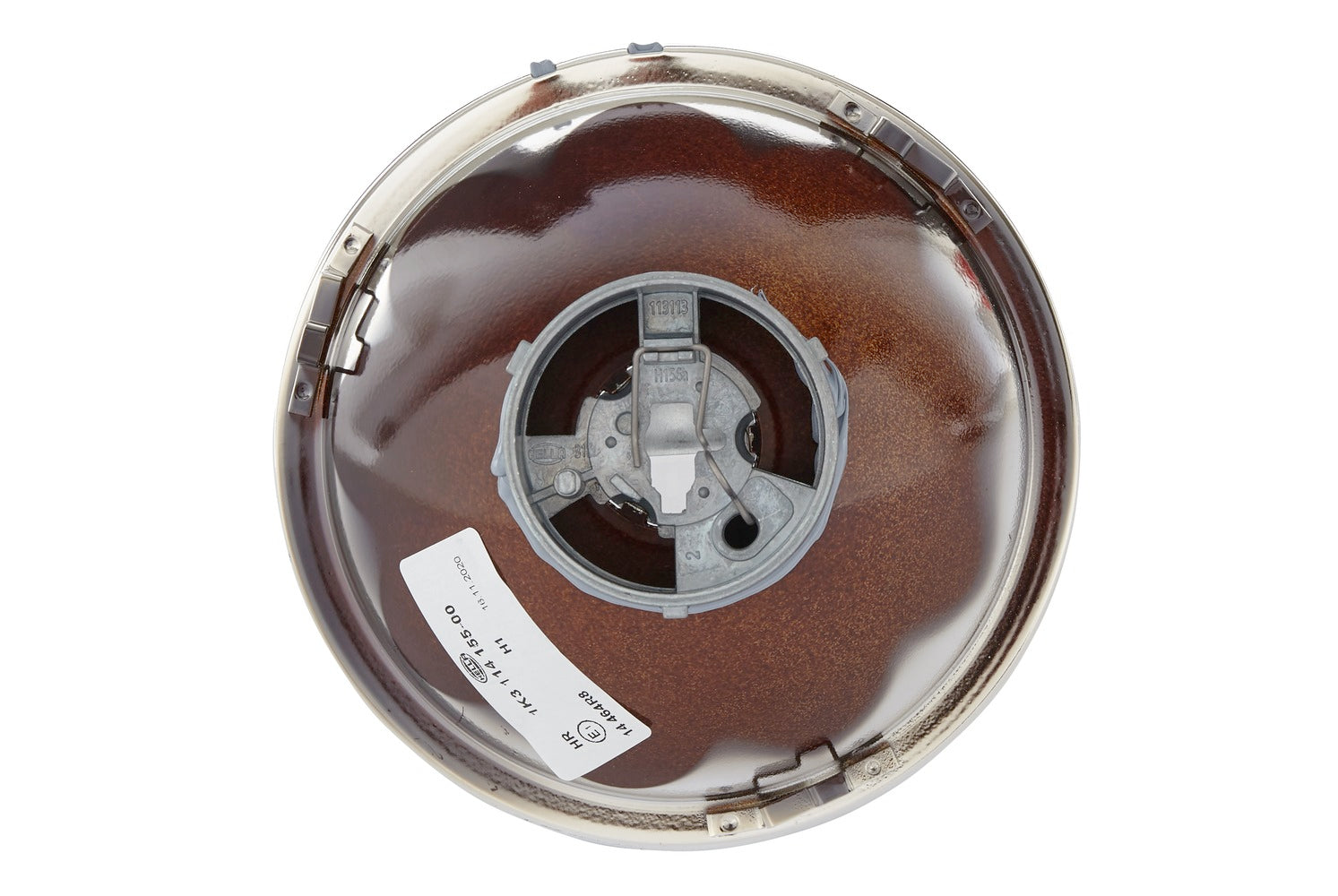

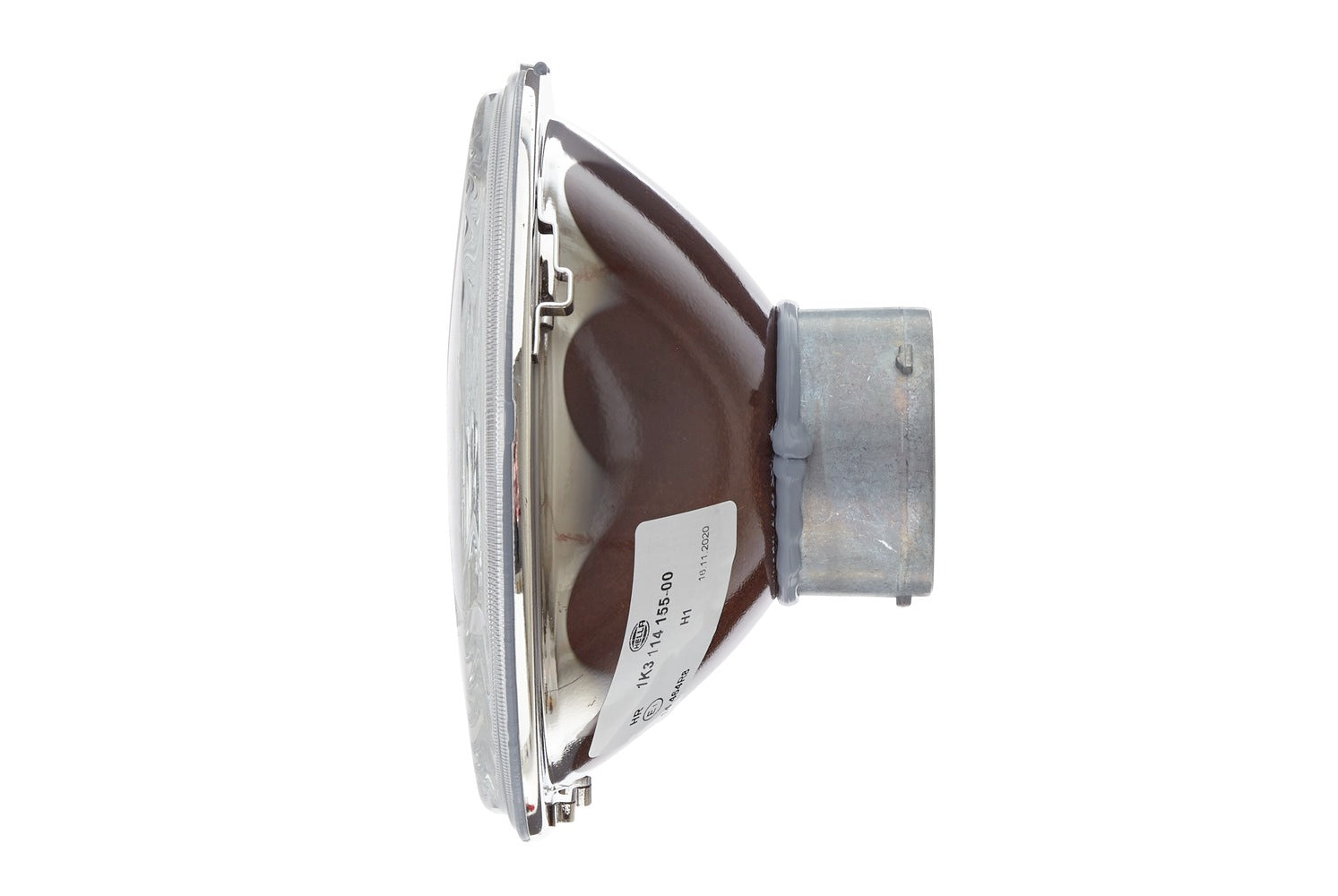

HELLA Halogen-Insert, headlight - 24/12V 1K3114155-001
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen-Insert, headlight - 24/12V - round - Crystal clear - left/right - Quantity: 1
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night.
- H1 headlamp insert, main headlamp for installation (left / right) - for left-hand traffic / right-hand traffic, with ECE approval
- The headlamp insert has 1 light function: High beam
- Lamp type: H1, without bulb
- Ø: 145mm - Height: 89mm - Depth: 88mm - Lamp Type: H1 - without bulb - with reflector
- Light functions: 1 - with high beam
- fulfils ECE standard: R8 - for right-hand traffic/for left-hand traffic
- Housing Colour: Chrome/Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear
Item Attributes:
Mounting Type: Fitting
Fastening Type: Clamp Mounting
Light Design: Halogen
Lamp Type: H1
Voltage: 24 V / 12 V
Fitting Position: left / right
Height: 89 mm
Depth: 88 mm
Ø: 145 mm
Light Function: with high beam
Light functions: 1
fulfils ECE standard: R8
Left-hand/Right-hand Traffic: for left-hand traffic / for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: chrome/black
Illuminated Area: 135 mm
Shape: round
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: with reflector
Supplementary Article/Supplementary Info: without bulb
Quantity: 1
Assembly by qualified personnel required!
OE references: ALEXANDER DENNIS 609005-W; AUDI 823 941 653; BMW 1 356 409; BMW 1 356 409 00; BMW 63 12 1 356 409; IRIZAR 591023MA; IRMSCHER 71401066; LEYLAND DAF YBC988; MACK 4381 79563; PLAXTON 609005-W; PORSCHE 962.631.041.40; VOLVO YBC988; VW 823 941 653
