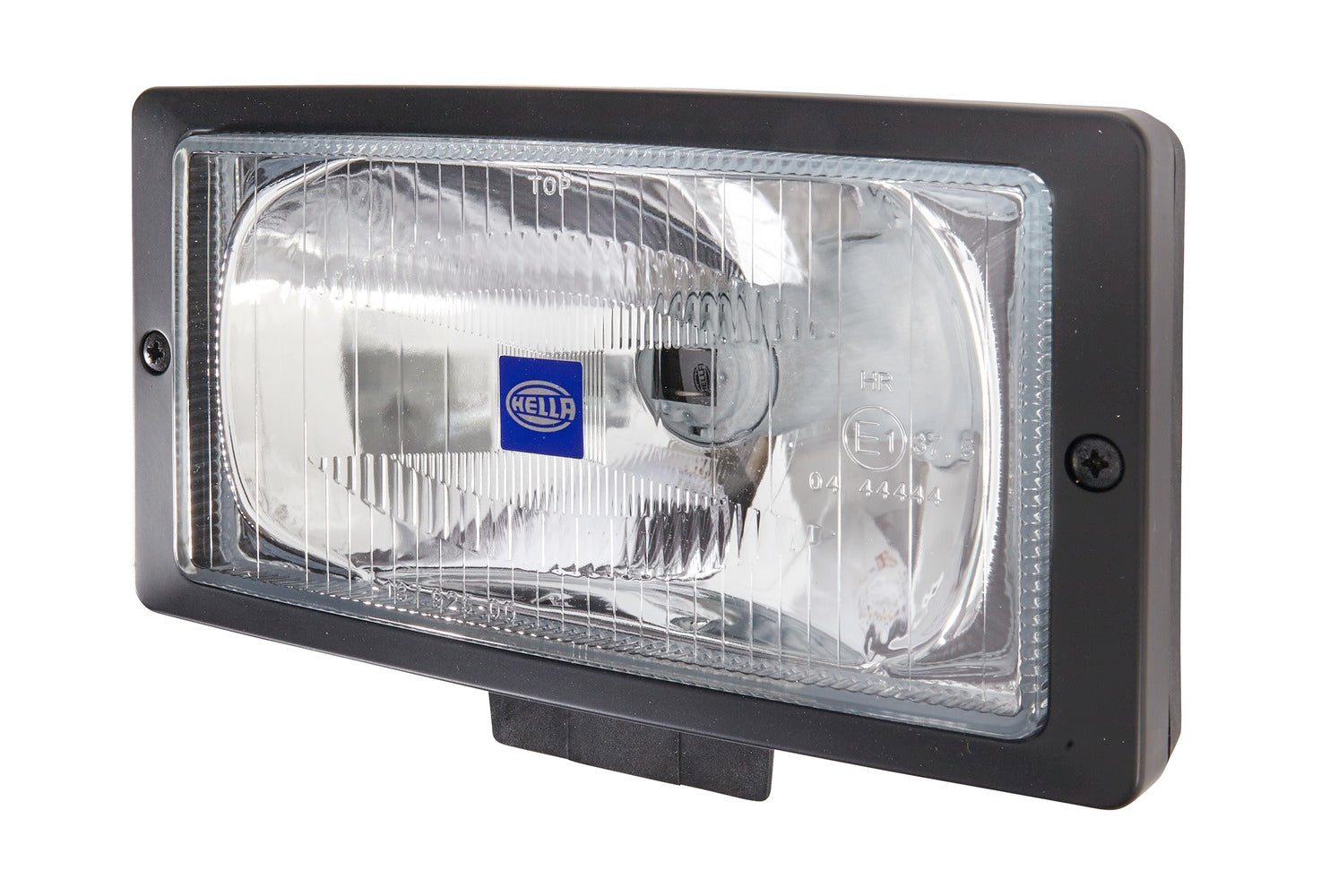

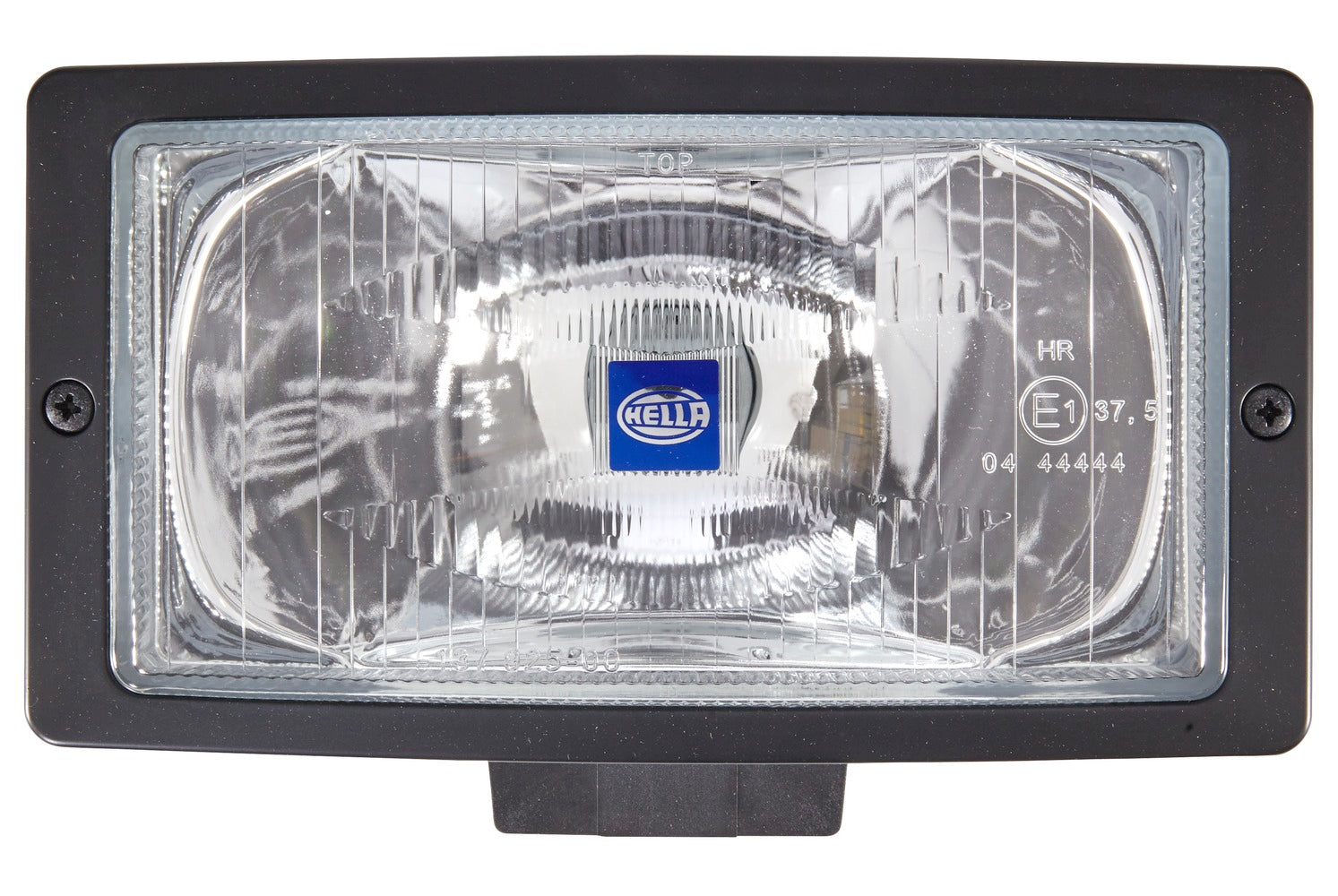

HELLA Halogen-Spotlight - Jumbo 220 - 12/24V 1FE006300-121
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen-Spotlight - Jumbo 220 - 12/24V - rectangular - Reference number: 37.5 - Patterned diffusing lens - Crystal clear - left/right
The HELLA auxiliary high beam headlamps offer that something extra: more light, so you can stay on top of the road in every driving situation. In turn, this increases the safety of every road user. HELLA's indisputable quality and use of state-of-the-art technology are a given. Tried-and-tested standard solutions or innovative LED technology: whatever it may be, the HELLA headlamp series is specially tailored to the demands of trucks and continuously developed to offer the optimum solution for every situation. Light you can rely on!
- Width: 242mm - Height: 133mm - Depth: 89mm - Fitting Depth: 35mm - Overall Height: 166mm - Lamp Type: H3 - without bulb - with top
- Light functions: 1 - with high beam
- fulfils ECE standard: R8
- Synthetic Material Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
- Mounting Type: Bolted - Fastening Type: Swivelling Mounting Bracket/Suspended
Item Attributes:
Mounting Type: Bolted
Fastening Type: Suspended / Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Fitting Position: left / right
Height: 133 mm
Overall Height: 166 mm
Width: 242 mm
Depth: 89 mm
Fitting Depth: 35 mm
Light Function: with high beam
Light functions: 1
fulfils ECE standard: R8
Reference number: 37.5
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Shape: rectangular
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Patterned diffusing lens
Supplementary Article/Supplementary Info 2: with top
Supplementary Article/Supplementary Info: without bulb
Assembly by qualified personnel required!
OE references: BCS 590113/00; DAF 1527010; DAIHATSU AC006-00006; MAN 82.25101.6027; MAN ZF251026003; MERCEDES-BENZ 000 482 56 73; MERCEDES-BENZ A 000 482 56 73; MITSUBISHI ZZ001480; ROSENBAUER 022184; SCHWARZMÜLLER 23314; VAN HOOL 660739660; VDL 660739660; VOLVO 3930194; ZIEGLER 407323
