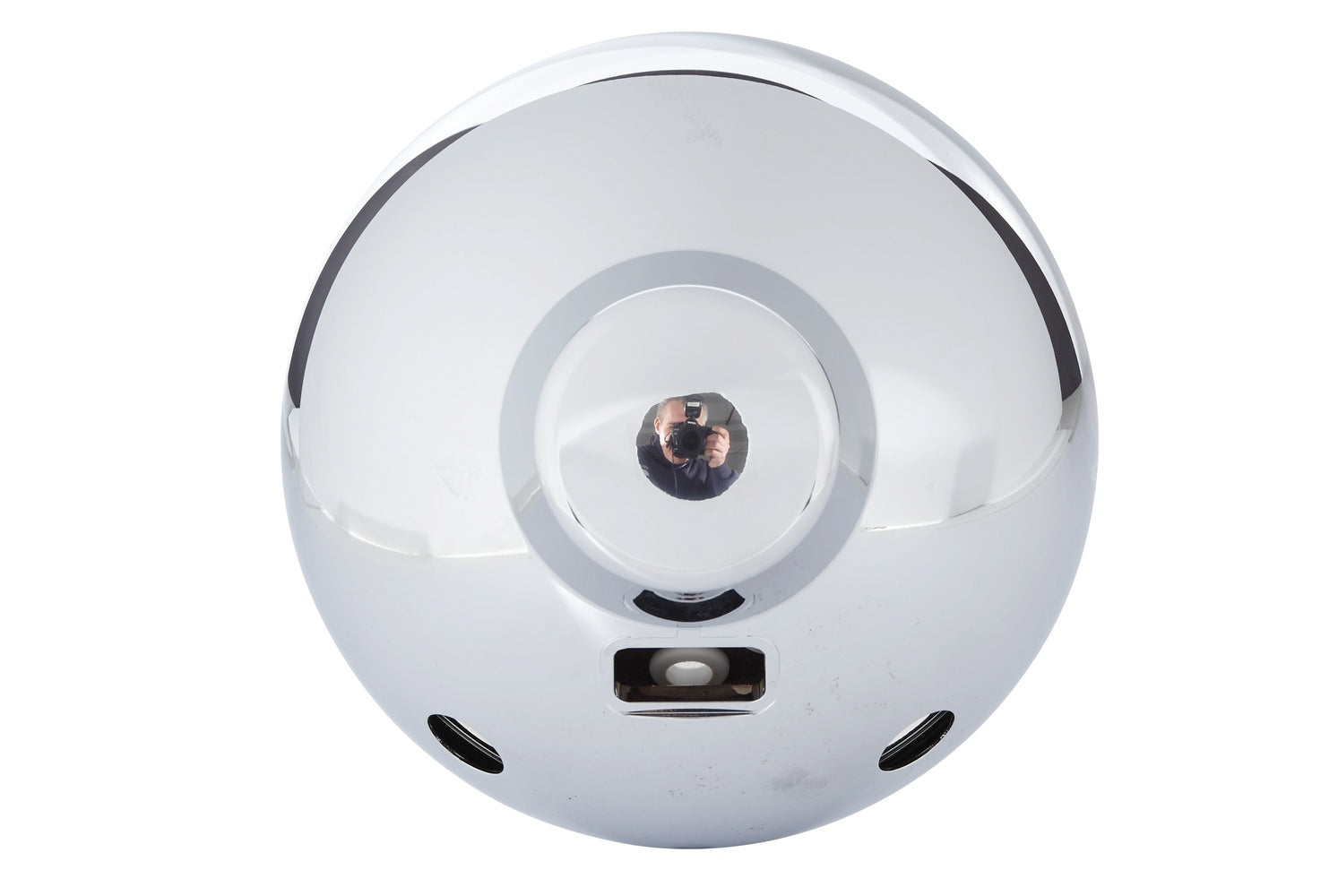

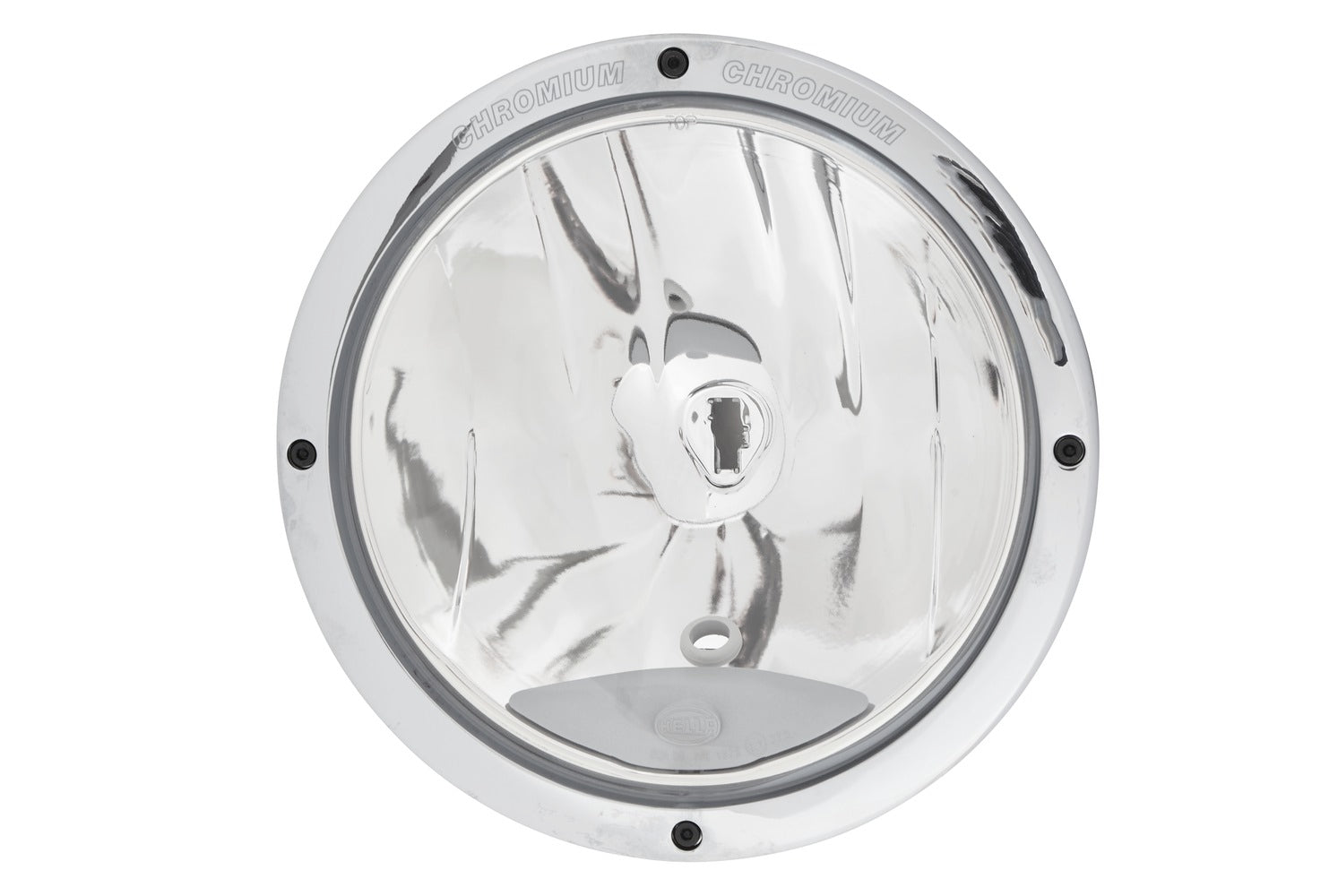

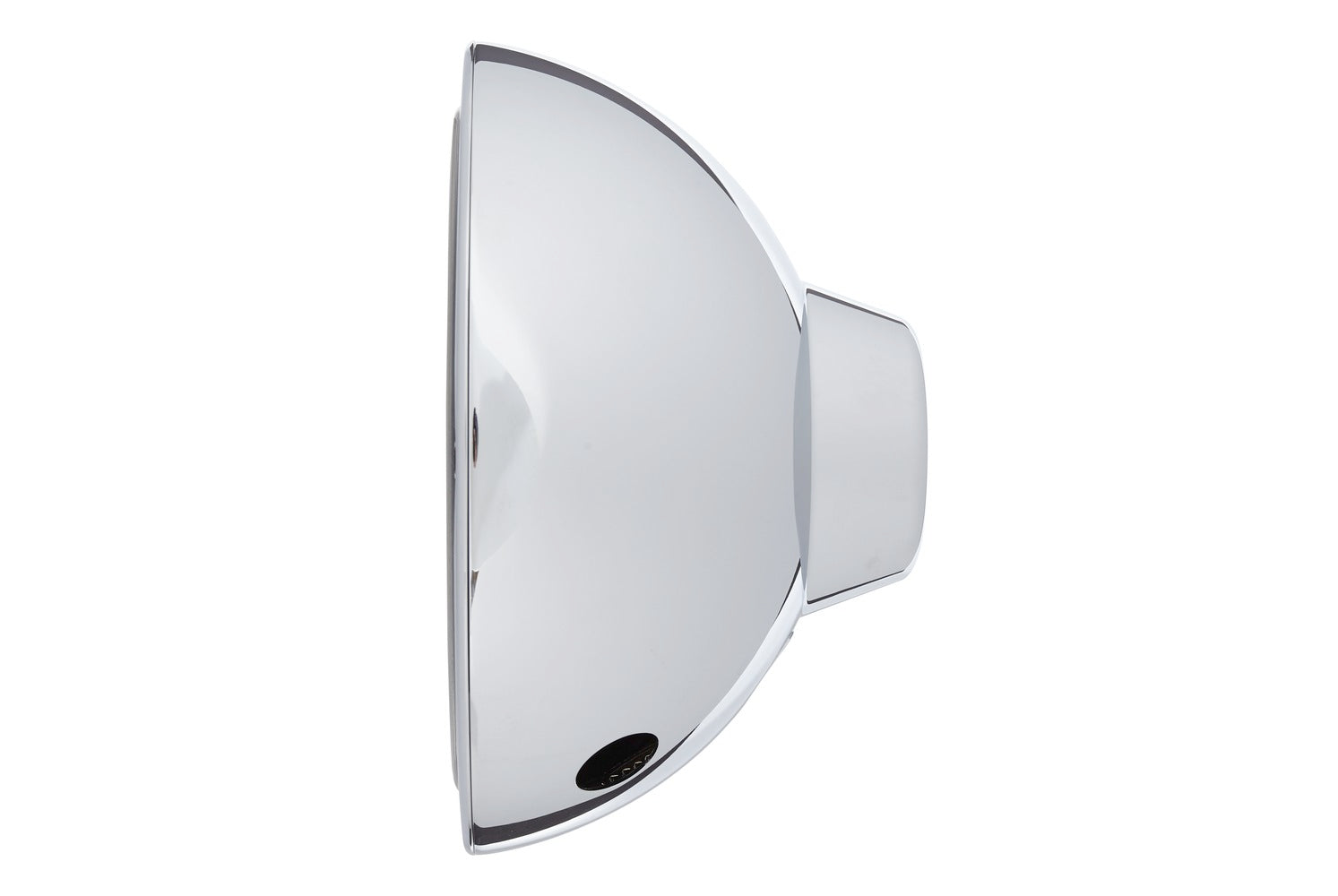

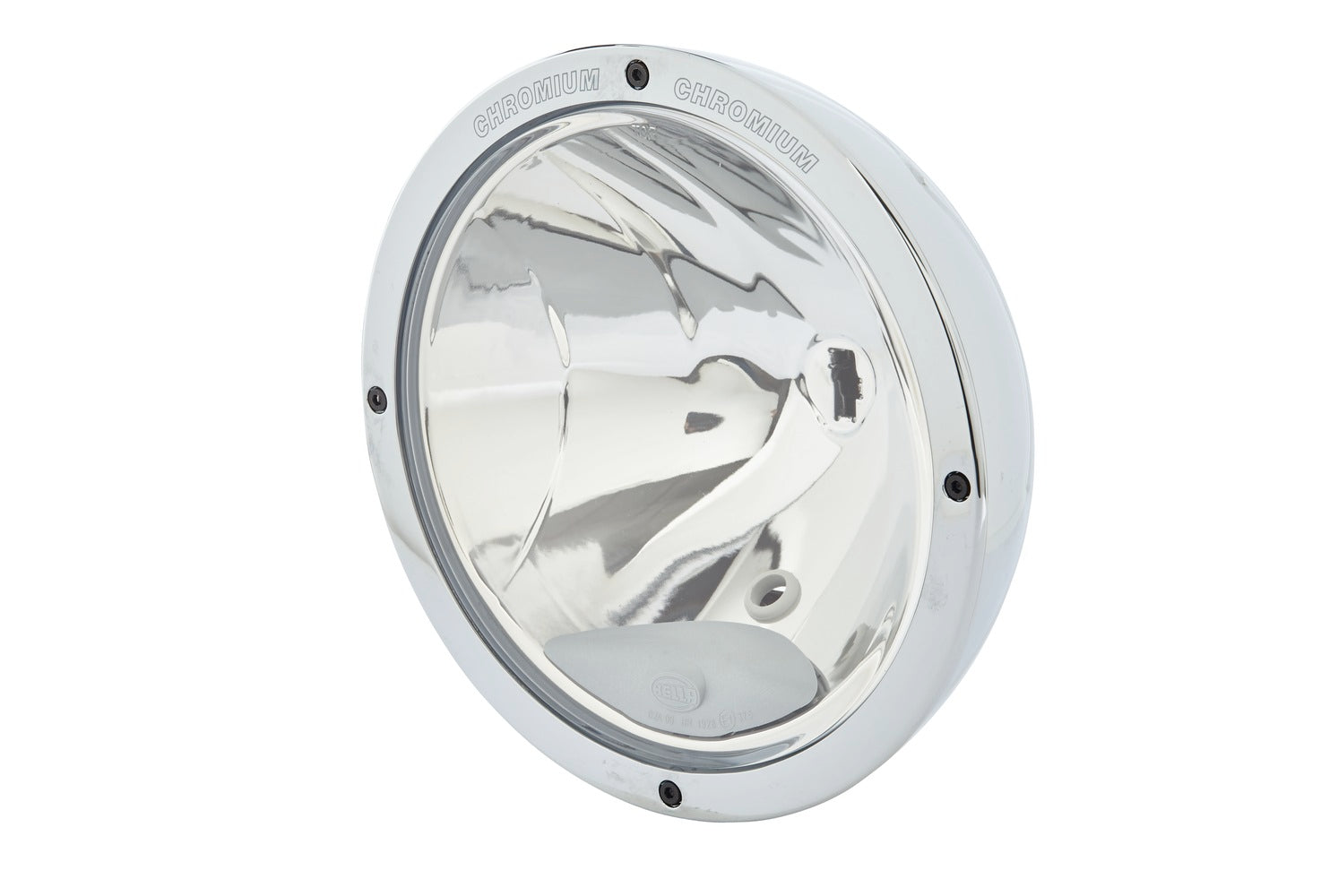

HELLA Halogen-Spotlight - Luminator Chromium - 24/12V - white 1F8007560-311
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen-Spotlight - Luminator Chromium - 24/12V - round - Reference number: 37.5 - ECE - Clear diffusing lens - Crystal clear - Light colour: white - Cable: 800mm - left/right
HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.
- H1 Driving lamp, 12V / 24V (ECE Ref. 37,5)
- Due to its impressive external dimensions, it is particularly suitable for trucks, large pick-ups and off-roaders
- High-quality chrome-plated zinc die-cast housing
- ECE type-approved main beam for 12V and 24V vehicle electrical systems
- Width: 222mm - Height: 222mm - Depth: 130mm - Fitting Depth: 91mm - Overall Height: 232mm - Lamp Type: H1/W5W - without bulb
- Light functions: 2 - with position light/with high beam
- Registration Type: ECE - fulfils ECE standard: R7/R112
Item Attributes:
Mounting Type: Bolted

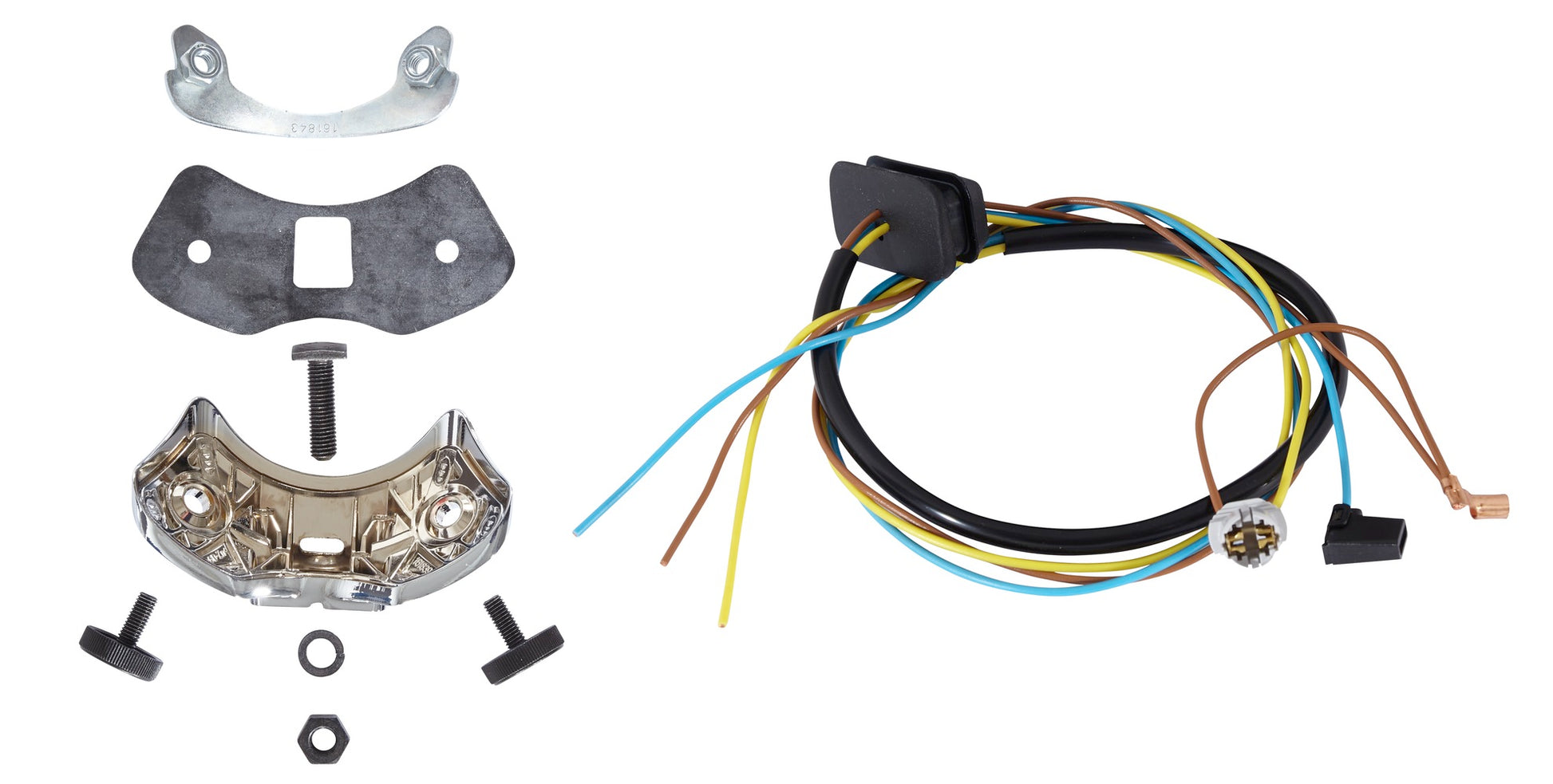

Fastening Type: Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: W5W / H1
Voltage: 12 V / 24 V
Fitting Position: right / left
Height: 222 mm
Overall Height: 232 mm
Width: 222 mm
Depth: 130 mm
Fitting Depth: 91 mm
Length: 9 "
Colour: chrome
Light colour: white
Light Function: with position light / with high beam
Light functions: 2
fulfils ECE standard: R112 / R7
Reference number: 37.5
Cable: 800 mm
Housing Colour: chrome
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info: without bulb
Registration Type: ECE
Power consumption: 55 W / 5 W
Weight: 2357 g
Assembly by qualified personnel required!
OE references: DAF 0867776; DAF 087.9122; IVECO 500051167; MAN ZF920006620; SCANIA 1934114; SCANIA 20223920
