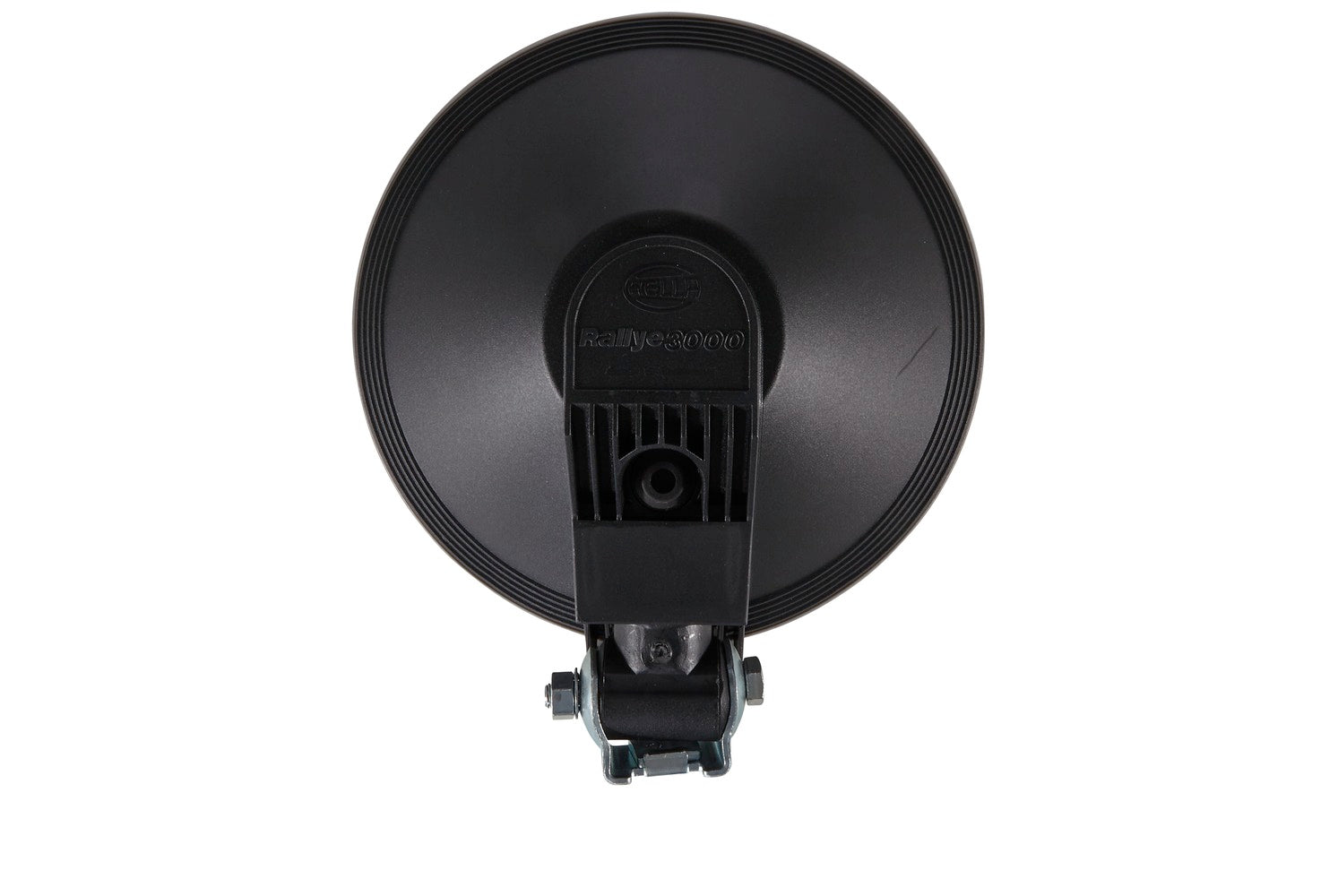

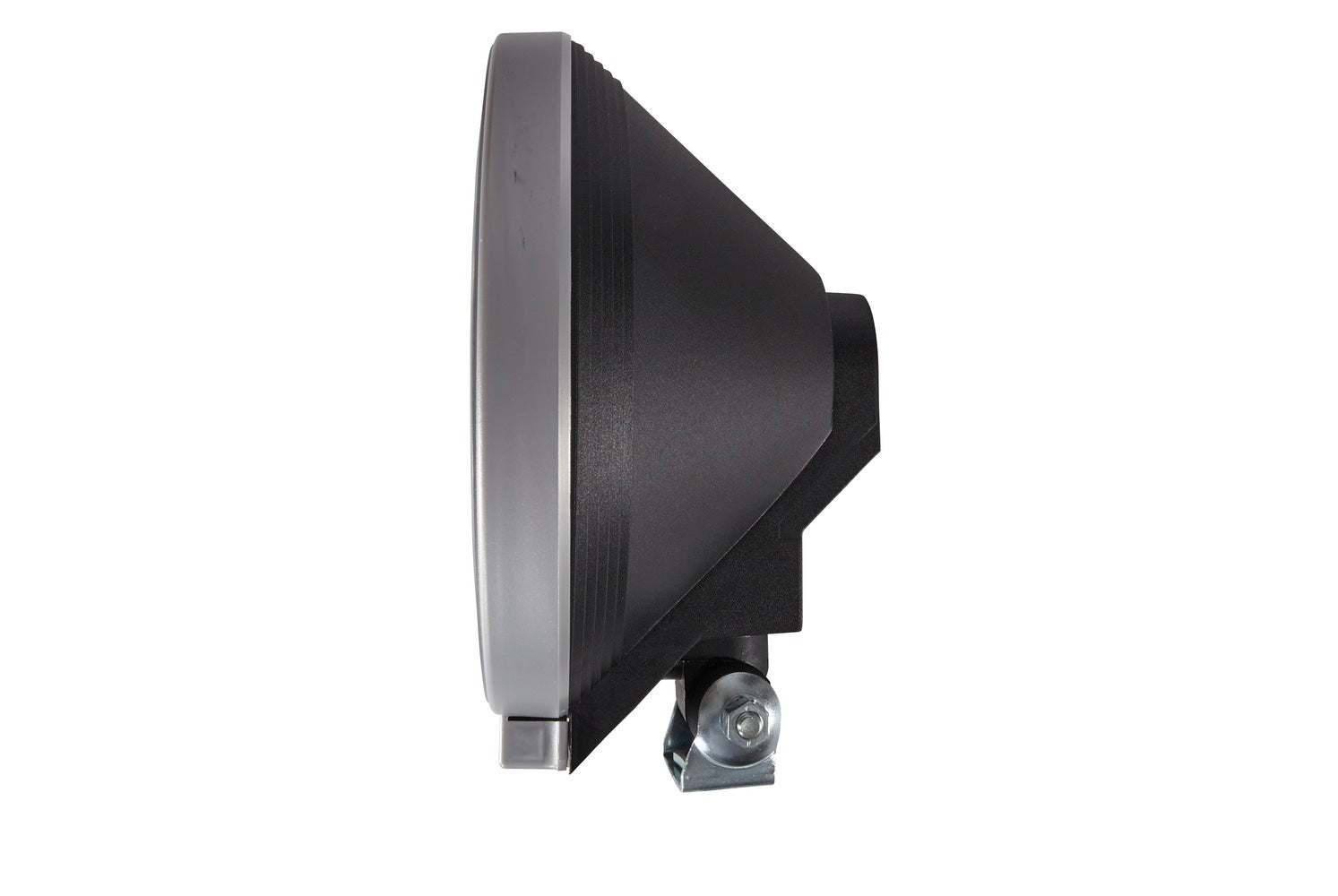

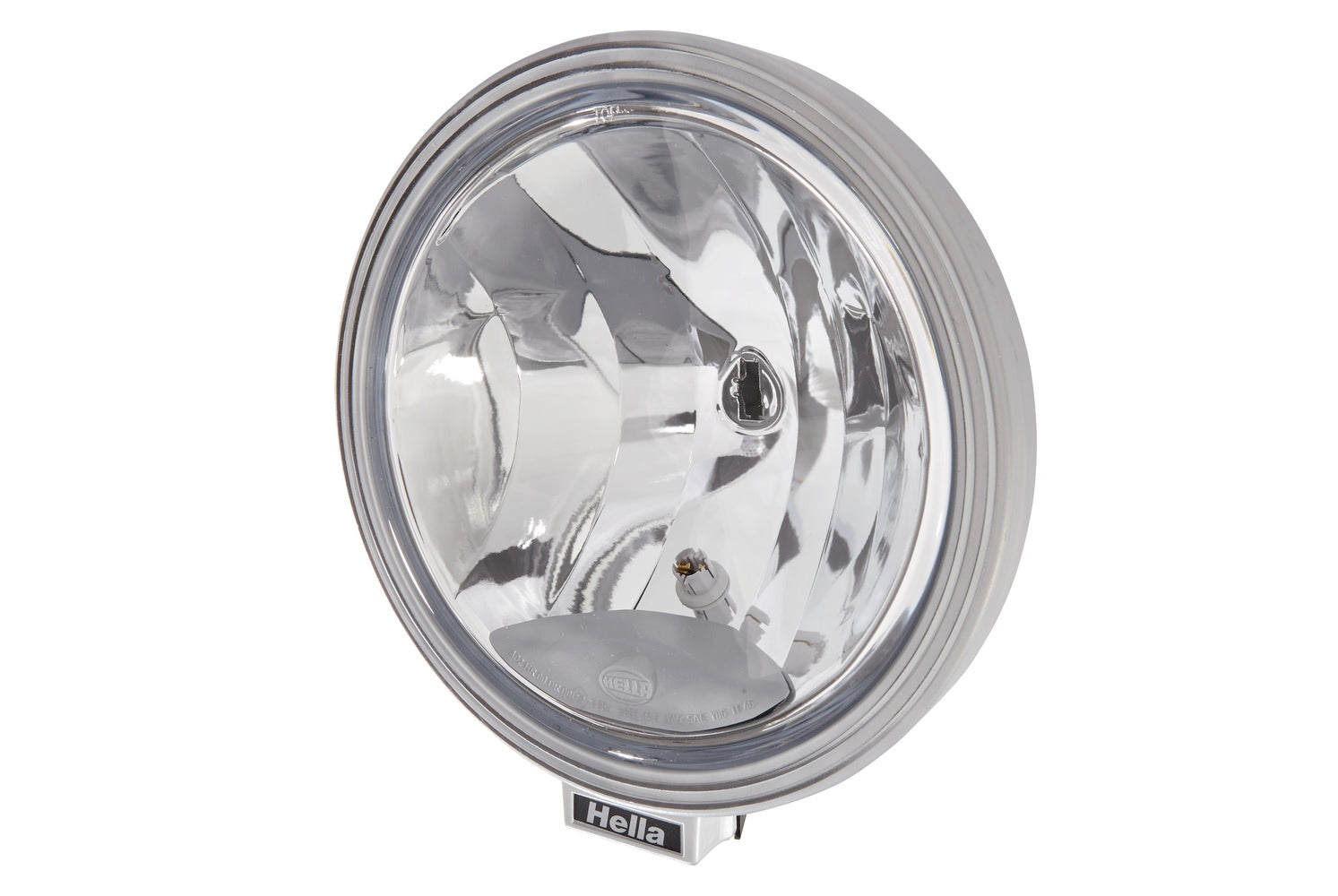

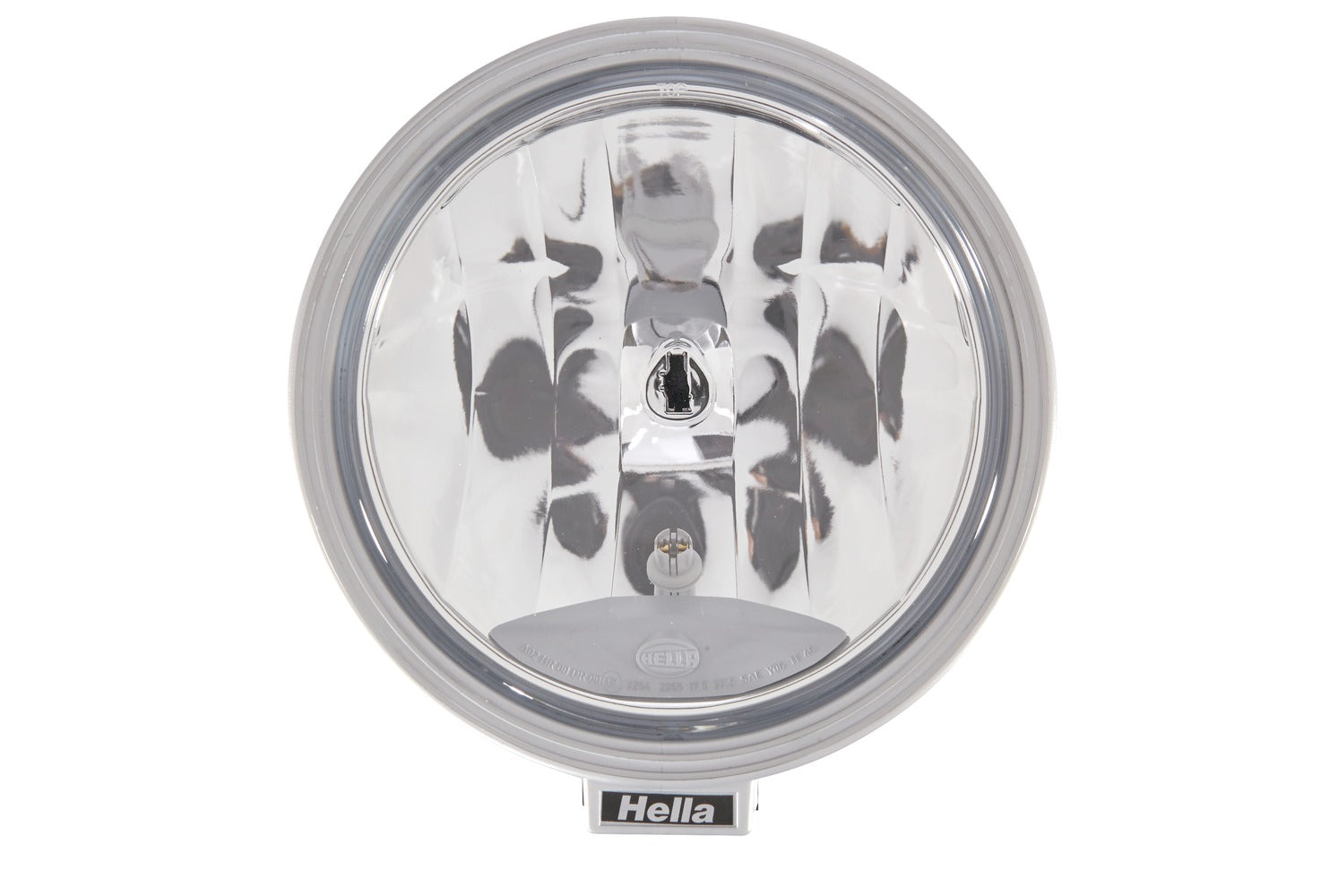

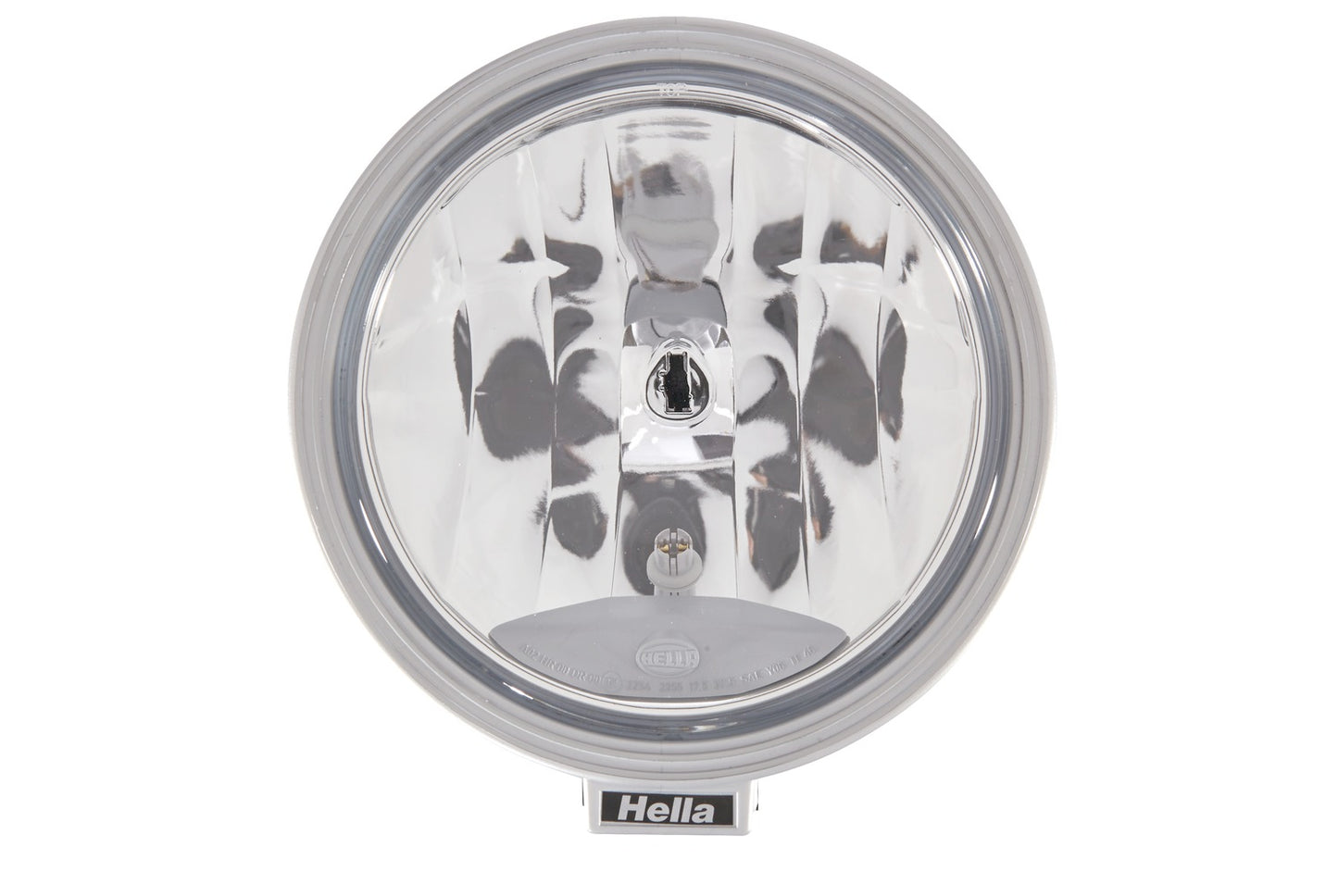

HELLA Halogen-Spotlight - Rallye 3000 - 12/24V 1F8006800-341
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Halogen-Spotlight - Rallye 3000 - 12/24V - round - Reference number: 17.5 - Clear diffusing lens - Crystal clear - right/left
The HELLA auxiliary high beam headlamps offer that something extra: more light, so you can stay on top of the road in every driving situation. In turn, this increases the safety of every road user. HELLA's indisputable quality and use of state-of-the-art technology are a given. Tried-and-tested standard solutions or innovative LED technology: whatever it may be, the HELLA headlamp series is specially tailored to the demands of trucks and continuously developed to offer the optimum solution for every situation. Light you can rely on!
- Width: 222mm - Height: 222mm - Depth: 126mm - Fitting Depth: 47mm - Overall Height: 253mm - Lamp Type: H1 - without bulb - without top
- Light functions: 2 - with high beam/with position light
- fulfils ECE standard: R7/R112
- Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear

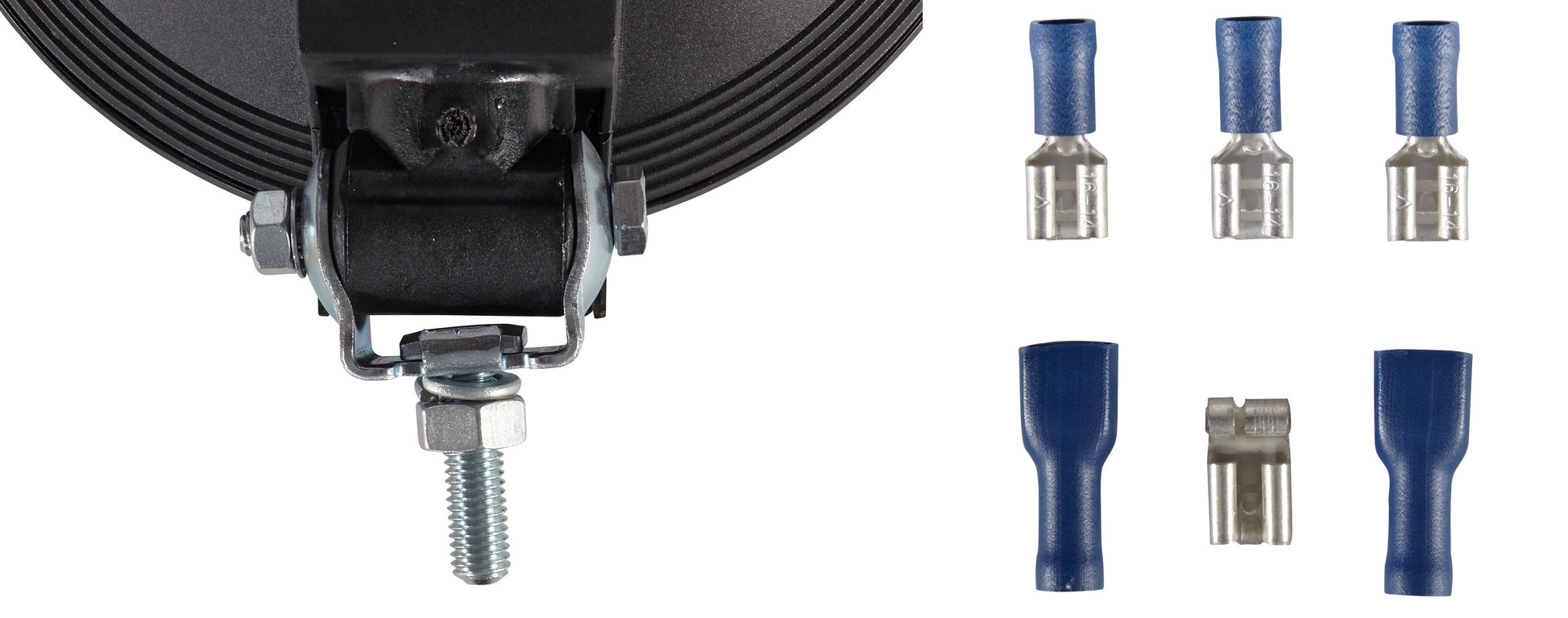

- Mounting Type: Bolted - Fastening Type: Swivelling Mounting Bracket/Suspended
Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket / Suspended
Light Design: Halogen
Lamp Type: H1
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 222 mm
Overall Height: 253 mm
Width: 222 mm
Depth: 126 mm
Fitting Depth: 47 mm
Light Function: with position light / with high beam
Light functions: 2
fulfils ECE standard: R7 / R112
Reference number: 17.5
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: without bulb
Assembly by qualified personnel required!
OE references: DAF 887640; SCANIA 2121473
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
