HELLA Headlight - Combi 220 - 24V 1LE996174-311
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

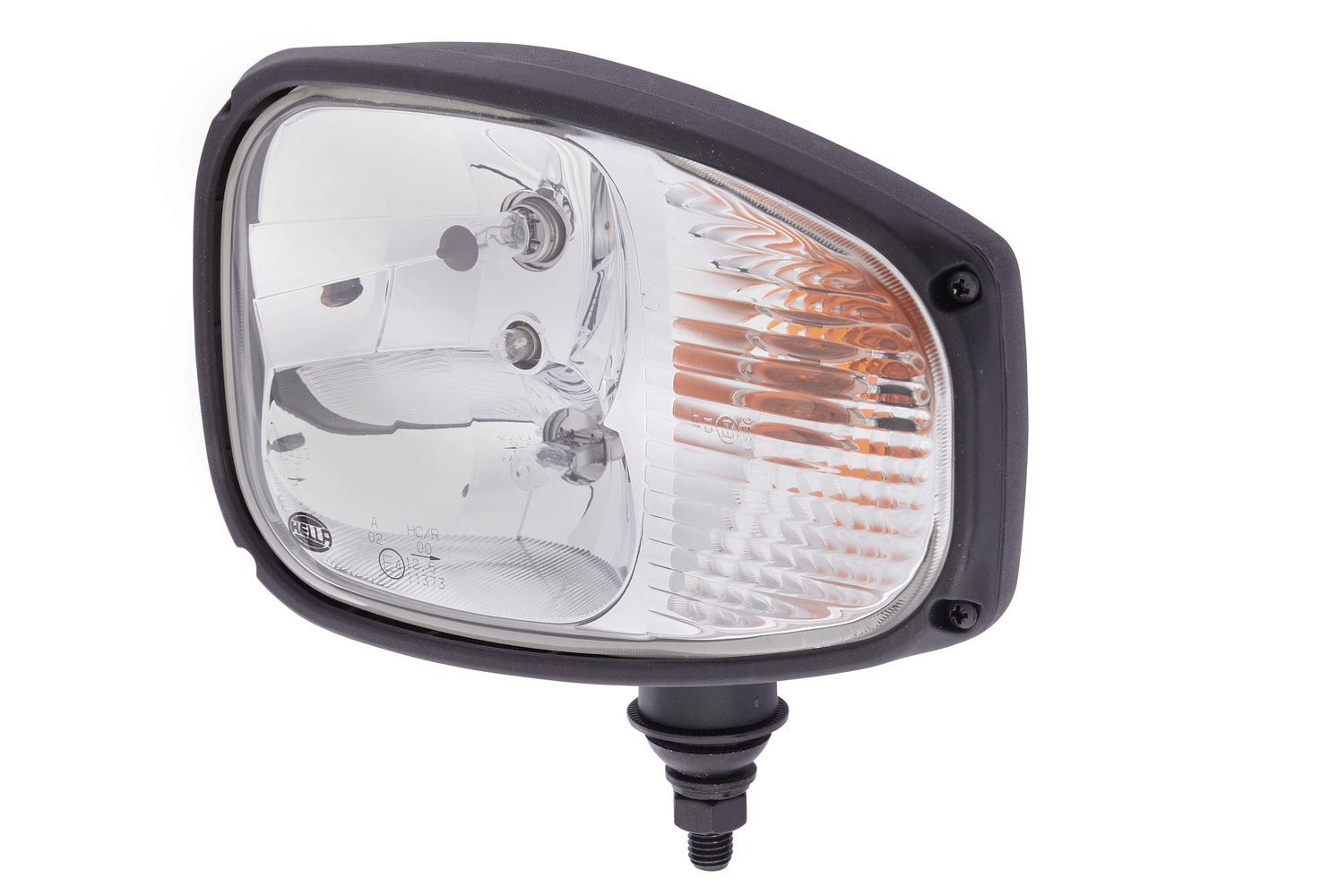

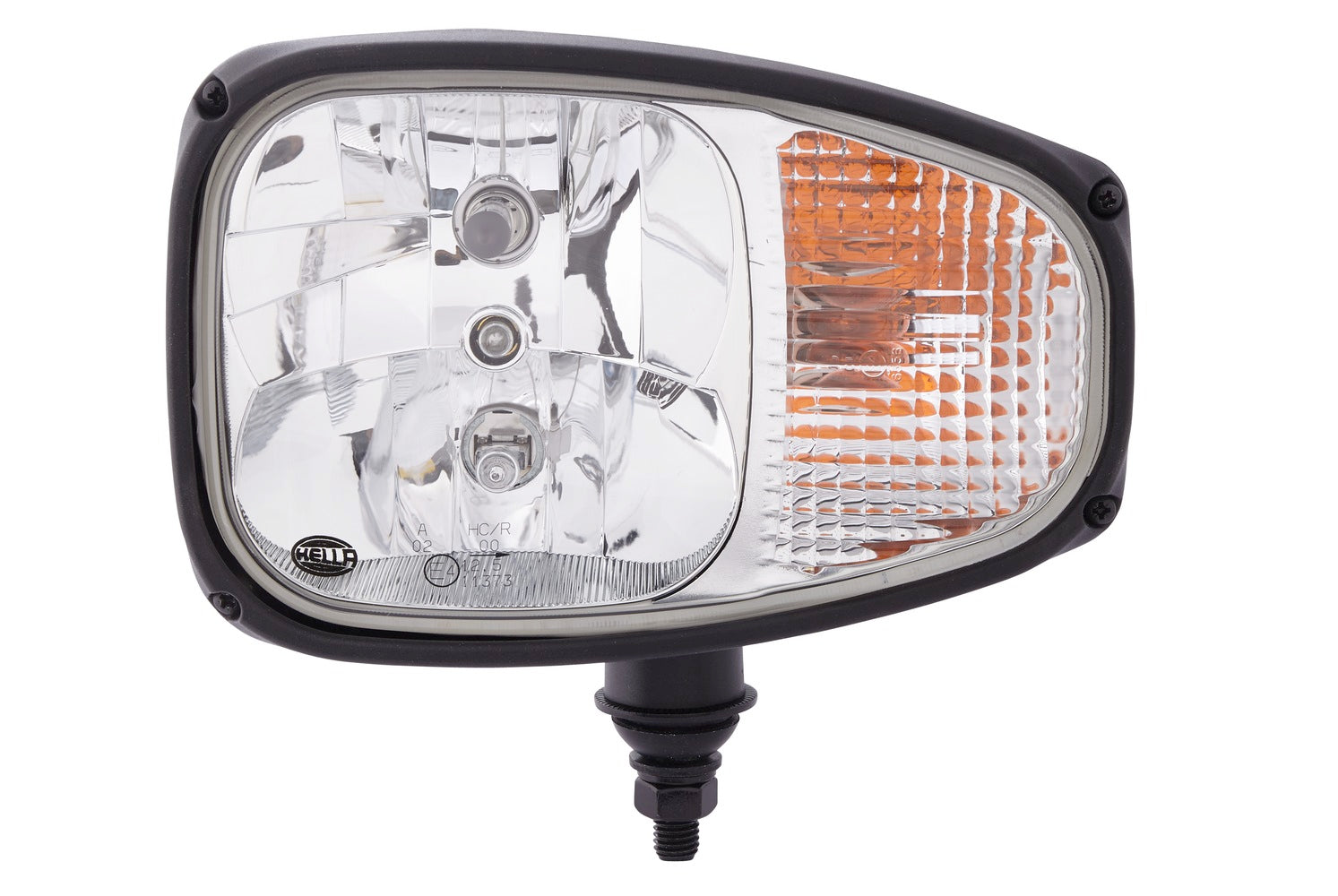

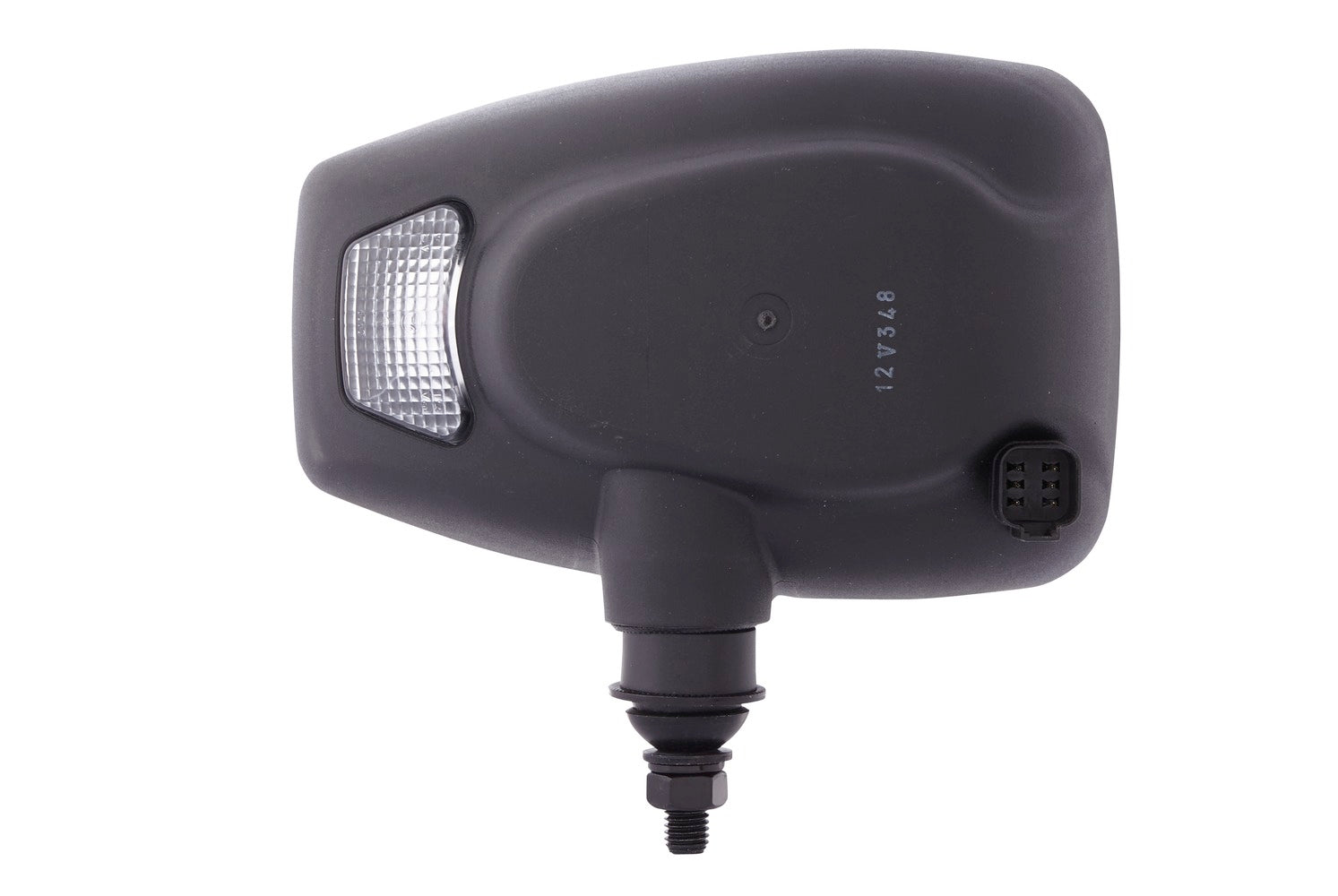

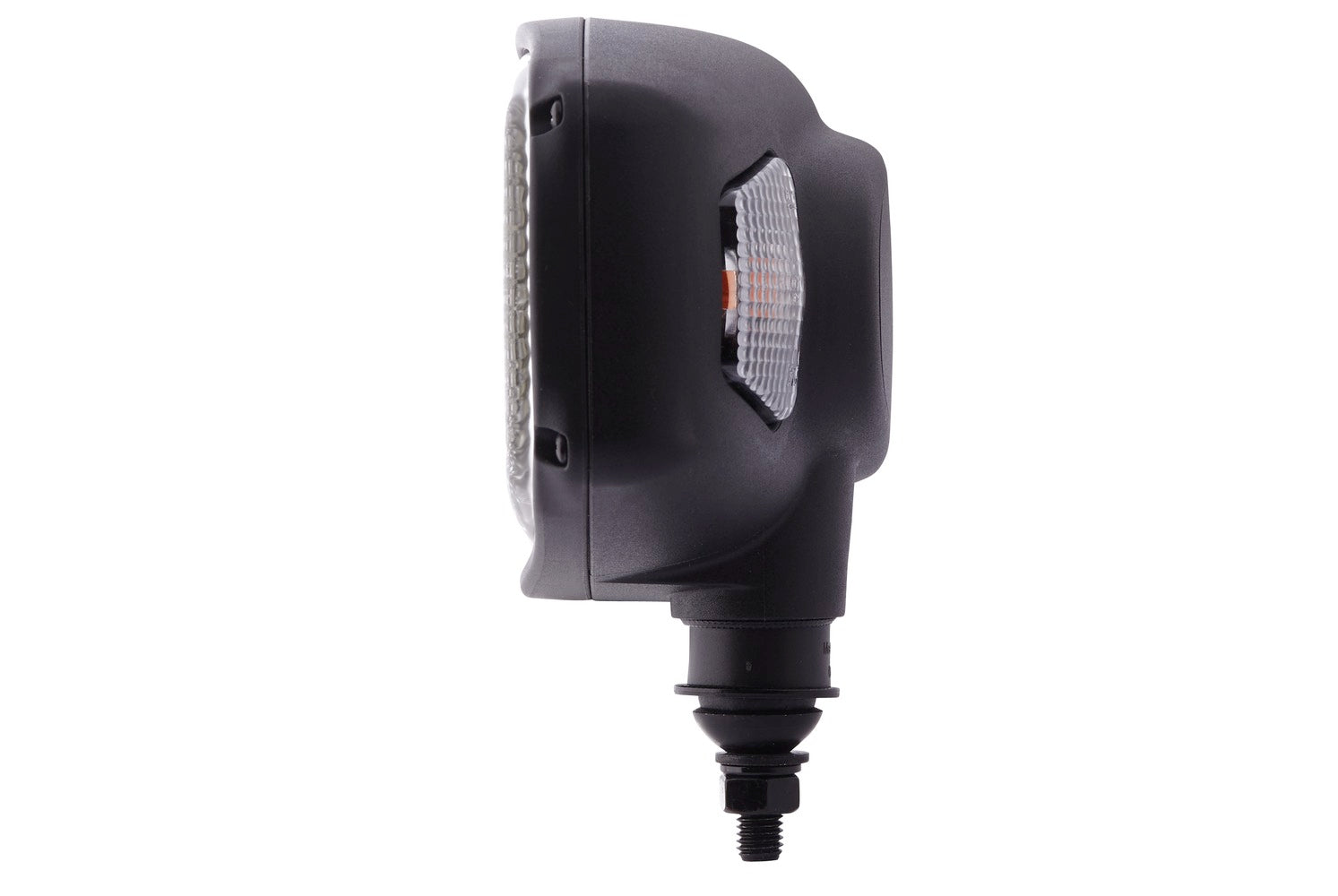

Headlight - Combi 220 - 24V - ECE - Plug: open cable ends - left
The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.
- HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
- It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
- Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
- The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
- Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
- Lamp Type: T4W/PY21W/H7/H3 - with bulbs
- Light functions: 4 - with high beam/with low beam/with position light/with indicator
Item Attributes:
Mounting Type: mounting
Lamp Type: T4W / PY21W / H7/H3
Voltage: 24 V
Fitting Position: left
Light Function: with indicator / with high beam / with position light / with low beam
Light functions: 4
Registration Type: ECE

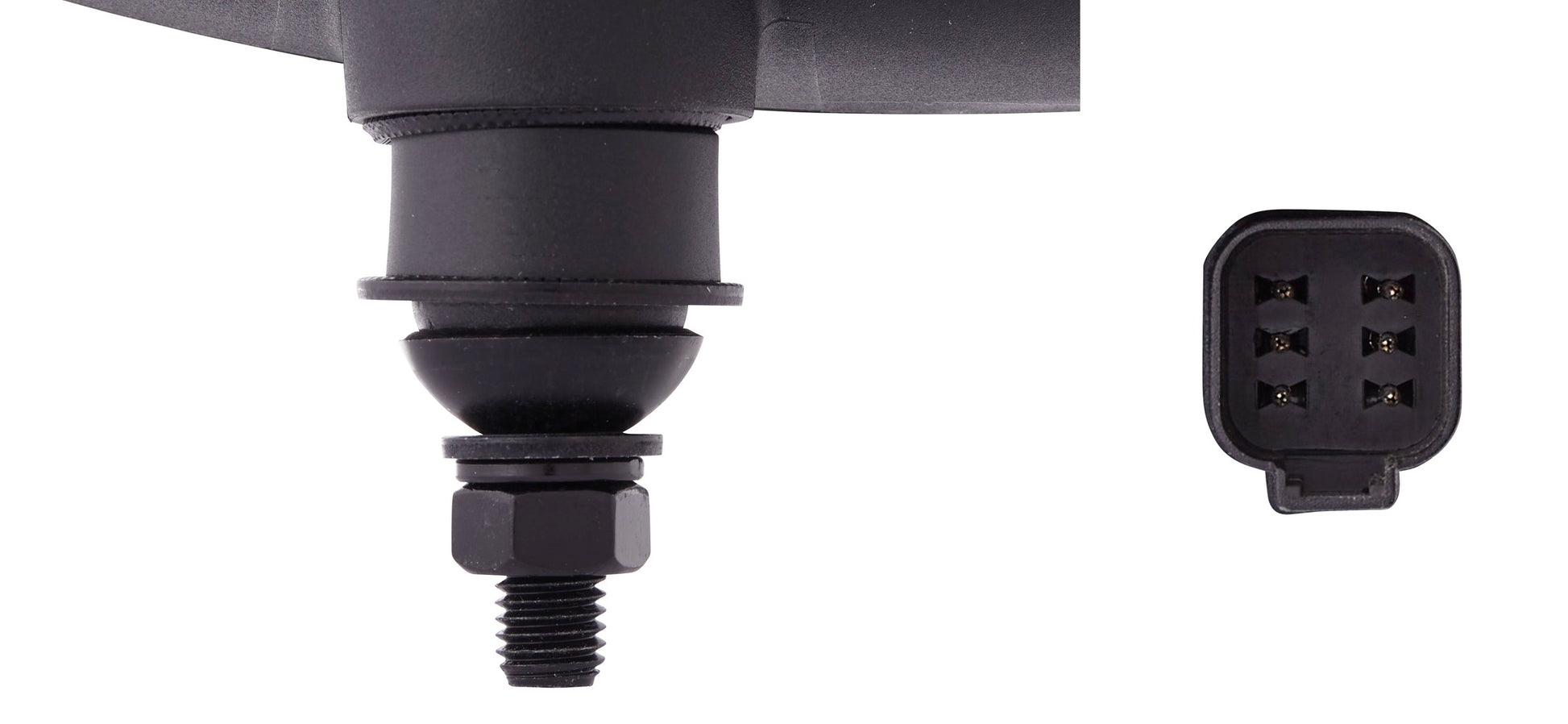

Plug: open cable ends
Left-hand/Right-hand Traffic: for left-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!
OE references: FARESIN ME11096A41; KOMATSU 42T-06-43160; MANITOU 265418; MANITOU 265418B
