HELLA Headlight - Combi 220 - 24V 1LE996174-321
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

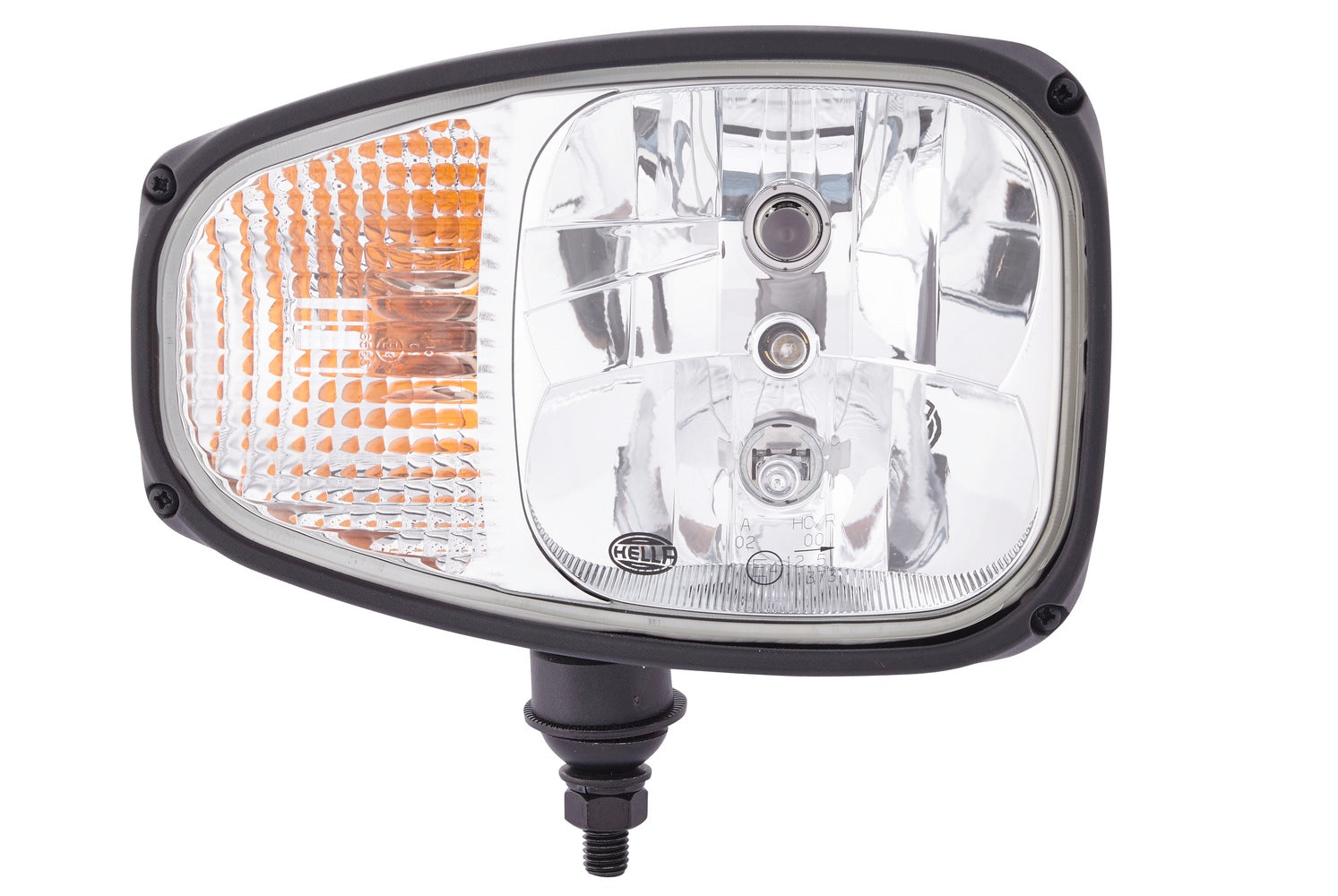

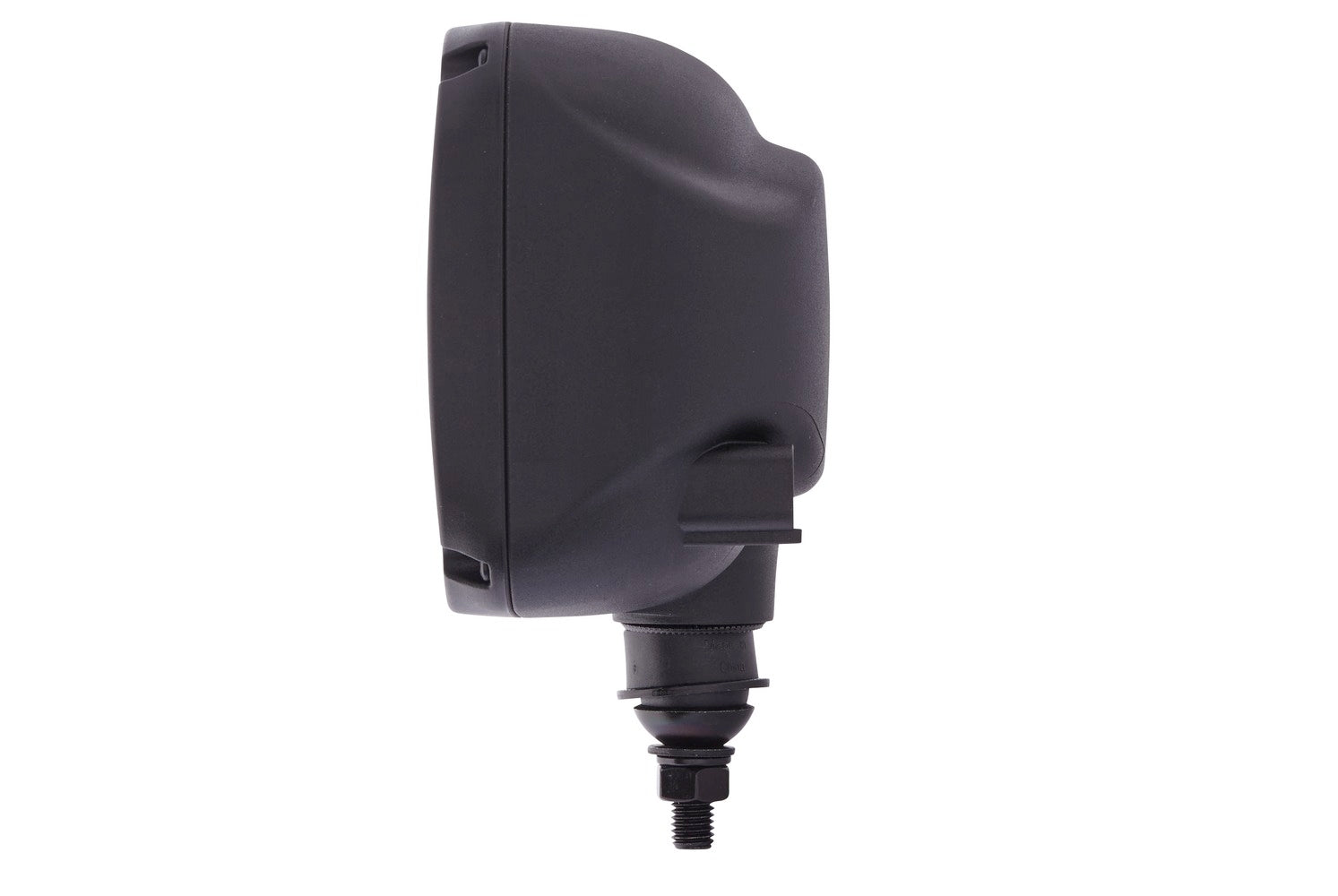

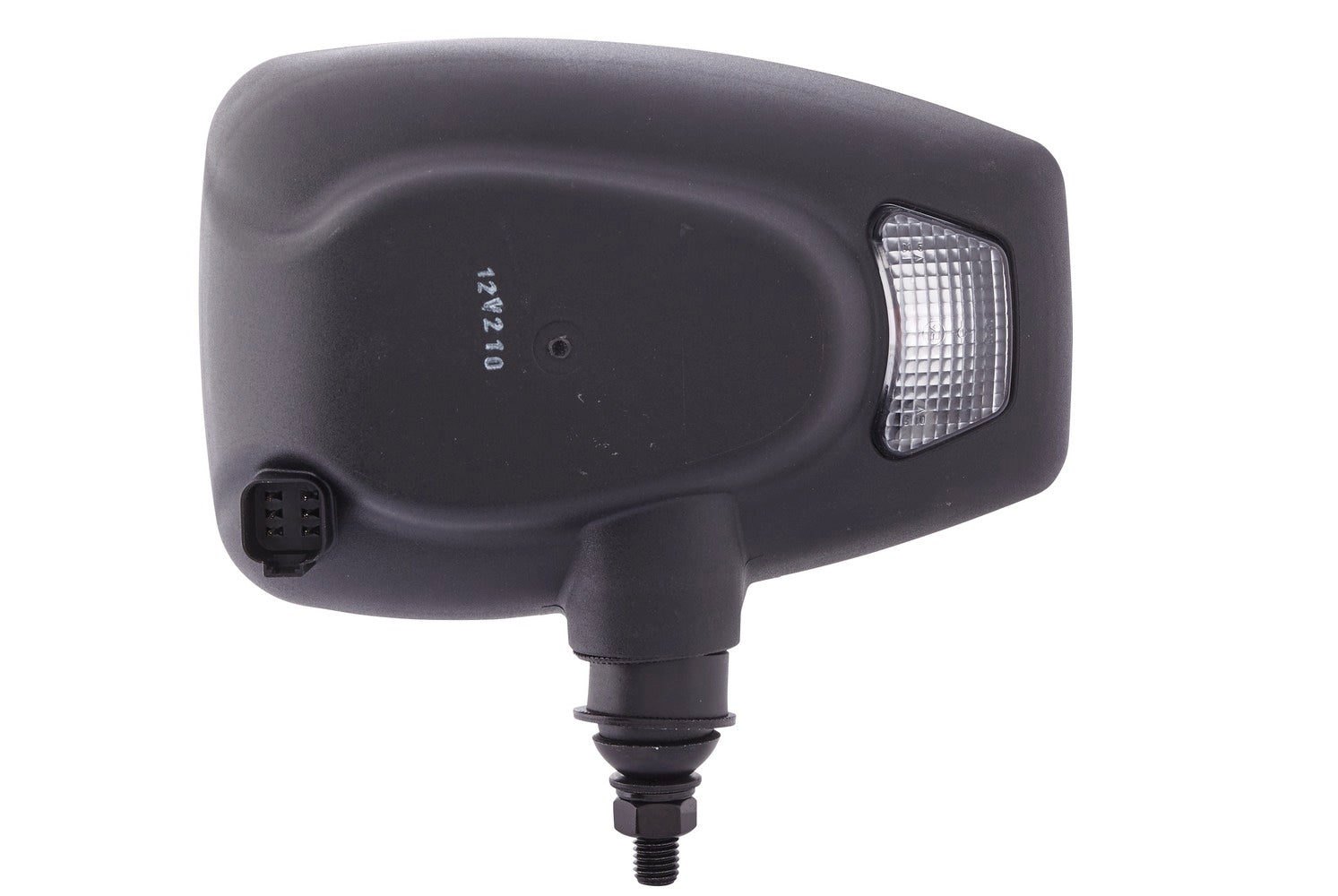

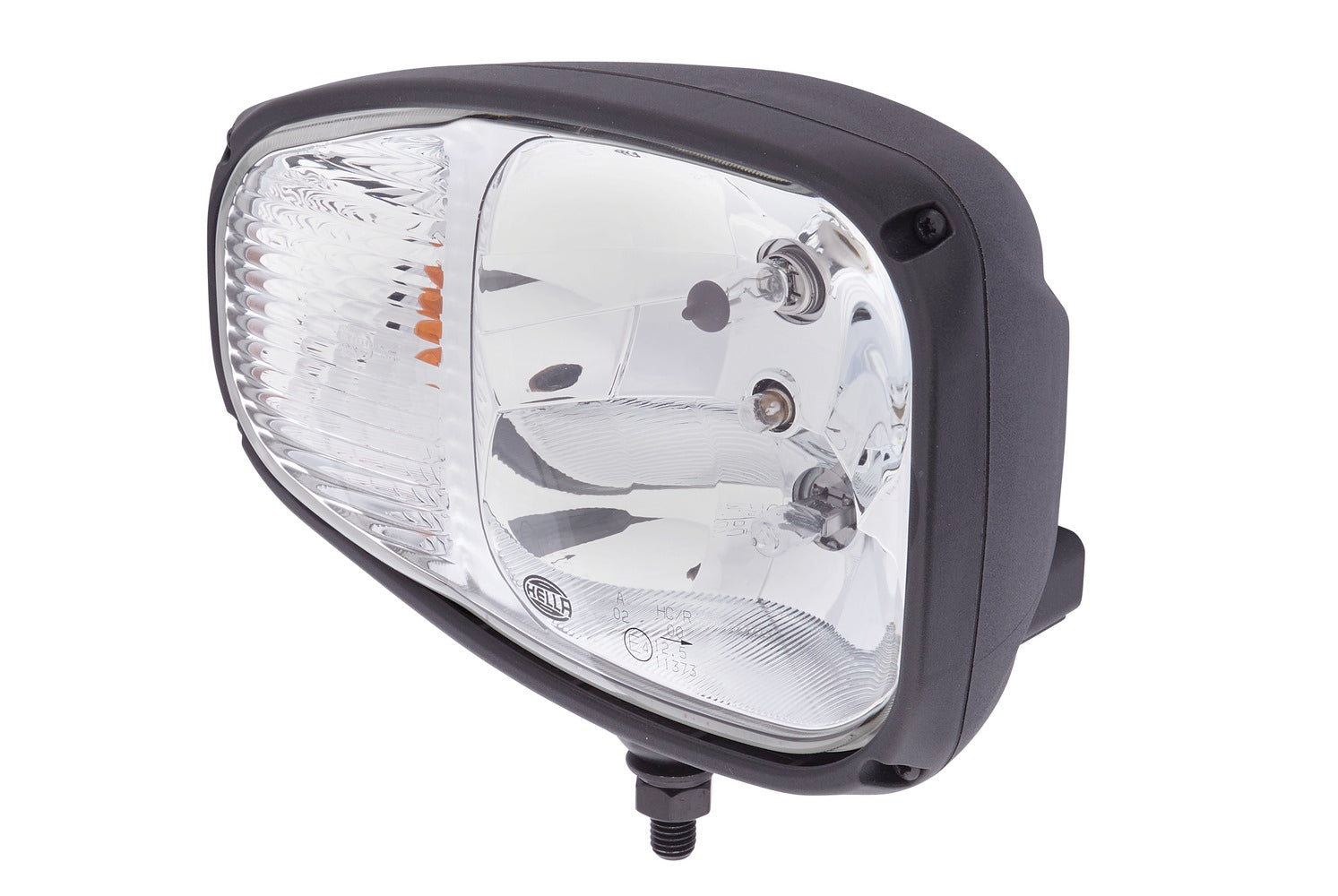

Headlight - Combi 220 - 24V - ECE - Plug: CEE 7/17 Shaped Plug - right
The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.
- HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
- It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
- Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
- The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
- Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
- Lamp Type: T4W/H7/H3/PY21W - with bulbs
- Light functions: 4 - with position light/with low beam/with indicator/with high beam
Item Attributes:
Mounting Type: mounting
Lamp Type: PY21W / T4W / H7/H3
Voltage: 24 V
Fitting Position: right
Light Function: with low beam / with indicator / with high beam / with position light
Light functions: 4
Registration Type: ECE

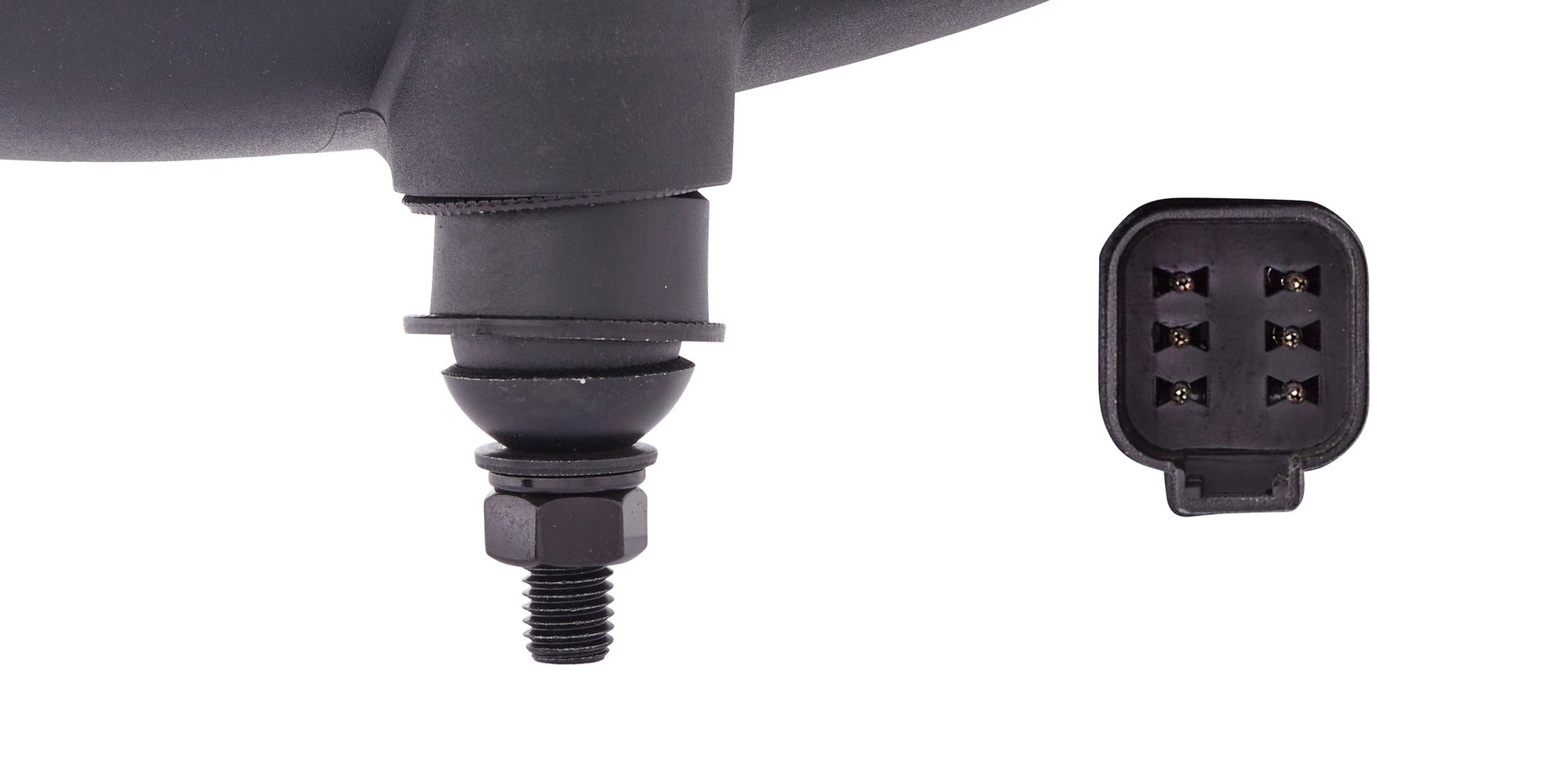

Plug: CEE 7/17 Shaped Plug
Left-hand/Right-hand Traffic: for left-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!
OE references: FARESIN ME11095A40; KOMATSU 42T0643170; MANITOU 265417; MANITOU 265417 B
