HELLA Hybrid-Spotlight - Rallye 3003 Celis - 24/12V 1F8009797-451
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Hybrid-Spotlight - Rallye 3003 Celis - 24/12V - round - Reference number: 17.5 - SAE - Clear diffusing lens - Crystal clear - Cable: 450mm - right/left
As a professional auxiliary headlamp, the HELLA Rallye 3003 combines many features: optimum light output, maximum reliability and a strong design. The ultra-light, corrosion-free and stable plastic housing contains concentrated technology that ensures the best visibility in every situation with high-boost reflectors, computer-optimised fine-tuning of light sources and free-form technology. The Rallye 3003 is also available with a position light. The variants with ring-shaped position light offer an ideal supplement and not only increase visibility for other road users but also set visual accents.
- Thanks to LED technology, there is no need to replace the position light bulb
- The popular arrangement of CELIS headlamps on the roofs of truck cabs makes the vehicle easily recognisable even from a long distance
- Weatherproofing and reflector vapour deposition with ultra-pure aluminium for maximum efficiency and long-term stability
- High efficiency of the HELLA High Boost reflector for optimised light distribution and excellent road illumination reduces driver fatigue
- The appearance of a large ring-shaped position light based on an LED light guide creates a particularly striking night design
- Width: 222mm - Height: 222mm - Depth: 125mm - Fitting Depth: 49mm - Overall Height: 245mm - Lamp Type: H1 - without bulb - without top
- Light functions: 2 - with position light (LED)/with high beam
Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: Hybrid
Lamp Type: H1
Voltage: 12 V / 24 V
Fitting Position: right / left
Height: 222 mm
Overall Height: 245 mm
Width: 222 mm
Depth: 125 mm
Fitting Depth: 49 mm
Light Function: with position light (LED) / with high beam
Light functions: 2
fulfils ECE standard: R7 / R10 / R112
Registration Type: SAE
Reference number: 17.5

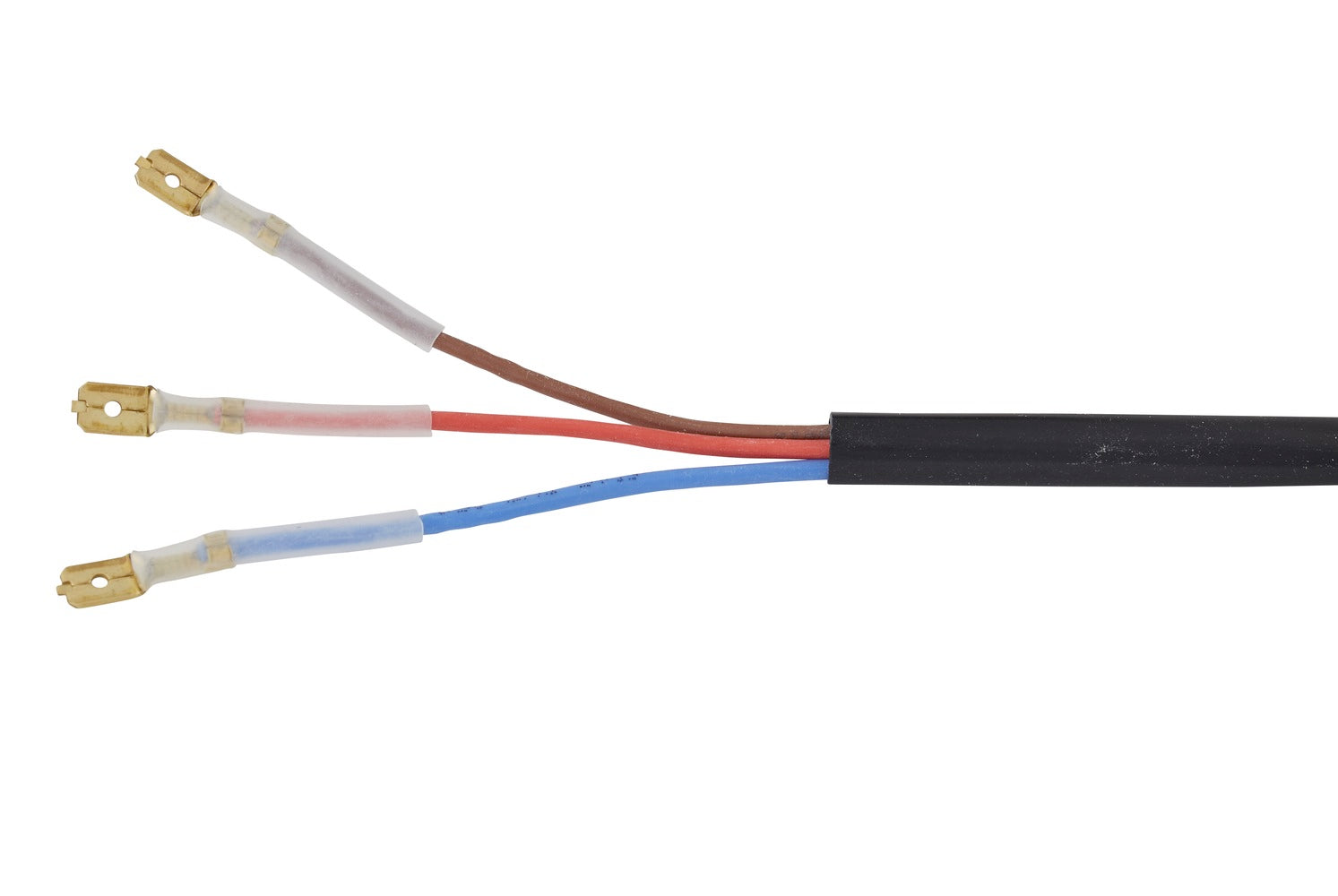

Cable: 450 mm
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: without bulb
Assembly by qualified personnel required!
OE references: DAF 1969528; IVECO 500051172; SCANIA 20223043; SCANIA SP1050726
