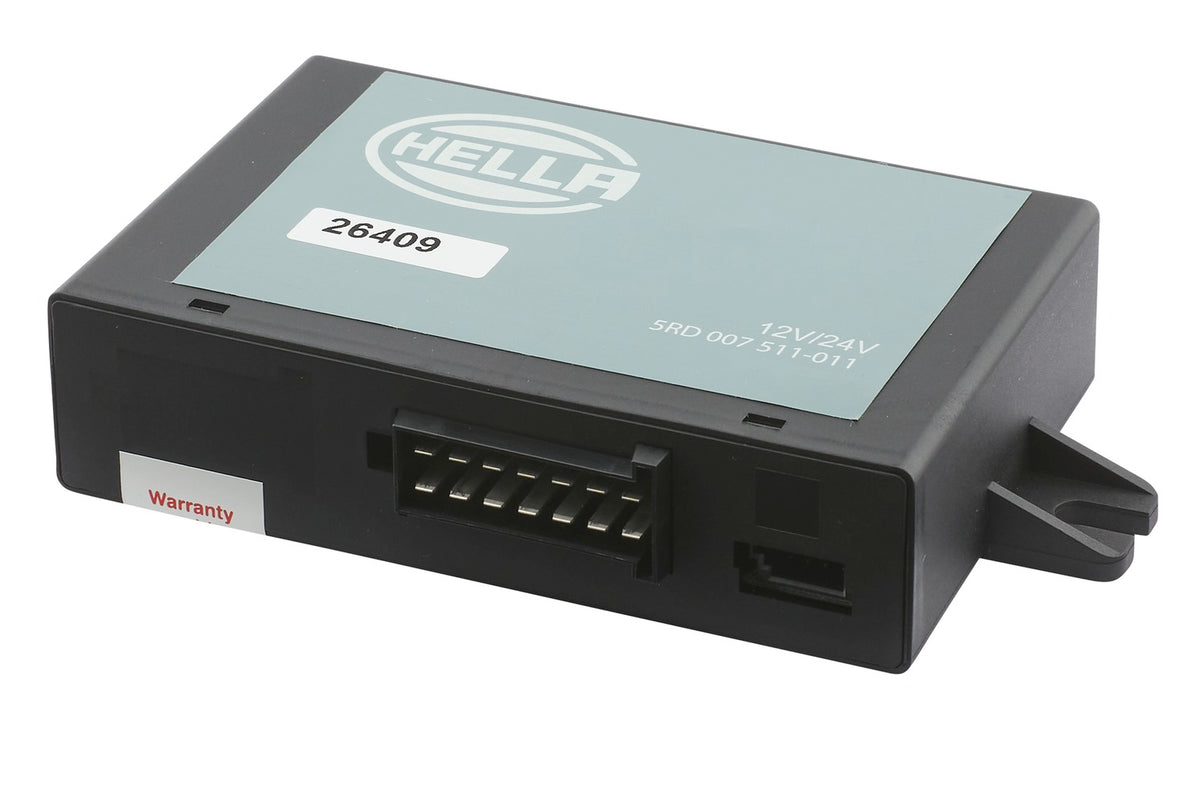

HELLA Immobilizer 5RD007511-011
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Immobilizer
Technical data: Voltage range: 6V - 32V, rated voltage: 12V / 24V, temperature range: -40 °C to +85 °C, current consumption relay open: typ. 50 mA / 24V DC, current consumption relay closed: typ. 300 mA / 24V DC, stand-by current (Kl. 30 operation): <= 30µA / 24V DC
- The HELLA immobiliser is certified by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
- 1 immobiliser control unit, 1 connection cable set, 1 antenna unit incl. connection cable, 1 Assembly instruction
- 2 blue keys (mechanical incl. transponder), 1 red key (master key for programming the blue keys, a total of max. 10 keys can be programmed per immobiliser control unit)
- The immobiliser only works in conjunction with ignition switch 6JB 003 959-001; lock cylinder used 14603
Item Attributes:
Assembly by qualified personnel required!
OE references: DEUTZ-FAHR 04439884; HAKO 48-60418000-1; MASSEY FERGUSON 153114; SAME 04439884
