HELLA Interior Light - Mini OvalLED - LED - 12V 2JA343570-051

HELLA Interior Light - Mini OvalLED - LED - 12V 2JA343570-051

Part No. 2JA 343 570-051
SKU HEL-2JA343570-051
$54.00 $100.00
Available
Dispatched in 2-3 working days
PRODUCT DETAILS

Key part information

The most useful product information is shown here at a glance, including identification, application and reference numbers.

Brand Hella
Part number 2JA 343 570-051
01 Check the part / OEM number 03 Add vehicle details in the cart if needed
Tracked courier services are used wherever available. Vehicle details can be added in the cart before checkout.
TECHNICAL DATA

Item specifics

BrandHella
Part number2JA 343 570-051
SKUHEL-2JA343570-051
Barcode6416386912778
Country of manufactureRomania
PRODUCT DETAILS

Description

Interior Light - Mini OvalLED - LED - 12V - 1.2W - Fitting - Lens Colour: Crystal clear - Interior - Quantity: 1

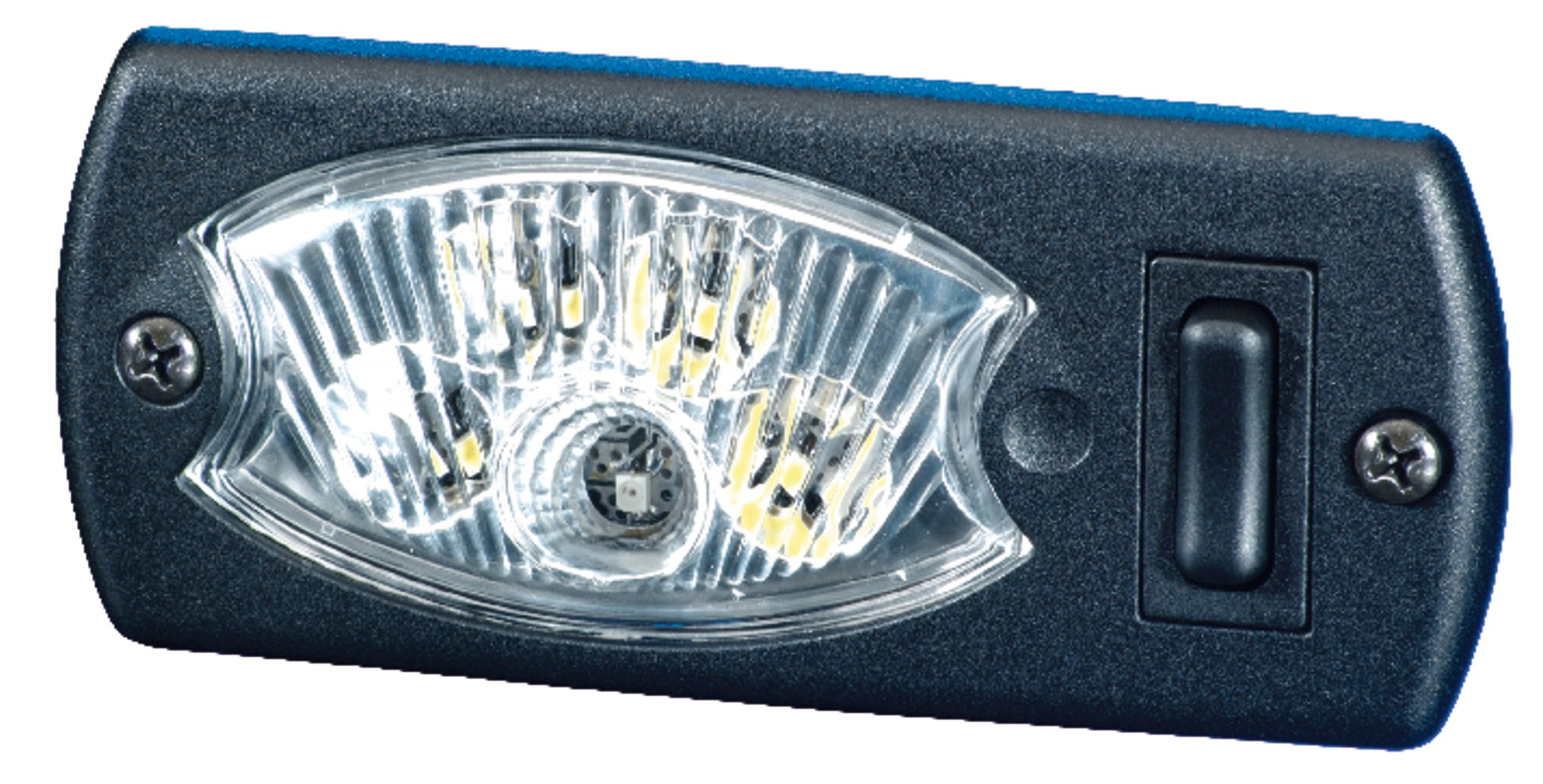

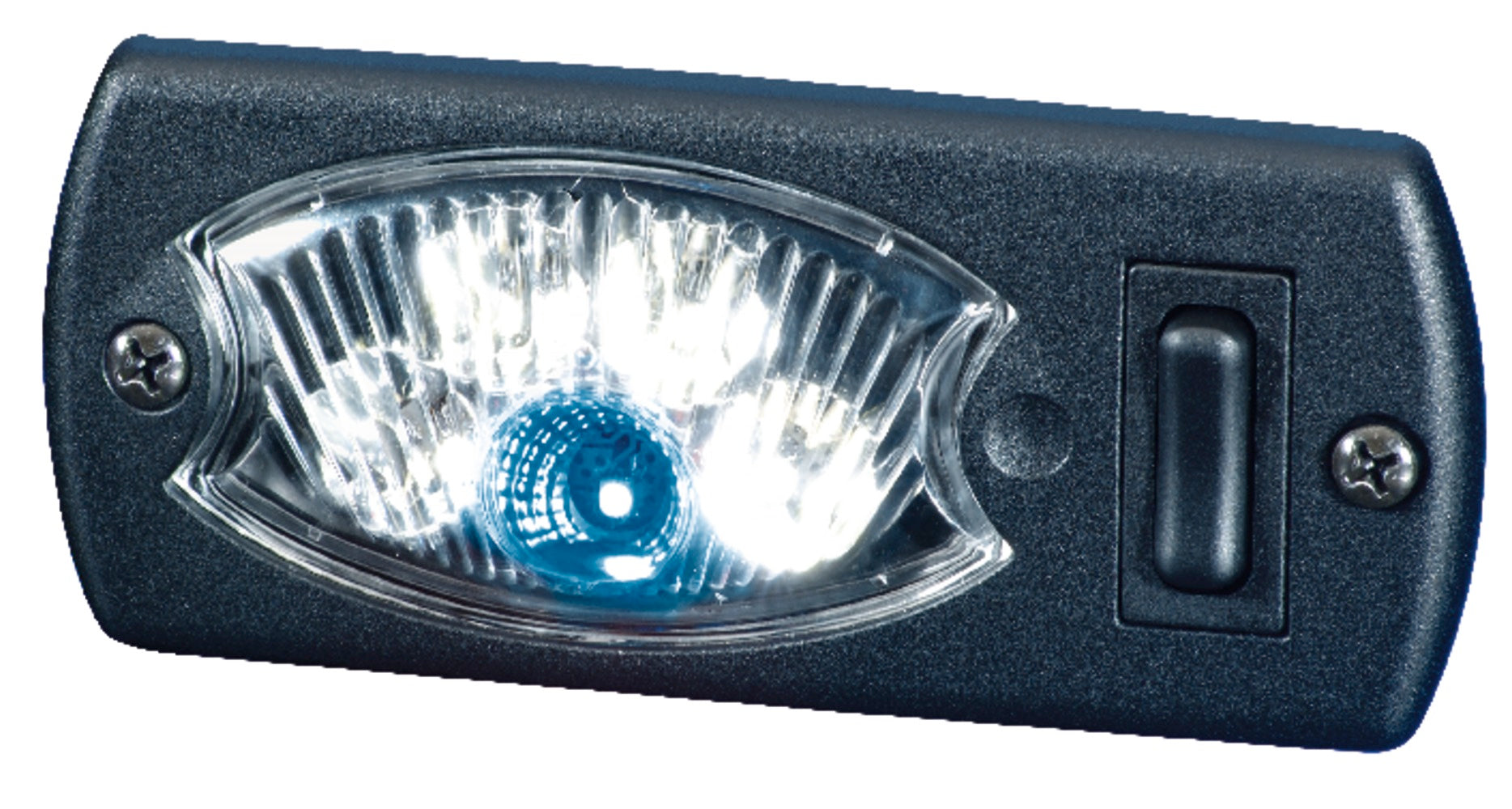

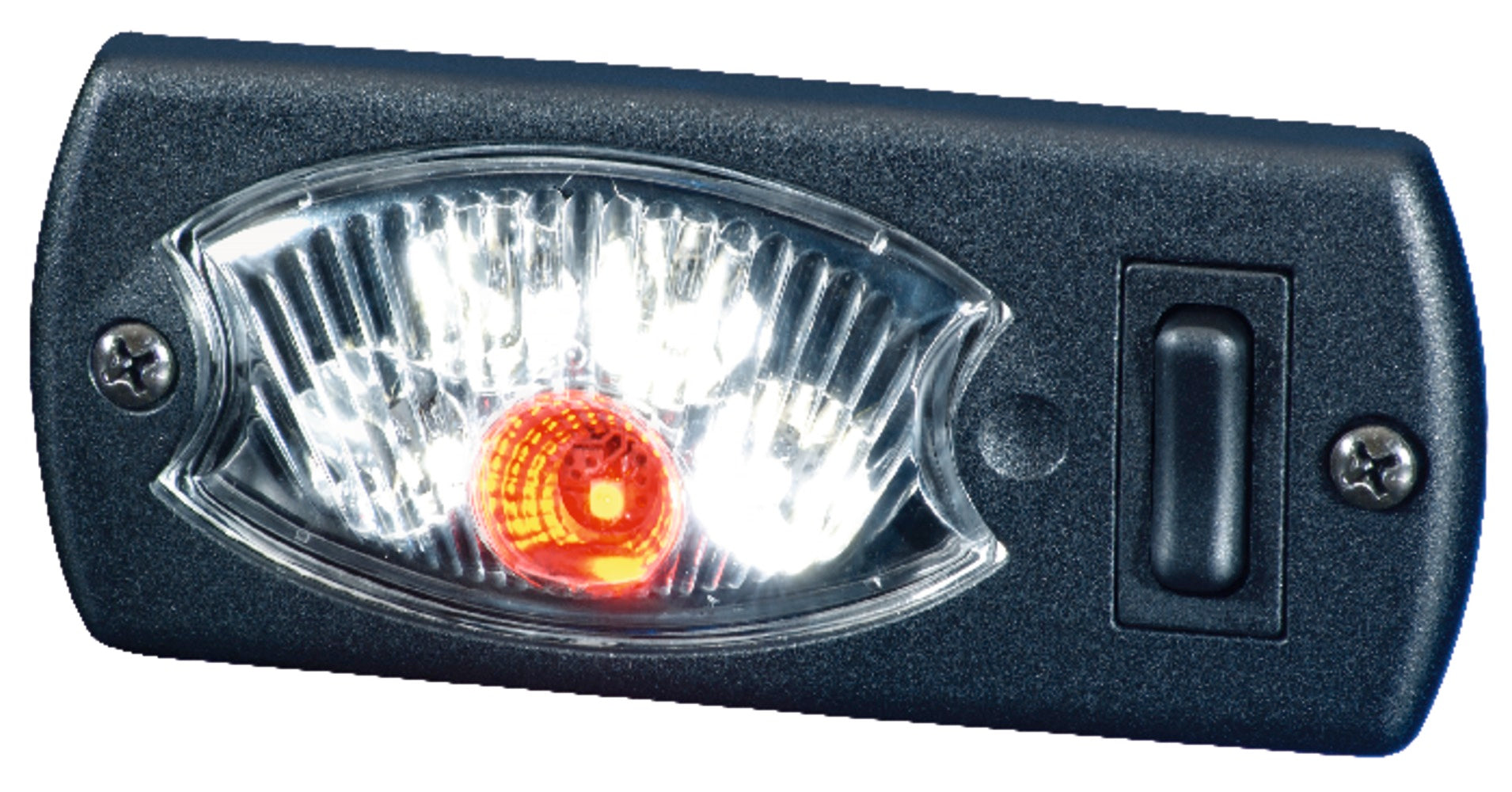

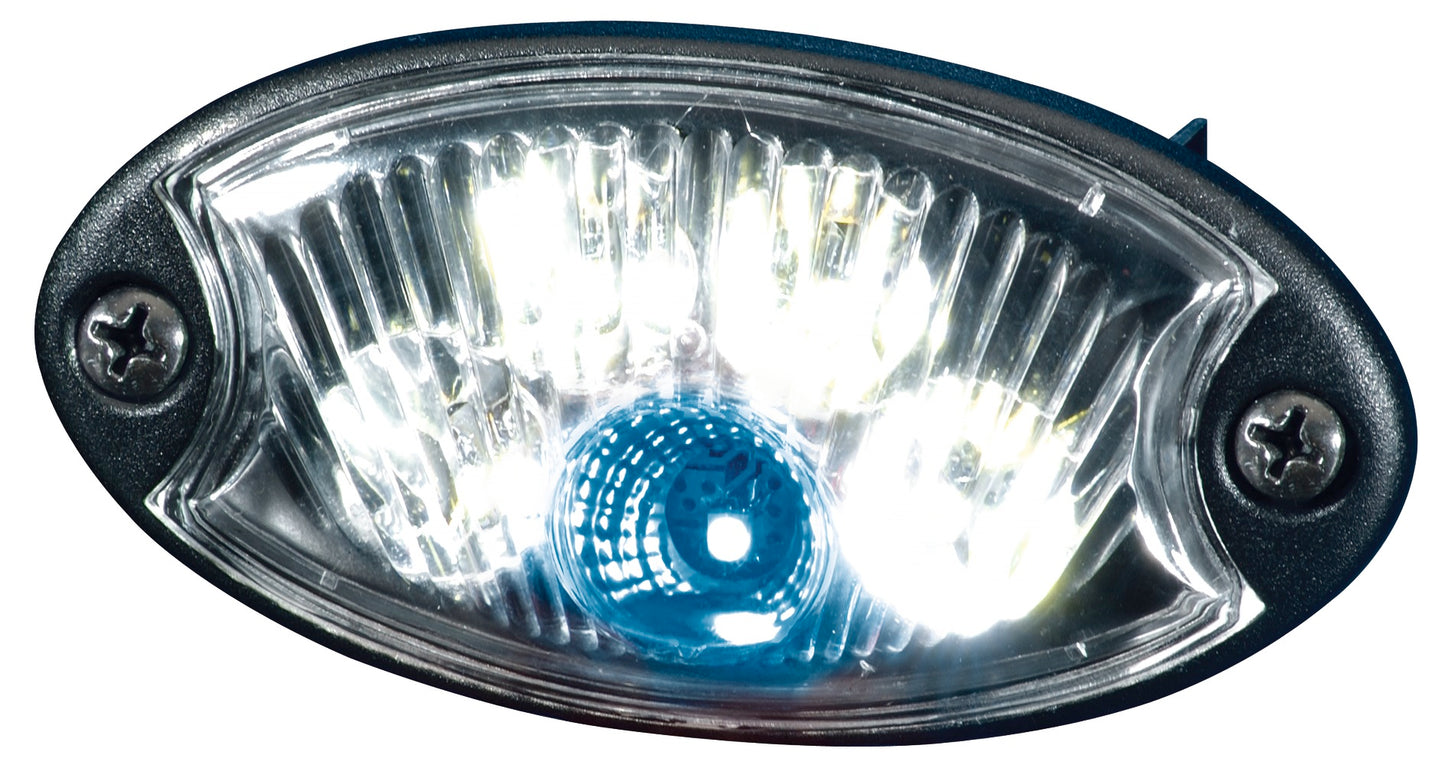

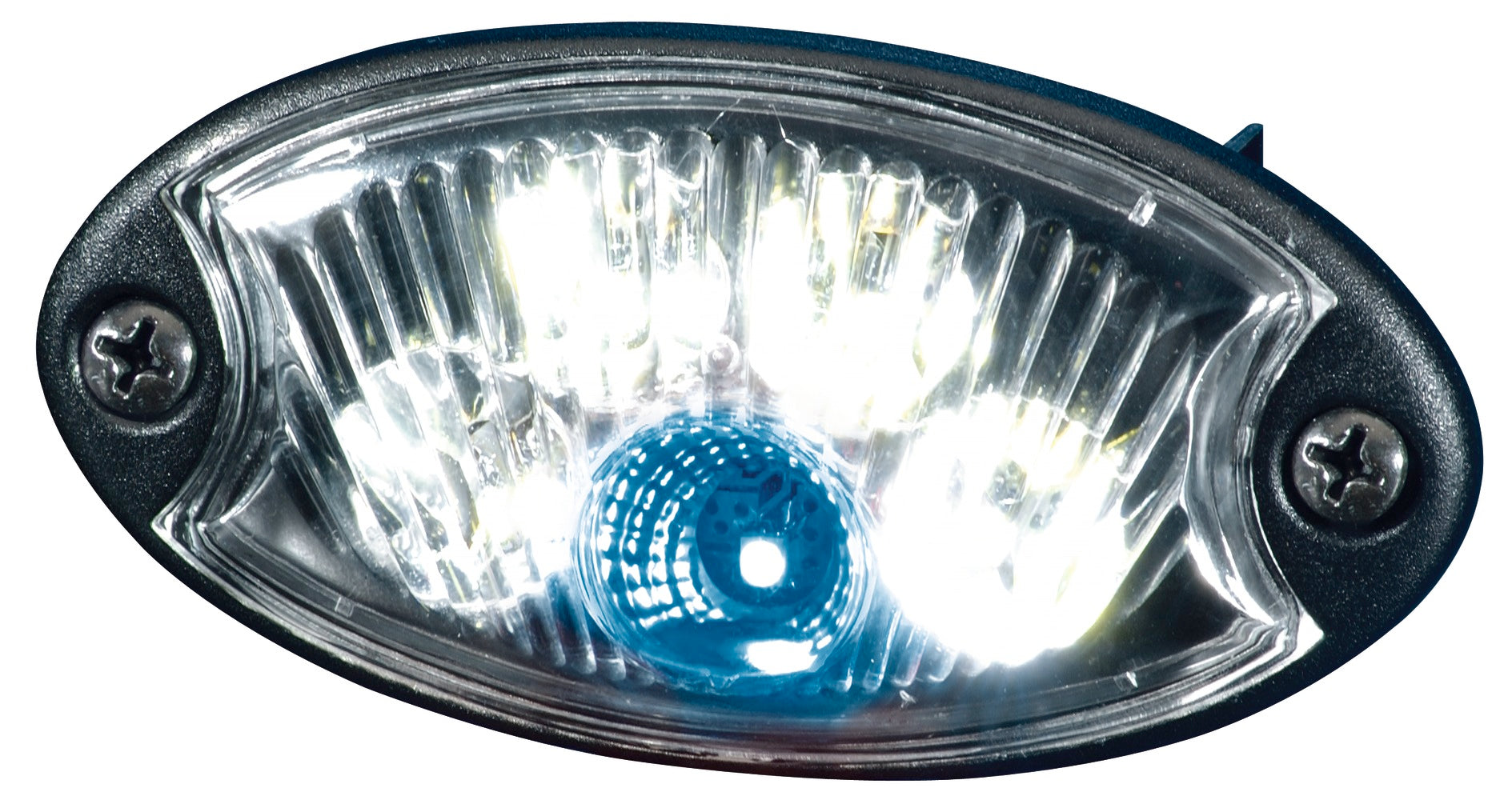

The Mini OvalLED indoor lamp offers optimum light output thanks to the use of 4 LEDs. The product can have power LEDs or standard LEDs. In addition, ambient lighting can be achieved via a separate switch for a red (or blue) LED. The crystal-clear plexiglas lens and the black, shatterproof housing made of impact-resistant and UV-resistant plastic (ABS) complement the design of the lamp. The version without switch and bezel is waterproof and therefore ideal for use in cold and damp environments. The variant with switch offers the convenience of simple and quickly accessible operation. The lamp can be installed using screw mounting or as a flush-mounted version.

  • Optimum light output
  • Ambient lighting via separate switch
  • Particularly shatterproof housing
  • Length: 92mm - Width: 11mm - Height: 47mm - Depth: 28mm
  • Housing Colour: Black - Frame Colour: Black - Light functions: 1 - with cabin light - Lamp Type: LED
  • fulfils ECE standard: R10 - Prot.type (IP Code): IP40
  • with circuit closer switch - with frame

Item Attributes:
Mounting Type: Fitting
Light Design: LED
Lamp Type: LED
Voltage: 12 V
Fitting Position: Interior
Length: 92 mm
Width: 11 mm
Height: 47 mm
Depth: 28 mm
Light Function: with cabin light
Light functions: 1
Prot.type (IP Code): IP40
fulfils ECE standard: R10
Number of LEDs: 5
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Cable: 150 mm
Switch: with circuit closer switch
Rated Current: 0.3 A
Power consumption: 1.2 W
Supplementary Article/Supplementary Info 2: with frame
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AEBI 44905361; BLUECAR T0840-05253; CLAAS 4-48000001270; IVECO 2120601086; LINDNER 3010007; REFORM 900530250; TEREX T120436; WIESMANN 8900-0001-0016-00; YANMAR 5350661308
