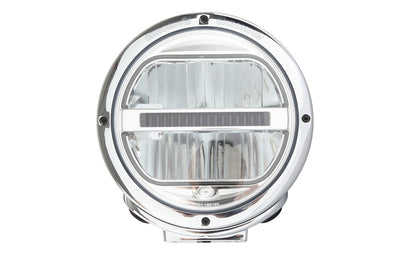

HELLA LED-Spotlight - Luminator LED - 24/12V 1F8016560-031
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

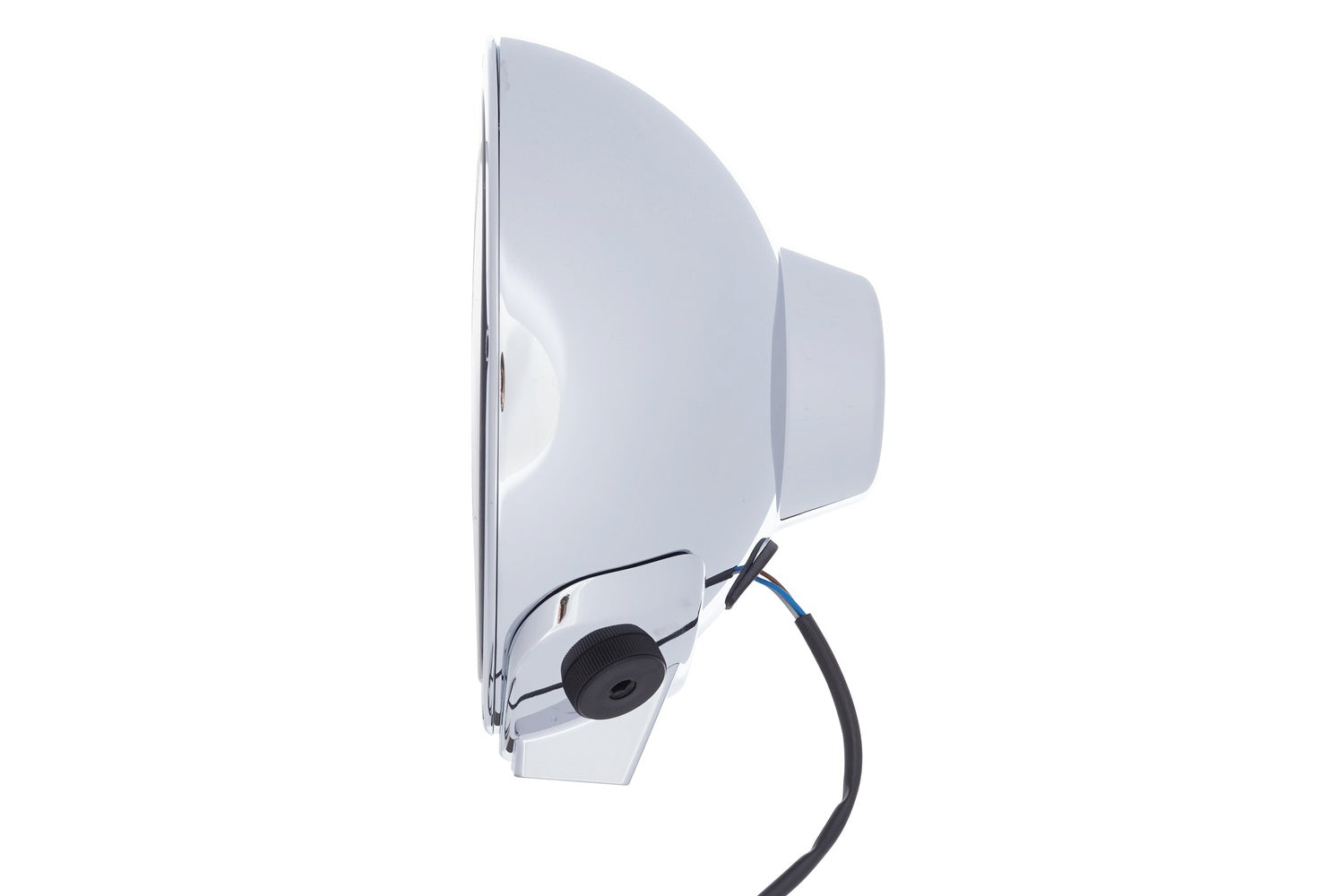

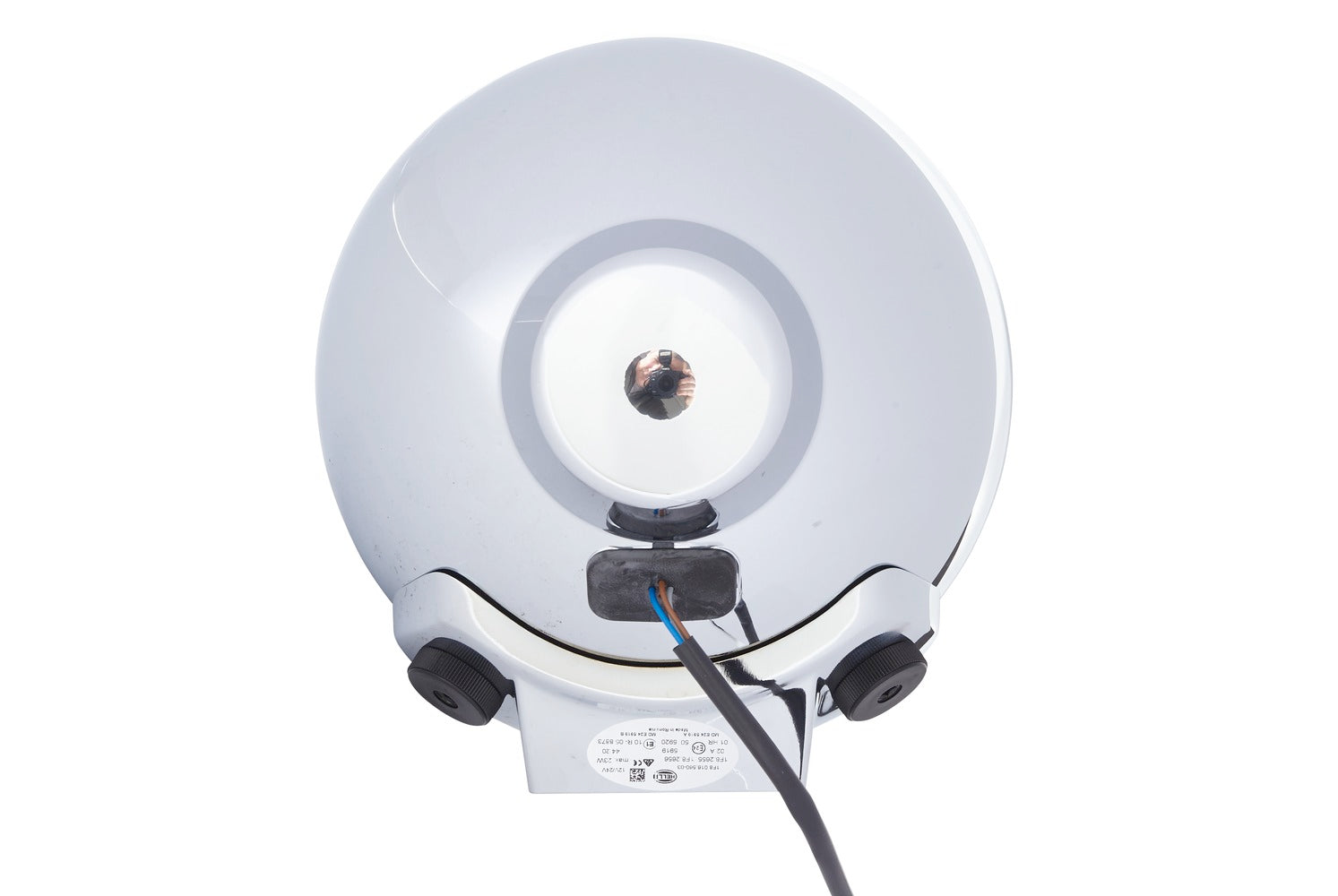

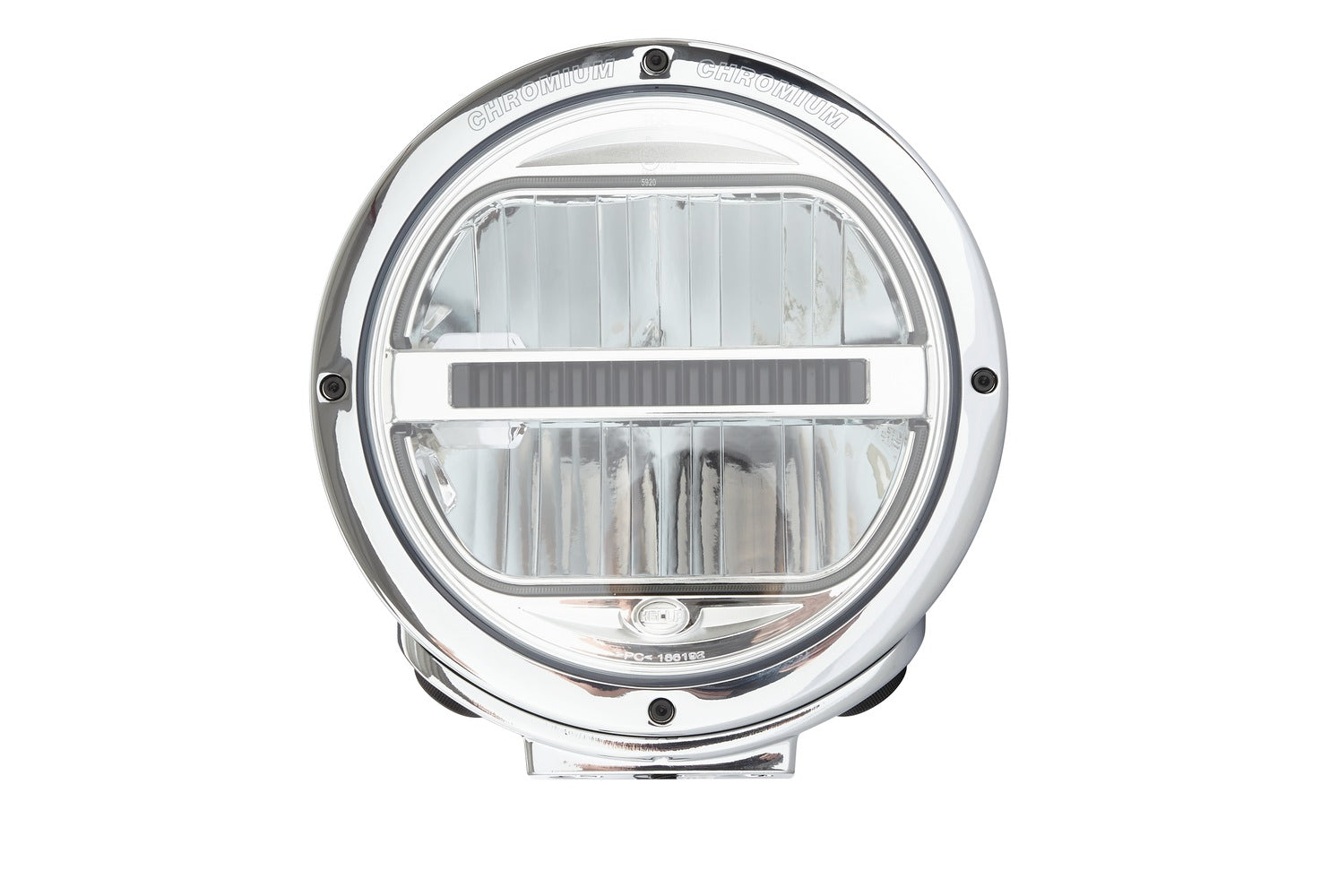

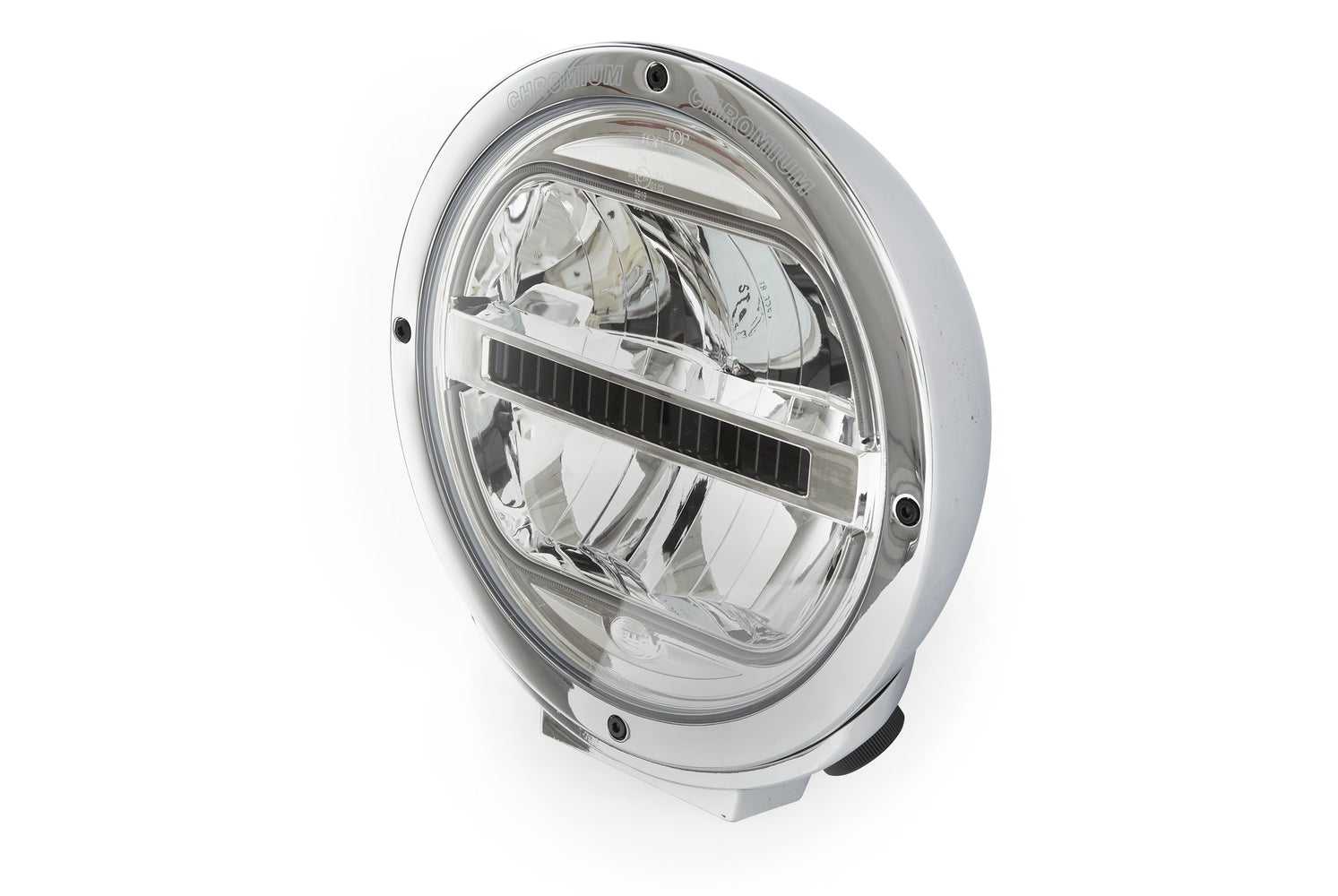

LED-Spotlight - Luminator LED - 24/12V - round - Reference number: 50 - Clear diffusing lens - Crystal clear - Cable: 800mm - left/right
HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.
- Auxiliary driving lamps with future-oriented look using the latest LED technology
- The striking night design is realised by the LED position light with characteristic hexagonal contour design
- Delay-free light signal thanks to attention-grabbing flasher function
- The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
- High-quality, robust, full-metal headlamp with die-cast zinc housing and mounting bracket
- Width: 222mm - Height: 222mm - Depth: 131mm - Fitting Depth: 90mm - Overall Height: 232mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without top
- Light functions: 2 - with position light (LED)/with high beam (LED)
Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: left / right
Height: 222 mm
Overall Height: 232 mm
Width: 222 mm
Depth: 131 mm
Fitting Depth: 90 mm
Light Function: with high beam (LED) / with position light (LED)
Light functions: 2
fulfils ECE standard: R10 / R112 / R7
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC) / without top
Reference number: 50

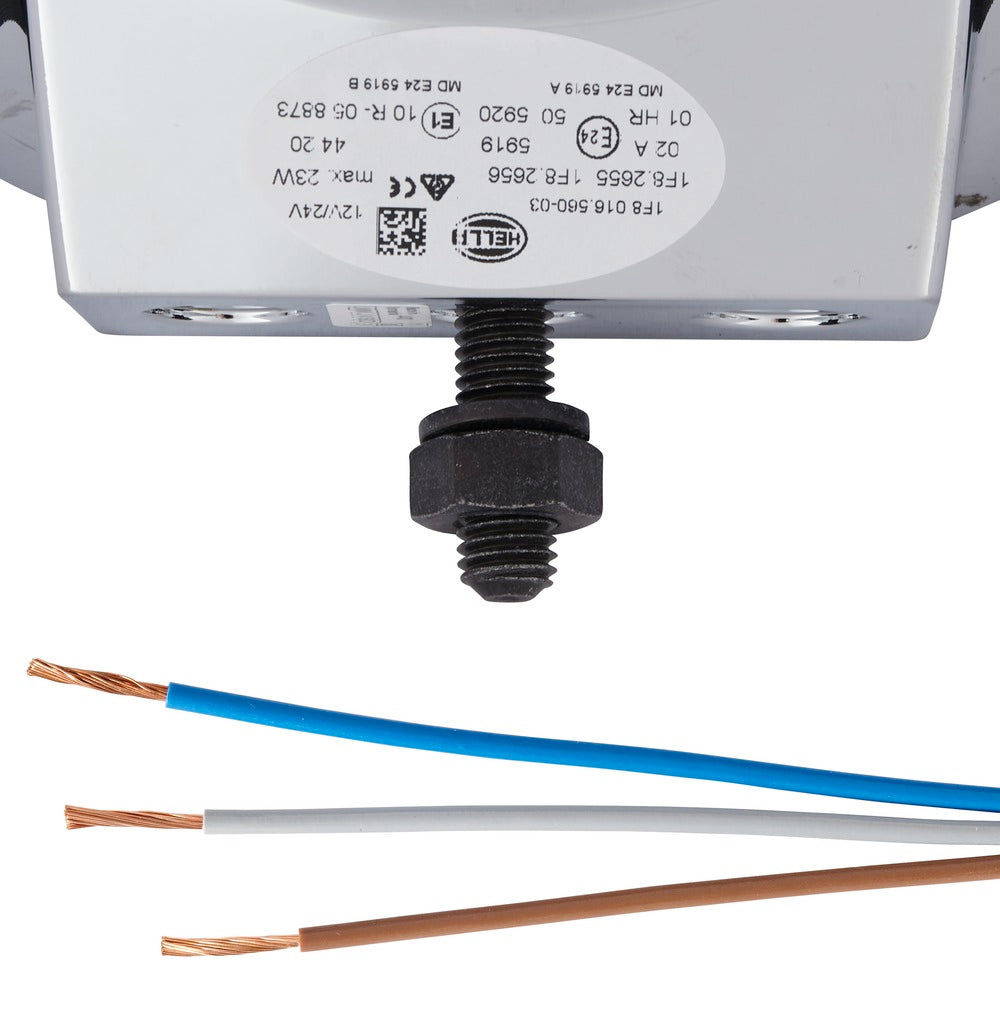

Cable: 800 mm
Housing Colour: chrome
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
OE references: DAF 1544975; SCANIA 2860454
