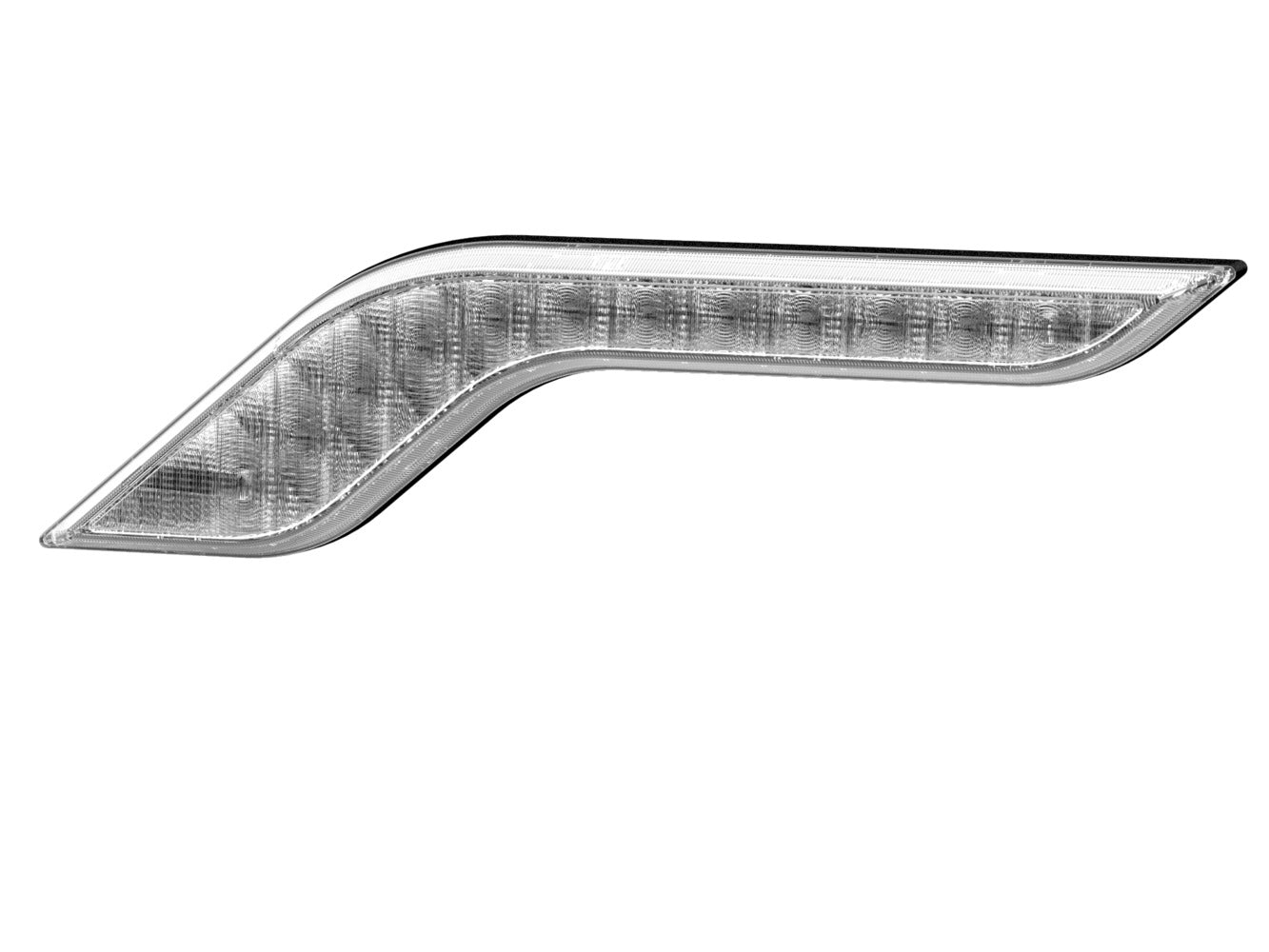

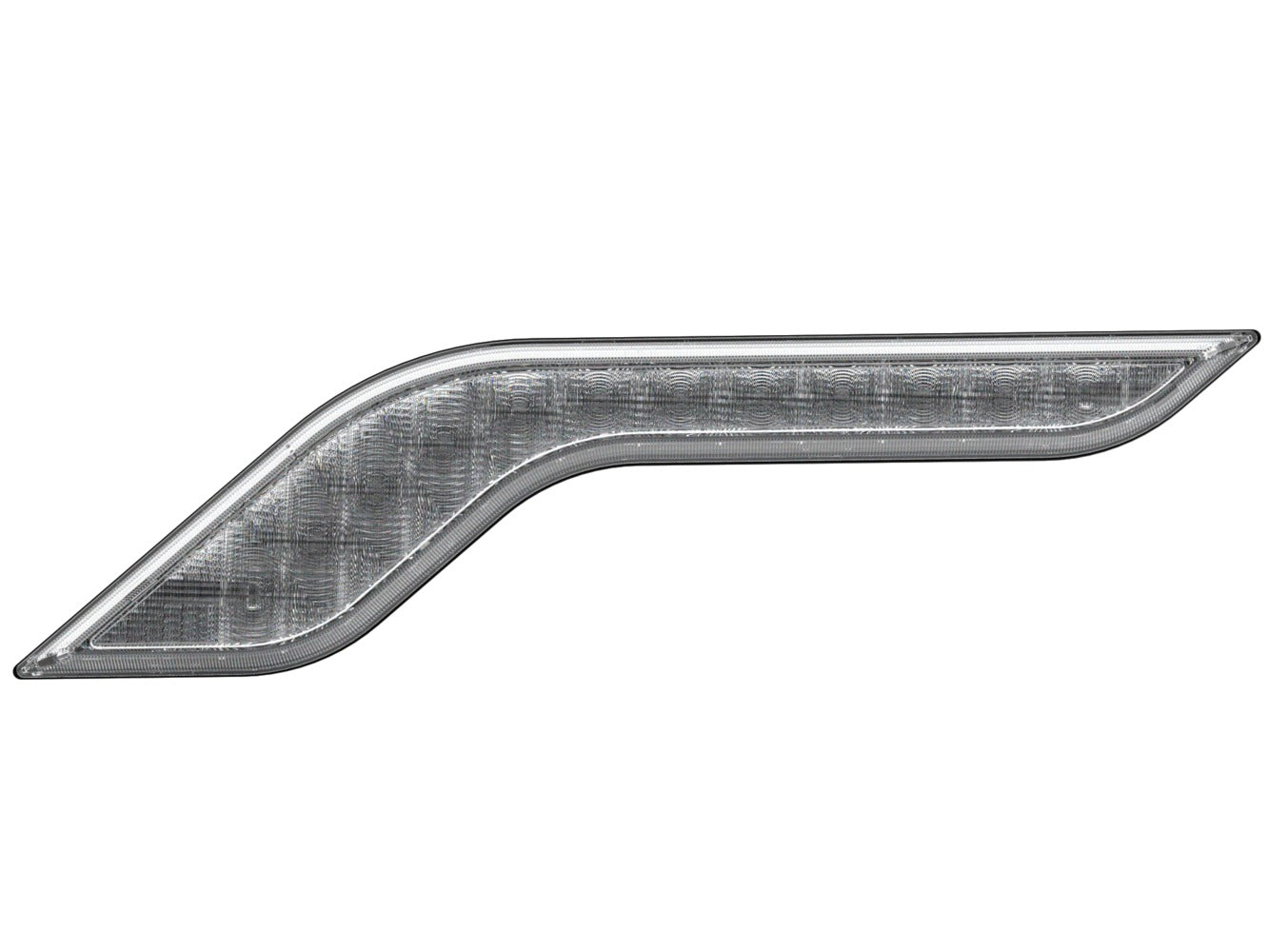

HELLA LED-Warning Light - Shapeline Style - 12/24V - yellow (amber) 2XW013493-011

LED-Warning Light - Shapeline Style - 12/24V - yellow (amber) - Bolted - Plug: AMP - 2-pin connector - Left Rear

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Lamp Type: LED
• Light functions: 1 - with indicator (LED) - Lens Colour: grey - LED colour: yellow (amber) - Fitting Position: Left Rear - Fastening Type: for horizontal fastening

Item Attributes:
Mounting Type: Bolted
Fastening Type: for horizontal fastening
Fitting Position: Left Rear
Lamp Type: LED
Light Function: with indicator (LED)
Light Design: LED
Light colour: yellow (amber)
LED colour: yellow (amber)
Voltage: 24 V / 12 V
Length: 384.4 mm
Width: 104 mm
Height: 25 mm
Plug: AMP
Number of pins: 2 -pin connector
Housing Colour: black
Lens Colour: grey
Light functions: 1
SVHC: 7439-92-1; Lead
Registration Type: SAE
Assembly by qualified personnel required!
